C391PM datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> C391PM

Preview

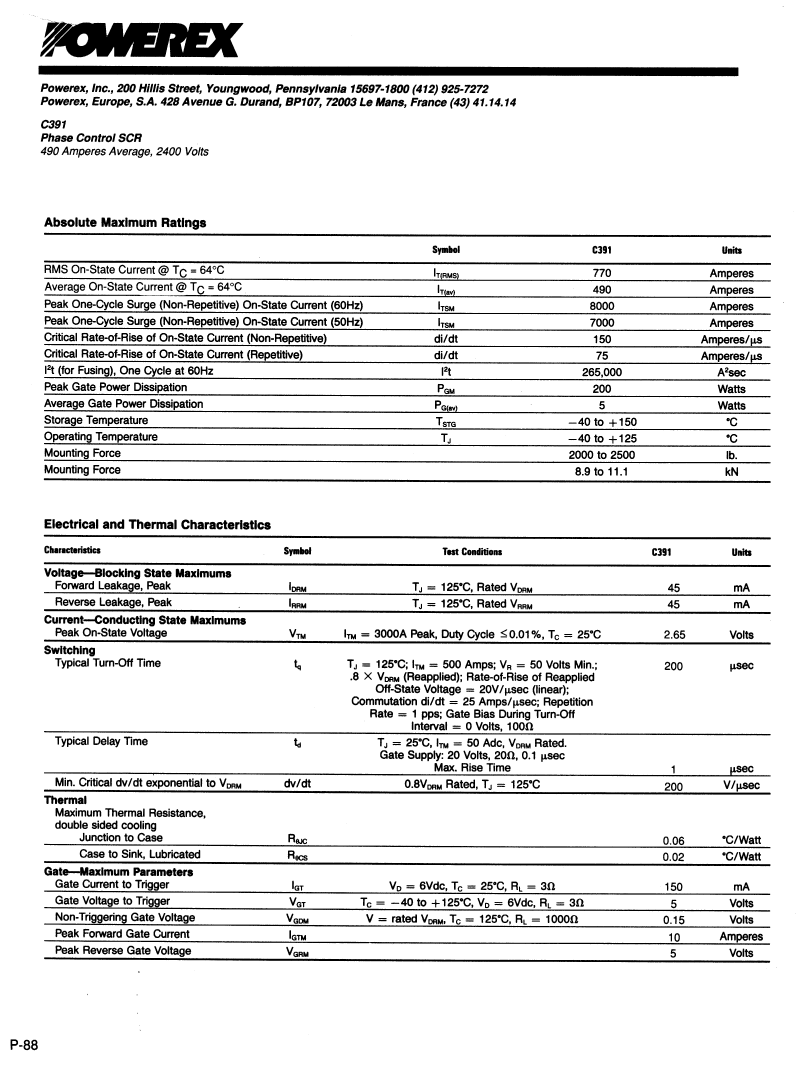

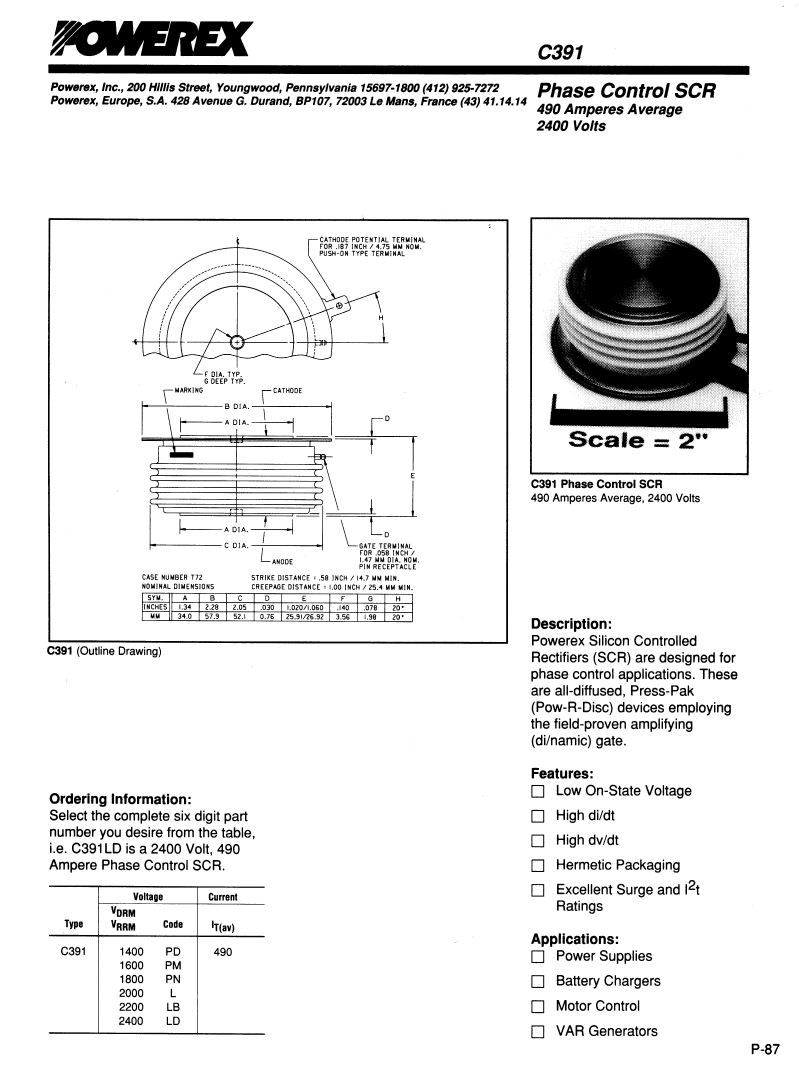

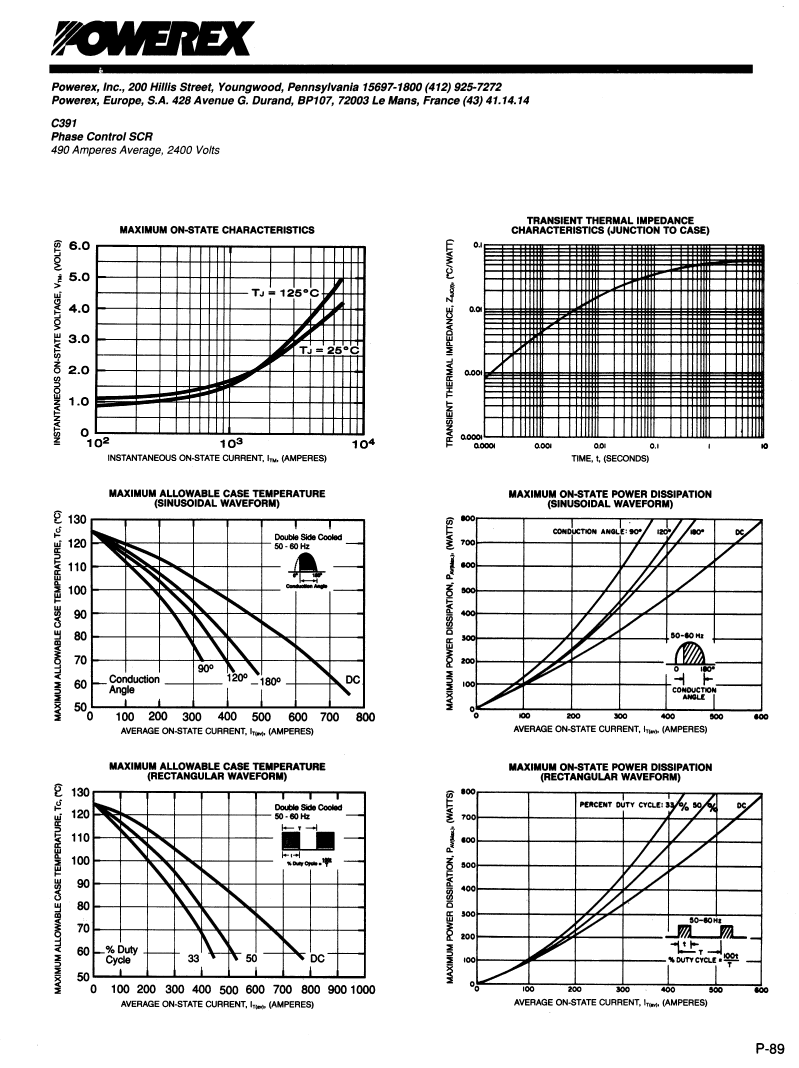

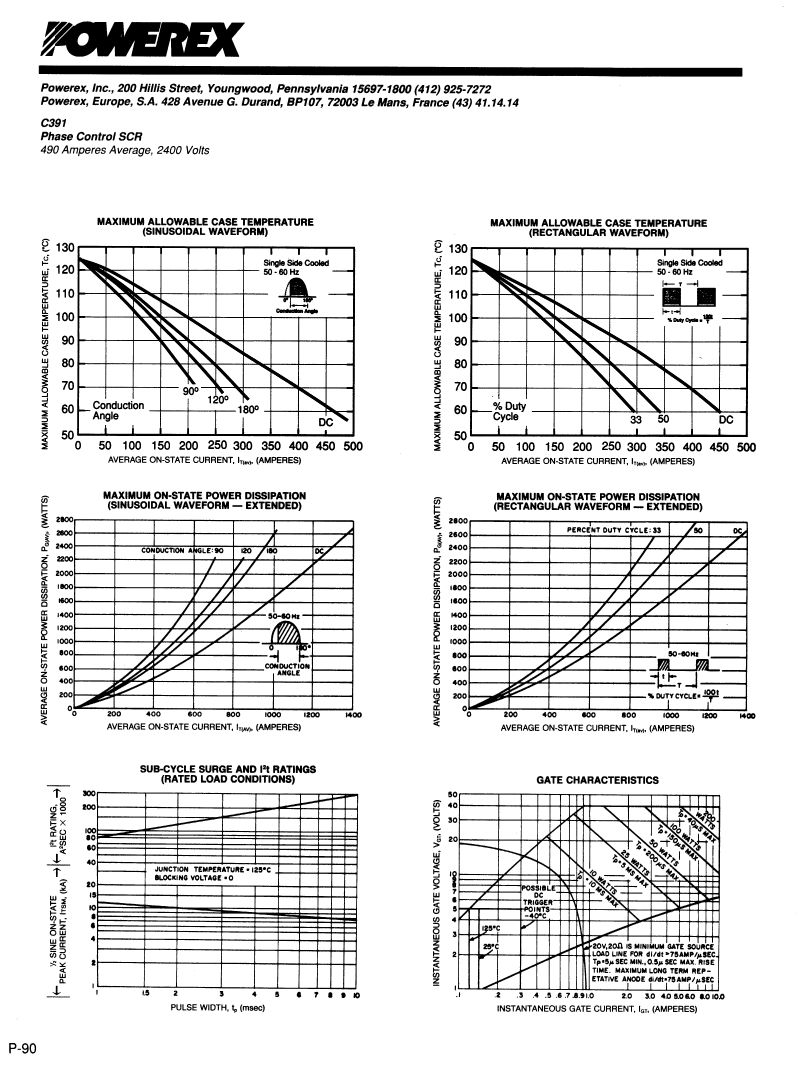

C391PM: DescriptionPhase Control SCR 490 Amperes Avg 1300-1800 Volts; CategoryAnalog mixed-signal IC Trigger device; File Size817KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

C391PM Overview

Phase Control SCR 490 Amperes Avg 1300-1800 Volts

C391PM Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	200 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	5 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	45 mA
On-state non-repetitive peak current	8000 A
Number of components	1
Number of terminals	3
Maximum on-state current	490000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	770 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

C391PM Related Products

	C391PM	C391PD	C391PN	C391PC	C391PE	C391PS
Description	Phase Control SCR 490 Amperes Avg 1300-1800 Volts	Phase Control SCR 490 Amperes Avg 1300-1800 Volts	Phase Control SCR 490 Amperes Avg 1300-1800 Volts	Phase Control SCR 490 Amperes Avg 1300-1800 Volts	Phase Control SCR 490 Amperes Avg 1300-1800 Volts	Phase Control SCR 490 Amperes Avg 1300-1800 Volts
package instruction	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown	unknown	unknown	unknow	unknown	unknown
Nominal circuit commutation break time	200 µs	200 µs	200 µs	125 µs	125 µs	125 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	5 V	3 V	5 V	3 V	3 V	3 V
JESD-30 code	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum leakage current	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA
On-state non-repetitive peak current	8000 A	8000 A	8000 A	8000 A	8000 A	8000 A
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	2	2	2
Maximum on-state current	490000 A	490000 A	490000 A	490000 A	490000 A	490000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-45 °C	-45 °C	-45 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	770 A	770 A	770 A	769.3 A	769.3 A	769.3 A
Off-state repetitive peak voltage	1600 V	1400 V	1800 V	1300 V	1500 V	1700 V
Repeated peak reverse voltage	1600 V	1400 V	1800 V	1300 V	1500 V	1700 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1
Maker	POWEREX	POWEREX	POWEREX	-	POWEREX	POWEREX
