DPS802 datasheet, PDF - EEWORLD Datasheet

DPS802: DescriptionPIANO SWITCH,RIGHT ANGLE,SPST,ON-OFF,2,PC TAIL TERMINAL,4; CategoryMechanical and electronic products switch; File Size279KB，2 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric View All

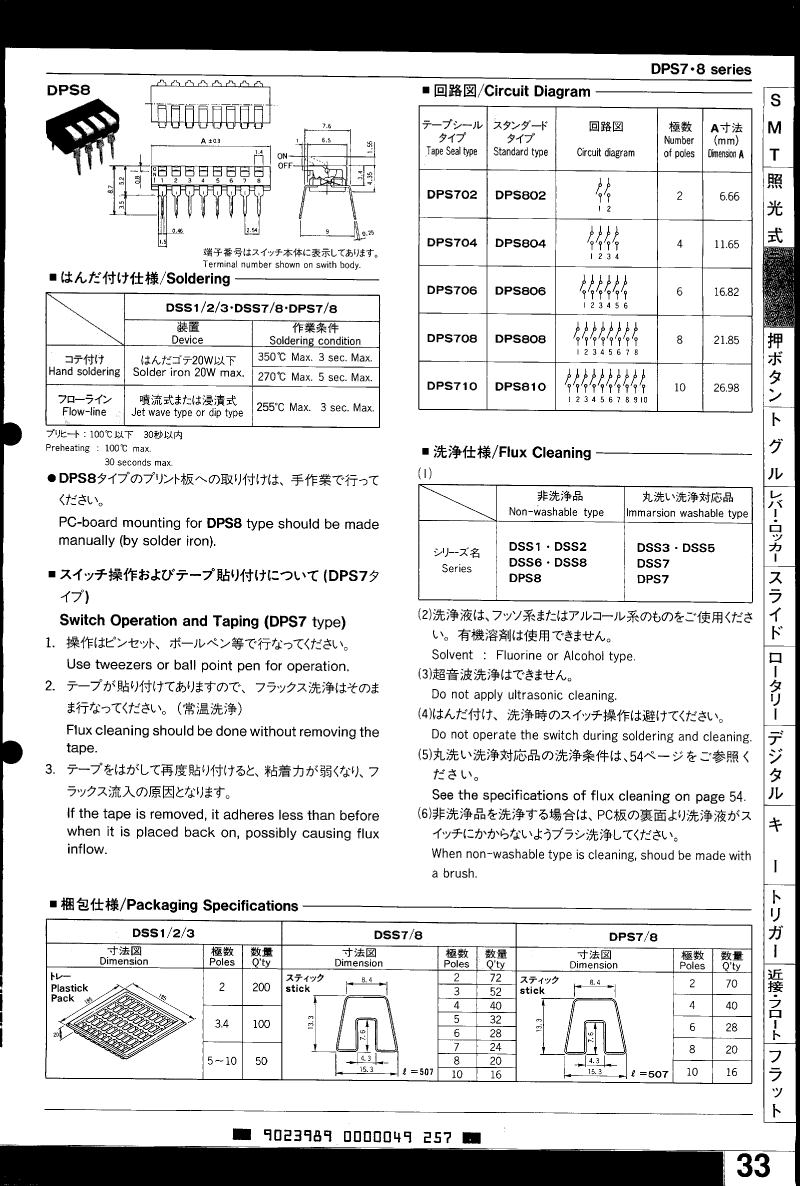

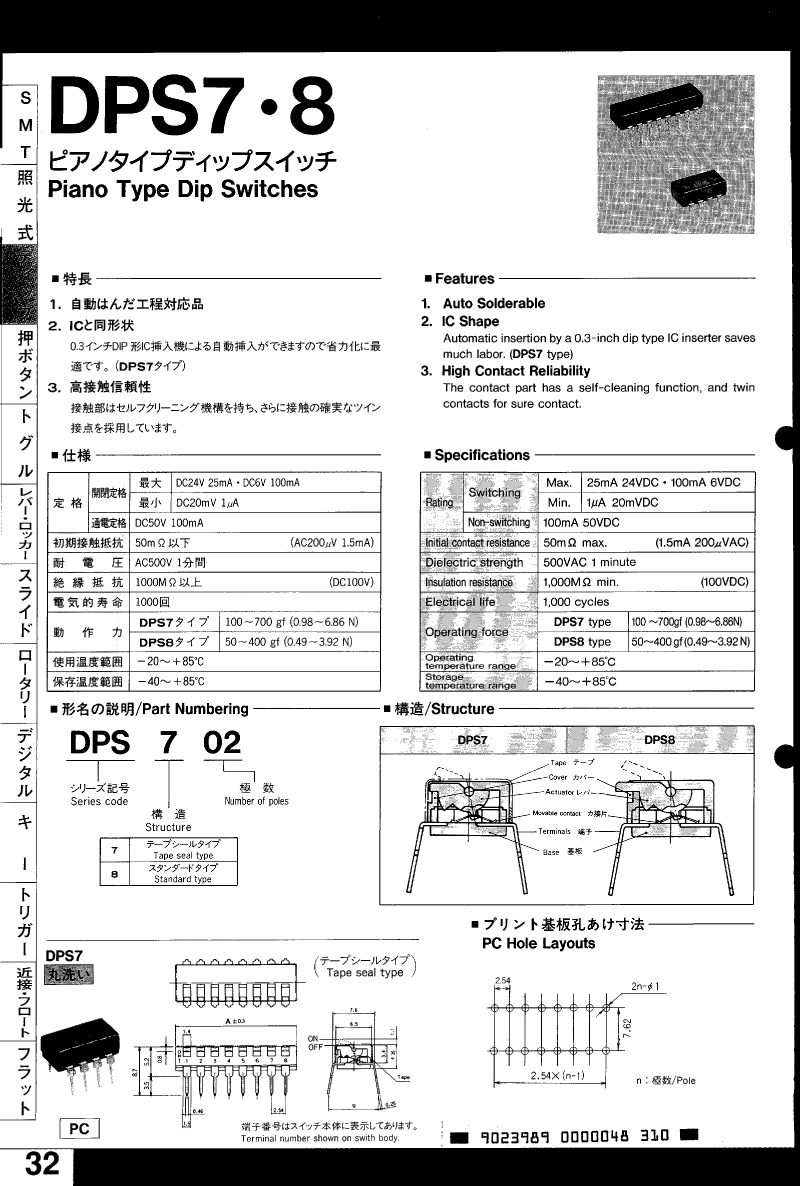

DPS802 Overview

PIANO SWITCH,RIGHT ANGLE,SPST,ON-OFF,2,PC TAIL TERMINAL,4

Parameter Name	Attribute value
Objectid	312032032
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.061 inch
Actuator type	PIANO
Other features	STANDARD TYPE
body width	6.5024 mm
body height	4.3434 mm
Body length or diameter	6.6548 mm
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	ON-OFF
Contact resistance	0.05 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	1000 Cycle(s)
Insulation resistance	1000000000 Ω
Manufacturer's serial number	DPS
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	4
Solderability	HAND
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal length	0.171 inch
Termination type	SOLDER
Washability	SOLVENT
