CRR-105-SL100-99/R: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric View All

CRR-105-SL100-99/R Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle

CRR-105-SL100-99/R Parametric

Parameter Name	Attribute value
Objectid	306855025
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.114 inch
subject depth	0.167 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	5

Preview

Download Datasheet

View All

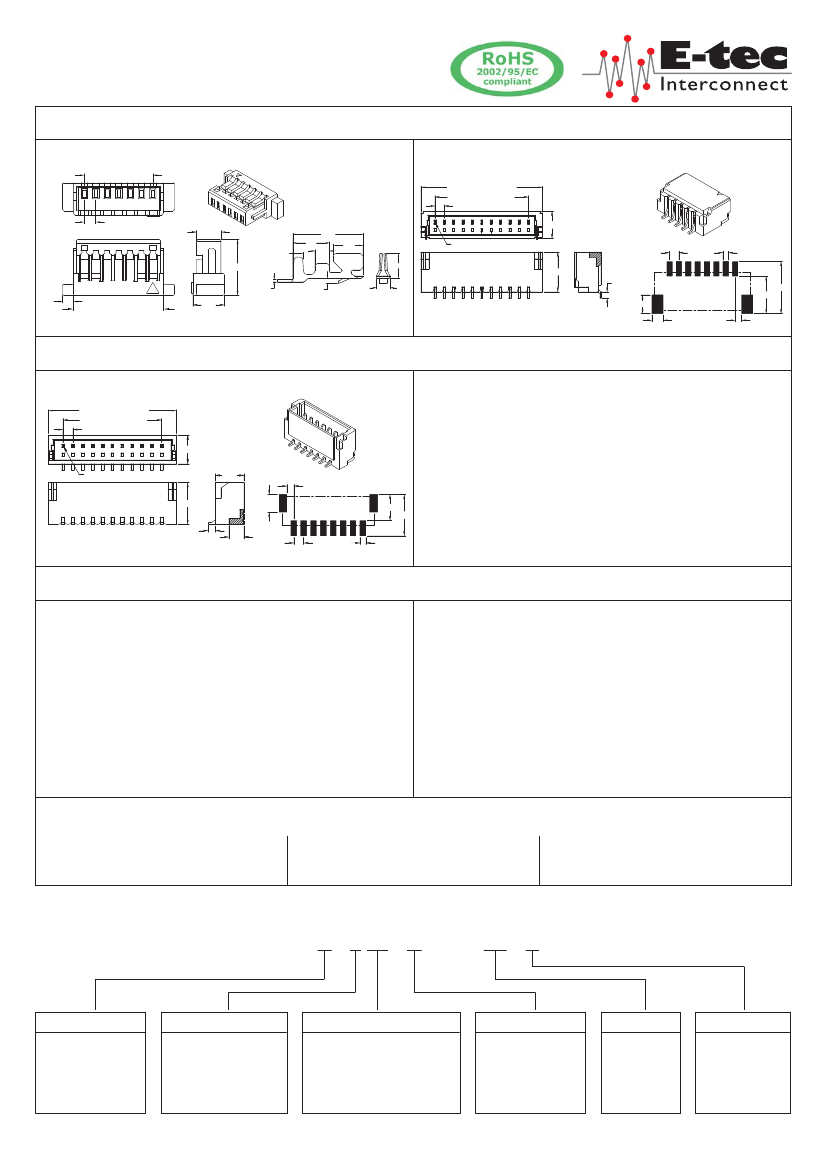

1.00mm Crimp Contact Connectors

Fully Shrouded

L - Type

1.00xNo. of Pos.-1.00

1.00xNo. of Pos.+3.00

1.00xNo. of Pos.-1.00

1.00

2.10

0.50

3.90

2.00

8.00

1.60

1.35

female plug

(AWG 28 to 32 )

SL - Type

-SMT- male (side entry)

2.90

Pin 1

1.00

4.25

0.70

4.00

2.00

5.55

0.60

5.00

0.12

0.30

0.80

1.00

1.00xNo. of Pos.+1.00

2.80

Order Code housing:

CRF-1xx-L100

Contact:

CRF-999-L100-99

Order Code:

CRR-1xx-SL100-99/X

1.20

0.70

Fully Shrouded

SL - Type

1.00xNo. of Pos.+3.00

1.00xNo. of Pos.-1.00

1.00

2.90

-SMT- male (top entry)

Pin 1

2.90

0.70

4.25

2.00

2.65

4.20

0.70

1.50

1.00

0.60

Order Code:

CRS-1xx-SL100-99/R

SPECIFICATIONS

Current rating

Insulator resistance

Voltage rating

1A

500 MΩ min.

50 V AC max.

Contact resistance

Withstanding voltage

Operating temp.

20 mΩ max.

500 V AC

-25°C to +85°C

Contact material

Insulator material

PCB Thickness

Copper alloy

Nylon UL 94 V-0

1.60 mm (.063“)

How to order

CR X - x xx - X 100 -

99

/ X

Type

F

= Female

R

= R/A male

S

= Straight male

Rows

1

= single row

9

= loose contacts

Nbr of contacts

02 - 20

= L, SL - type

99

= loose contacts

MOQ: 10K / reel

Execution

L

= L - type

SL

= SL - type

Plating

99

= Tin

Option

R

= reel

see dwg above

Other platings

on request
