12200FL111049 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 12200FL111049

12200FL111049: DescriptionBoard Connector, 49 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

12200FL111049 Overview

Board Connector, 49 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

12200FL111049 Parametric

Parameter Name	Attribute value
Objectid	308870944
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.335 inch
body length	2.45 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	122
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	49

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Serie 122

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

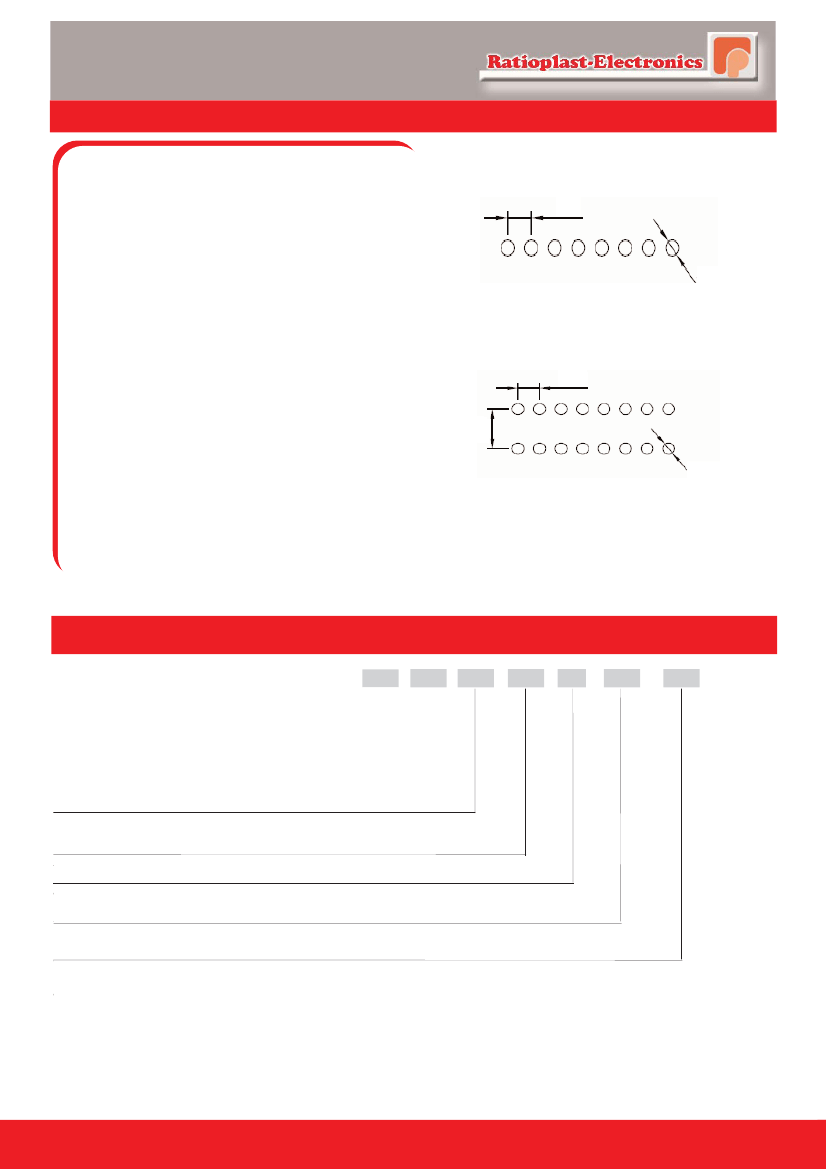

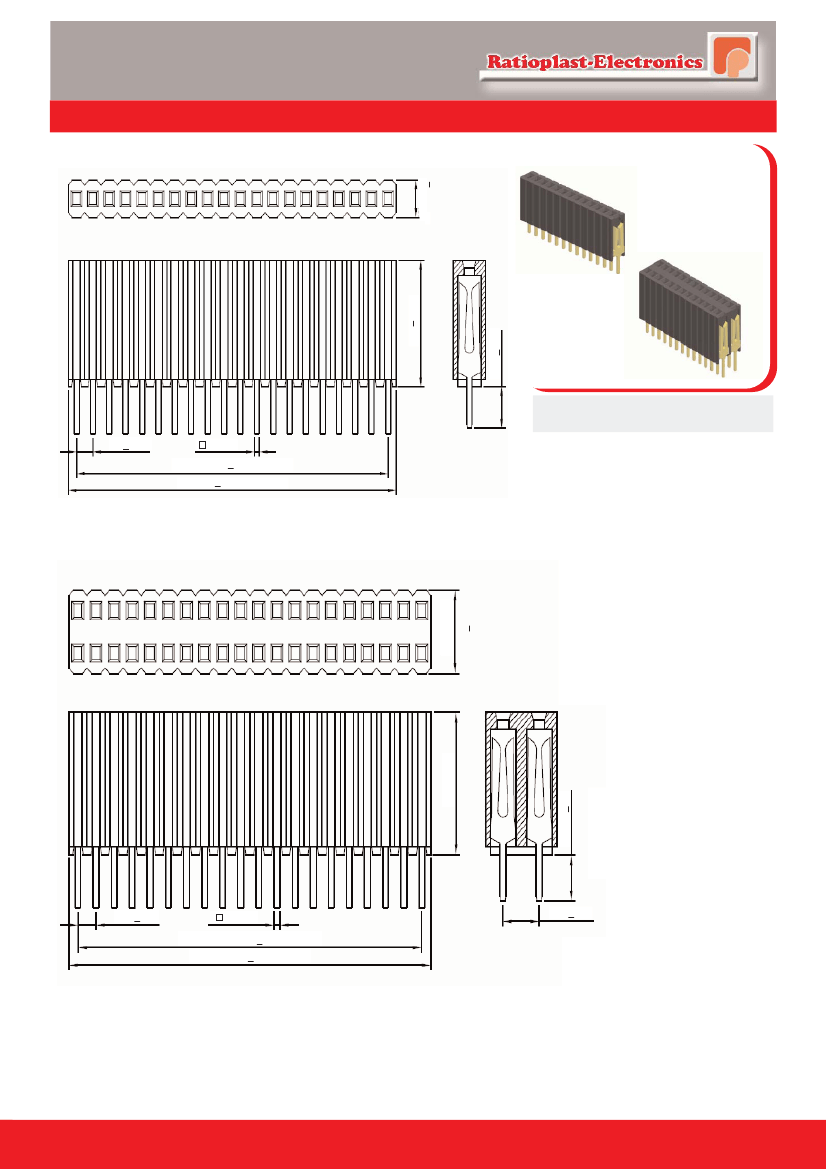

BUCHSENLEISTE

FEMALE HEADER

RASTER 1,27mm für Vierkantstift 0,46mm

PITCH 1,27mm for square contact 0,46mm

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Kupfer

250 V AC

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

1,27

0,7

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Nylon 6T

High temperature, UL94-V0

Black

Copper alloy

250 V AC

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

1,27

2,54

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

122

XXX

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

1 =Stehend - Standing

1 = 1,27 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (003... 050) ( 1- reihig - 1- row))

(006... 100) ( 2- reihig - 2- row))

Seite: 64

Version 1 / 2011

www.ratioplast.com
