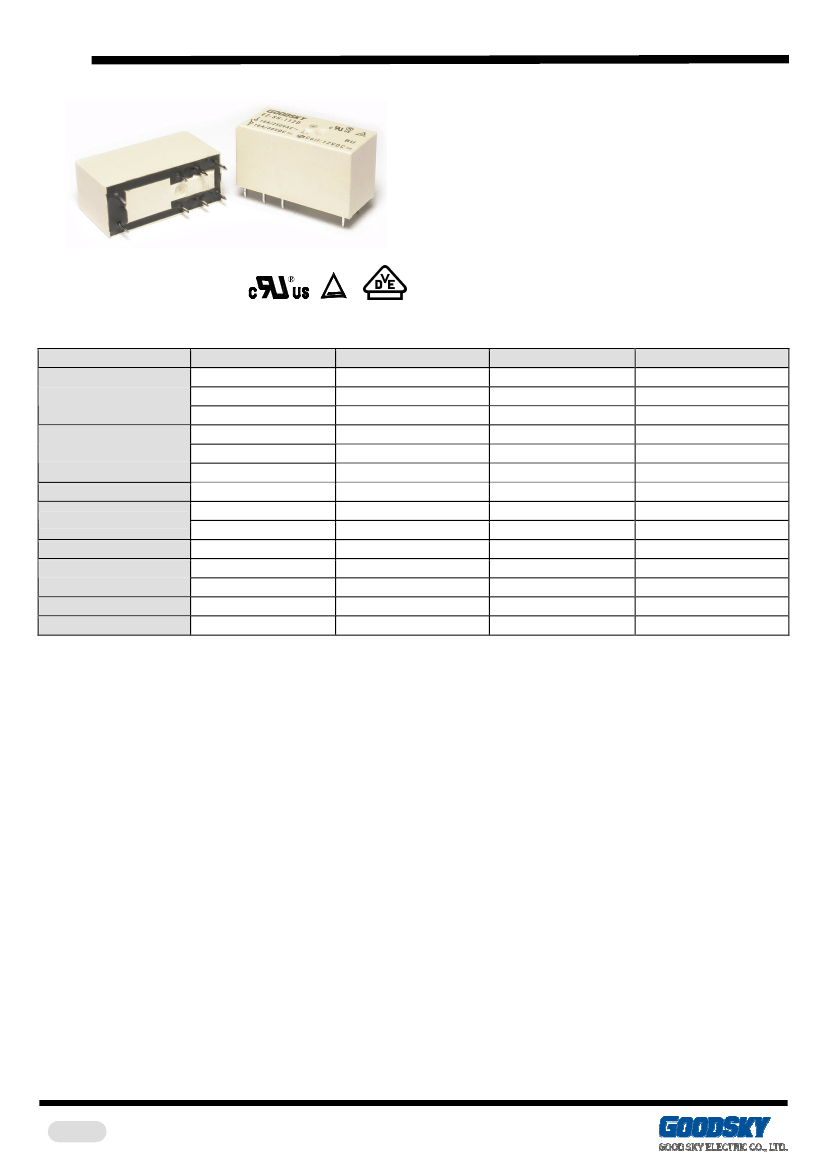

EZ
Main Feature
1.
2.
3.
4.
5.
6.
7.
High switching current up to 20A in small size.
Low power consumption; AC/DC coil available.
Proper insulation distance with 5,000VAC dielectric
strength.
UL Class F insulation available.
In accordance with IEC 60335-1 and IEC 60730-1.
Halogen Free series available.
Comply with RoHS and REACH regulations
Contact Rating
Load Type
Rated Load (Resistive)
EZ (DM/DB)
16A 250 VAC
20A 120 VAC
16A 30VDC
5 FLA /30 LRA 250 VAC
EZ (D)
16A 250 VAC
20A 120 VAC
16A 30VDC
5 FLA /30 LRA 250 VAC
EZ (AM/AB)
16A 250 VAC
20A 120 VAC
16A 30VDC
5 FLA /30 LRA 250 VAC
EZ (A)
16A 250 VAC
20A 120 VAC
16A 30VDC
5 FLA /30 LRA 250 VAC
1/2 HP 250VAC
Pilot Duty B300/C300
Rated Carrying Current
20A
AC: 250V
Max. Allowable Voltage
DC: 300V
Max. Allowable Current
20A
Max. Allowable
4,000VA
Power Force
480W
Contact Material
Ag Alloy
Contact Form
SPST
Max Allowable Voltage: 300VDC@0.3A
Contact capacity
1/2 HP 250VAC
Pilot Duty B300/C300
20A
AC: 250V
DC: 300V
20A
4,000VA
480W
Ag Alloy
SPDT
1/2 HP 250VAC
Pilot Duty B300/C300
20A
AC: 250V
DC: 300V
20A
4,000VA
480W
Ag Alloy
SPST
1/2 HP 250VAC
Pilot Duty B300/C300
20A
AC: 250V
DC: 300V
20A
4,000VA
480W
Ag Alloy
SPDT
Application
Cooking Appliance, Audio Equipment, Domestic Appliance
and Controlling Equipment…etc.

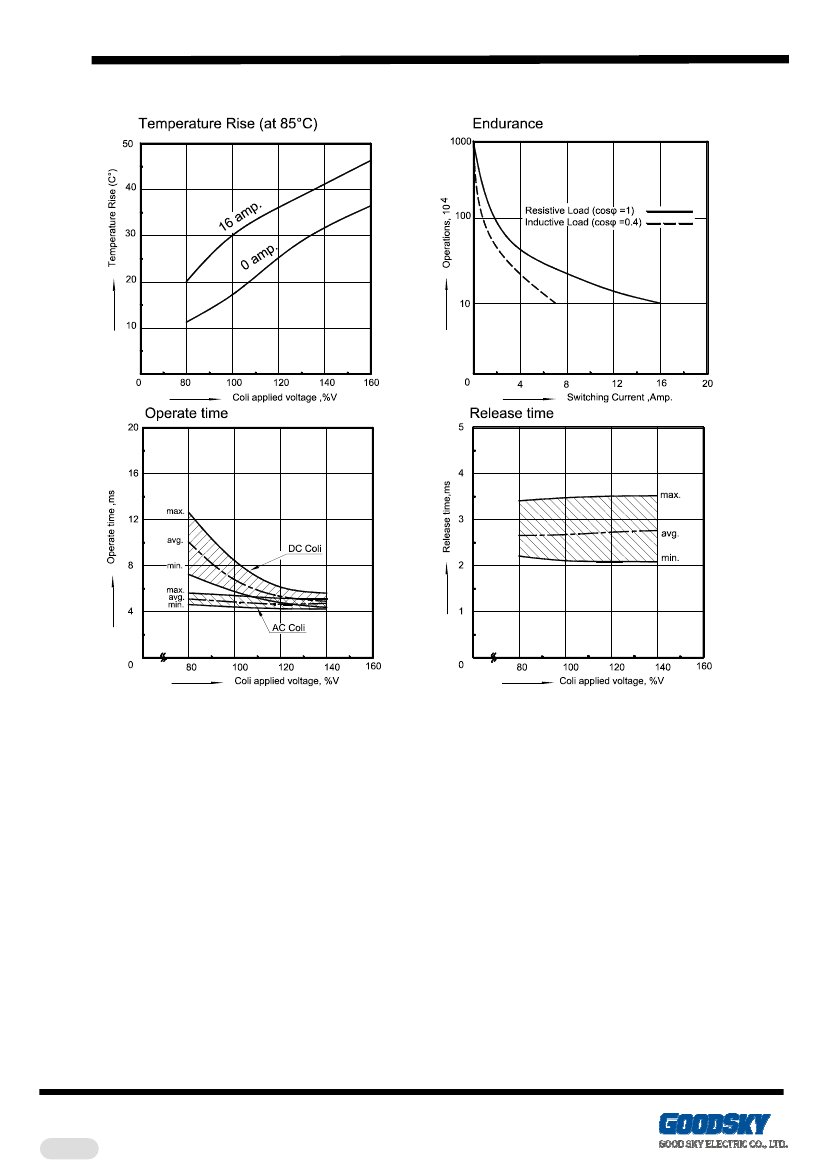

Performance (at Initial Value)
Contact Resistance .............. 100 mΩ Max.@1A,6VDC
Operate Time ....................... 12 mSec. Max.
Release Time ....................... 8 mSec. Max.
Dielectric Strength:
Between Coil & Contact........ 5,000VAC at 50/60 Hz
for one minute
Between Contacts ................ 1,000VAC at 50/60 Hz
for one minute
Surge Strength ..................... 10,000V (between coil
& contact 1.2x50µSec.)
Insulation Resistance ……..100MΩ Min.at
500VDC
Max. On/Off Switching:
Electrical ............................... 6 Cycles per Minute
Mechanical ........................... 300 Cycles per Minute
Temperature Range ............. -40~+85
°C
Humidity Range .................... 45~85% RH.
Coil Temperature Rise ......... 30
°C
Max.
Vibration:
Endurance .............................10 to 55 Hz dual
amplitude width 1.5 mm
Error Operation .....................10 to 55 Hz dual
amplitude width 1.5mm
Shock:
2
Endurance ...........................1,000 m/S
2
Error Operation .....................100 m/S
Life Expectancy:
5
Electrical................................10 Operations at
Rated Resistive Load
7
Mechanical ............................10 Operations at
No load condition
Weight...................................About 12.5 g
Accessories & Sockets
PI-50BE.................................See Page 179
PI-50BE/3..............................See Page 179
PI-50-0 ..................................See Page 181
Safety Standard & File Number
UL & C-UL.............................E141060
TÜV.......................................R50008955
VDE.......................................40009648
CQC……………………………02001002513
