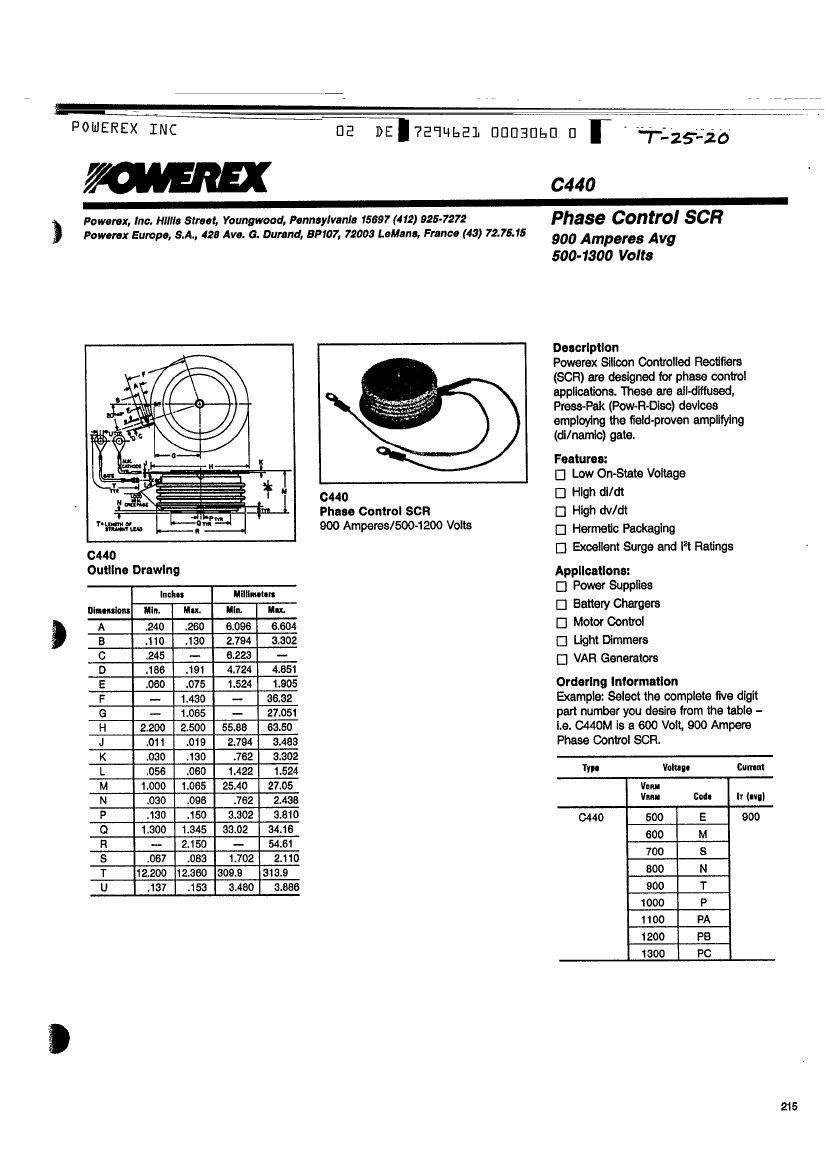

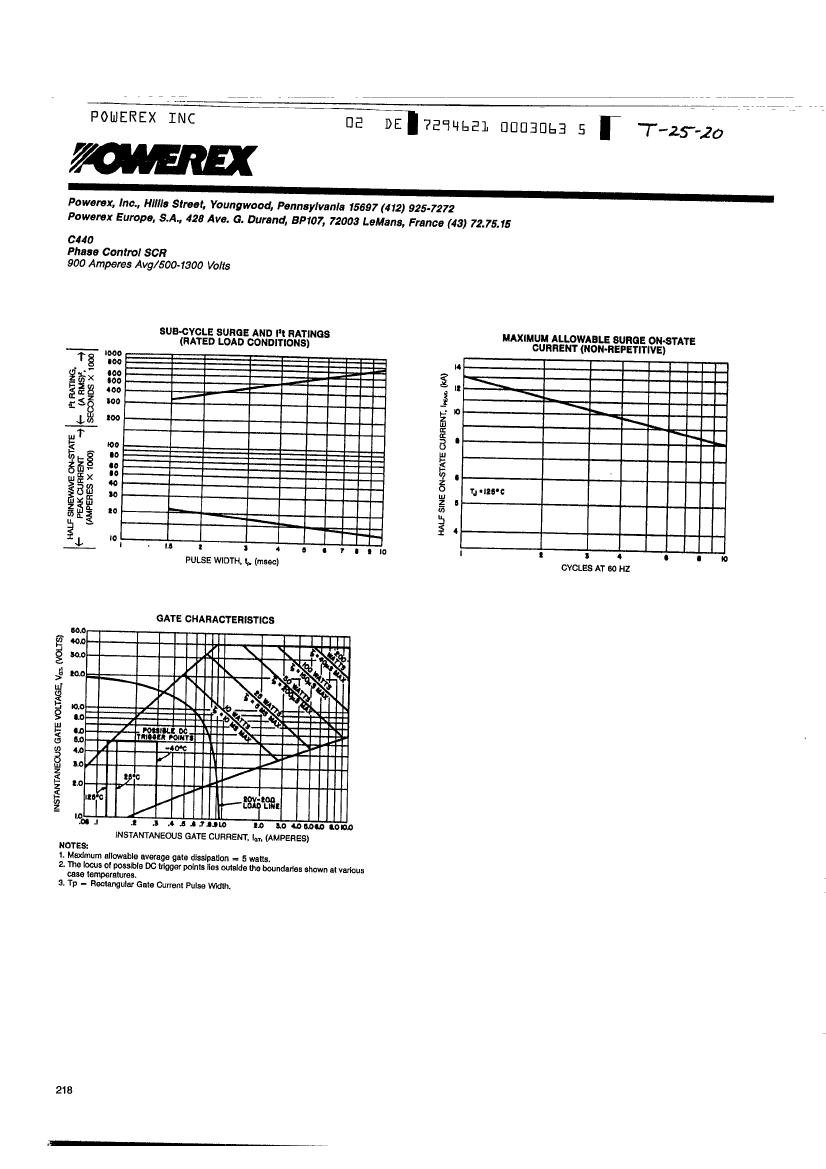

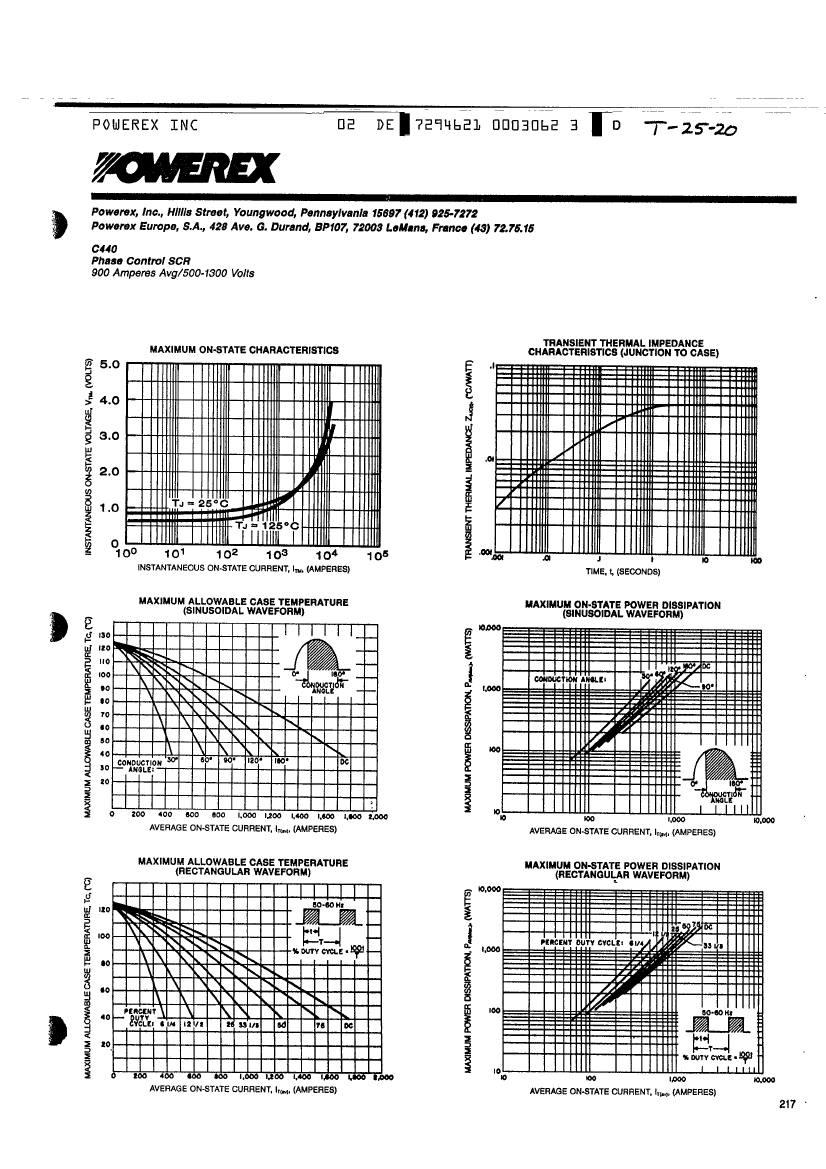

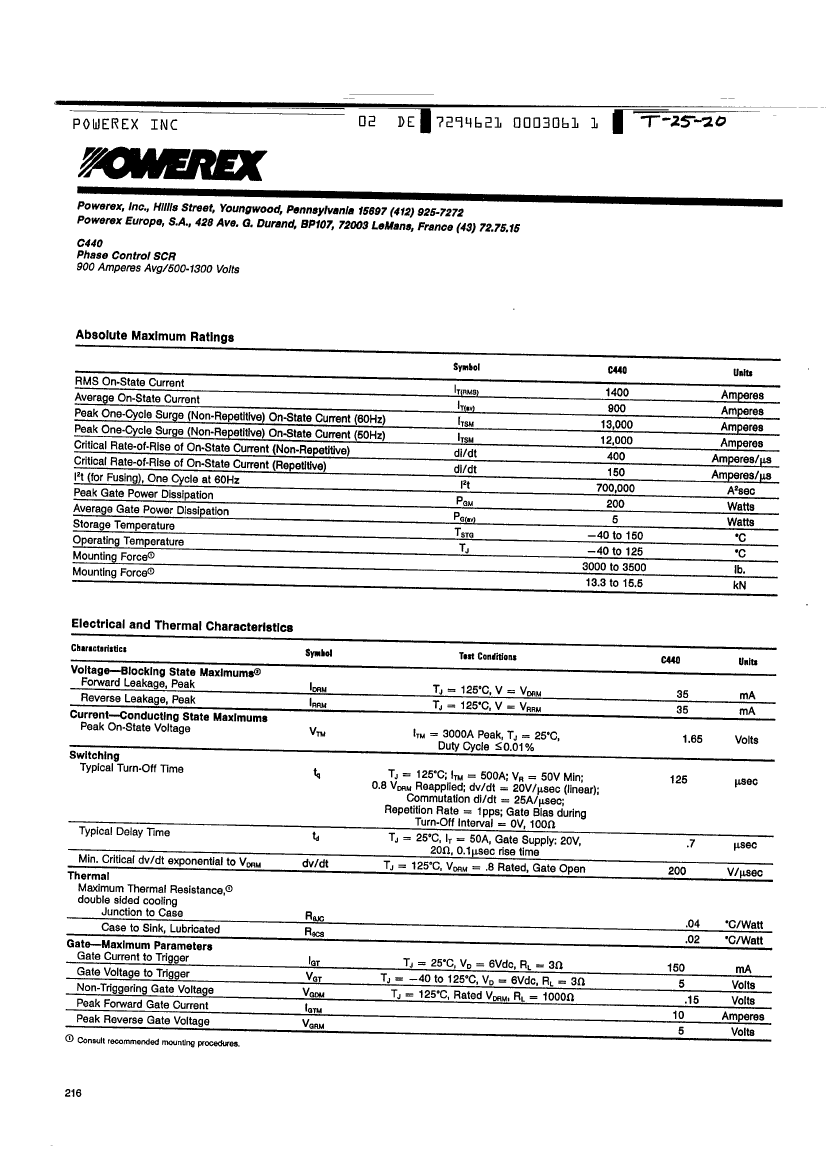

C440M: DescriptionPhase Control SCR 900 Amperes Avg 500-1300 Volts; CategoryAnalog mixed-signal IC Trigger device; File Size206KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

C440M Overview

Phase Control SCR 900 Amperes Avg 500-1300 Volts

C440M Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	125 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	5 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	35 mA
On-state non-repetitive peak current	13000 A
Number of components	1
Number of terminals	3
Maximum on-state current	900000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	1600 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

C440M Related Products

	C440M	C440E	C440P	C440PB	C440PA	C440PC	C440S	C440T
Description	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts	Phase Control SCR 900 Amperes Avg 500-1300 Volts
Reach Compliance Code	unknown	unknown	unknow	unknow	unknow	unknow	unknow	unknow
Nominal circuit commutation break time	125 µs	125 µs	125 µs	125 µs	125 µs	125 µs	125 µs	125 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
JESD-30 code	O-CEDB-X3	O-CEDB-N2	O-CEDB-X3	O-CEDB-X3	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum leakage current	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA
On-state non-repetitive peak current	13000 A	13000 A	13000 A	13000 A	13000 A	13000 A	13000 A	13000 A
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	2	3	3	2	2	2	2
Maximum on-state current	900000 A	900000 A	900000 A	900000 A	900000 A	900000 A	900000 A	900000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-40 °C	-40 °C	-45 °C	-45 °C	-40 °C	-45 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	1600 A	1413 A	1600 A	1600 A	1413 A	1413 A	1413 A	1413 A
Off-state repetitive peak voltage	600 V	500 V	1000 V	1200 V	1100 V	1300 V	700 V	900 V
Repeated peak reverse voltage	600 V	500 V	1000 V	1200 V	1100 V	1300 V	700 V	900 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	UNSPECIFIED	NO LEAD	UNSPECIFIED	UNSPECIFIED	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END	END	END
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	POWEREX	POWEREX	POWEREX	POWEREX	-	POWEREX	-	-
package instruction	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-N2	-	-	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2
Base Number Matches	1	1	-	-	1	-	1	1
