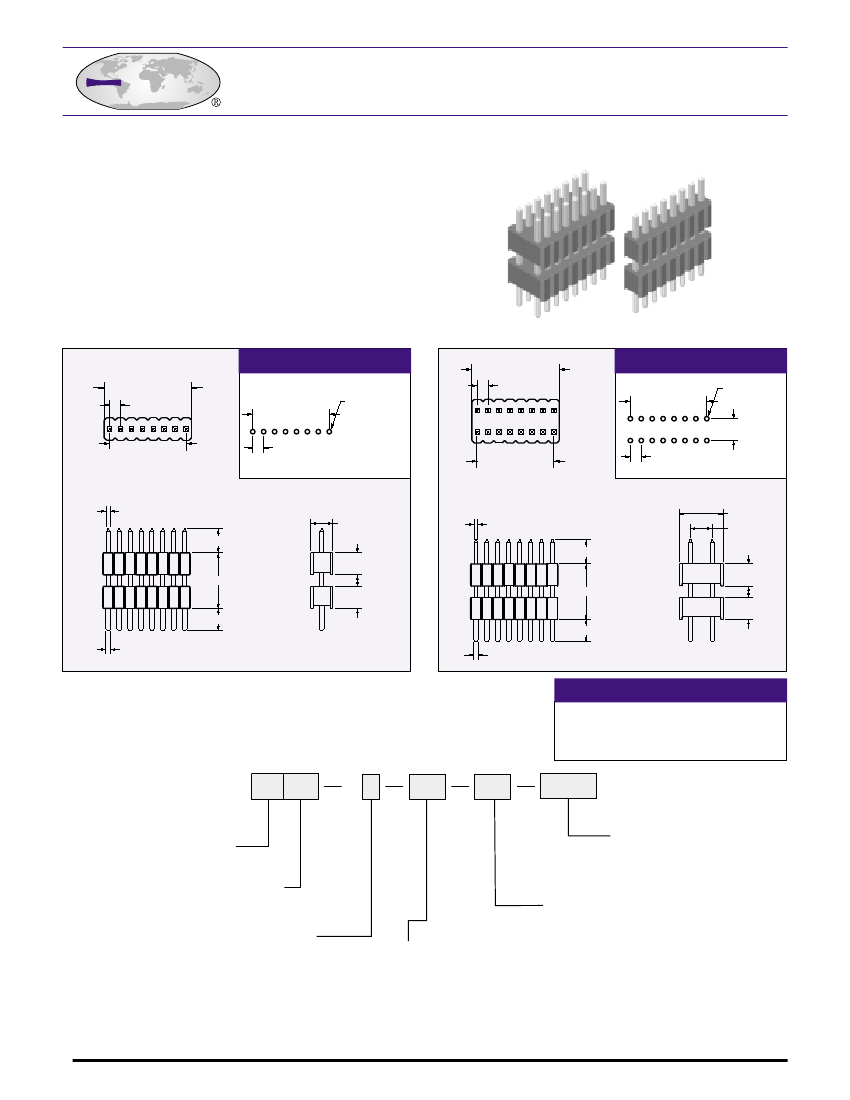

Specifications
.050 [1.27] Stacking Header
9600 Series Headers
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold and/or Tin over.000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max. Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
PCB LAYOUT
.050 xNo. of Pos.±.020
.050 [1.27]
.050 xNo. of Pos.±.020
.050 [1.27]
PCB LAYOUT
.050 x(No. of Cont./2 -1)
Ø.030
----.001
[.76]
-
+.002
.050 x(No. of Cont. -1)
+.002
Ø.030
----.001
[.76]
-
.100 [2.54]
.050 x(No. of Cont. -1)
.050 [1.27] TYP
.
.050 [1.27] TYP
.
.050 x(No. of Cont./2 -1)
.018 [0.46] SQ.
.100 [2.54]
CONTACT
CONTACT
.100 [2.54]
STACK HEIGHT
.100 [2.54]
TAIL
TAIL
Ø .021 [.53]
Ø .021 [.53]
STACK HEIGHT
.018 [0.46] SQ.
.197 [5.00]
.100 [2.54]
.100 [2.54]
.100 [2.54]
ALL DIMENSIONS ARE IN INCHES & [MM]
SUGGESTED MATING CONNECTORS
PART NUMBERING
96 XX
SERIES CODE
.050 HEADERS
SINGLE ROW: 96XXS-A1-XX-XX (PAGE F-16)
96XXS-B1-XX-XX (PAGE F-17)
DOUBLE ROW: 96XXS-A2-XX-XX (PAGE F-16)
96XXS-B2-XX-XX (PAGE F-17)
C X
XX
XX
XXXX
STACK HEIGHT
EX:
0.600 =
0600
1.200 =
1200
NO. OF CONTACTS
SINGLE ROW =
03 - 32
DOUBLE ROW =
06 - 98
CONTACT PLATING
TAIL OPTIONS
.000050” Nickel underplate
CONTACT TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
03
= Au Flash
Au Flash
10
= 10µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
NO. OF ROWS
1
= SINGLE ROW
2
= DOUBLE ROW
CONTACT
TAIL
01
= .110 [2.80] .102 [2.60]
(MATES W/ 96XXS-AX-XX-XX)
02
= .236 [6.00] .102 [2.60]
(MATES W/ 96XXS-BX-XX-XX)
CONSULT FACTORY FOR OTHER PIN LENGTH OPTIONS
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
