R2S-50V2R2MD1-T58 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> R2S-50V2R2MD1-T58

R2S-50V2R2MD1-T58: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF,; CategoryPassive components capacitor; File Size61KB，1 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric View All

R2S-50V2R2MD1-T58 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF,

R2S-50V2R2MD1-T58 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	842477751
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Thailand
ECCN code	EAR99
YTEOL	7.23
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm
dielectric materials	ALUMINUM
length	7 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	25 mA
series	R2S
Terminal pitch	2.5 mm

Preview

Download Datasheet

View All

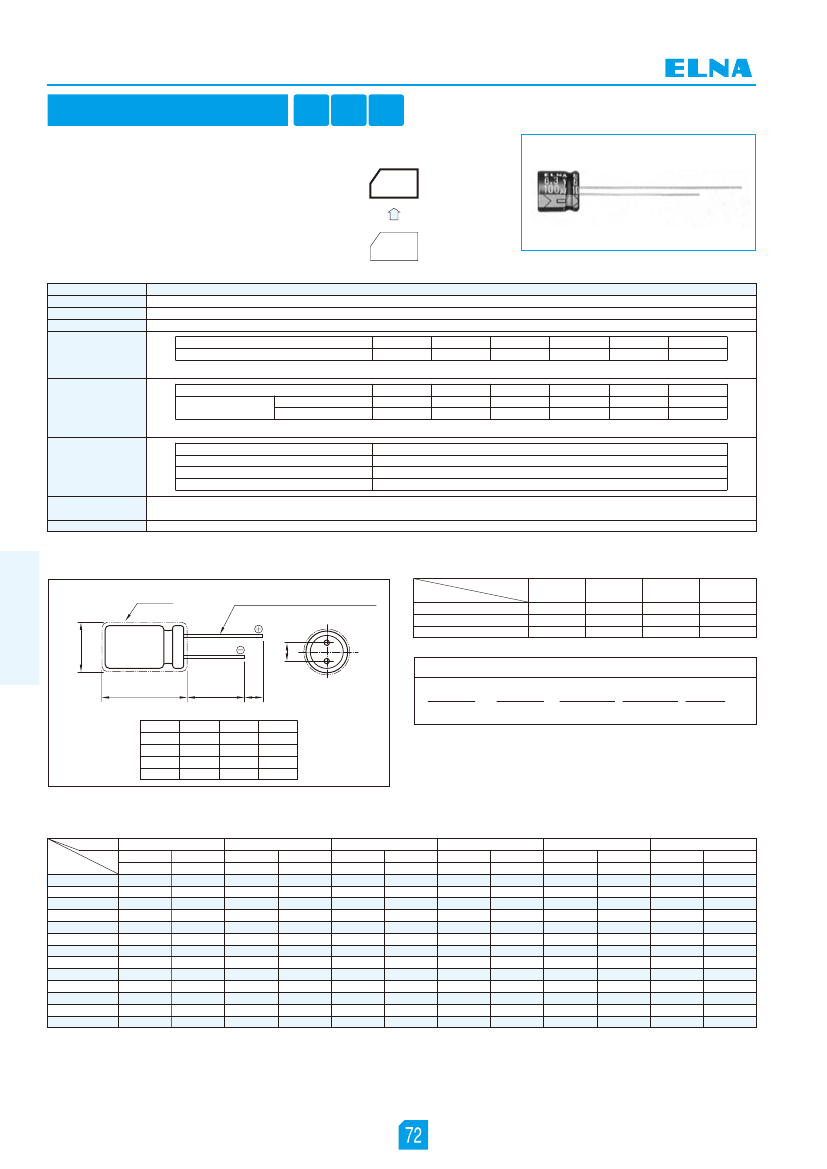

R2S

●

7mm L, 105˚

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Anti-

GREEN 105˚C

cleaning

CAP

1000hours

solvent

7mm L, 105°C Use Capacitors

Diameters from φ4 to φ6.3mm and a height of 7mm.

Guarantees 1000 hours at 105℃.

R2S

High temperature

RC2

Marking color : White print on a black sleeve

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Leakage current (µA)

Tangent of loss angle

(tanδ)

Performance

−55 to ＋105

±20

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C : Rated capacitance (µF); V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

6.3

0.22

0.19

0.16

0.14

0.12

(20℃,120Hz)

(20℃)

0.10

(20°

C,120Hz)

Characteristics at high

and low temperature

Rated voltage (V)

Ｚ

−25℃/Ｚ

＋20℃

Impedance ratio (max.)

Ｚ

−40℃/Ｚ

＋20℃

6.3

(120Hz)

Endurance (105℃)

(Applied ripple current)

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

1000 hours

The initial speciﬁed value or less

Within ±20% of initial value

200% or less of the initial speciﬁed value

Shelf life (105℃)

Applicable standards

Test time : 1000 hours ; other items are the same as those for the endurance. Voltage application treatment : According to JIS C5101-1

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Miniature

Aluminum Electrolytic Capacitors

Outline Drawing

Sleeve

Unit : mm

φd±0.05 copper clad steel wire (tinned)

Coeﬃcient of Frequency for Rated Ripple Current

Frequency (Hz)

Rated voltage (V)

50・60

0.68

0.48

0.45

120

0.72

0.63

0.50

0.92

0.80

0.70

10k・100k

φD＋0.5max.

6.3 to 16

25 to 35

F±0.5

Part numbering system (example : 25V33µF)

R2S

Series code

L＋ max.

15min.

min.

Rated voltage

symbol

330

Rated capacitance

symbol

Capacitance

tolerance symbol

Casing

symbol

φD

φd

Casing symbol

1.5

0.45

1.0

2.0

0.45

1.0

6.3

2.5

0.45

1.0

Standard Ratings

Rated voltage (V)

Rated

capacitance (µF)

Item

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

6.3

Rated ripple current

Case

φD×L (mm)

mArms

φD×L (mm)

mArms

4×7

5×7

4×7

5×7

6.3×7

4×7

5×7

6.3×7

5×7

6.3×7

5×7

6.3×7

(Note) Rated ripple current : 105℃, 100kHz.

NOTE

CAT.No.2010/2011E

Design, Speciﬁcations are subject to change without notice.

Ask factory for technical speciﬁcations before purchase and/or use.
