C450PD2 datasheet, PDF - EEWORLD Datasheet

C450PD2: DescriptionPhase Control SCR 1460-1640 Amperes Avg 500-1400 Volts; CategoryAnalog mixed-signal IC Trigger device; File Size339KB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

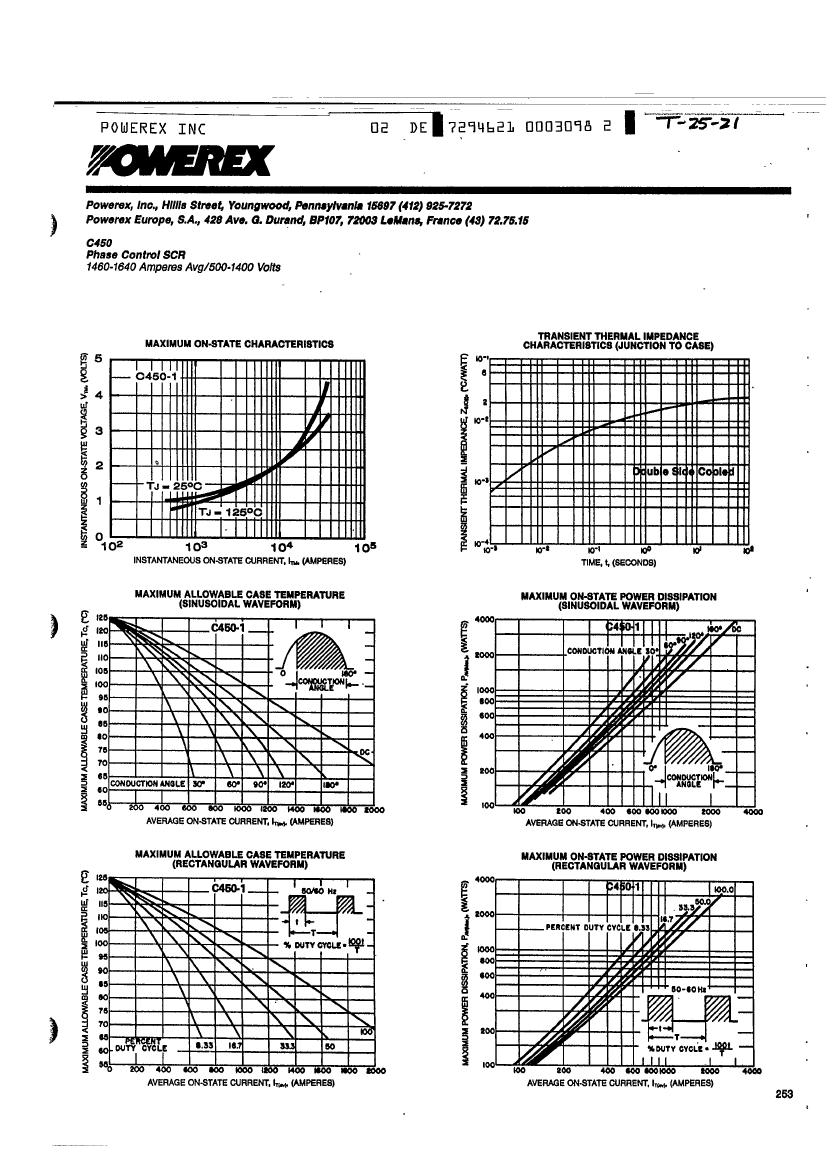

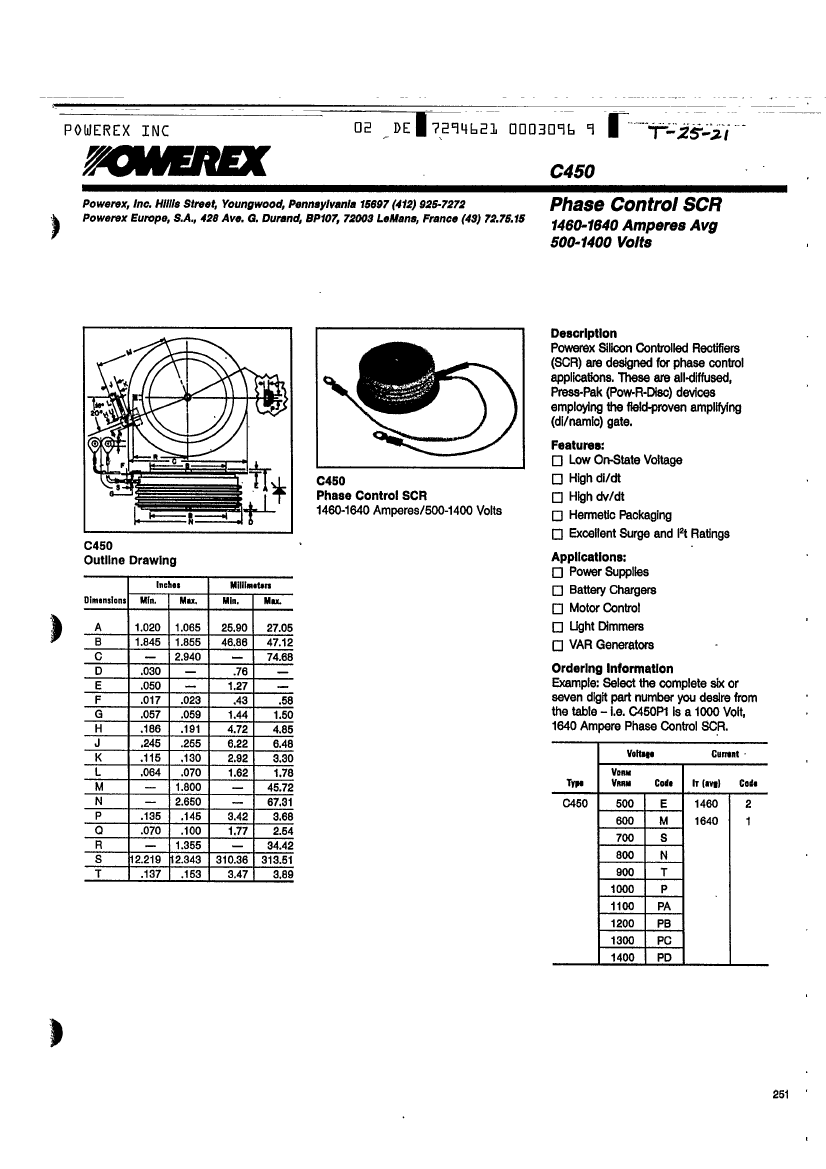

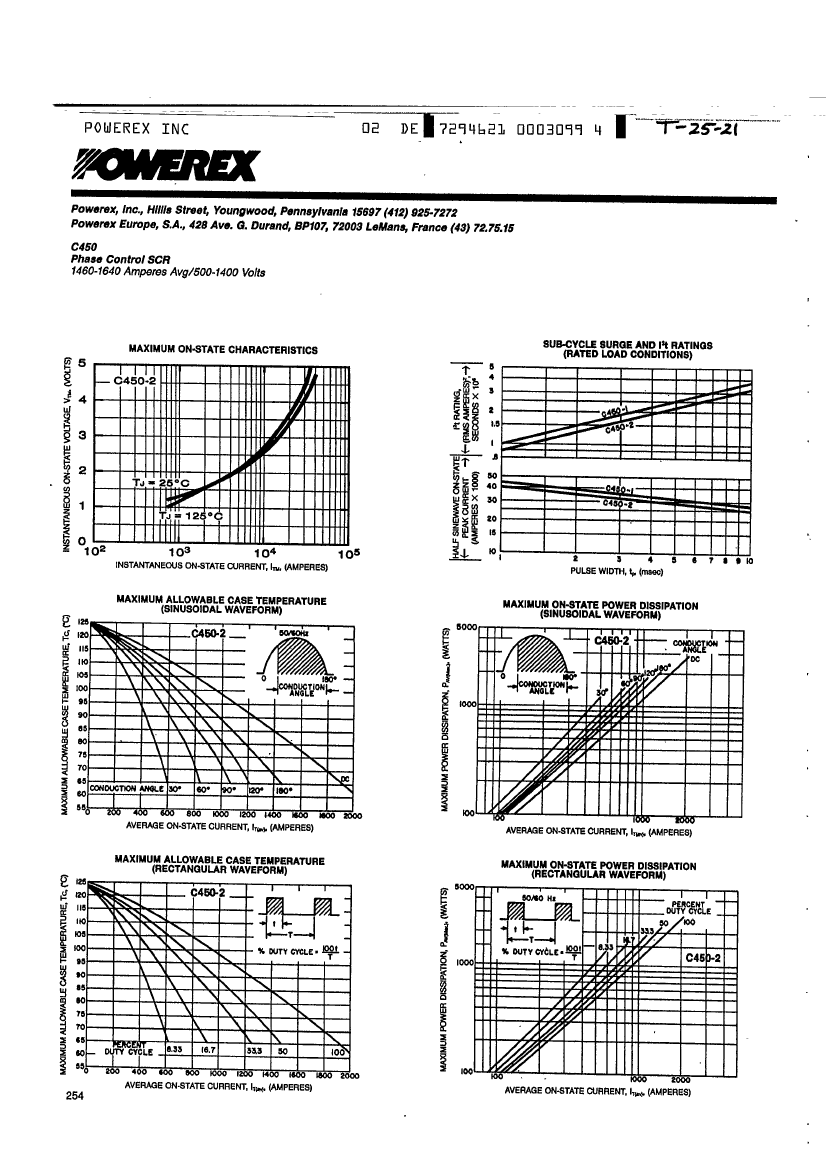

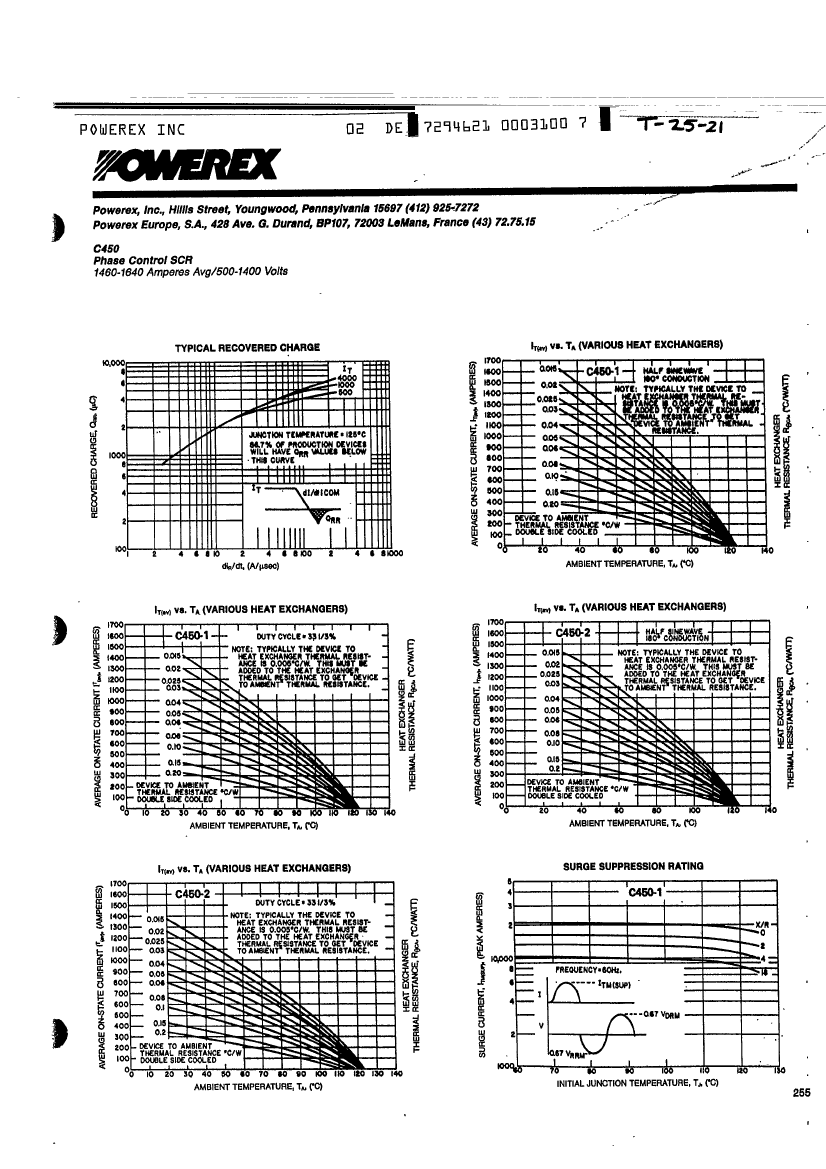

C450PD2 Overview

Phase Control SCR 1460-1640 Amperes Avg 500-1400 Volts

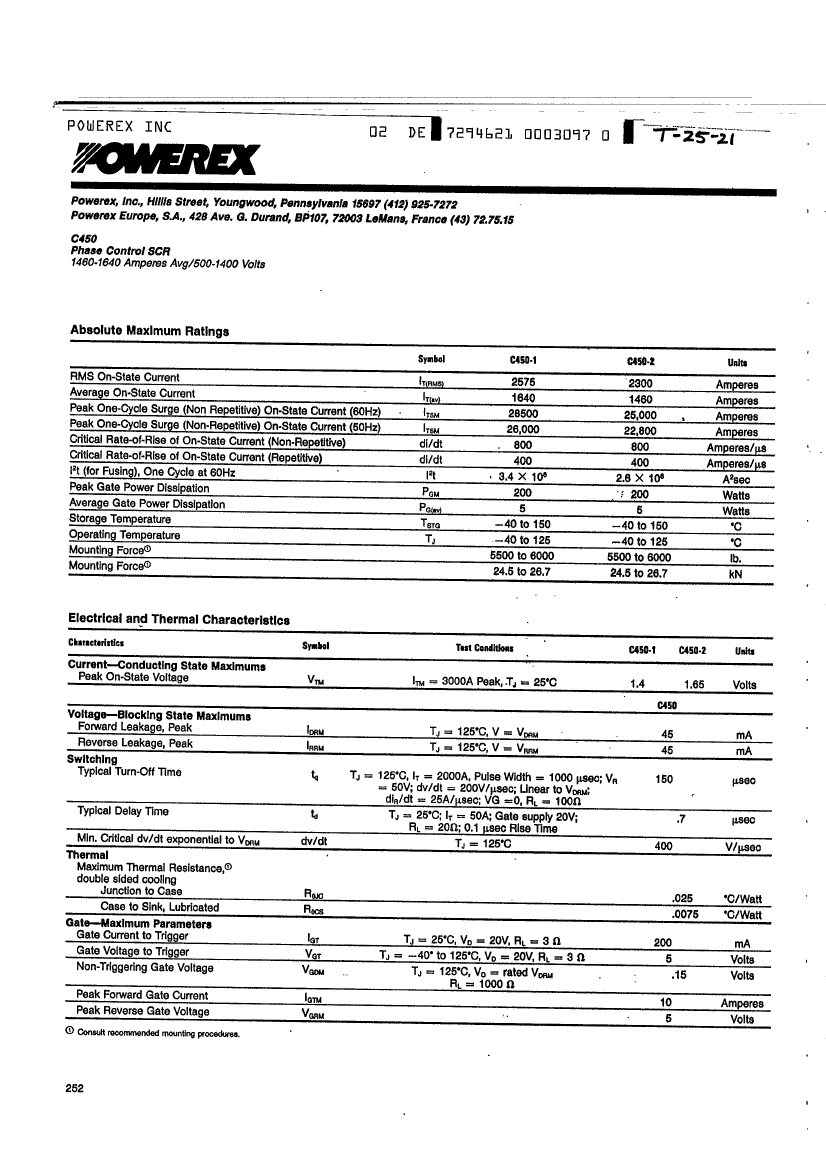

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	150 µs
Critical rise rate of minimum off-state voltage	400 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	5 V
Maximum leakage current	45 mA
On-state non-repetitive peak current	25000 A
Maximum on-state current	1460000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	1400 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
