302R29N331KV4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 302R29N331KV4E

302R29N331KV4E: Descriptionmultilayer ceramic capacitors mlcc - smd/smt 3kvolts 330pf 10% npo; CategoryPassive components capacitor; File Size123KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

302R29N331KV4E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	302R29N331KV4E	-	-	View	Buy Now

302R29N331KV4E Overview

multilayer ceramic capacitors mlcc - smd/smt 3kvolts 330pf 10% npo

302R29N331KV4E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johanson Dielectrics
package instruction	, 1808
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.00033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.16 mm
JESD-609 code	e3
length	4.7 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	3000 V
size code	1808
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	2.03 mm

Preview

Download Datasheet

View All

AC S

AFETY

APACITORS

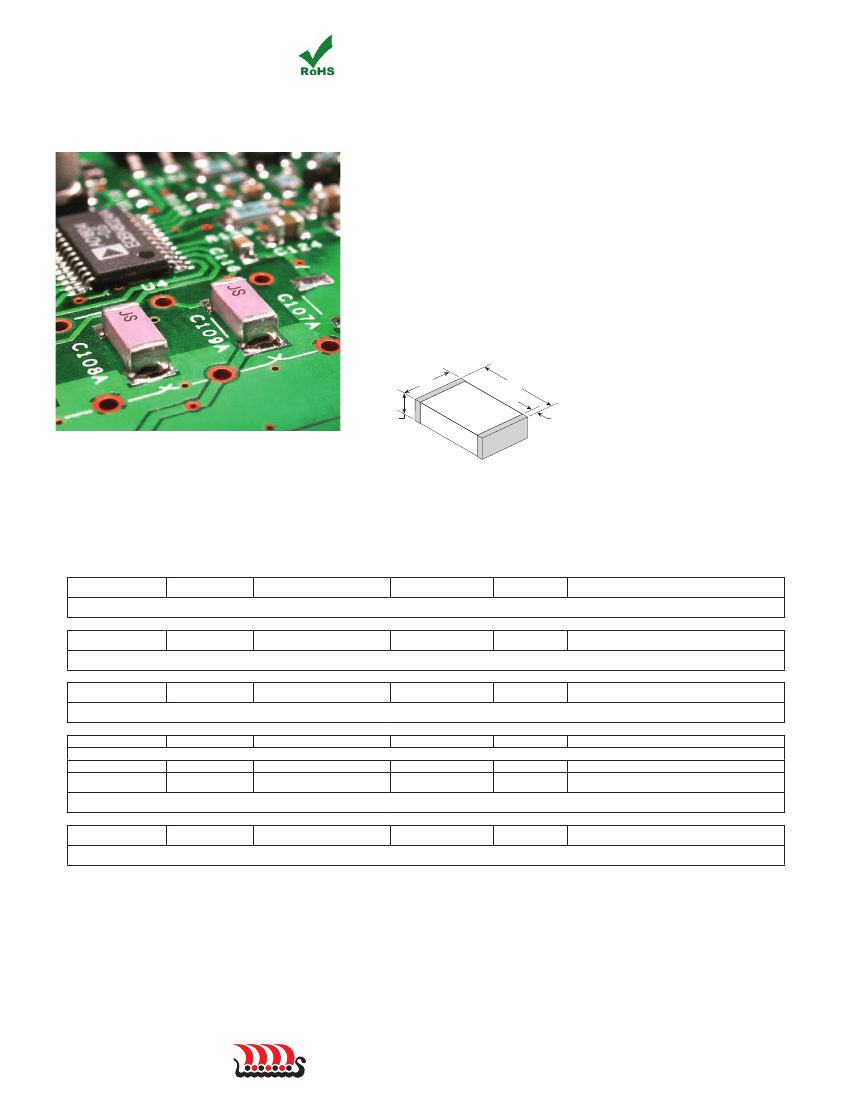

Johanson Dielectrics Type SC ceramic chip capacitors are

designed for AC voltage surge and lightning protection in line-

to-ground interface applications in computer networks, modem,

facsimile and other equipment.

Johanson’s safety capacitor offering includes four different case

sizes in NP0 and X7R dielectric materials.

These devices are surface mount ready with barrier terminations

and tape and reel packaging.

Information on capacitor safety ratings and certification details

may be found below.

E/B

Polyterm

soft termination

option for demanding

environments & processes

available on select parts,

please contact the factory.

SAFETY

RATING

VOLTAGE

RATING

250 VAC

WITHSTANDING

VOLTAGE

1,500 VAC

IMPULSE

VOLTAGE

2,500 V

CASE

SIZE

1808

JOHANSON

ORDERING P/N

302R29______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

250 VAC

1,500 VAC

2,500 V

1812

302S43______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

250 VAC

1,500 VAC

5,000 V

1808

502R29______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

250 VAC

1,500 VAC

2,500 V

5,000 V

1812

2211

502S43______V3E-****-SC

502R30______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

250 VAC

1,500 VAC

5,000 V

2220

502S47______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X Capacitors are defined as suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.

Y Capacitors are defined as suitable for use in situations where failure of the capacitor could lead to danger of electric shock.

www.johanson dielectrics.com
