FUJITSU TAKAMISAWA
COMPONENT CATALOG
PC BOARD CONNECTORS
740 SERIES
s

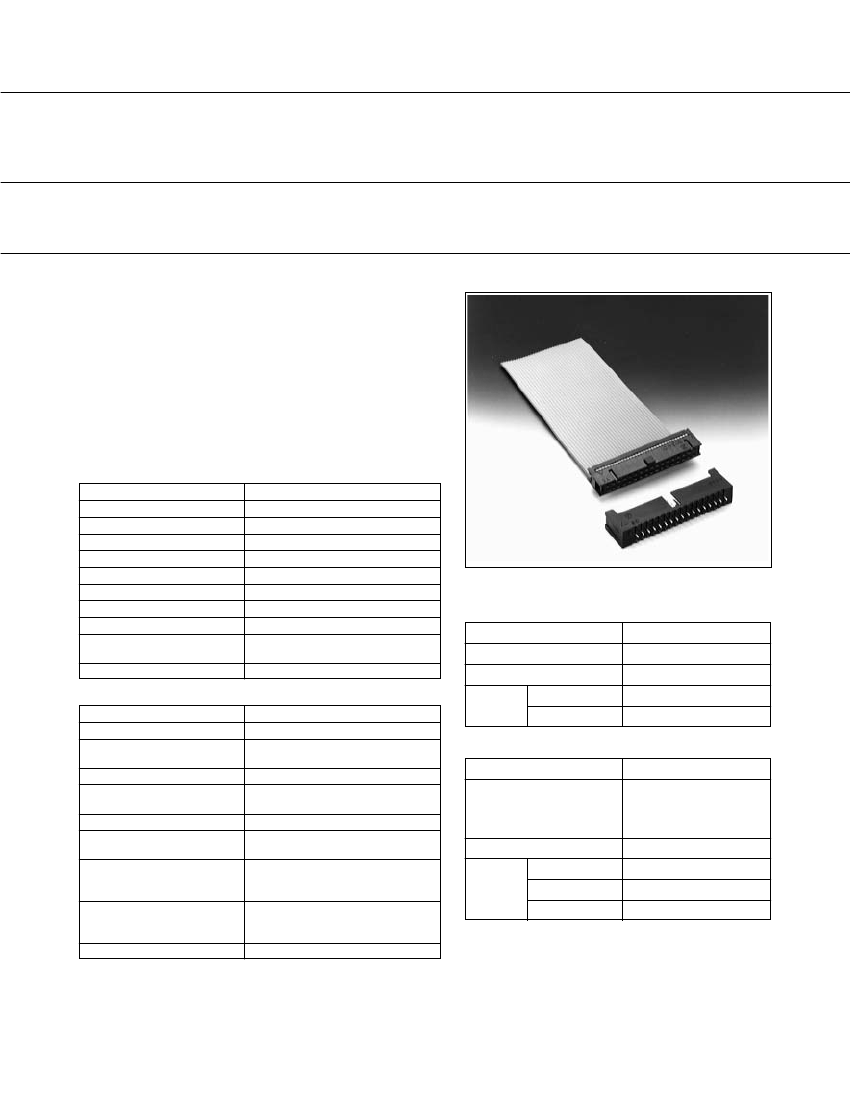

FEATURES
• Various types of headers are available: one side
shrouded, both sides shrouded, with simplified latch,
and box type.
• The connector having a simplified latch prevents the
connector from working loose because of vibration.
• The mini header has a clip to prevent incorrect
insertion.
• A 740 series connector with a power terminal for SCSI/
IDE interface unit connections is also available.
s
SPECIFICATIONS
1. Standard type
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric strength
Insertion force
Withdrawal force
Applicable wire
Applicable PC board (standard)
Specification
–55°C to +105°C
DC 1 A
AC 250 V
15 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ min. (DC 500 V)
AC 500 V for 1 minute
3.5 kg max. (10 pins), 10.5 kg max. (30 pins)
0.25 kg min. (10 pins), 1.0 kg min. (30 pins)
Flat cable: 1.27 mm (0.050 in.) pitch
AWG #28 (stranded) or AWG #30 (solid)
1.6 mm
s
MATERIALS
1. Standard type
Item
Insulating material
Conductor
Contact
Plating
Terminal
Palladium
Materials
Polyester (UL94V-0)
Copper alloy
Gold
2. Power connector integrated type
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric strength
Specification
–55°C to +105°C
DC 1 A (signal pin)
DC 5 A (power pin)
AC 250 V
15 mΩ max. (signal pin, DC 6 V, 0.1 A)
10 mΩ max. (power pin, DC 6 V, 0.3 A)
1000 MΩ min. (DC 500 V)
AC 500 V for 1 minute (signal pin)
AC 1000 V for 1 minute (power pin)
50-contact signal pin: 17.5 kg max.
40-contact signal pin: 14.0 kg max.
Power pin (reference value): 8.8 kg max.
50-contact signal pin: 2.0 kg max.
40-contact signal pin: 1.5 kg max.
Power pin (reference value): 0.8 kg max.
1.6 mm (0.062 in.) (through hole type)
2. Power connector integrated type
Item
Materials
Through hole type:
Polyester (UL94V-0)
SMT type: PPS (UL94V-
0)
Copper alloy
Signal pin contact
Plating
Signal pin tail
Power pin
Gold
Palladium
Solder
Insulating material
Conductor
Insertion force
Withdrawal force
Applicable PC board (standard)
740 Series
s

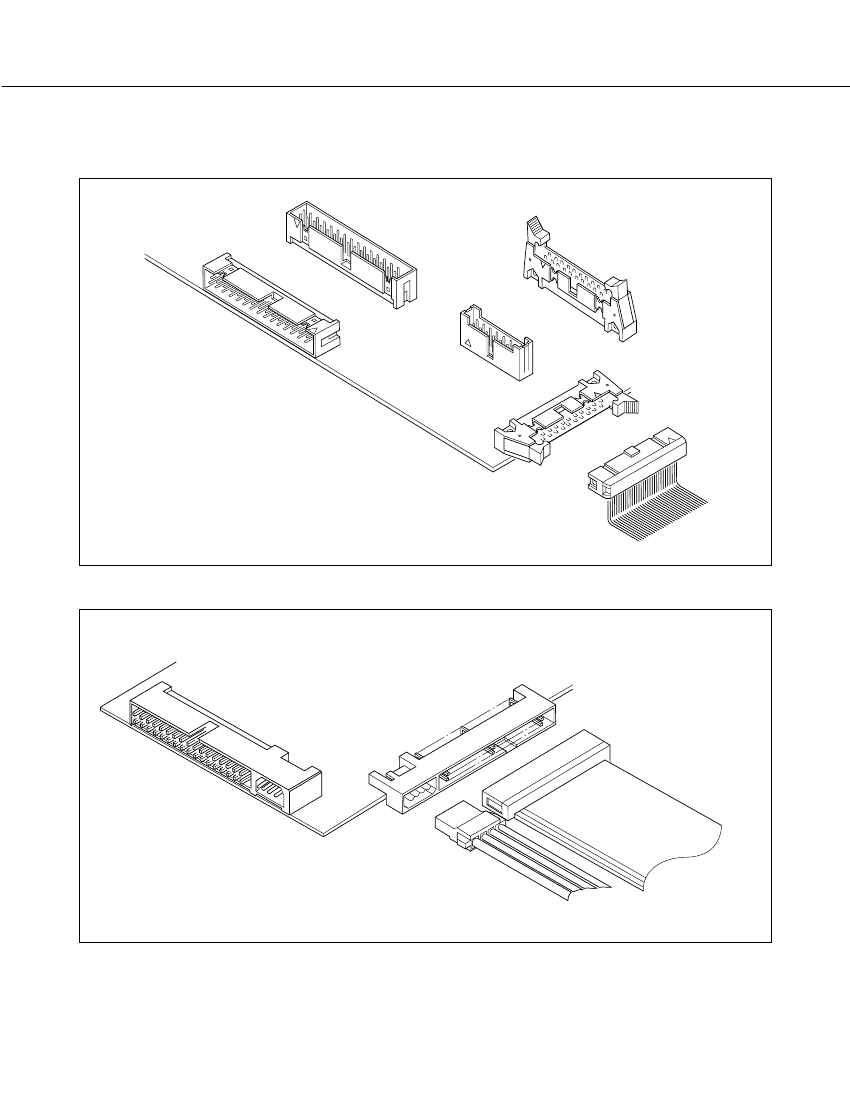

APPLICATION EXAMPLE
1. Standard type
FCN-744Q
∗ ∗ ∗
-AU/0
FCN-704Q
∗ ∗ ∗
-AU/N
FCN-745Q
∗ ∗ ∗
-AU/0
FCN-744P
∗ ∗ ∗
-AU/R
FCN-705Q
∗ ∗ ∗
-AU/N
FCN-747B
∗ ∗ ∗
-AU/B
2. Power connector integrated type
FCN-745Q
∗ ∗ ∗
-L/YY
FCN-745Q
∗ ∗ ∗
-L/VY
FCN-745Q
∗ ∗ ∗
-L/ZZ
FCN-748Q
∗ ∗ ∗
-L/ZZ
FCN-747B
∗ ∗ ∗
-AU/B or 0
FCN-607B
∗ ∗ ∗
-G/C or D
Power connector
2
740 Series
WRAPPING HEADER (ONE SIDE SHROUDED)
s

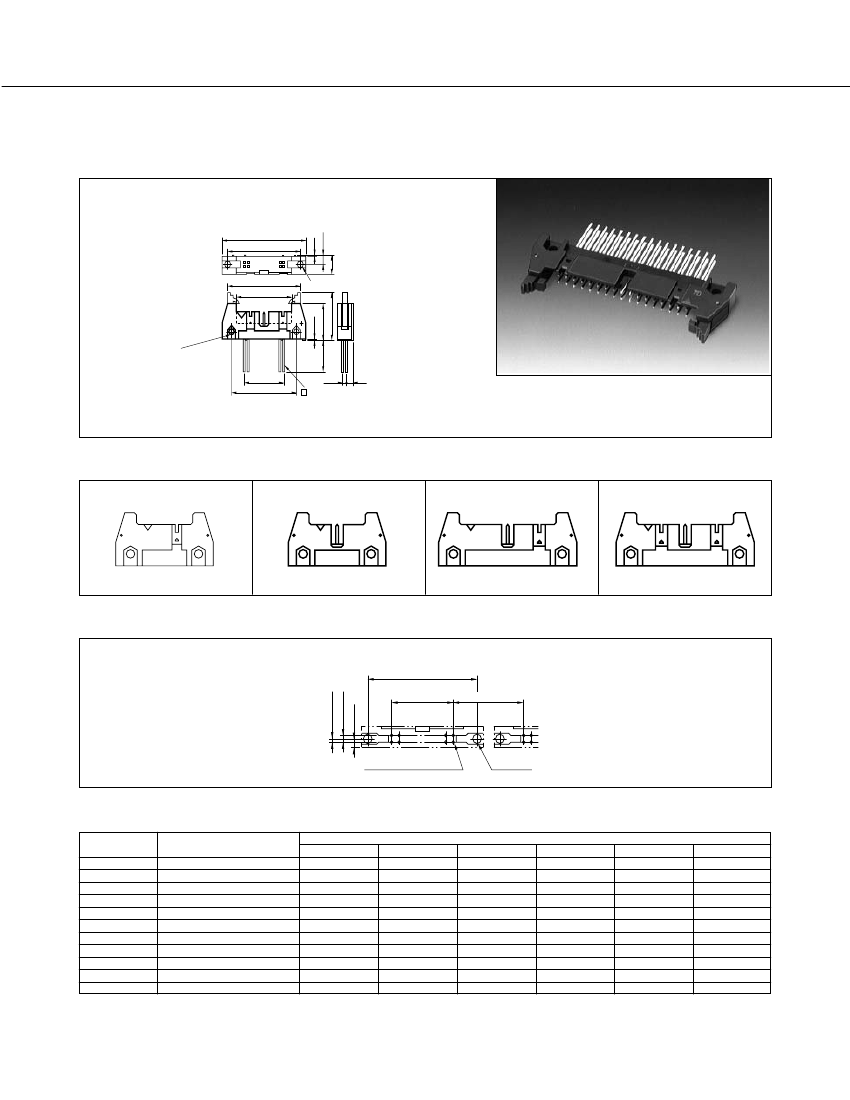

DIMENSIONS
0.3(012)
3.52(0.139)
13.5
(0.531)
0.3(.012)
17.3(.681)
21.9(.862)
F
E
2(0.079)-φ2.3(0.090)
2(0.079)-φ2.5(0.098)
D
B
2.54(0.10)
0.64(0.025)
7.8(0.307)
A
C
2(0.079)
Unit: mm (in.)
s
CONFIGURATION BY THE NUMBER OF PINS
10 pins (clip type)
10 pins (bump type)
14 pins
16 to 60 pins
FCN-702P
FCN-702F
FCN-702P
FCN-702P
s
MOUNTING HOLE LAYOUT
±0.1(0.004)
1.52(0.060)
2.54(0.10)
±0.1(0.004)
3.52(0.139)
(Component side)
C
±0.1(0.004)
D
±0.2(0.008)
22.86 (0.900) min.
φ1.0(0.039)
+0.06(0.002)
Hole
φ2.8(0.110)
Hole
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
10
10
14
16
20
26
30
34
40
50
60
Part number
FCN-702P010-AU/N
FCN-702F010-AU/N
FCN-702P014-AU/N
FCN-702P016-AU/N
FCN-702P020-AU/N
FCN-702P026-AU/N
FCN-702P030-AU/N
FCN-702P034-AU/N
FCN-702P040-AU/N
FCN-702P050-AU/N
FCN-702P060-AU/N
A
32.0 (1.260)
32.0 (1.260)
37.1 (1.460)
39.6 (1.560)
44.7 (1.760)
52.3 (2.060)
57.4 (2.260)
62.5 (2.460)
70.1 (2.760)
82.8 (3.260)
95.5 (3.760)
B
21.8 (0.858)
21.8 (0.858)
26.9 (1.059)
29.4 (1.157)
34.5 (1.358)
42.2 (1.661)
47.2 (1.858)
52.3 (2.059)
59.9 (2.358)
72.6 (2.858)
85.3 (3.358)
Dimensions (unit: mm (in.))
C
D
27.9 (1.098)
10.16 (0.400)
27.9 (1.098)
10.16 (0.400)
33.0 (1.299)
15.24 (0.600)
35.5 (1.398)
17.78 (0.700)
40.6 (1.598)
22.86 (0.900)
48.3 (1.901)
30.48 (1.200)
53.3 (2.098)
35.56 (1.400)
58.4 (2.299)
40.64 (1.600)
66.0 (2.598)
48.26 (1.900)
78.7 (3.098)
60.96 (2.400)
91.4 (3.566)
73.66 (2.900)
E
18.3 (0.720)
18.3 (0.720)
23.4 (0.921)
25.9 (1.020)
31.0 (1.220)
38.6 (1.520)
43.7 (1.720)
48.8 (1.921)
56.4 (2.220)
69.1 (2.720)
81.8 (3.720)
F
26.3 (1.035)
26.3 (1.035)
31.4 (1.236)
33.9 (1.334)
39.0 (1.535)
46.6 (1.835)
51.7 (1.835)
56.8 (2.035)
64.4 (2.545)
77.0 (3.031)
89.8 (3.535)
3
740 Series
WRAPPING HEADER (BOTH SIDES SHROUDED)
s
DIMENSIONS
0.3(0.012)
4.7(0.085)
13.5
(0.531)
17.3(.681)
21.9(0.862)
F
E
2(0.079)-φ2.3(0.090)
2(0.079)-φ2.5(0.098)
D
B
2.54(0.10)
0.64(0.025)
8.8(0.346)
A
C
3.18(0.125)
Unit: mm (in.)
s
CONFIGURATION BY THE NUMBER OF PINS
10 pins (clip type)
10 pins (bump type)
14 pins
16 to 60 pins
FCN-702Q
FCN-702G
FCN-702Q
FCN-702Q
s
MOUNTING HOLE LAYOUT
1.52(0.06)
±0.1(0.004)
2.54(0.10)
±0.1(0.004)
4.7(0.185)
(Component side)
C
±0.1(0.004)
D
±0.2(0.008)
22.86 (0.900) min.
φ1.0(0.039)
+0.06(0.002)
Hole
φ2.8(0.110)
Hole
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
10
10
14
16
20
26
30
34
40
50
60
Part number
FCN-702Q010-AU/N
FCN-702G010-AU/N
FCN-702Q014-AU/N
FCN-702Q016-AU/N
FCN-702Q020-AU/N
FCN-702Q026-AU/N
FCN-702Q030-AU/N
FCN-702Q034-AU/N
FCN-702Q040-AU/N
FCN-702Q050-AU/N
FCN-702Q060-AU/N
A
32.0 (1.260)
32.0 (1.260)
37.1 (1.460)
39.6 (1.560)
44.7 (1.760)
52.3 (2.060)
57.4 (2.260)
62.5 (2.460)
70.1 (2.760)
82.8 (3.260)
95.5 (3.760)
B
21.8 (0.858)
21.8 (0.858)
26.9 (1.059)
29.4 (1.157)
34.5 (1.358)
42.2 (1.661)
47.2 (1.858)
52.3 (2.059)
59.9 (2.358)
72.6 (2.858)
85.3 (3.358)
Dimensions (unit: mm (in.))
C
D
27.9 (1.098)
10.16 (0.400)
27.9 (1.098)
10.16 (0.400)
33.0 (1.299)
15.24 (0.600)
35.5 (1.398)
17.78 (0.700)
40.6 (1.598)
22.86 (0.900)
48.3 (1.901)
30.48 (1.200)
53.3 (2.098)
35.56 (1.400)
58.4 (2.299)
40.64 (1.600)
66.0 (2.598)
48.26 (1.900)
78.7 (3.098)
60.96 (2.400)
91.4 (3.566)
73.66 (2.900)
E
18.3 (0.720)
18.3 (0.720)
23.4 (0.921)
25.9 (1.020)
31.0 (1.220)
38.6 (1.520)
43.7 (1.720)
48.8 (1.921)
56.4 (2.220)
69.1 (2.720)
81.8 (3.720)
F
26.3 (1.035)
26.3 (1.035)
31.4 (1.236)
33.9 (1.334)
39.0 (1.535)
46.6 (1.835)
51.7 (1.835)
56.8 (2.035)
64.4 (2.545)
77.0 (3.031)
89.8 (3.535)
