Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Low Impedance and Long Life for High Voltage, High Ripple Current Applications
Type AEB capacitors are it for high voltage applications like input
bus capacitors in board mounted miniature AC/DC supplies. The
AEB’s low impedance in ratings up to 450 Vdc, and long life, make
it ideal for power supply input and other high voltage applications.
The vertical, cylindrical cases make easy automatic mounting and
reflow soldering.
Specifications
Highlights
• +105 °C,
Up to 5000 Hour Load Life
• Capacitance Range: 2.2 µF to 100 µF
• Voltage Range: 160 Vdc to 450 Vdc
–25 °C to +105 °C
160, 200, 250, 350, 400, 450 Vdc
2.2 µF to 100 µF
±20% @ 120 Hz and +20 °C
Rated Voltage
Z(-25°C)/Z(+20°C)
160
2
200
2
250
3
350
5
400
6
450
6
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Impedance Ratio (at 120 Hz):
Life Test:
Complies with the EU Direc-
tive 2002/95/EC require-
ment restricting the use of
Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBro-
minated Biphenyls (PBB)
and PolyBrominated Diphe-
nyl Ethers (PBDE).
5000 h @ +105 °C, L — S Cases
4000 h @ +105 °C, K Case
3000 h @ +105 ºC, J Case
∆ Capacitance ±
20%
DF:
≤
200% of limit
DCL:
≤
100% of limit
Shelf Test:
1000 h @ 105 °C
∆
Capacitance ± 20%
DF:
≤
200% of limit
DCL:
≤
100% of limit
AEB Series Marking
Outline Drawing
Case Dimensions
Case Code
J
K
L
P
U
R
S
D ±0.5
10.0
10.0
12.5
16.0
16.0
18.0
18.0
L ±0.5
13.5
16.5
16.5
16.5
21.5
16.5
21.5
A ±0.2
10.3
10.3
13.5
17.0
17.0
19.0
19.0
H (max)
12
12
15
19
19
21
21
I (ref)
3.5
3.5
4.7
5.5
5.5
6.7
6.7
W
0.9 ±0.2
0.9 ±0.2
0.9 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
P (ref)
4.6
4.6
4.4
6.7
6.7
6.7
6.7
K (mm)
0.7 ± 0.2
0.7 ± 0.2
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Ratings
Max.
Max.
Cap
(µF)
Catalog
Part Number
DCL
2 min
(µA)
10.0
33.0
47.0
68.0
68.0
100.0
22.0
33.0
47.0
68.0
100.0
10.0
22.0
33.0
47.0
68.0
10.0
22.0
33.0
47.0
3.3
4.7
10.0
22.0
33.0
2.2
3.3
4.7
10.0
22.0
AEB106M2CJ32T-F
AEB336M2CL32T-F
AEB476M2CP44T-F
AEB686M2CU44T-F
AEB686M2CR44T-F
AEB107M2CS44T-F
AEB226M2DL32T-F
AEB336M2DP44T-F
AEB476M2DR44T-F
AEB686M2DU44T-F
AEB107M2DS44T-F
AEB106M2EK32T-F
AEB226M2EP44T-F
AEB336M2ER44T-F
AEB476M2EU44T-F
AEB686M2ES44T-F
AEB106M2VP44T-F
AEB226M2VR44T-F
AEB336M2VU44T-F
AEB476M2VS44T-F
AEB335M2GJ32T-F
AEB475M2GK32T-F
AEB106M2GP44T-F
AEB226M2GU44T-F
AEB336M2GS44T-F
AEB225M2WJ32T-F
AEB335M2WK32T-F
AEB475M2WL32T-F
AEB106M2WR44T-F
AEB226M2WS44T-F
106
327
461
663
663
970
274
406
574
826
1210
160
340
505
715
1030
220
472
703
997
89
123
250
538
802
69
99
137
280
604
Dissipation
Factor @
120 Hz
20 °C
160 Vdc
0.15
0.15
0.15
0.15
0.15
0.15
200 Vdc
0.15
0.15
0.15
0.15
0.15
250 Vdc
0.15
0.15
0.15
0.15
0.15
350 Vdc
0.20
0.20
0.20
0.20
400 Vdc
0.24
0.24
0.24
0.24
0.24
450 Vdc
0.24
0.24
0.24
0.24
0.24
11.00
7.00
4.80
3.00
1.80
29
41
49
310
560
10 x 13.5
10 x 16.5
12.5 x 16.5
18 x 16.5
18 x 21.5
250
200
150
125
75
8.00
5.50
3.60
2.20
1.20
40
50
250
410
600
10 x 13.5
10 x 16.5
16 x 16.5
16 x 21.5
18 x 21.5
250
200
125
75
75
3.20
1.60
1.20
1.00
270
350
480
670
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
125
125
75
75
2.50
1.60
0.85
0.70
0.60
88
560
560
710
990
10 x 16.5
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
200
125
125
75
75
1.80
1.40
0.80
0.55
0.50
470
600
600
750
1060
12.5 x 16.5
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
150
125
125
75
75
3.00
1.80
1.40
0.55
0.80
0.50
70
470
600
750
750
1060
10 x 13.5
12.5 x 16.5
16 x 16.5
16 x 21.5
18 x 16.5
18 x 21.5
250
150
125
75
125
75
Max.
Impedance
@ 100 kHz
20 °C
(Ω)
Max.
Ripple Current
@ 105 °C
100 kHz
(mA)
Size (mm) Quantity
DxL
Reel
Part Numbering System
AEB
Type
106
Capacitance
105 = 1.0 µF
106 = 10.0 µF
107 = 100.0 µF
M
Capacitance
Tolerance
M = ±20%
2C
Voltage Code
2C = 160 Vdc
2D = 200 Vdc
2E = 250 Vdc
2V = 350 Vdc
2G = 400 Vdc
2W = 450 Vdc
J
Case
Code
32T
Packaging
Information
32 = Carrier tape
Width (mm)
T = Tape & Reel
B = bulk
-F
RoHS
Compliant
See the Aluminum SMT Application Guide for Packaging Information.
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Recommended Land Pattern
Case
Code
J
K
L
P
U
R
S
Case Dia.
A
(mm)
10
10
12.5
16
16
18
18
(mm)
4.0
4.0
4.0
6.0
6.0
6.0
6.0
B
(mm)
4.5
4.5
5.7
6.5
6.5
7.5
7.5
C
(mm)
2.0
2.0
2.0
2.5
2.5
2.5
2.5
C
B
A
B
Ripple Current Correction Factor
Ripple Current Correction Factor vs Frequency
Vdc
160 to 250
350 to 450
120 Hz
0.55
0.50
1kHz
0.85
0.80
10kHz to 30kHz 30kHz to 100kHz
0.90
0.90
1.00
1.00
Recommended Reflow Soldering Profile for AEB Series (10 to 18 mm dia.)
230°C
Top surface temperature
(°C)
120 seconds
20
sec.
Time
Max. top surface temperature during reflow soldering
Maximum time at peak temperature
Maximum time at or above 200°C
Number of reflow processes
Terminal Material
230°C
5 seconds
20 seconds
1
copper clad iron
Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

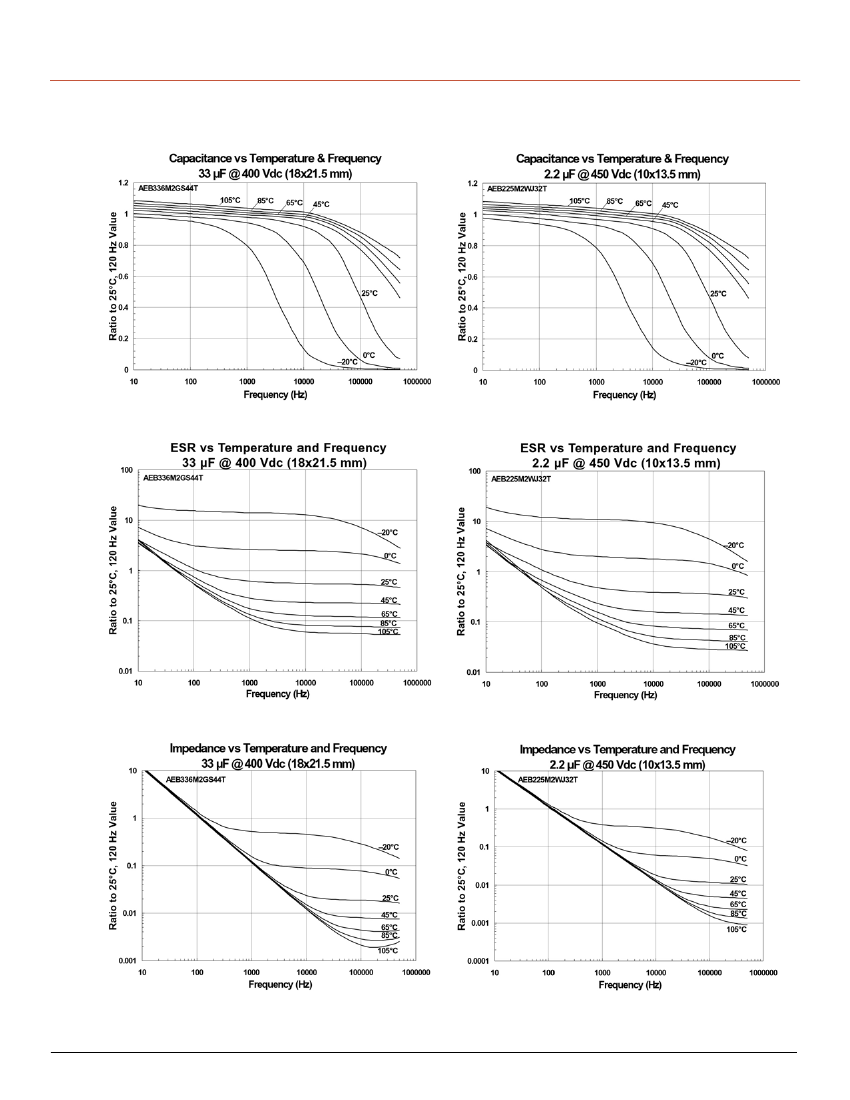

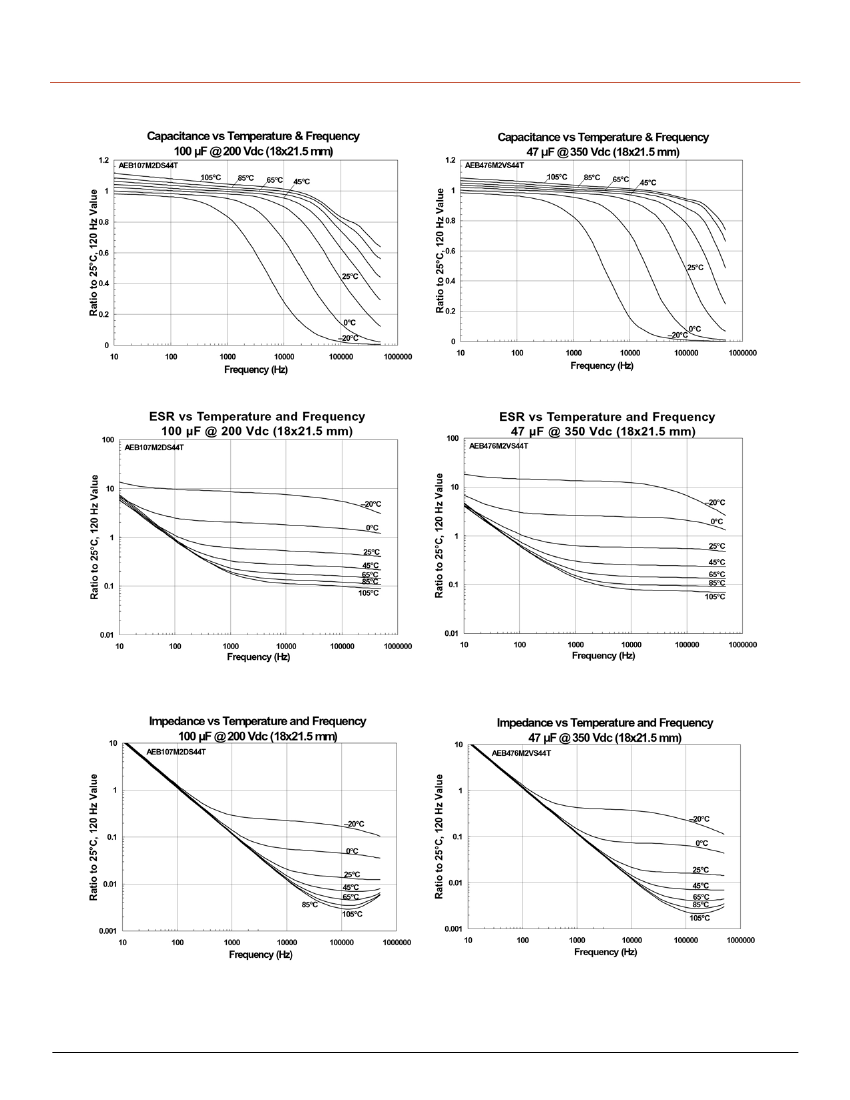

Typical Performance Curves
