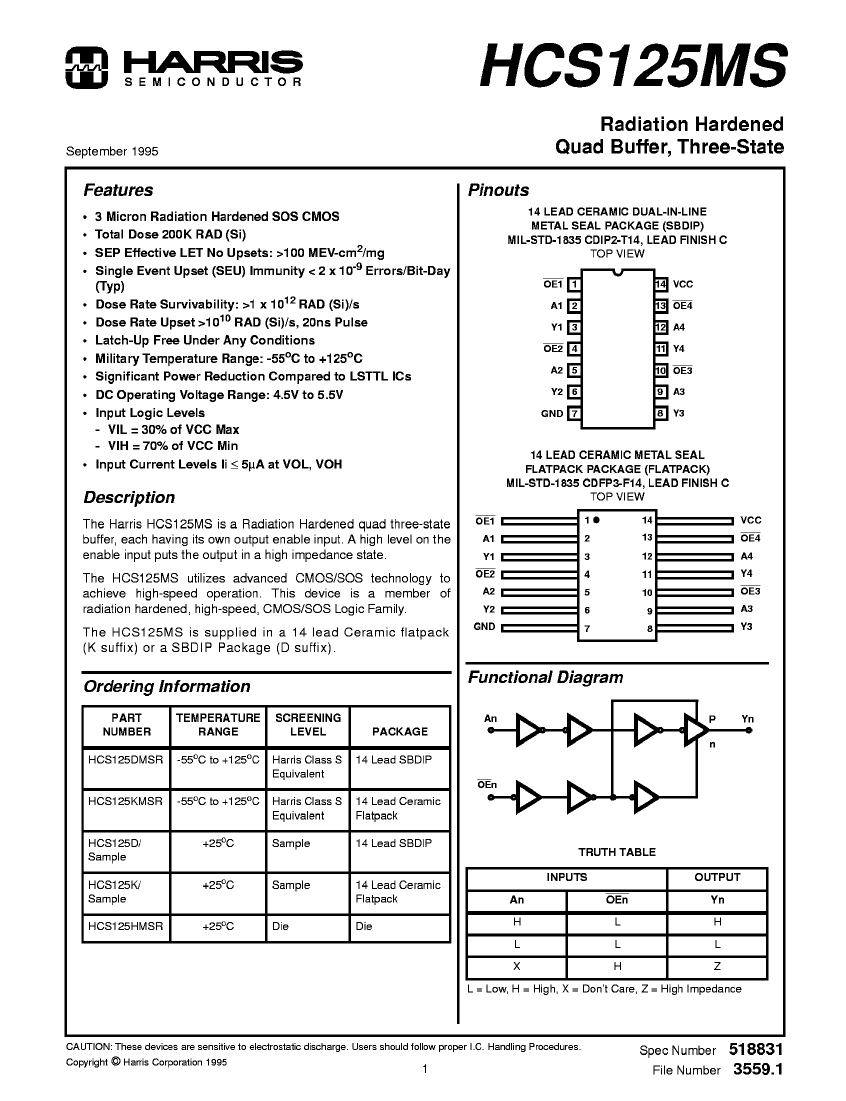

HC/UH SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDIP14, METAL SEALED, SIDE BRAZED, CERAMIC, DIP-14

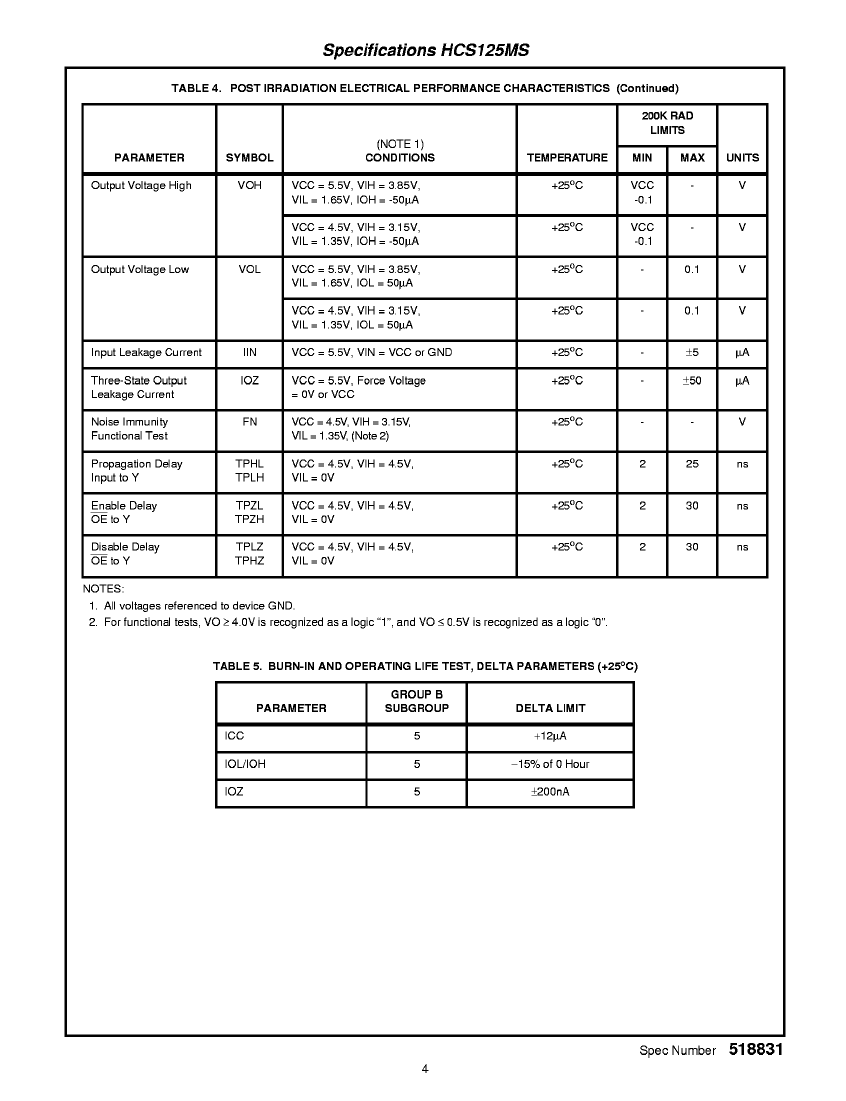

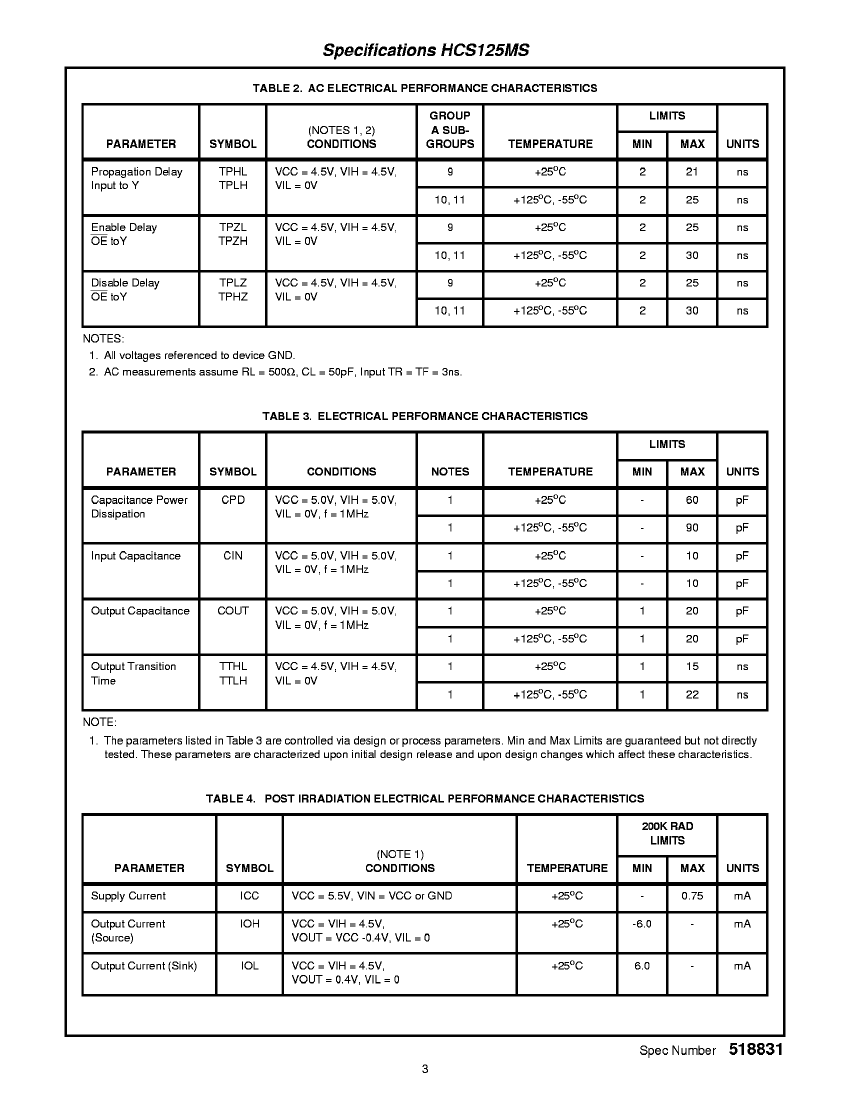

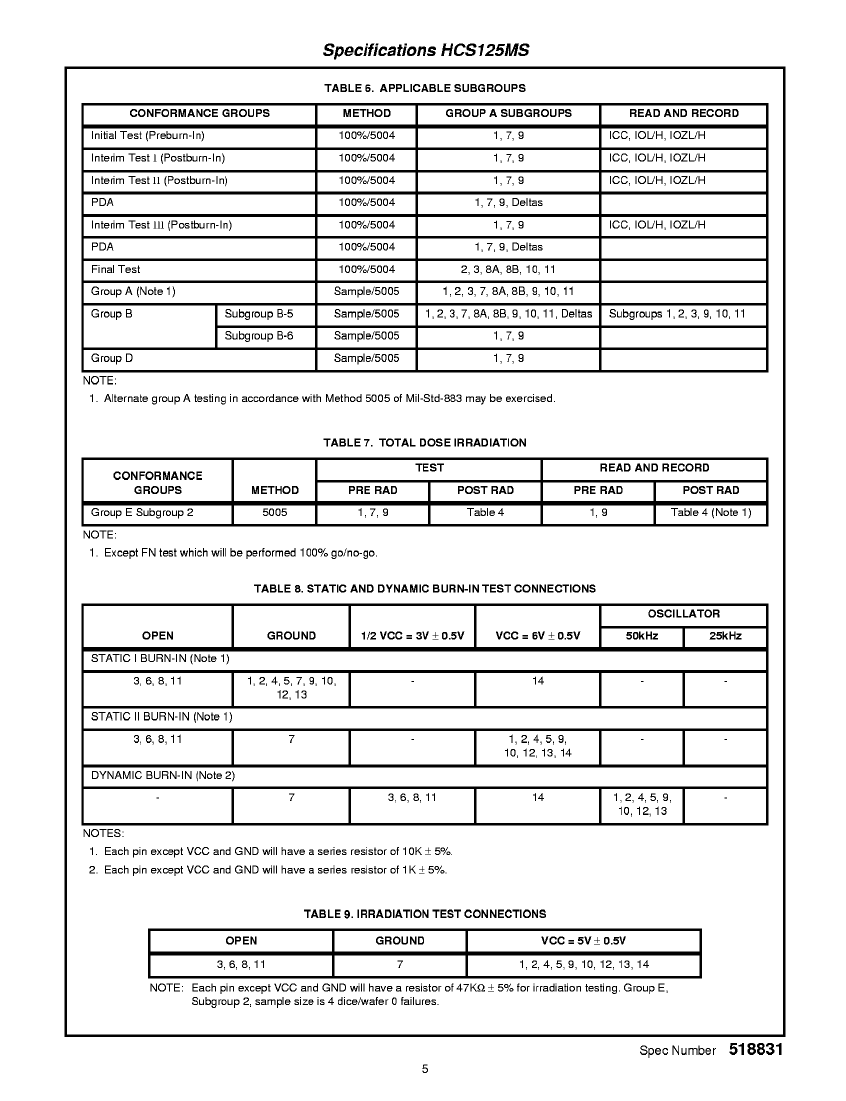

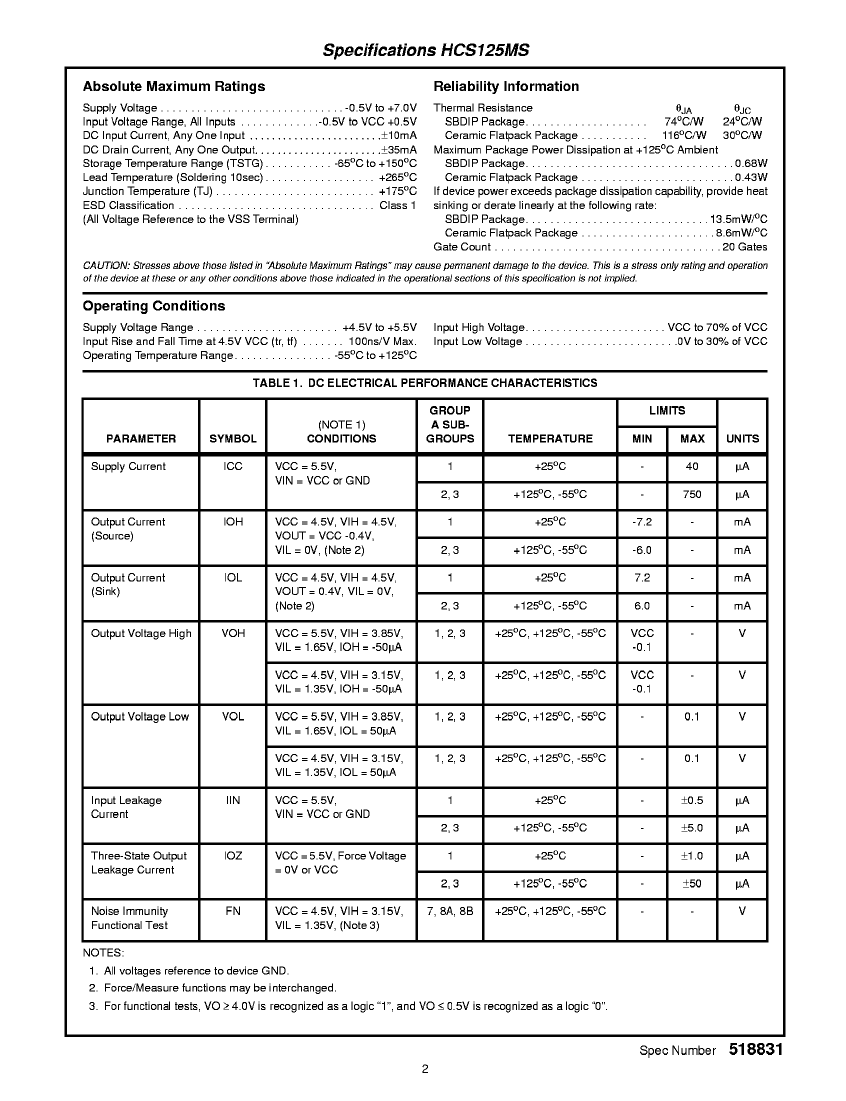

| Parameter Name | Attribute value |
| Objectid | 1912666384 |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| Control type | ENABLE LOW |
| series | HC/UH |
| JESD-30 code | R-CDIP-T14 |
| JESD-609 code | e4 |
| length | 19.43 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.006 A |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of ports | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 25 ns |
| propagation delay (tpd) | 25 ns |
| Certification status | Not Qualified |
| Filter level | 38535V;38534K;883S |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | GOLD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| total dose | 100k Rad(Si) V |
| width | 7.62 mm |
