10056246-1100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 10056246-1100

10056246-1100: DescriptionBoard Connector, 150 Contact(s), 15 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size594KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10056246-1100 Overview

Board Connector, 150 Contact(s), 15 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle

10056246-1100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.992 inch
subject depth	1.142 inch
body length	1.047 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	10056246
Plug contact pitch	0.079 inch
Match contact row spacing	0.055 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.397 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	150
Evacuation force-minimum value	.139 N

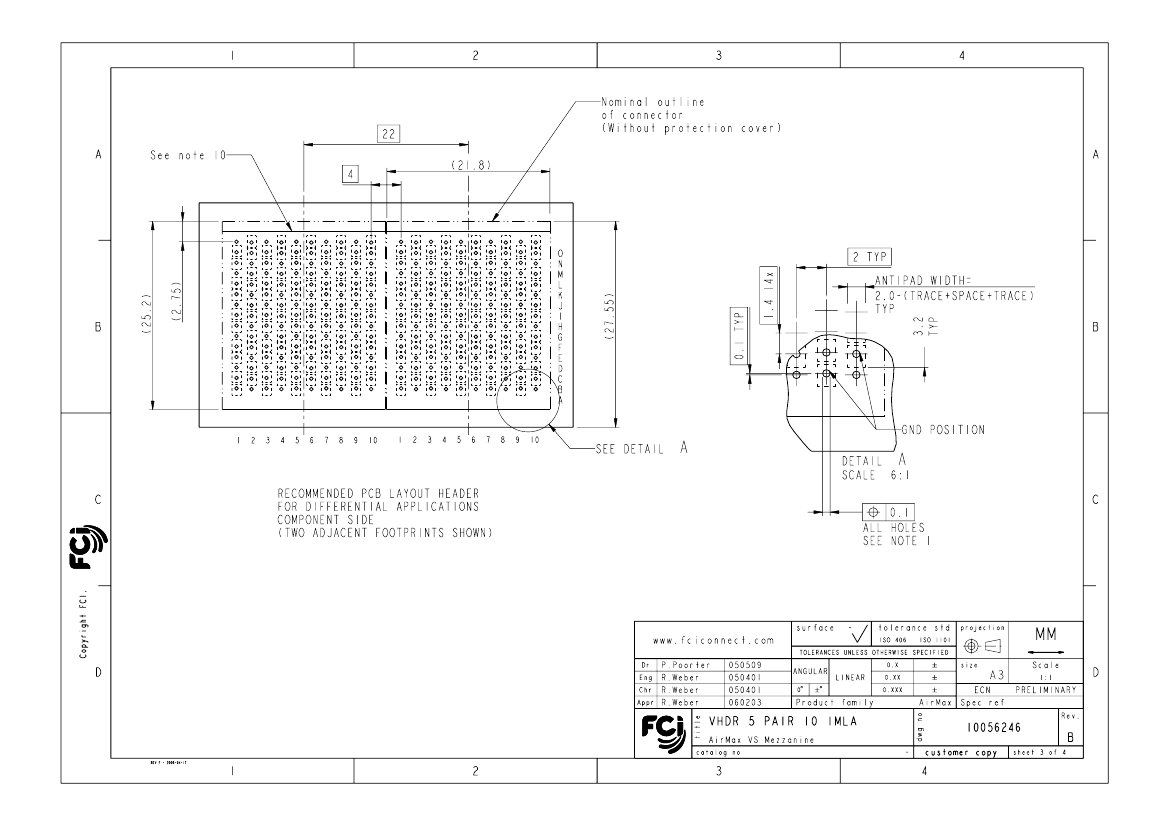

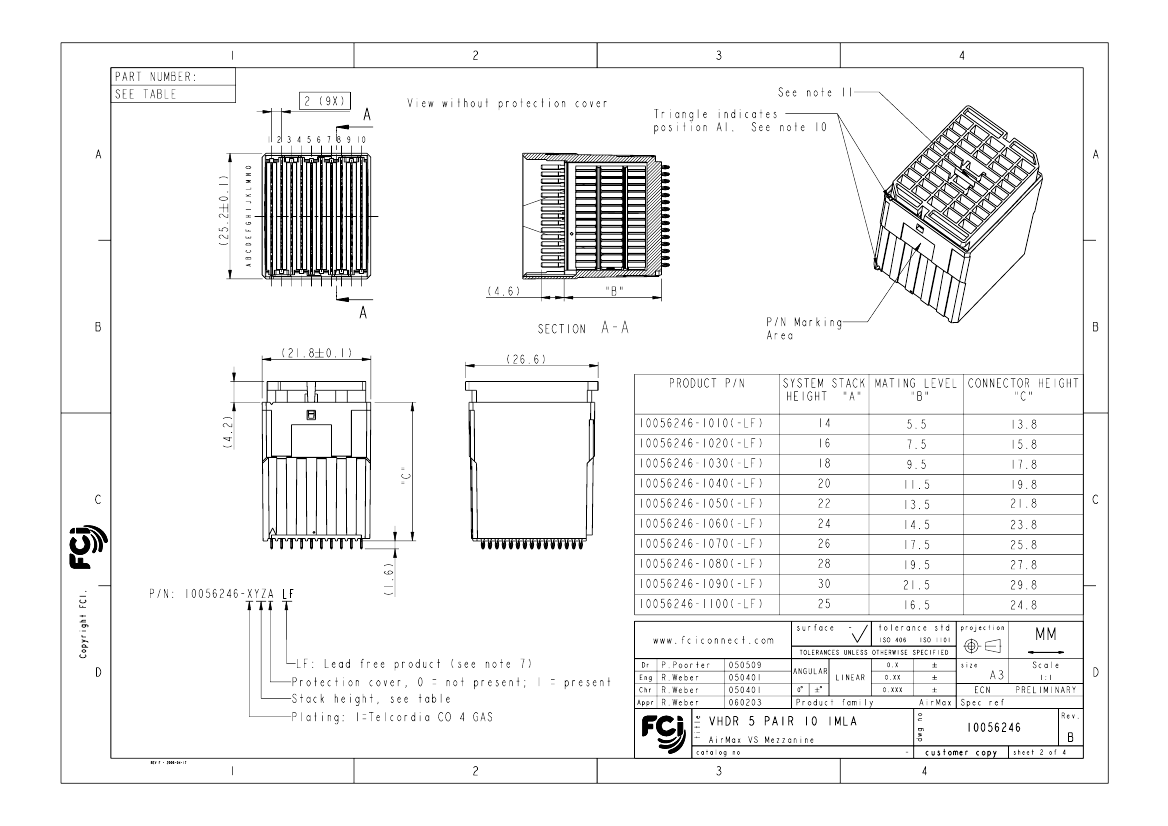

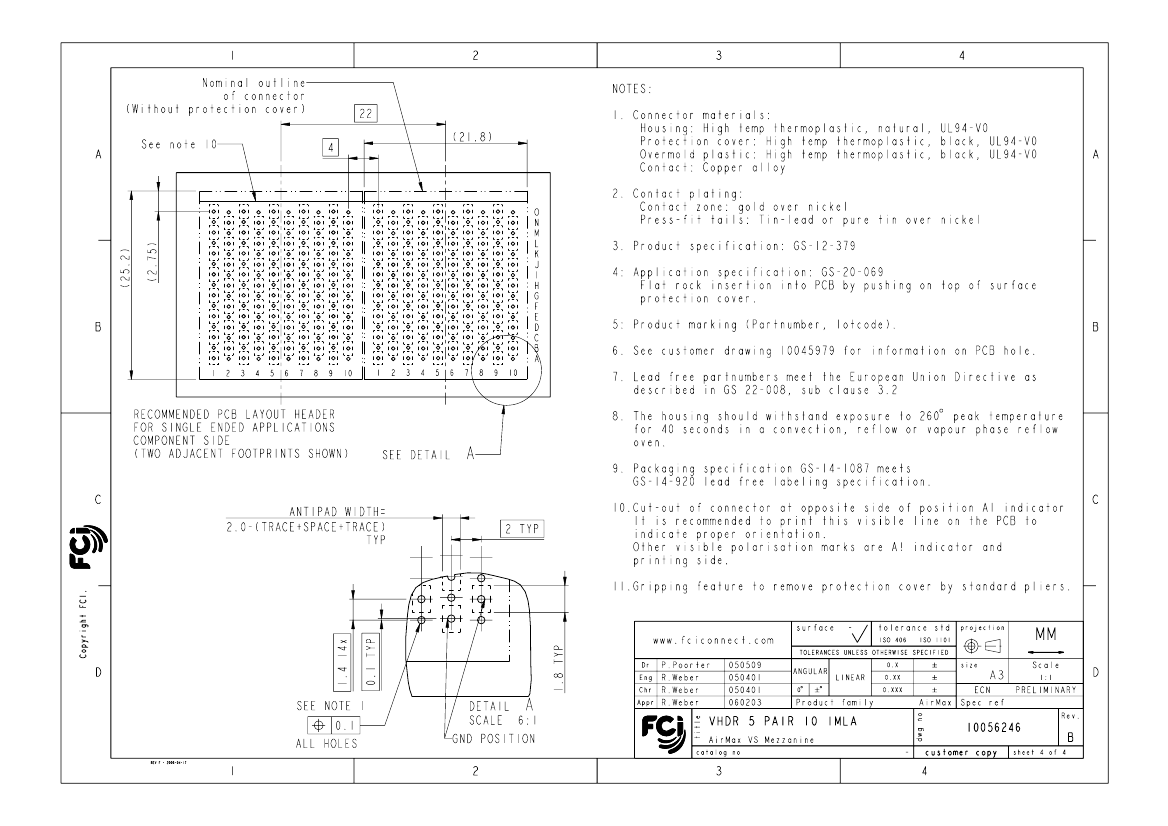

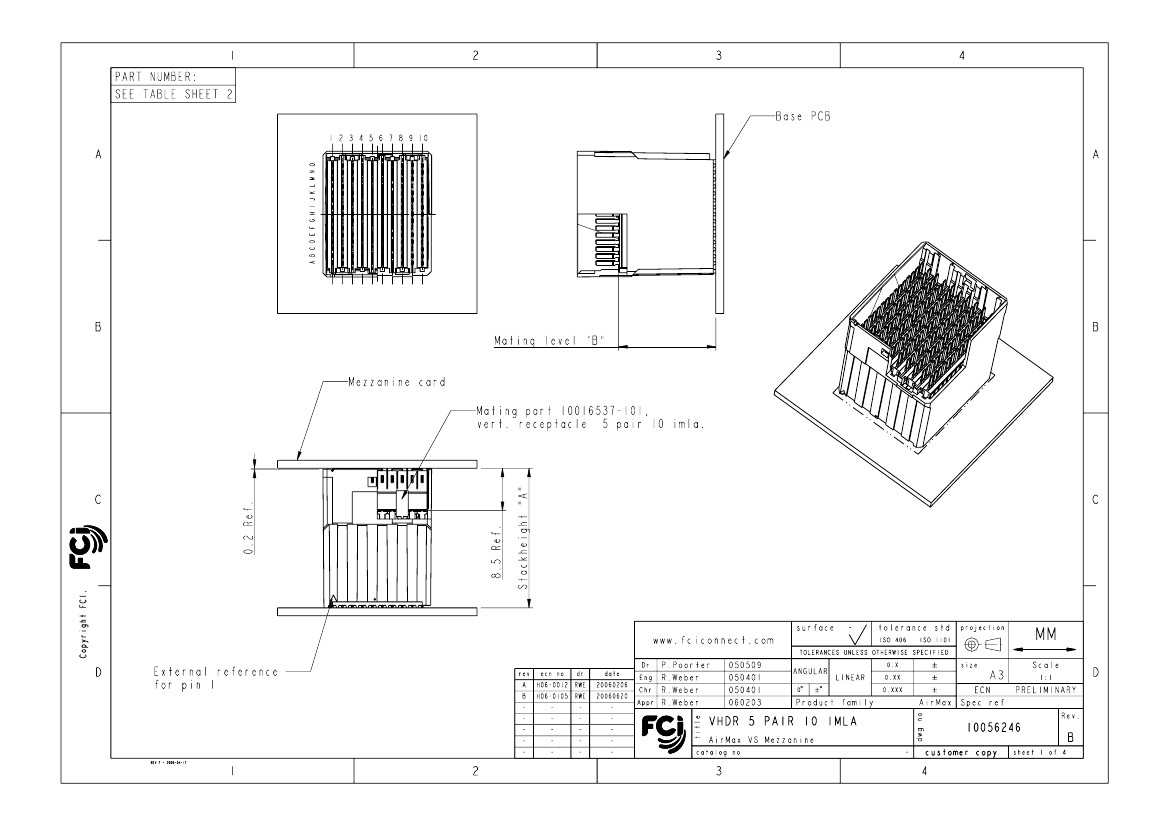

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Aug 12, 2006

10056246-1100 Related Products

	10056246-1100	10056246-1040(-LF)	10056246-1060(-LF)	10056246-1090(-LF)	10056246-1020(-LF)	10056246-1030(-LF)	10056246-1020	10056246-1030
Description	Board Connector, 150 Contact(s), 15 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle	Board Stacking Connector, 150 Contact(s), 10 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Stacking Connector, 150 Contact(s), 10 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Stacking Connector, 150 Contact(s), 10 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Stacking Connector, 150 Contact(s), 10 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Stacking Connector, 150 Contact(s), 10 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle, LEAD FREE	Board Connector, 150 Contact(s), 15 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle	Board Connector, 150 Contact(s), 15 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Natural Insulator, Receptacle
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	conform to	incompatible	incompatible
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compli	compli
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.992 inch	0.992 inch	0.992 inch	0.992 inch	0.992 inch	0.992 inch	0.992 inch	0.992 inch
subject depth	1.142 inch	0.945 inch	1.102 inch	1.338 inch	0.787 inch	0.866 inch	0.787 inch	0.866 inch
body length	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED	AU ON NI	AU ON NI
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	.4448 N	.4448 N	.4448 N	.4448 N	.4448 N	.4448 N	.4448 N	.4448 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e0	e3	e3	e3	e3	e3	e0	e0
Manufacturer's serial number	10056246	10056246	10056246	10056246	10056246	10056246	10056246	10056246
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.055 inch	0.055 inch	0.055 inch	0.055 inch	0.055 inch	0.055 inch	0.055 inch	0.055 inch
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	15	15	15	15	15	15	15	15
Number of rows loaded	15	10	10	10	10	10	15	15
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.397 mm	1.397 mm	1.397 mm	1.397 mm	1.397 mm	1.397 mm	1.397 mm	1.397 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.063 inch	0.063 inch	0.063 inch	0.063 inch	0.063 inch	0.063 inch	0.063 inch	0.063 inch
Terminal pitch	2.0066 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2.0066 mm	2.0066 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	150	150	150	150	150	150	150	150
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N
Contact completed and terminated	Tin/Lead (Sn/Pb)	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
package instruction	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-	-
DIN compliance	-	NO	NO	NO	NO	NO	-	-
Filter function	-	NO	NO	NO	NO	NO	-	-
IEC compliance	-	NO	NO	NO	NO	NO	-	-
MIL compliance	-	NO	NO	NO	NO	NO	-	-
Plug information	-	10016537-101	10016537-101	10016537-101	10016537-101	10016537-101	-	-
Mixed contacts	-	NO	NO	NO	NO	NO	-	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0	-	-
Base Number Matches	-	1	1	1	1	1	-	-
