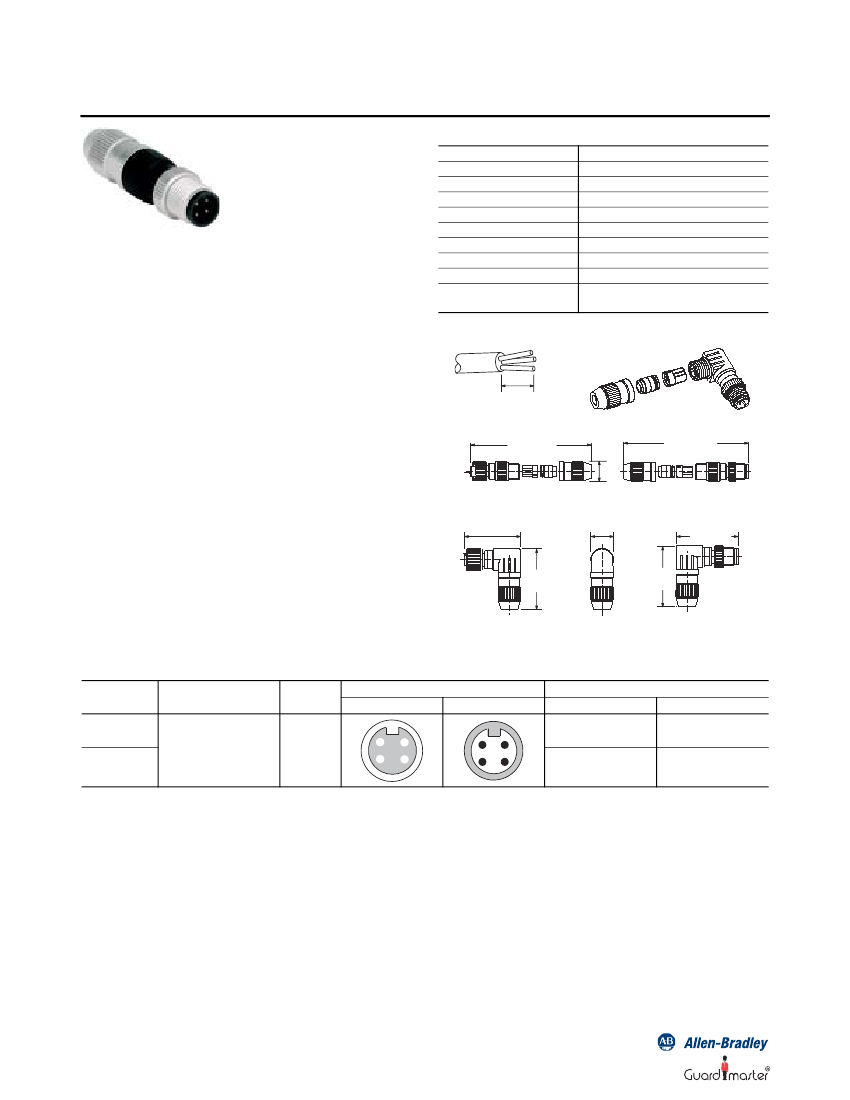

Connection Systems
Field Attachable Connectors
Insulation Displacement Connector, DC Micro Style
Specifications
Coupling Nut
Connector Shell
Connector Body
Field Contacts
Enclosure
Operating Temperature
Installation Temperature
Maximum IDC Installations
Wire Outside Diameter
Wire Size
Nickel-plated brass
Nickel-plated brass
Hytrel Htr 8068
Gold-plated palladium nickel
NEMA 6; IP67
-25°C to 85°C (-13°F to 185°F)
-5°C to 50°C (23°F to 185°F)
10
1.2mm-1.6mm (0.047in-0.063in)
24AWG-20AWG (min. individual strand
size = 38AWG)
Approximate Dimensions—mm (inches)
Features
•
•
•
•
•
Field installable with no hand tools required
4-pin DC micro style
Straight or right angle, male or female
Allows easy modification of existing cable installations
Insulation displacement technology for secure and reliable
installation
15-20
(0.60-0.75)
51.6 (2.03)
54.8 (2.16)
Straight Female
36.5 (1.44)
14.7
(0.58)
Straight Male
40 (1.57)
39.4
(0.55)
39.4
(0.55)
Right Angle Female
Product Selection
Style
Straight
4.0 to 5.1 (0.16 to 0.20)
Right Angle
32V
4A
1
4
2
3
2
3
1
4
Right Angle Male
Dimensions are approximate. Illustrations are not drawn to scale.
Cable Diameter—
mm (inches)
Face View
Rating
Female
Male
Catalogue Number
Female
889D-F4DC-H
889D-R4DC-H
Male
889D-M4DC-H
889D-E4DC-H
15-16
