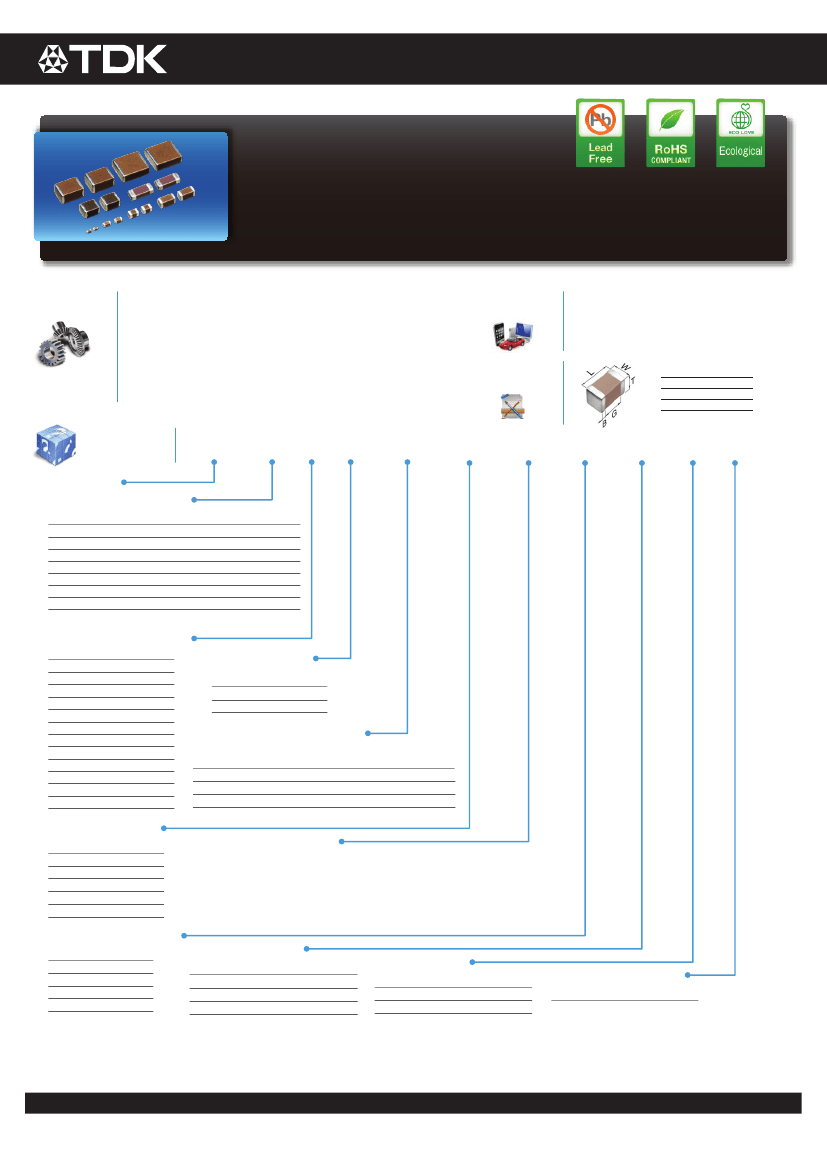

MULTILAYER CERAMIC CHIP CAPACITORS
CGA Series
General (Up to 50V)
Type: CGA1 [EIA CC0201], CGA2 [EIA CC0402], CGA3 [EIA CC0603],
CGA4 [EIA CC0805], CGA5 [EIA CC1206], CGA6 [EIA CC1210], CGA8 [EIA CC1812],
CGA9 [EIA CC2220]
Features
• High capacitance has been achieved through precision technologies
that enable the use of multiple thinner ceramic dielectric layers.
• A monolithic structure ensures superior mechanical strength and
reliability.
• Low ESL and excellent frequency characteristics allow for a circuit
design that closely conforms to theoretical values.
• Low self-heating and high ripple resistance due to low ESR.
• AEC-Q200 compliant.
Applications
•
•
•
•
•
Automotive engine control units
Automotive sensor modules
Automotive battery line smoothing
Applications requiring higher reliability
Switching power supply smoothing
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal Spacing
Shape &
Dimensions
Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
1
2
3
4
5
6
8
9
Length
0.60 ± 0.03
1.00 ± 0.05
1.60 ± 0.10
2.00 ± 0.20
3.20 ± 0.20
3.20 ± 0.40
4.50 ± 0.40
5.70 ± 0.40
CGA • 6 • P • 1 • X7S • 0J • 476 • M • 250 • A • C
Width
0.30 ± 0.03
0.50 ± 0.05
0.80 ± 0.10
1.25 ± 0.20
1.60 ± 0.20
2.50 ± 0.30
3.20 ± 0.40
5.00 ± 0.40
Terminal
0.10 min.
0.10 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
Thickness T Code (mm)
Code
A
B
C
E
F
H
J
L
M
N
P
Q
R
Code
0J
1A
1C
1E
1V
1H
Code
C
D
J
K
M
Thickness
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
*Dimension tolerance are typical values
Voltage Condition
for Life Test
Symbol
1
2
3
Temperature Characteristics
Temperature
Characteristics
C0G
X5R
X7R
X7S
Temperature Coefficient or
Capacitance Change
0±30 ppm/°C
±15%
±15%
±22%
Temperature
Range
-55 to +125°C
-55 to + 85°C
-55 to +125°C
-55 to +125°C
Condition
1 × R.V.
2 × R.V.
1.5 × R.V.
Rated Voltage (DC)
Capacitance Tolerance
Tolerance
± 0.25pF
± 0.50pF
± 5%
± 10%
± 20%
Voltage (DC)
6.3V
10V
16V
25V
35V
50V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of pico
Farads (pF). The first and second digits identify the first and second
significant figures of the capacitance. The third digit identifies the
multiplier. R designates a decimal point.
Ex. 0R2 = 0.2pF; 103 = 10,000pF; 105 = 1,000,000pF = 1,000nF = 1μF
Nominal Thickness
Code
030
050
060
125
Thickness
0.30 mm
0.50 mm
0.60 mm
1.25 mm
Packaging Style
Code
A
B
K
Style
178” Reel, 4mm Pitch
178” Reel, 2mm Pitch
178” Reel, 8mm Pitch
Special Reserved Code
Code
A, B
Description
TDK Internal Code
*See Thickness T Code for complete list
Page 2
• All specifications are subject to change without notice.
006-02 / 20140424 / mlcc_automotive_general_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: C0G (0 ± 30ppm/ºC), X7R (±15%)
Rated Voltage: 50V (1H), 25V (1E), 16V (1C), 10V (1A), 6.3V (0J)
Capacitance
(pF)
1
1.5
2
2.2
3
3.3
4
4.7
5
6
6.8
7
8
9
10
12
15
18
22
27
33
39
47
56
68
82
100
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10000
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
151
221
331
471
681
102
152
222
332
472
682
103
Tolerance
C: ± 0.25pF
D: ± 0.50pF
J : ± 5%
K : ± 10%
M: ± 20%
C0G
1H
(50V)
1E
(25V)
1H
(50V)
X7R
1E
1C
(25V) (16V)
1A
(10V)
0J
(6.3V)
CGA1(0603) [EIA CC0201]
Standard Thickness
0.30 mm
Page 3
• All specifications are subject to change without notice.
006-02 / 20140424 / mlcc_automotive_general_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
CGA2(1005) [EIA CC0402]
C0G
X5R
1H
(50V)
1V
(35V)
1E
(25V)
1C
(16V)
1A
(10V)
1H
(50V)
1V
(35V)
X7R
1E
(25V)
1C
(16V)
X7S
1A
0J
1C
(10V) (6.3V) (16V)
1A
(10V)
Capacitance Range Chart
Temperature Characteristics: C0G (0 ± 30ppm/ºC), X5R (±15%), X7R (±15%) , X7S (±22%)
Rated Voltage: 50V (1H), 35V (1V), 25V (1E), 16V (1C), 10V (1A), 6.3 (0J)
Capacitance
(pF)
1
1.5
2
2.2
3
3.3
4
4.7
5
6
6.8
7
8
9
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
47,000
68,000
100,000
150,000
220,000
330,000
470,000
0.50 mm
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
152
222
332
472
682
103
153
223
333
473
683
104
154
224
334
474
Tolerance
C : ± 0.25pF
D : ± 0.50pF
J : ± 5%
K : ± 10%
M: ± 20%
1H
(50V)
Standard Thickness
Page 4
• All specifications are subject to change without notice.
006-02 / 20140424 / mlcc_automotive_general_en
