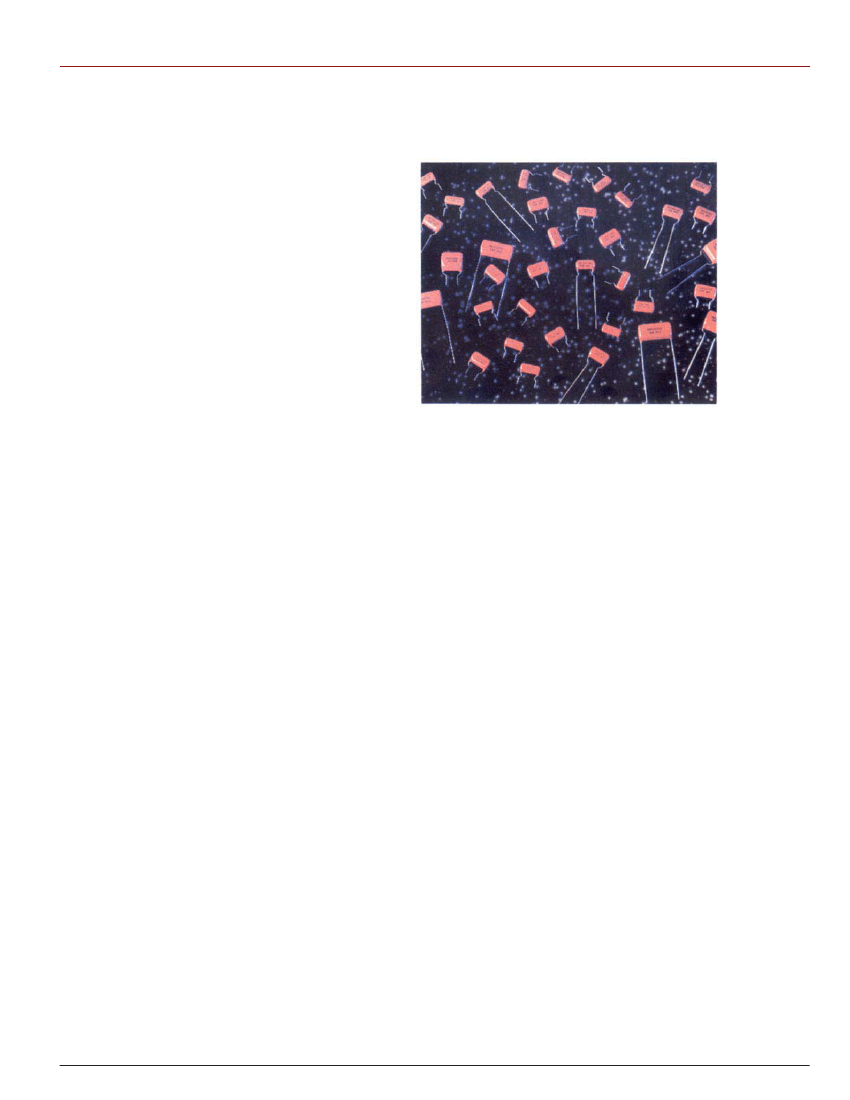

Type 225P, Orange Drop®, Polyester Film/Foil Capacitors
Features
• Radial-lead. Pressed profile.
• Non-inductively wound, extended
foil construction.
• Over 35 years o f proven dependability.
• Wide availability through CDE
Distribution.
Insulation Resistance:
At +25°C: 100,000 M for
.25 µF
25,000 M -µF for C > .25 µF
At +85°C: 10,000 M for C .15 µF
1,500M -µF for C >.15 µ
F
At+105°C: 1.500 M for C .17 µ
F
250 M -µF for C > .17µF
At +125°C: 200 M for C .13 µ
F
25 M -µF for C >.13 µF
Dissipation Factor:
0.75% Maximum @ 1 KHz, +25°C
Encapsulation:
Conformal coating of orange, flame
retardant epoxy. Meets UL94V-0
specifications.
Dielectric/Construction:
Polyester film, single section design.
Non-inductively wound with extended
aluminum foil.
Specifications
Capacitance Range:
.00 to 1.0 µF
Capacitance Tolerance:
±5%, ±10%, ±20%
Voltage Ratings:
100 to 600 Volts D-C
70 to 200 Volts A-C
Operating Temperature Range:
-55°C to +85°C (at full voltage)
Voltage Derating:
At +105°C, 70% of +85°C rating.
At +125°C, 50% of +85°C rating.
Lead Wire:
Tinned copper-clad steel,
.032 (0.8) diameter, #20 AWG
Dimensions in inches, metric (mm) in parenthesis.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type 225P, Orange Drop®, Polyester Film/Foil Capacitors
General Specifications
The Type 225P Orange Drop
®
is designed and manufactured for operation in a wide range of demanding envi-
ronments and applications. Type 225P capacitors are wound from the most reliable polyester film and alum-
inum foil available and are protected by a rugged conformal coating of orange epoxy. They may be operated
up to +125 °C with proper derating.
The combination of proven dependability and extensive availability through
CDE
distribution make
the 225P an ideal choice for many commercial and industrial electronic applications, from power supplies and
instrumentation to audio amplifiers and test equipment.
Operating Temperature Range:
Humidity Testing:
The standard operating temperature range for
polyester film is -55°C to +85°C. The 225P
may be operated a t full voltage within this
temperature range.
The 225P may be operated up to +105°C
provided the DC working voltage is reduced
to 70% of the +85°C rating (full rating), and
up to +125°C with a 50% reduction from the
+85°C rating (full rating).
For more specific details regarding operation
above +85°C please contact our design
engineering department.
Units subjected to 95% relative humidity for 72
hours with no voltage applied at +75°C. After 4
hours of drying minimum product of insulation
resistance and capacitance shall be 5,000 M -µF.
DC Voltage Life Test:
The maximum operating temperature for the
225P polyester film capacitors is +125°C.
Dielectric Withstanding Voltage:
500 hours at +85°C at 150% of rated voltage. After
test; capacitance shall not have changed by more
than ±5% of initial value, insulation resistance shall
not have decreased by more than 50% of initial value
and dissipation factor shall not have increased to
more than 1.0%. In addition, there should be no
open or short circuits, and no sign of visible damage.
Typical Temperature Characteristics:
Units shall withstand a DC potential of 250%
of rated voltage applied between terminals for
not more than 5 seconds.
AC Voltage Applications:
The A-C component of the 225P's voltage rating
has been specified to assure that corona will not
be encountered when the capacitor is operated
within the noted specifications. We encourage
you to contact us if you have any concerns about
operating voltage, temperature limits, etc.
Lead Bend Test:
After 3 consecutive 180° bends. No damage.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type 225P, Orange Drop®, Polyester Film/Foil Capacitors
Ordering/Part Number information
225P
104
9
1
W
D
3
(XXXX)
A suffix may be added by
the factory to denote special
construction.
Lead Length
1 = 0.187 (4.7) ± 0.030 (0.8)
2 = 0.250 (6.4) ± 0.030 (0.8)
3 = 1.250 (32) Minimum
Custom lead lengths available upon request.
Terminal
A = Straight Lead
B,F = Hairpin Crimp
D,G,H = Hockey Stick Crimp
Case Code
See Standard Sizes/Ratings Table
D-C Voltage Rating
Expressed in Hundreds of Volts
Capacitance Tolerance
0 = ±20%; 9 = ±10%; 5 = ±5%
Capacitance
Expressed in Picofarads. The first two digits are the significant figures,
the third is the number of zeros following, (i.e. 104 = 100000 pF = . 1 µF)
CDE Type Number
Identifies the basic capacitor design.
Standard Marking Format
Sample Marking
on unit
CDE225P100V
104K 9810
Description
CDE
225P
100V
104K
9810
-
-
-
-
-
CDE Electronics identification
Type number
D-C Voltage rating, Volts
Capacitance and tolerance code
Weekly date code
(i.e. 10th week of 1998)
Tolerance codes
per EIA Standards
J
K
M
±5%
±10%
±20%
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type 225P, Orange Drop®, Polyester Film/Foil Capacitors
Standard Lead Styles
TERMINAL A
TERMINAL B,F
TERMINAL D,G,H
Standard Lead Spacings
CASE
CODE
Term. A
0.562 (14.3)
0.613 (15.6)
0.969 (24.6)
Term. B
0.562 (14.3)
0.613 (15.6)
0.969 (24.6)
Term. D
s
Term. F
Term. G
0.295 (7.5)
0.394 (10)
0.590 (15)
Term. H
0.197 (5)
0.295 (7.5)
W
X
Y
0.375 (9.5)
0.394 (10)
0.590 (15)
0.375 (9.5)
0.719 (18.3)
0.886 (22.5)
---
Dimensions in inches, metric (mm) in parenthesis.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type 225P, Orange Drop®, Polyester Film/Foil Capacitors
Type 225P Standard Sizes/Ratings
2
1
Value,
µF
Part Number
L
MAX
T
MAX
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6,4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
H
MAX
.35
.35
.35
.35
.35
.35
Value, µF
Part Number
.001
.0012
.0015
.0018
.0022
.0027
.0033
100 VDC / 70 VAC*
.001
.0012
.0015
.0018
.0022
.0027
T
MAX
200 VDC / 140 VAC*
1
L
MAX
H
MAX
.55 (14.0)
225P10291 W
225P12291 W
225P15291 W
225P18291 W
225P22291 W
225P27291 W
225P33291 W
225P39291 W
225P47291 W
225P56291 W
225P68291 W
225P82291 W
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
(8.9)
(8.9)
(8.9)
(8.9)
(8.9)
(8.9)
.0033
.0039
.0047
.0056
.0068
.0082
.70 (17.8)
.70 (17.8 )
.70 (17,8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8 )
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.70 (17.8)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
225P10292X
225P12292X
225P15292X
225P18292X
225P22292X
225P27292X
225P33292X
.80
.80
.80
.80
.80
.80
.80
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
.25
(6.4)
.25
.25
.25
.25
.25
.25
(6.4)
(6.4)
(6.4)
(6.4)
(6.4)
(6,4)
.55 (14.0)
.55 (14.0)
.55 (14.0)
.55 (14.0)
.55 (14.0)
.55 (14.0)
.01
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
225P10391 W
225P12391 W
225P15391 W
225P18391 W
225P22391W
22SP27391W
225P33391 W
225P39391 W
225P47391 W
225P56391 W
225P68391 W
225P82391W
225P10491 W
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.27
(6.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.35
(8.9)
.37
(9.4)
.37
(9.4)
.42 (10.7)
.42 (10.7)
.49 (12.4)
.49 (12.4)
.55 (14.0)
.55 (14.0)
.0039
.0047
.0056
.0068
.0082
.01
.012
225P39292X
225P47292X
225P56292X
225P68292X
225P82292X
225P10392X
225P12392X
225P15392 X
225P18392X
225P22392X
.80
.80
.80
.80
.80
.80
.80
.80
.80
.80
.80
.80
.80
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
(20.3)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.25
(6.4)
.55
.55
.58
.58
.58
.58
.58
.58
.58
.61
.61
.61
.61
(14.0)
(14.0)
(14.7)
(14.7)
(14.7)
(14.7)
(14.7)
(14.7)
(14.7)
(15.5)
(15.5)
(15.5)
(15.5)
.018
.022
.027
.015
.80 (20.3)
.1
.27
(6,9)
.30
(7.6)
.30
(7.6)
.34
(8.6)
.34
(8.6)
.40 (10.2)
.40 (10.2)
.37
(9.4)
.40 (10.2)
.43 (10.9)
.46 (11.7)
.49 (12.4)
.52 (13.2)
.55 (14.0)
.60 (15.2)
.033
.039
.047
225P27392X
225P33392X
225P39392X
225P47392X
.25
(6.4)
.25
(6.4)
.28
(7.1)
.28
(7.1)
.28
(7.1)
.28
(7.1)
.31
(7,9)
.34
(8.6)
.37
(9.4)
.39
(9.9)
.41 (10.4)
.46 (11.7)
.48 (12.2)
.58 (14.7)
.056
.068
.082
.12
.15
.18
.22
.27
.33
.39
.47
225P12491X
225P15491 X
225P18491X
225P22491X
225P27491 X
225P33491 X
225P39491 X
225P47491X
225P56491Y
225P68491Y
225P82491 Y
225P10591Y
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
1.25 (31.8)
1.25 (31.8 )
1.25 (31.8)
1.25 (31.8)
.57 (14.5)
.62 (15.7)
.66 (16.8)
.70 (17.8)
.74 (18.8)
.77 (19.6)
.81 (20.6)
.86 (21.8)
.88
.90
.94
.98
(22.4)
(22.9)
(23.9)
(24.9)
.1
.12
.15
.18
.22
225P56392X
225P68392X
225P82392X
225P10492X
225P12492X
225P15492X
225P18492X
225P22492X
.80 (20.3)
.80 (20.3)
.31
(7.9)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
.80 (20.3)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
.67 (17.0)
.71 (18.0)
.72 (18.3)
.74 (18.8)
.75 (19.1)
.64 (16.3)
.64 (16.3)
.77 (19.6)
.56
.68
.82
1.0
.55
.58
.65
.72
(14.0)
(14.7)
(16.5)
(18.3)
.33
.39
.47
.56
.68
.27
225P27492Y
225P33492Y
225P39492Y
225P47492Y
225P56492Y
225P68492Y
.39
(9.9)
.41 (10.4)
.50 (12.7)
.67 (17.0)
.84 (21.3)
.45 (11.4)
.71 (18.0)
.83 (21.1)
.99 (25.1)
1.14 (29.0)
.71 (18.0)
.77 (19.6)
* 60 Hz.., RMS
1
2
To complete part number for specific tolerance, terminal style and lead length please refer to Ordering/Part Number Information page.
Shaded part numbers, when ordered as ±10% tolerance with the D3 terminal style and lead length, are Standard Stock items available
through the CDE Distribution Network. For complete part number please add the D3 suffix to the above part numbers in
accordance with the Ordering Information (i.e. 225P10491WD3). Other part numbers are available on special order.
Dimensions in inches, metric (mm) in parenthesis.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
/168105k50g_f_pdf/pg_0001.png)
51mcu
京公网安备 11010802033920号
EEWORLD/168105k50g_f_pdf/1.png)
/168105k50g_f_pdf/2.png)
/168105k50g_f_pdf/3.png)
/168105k50g_f_pdf/4.png)
/168105k50g_f_pdf/5.png)
/168105k50g_f_pdf/pg_0002.png)
/168105k50g_f_pdf/pg_0003.png)
/168105k50g_f_pdf/pg_0004.png)
/168105k50g_f_pdf/pg_0005.png)
