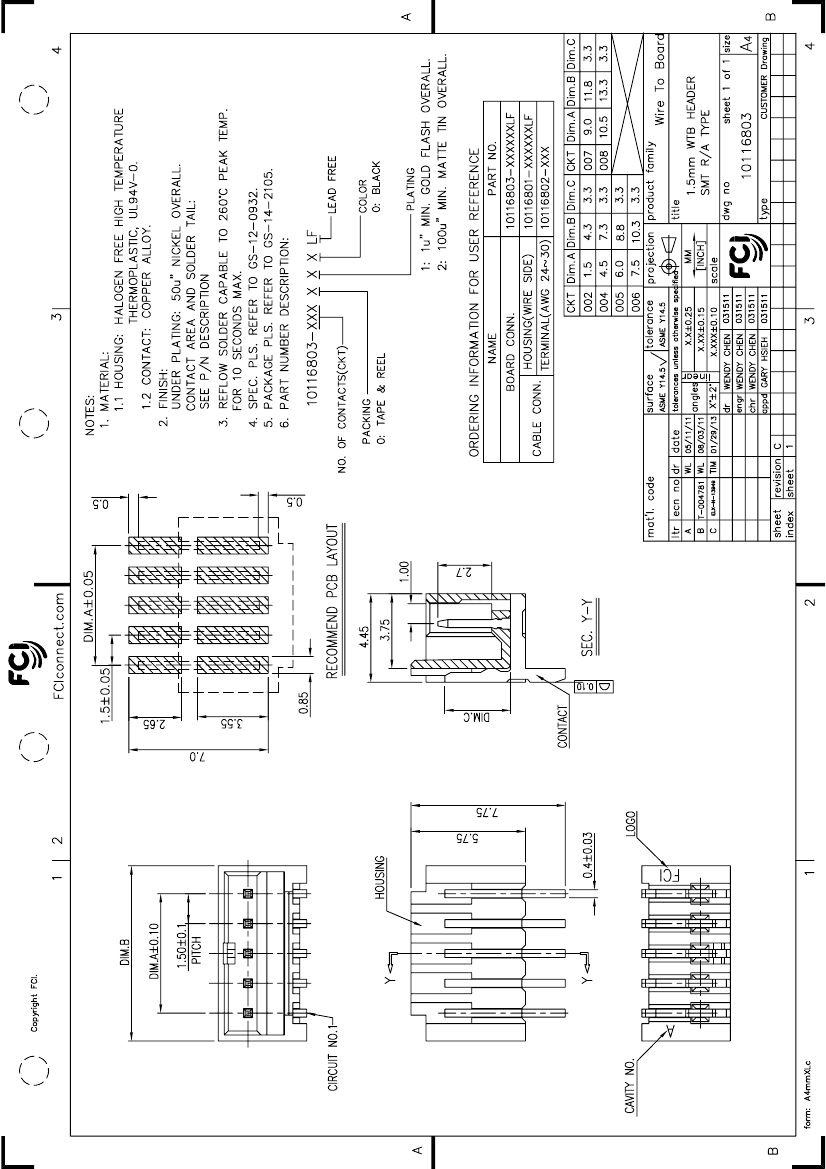

10116803-002020: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10116803-002020 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

10116803-002020 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.175 inch
subject depth	0.305 inch
body length	0.169 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	10116803
Plug contact pitch	0.059 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.4986 mm
Termination type	SURFACE MOUNT
Total number of contacts	2

Preview

Download Datasheet

View All

PDS: Rev :C

STATUS:Released

Printed: Jan 31, 2013

10116803-002020 Related Products

	10116803-002020	10116803-007020LF	10116803-007010LF	10116803-006010LF	10116803-006020LF	10116803-007020
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant
body width	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch
subject depth	0.305 inch	0.305 inch	0.305 inch	0.305 inch	0.305 inch	0.305 inch
body length	0.169 inch	0.465 inch	0.465 inch	0.406 inch	0.406 inch	0.465 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	AU ON NI	AU ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE
Manufacturer's serial number	10116803	10116803	10116803	10116803	10116803	10116803
Plug contact pitch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	FLASH inch	FLASH inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	2	7	7	6	6	7
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-
Base Number Matches	-	1	1	1	1	-
