POE-D11-00-E-07
CERAMIC DISC CAPACITOR SAFETY RECOGNIZED,
AC SERIES
Ver : 7
Page: 1 / 20
PRODUCT:
CERAMIC DISC CAPACITOR
SAFETY RECOGNIZED
TYPE:
AC SERIES
CUSTOMER:
DOC. NO.: POE-D11-00-E-07
Ver.: 7
APPROVED BY CUSTOMER
VENDOR：
：
□
WALSIN TECHNOLOGY CORPORATION
566-1, KAO SHI ROAD,YANG-MEI
TAO-YUAN, TAIWAN
□
PAN OVERSEAS (GUANGZHOU) ELECTRONIC CO.,LTD.
NO.277,HONG MING ROAD,EASTERN SECTION,
GUANG ZHOU ECONOMIC AND TECHNOLOGY
DEVELOPMENT ZONE,CHINA
MAKER：PAN OVERSEAS (GUANGZHOU) ELECTRONIC CO.,LTD.
：
NO.277,HONG MING ROAD,EASTERN SECTION,
GUANG ZHOU ECONOMIC AND TECHNOLOGY
DEVELOPMENT ZONE,CHINA
POE-D11-00-E-07
CERAMIC DISC CAPACITOR SAFETY RECOGNIZED,
AC SERIES
Record of change
Ver : 7
Page: 2 / 20
Date
2008.6.3
2008.8.22
2008.12.12
2009.7.16
Version
1
2
3
4
1. D23-00-E-01(before)
→
Description
POE-D11-00-E-01(1
st
edition)
page
1 Complete lead code
2.
Add last SAP code “ H” for halogen and Pb free , epoxy resin..
1.Complete the 13
th
to 17
th
codes of SAP P/N.
2. Page layout adjustment.
1 Change PSA & POE logo to Walsin & POE logo.
2.Complete Marking statement.
3. Revised standard NO. of SEV, SEMKO, FIMKO, NEMKO, DEMKO and
KEMA.
Revised recognized NO. of FIMKO, NEMKO, DEMKO ,KEMA and
CQC.
4. Downsize：
YP0AC101K080**
→
YP0AC101K060 **
YP0AC102K100**
→
YP0AC102K080**
YV0AC152M080**
→
YV0AC152M060**
20
3
4
9
11
6
2009.9.14
2009.12.24
5
6
1. “Protrusion length”: “+0.5 to-1.0” revised to “2.0max (Or the end of lead
wire may be inside the tape.)”
1. Marking
2. Correct
recognized No
3. Revised the Figure of impulse voltage test(Item 7.3.14) according to the
standard IEC 60384-14 ed.3
1. Review SAP P/N about diameter code:
YP0AC151K080* YP0AC151K060*
YP0AC221K080* YP0AC221K060*
YP0AC331K080* YP0AC331K060*
YP0AC561K080* YP0AC561K070*
YP0AC681K090* YP0AC681K070*
YP0AC821K100* YP0AC821K080*
YU0AC152M100* YU0AC152M080*
2. Delete “AT” taping type.
3. Add test item “Temperature Cycle ”.
4. Add item 10 “Drawing of internal structure and material list”
9
10
11
14
6
2011/1/13
7
4,5,8,9
15
20
POE-D11-00-E-07
CERAMIC DISC CAPACITOR SAFETY RECOGNIZED,
AC SERIES
Ver : 7
Page: 3 / 20
Table of Contents
No.
1
2
3
4
5
6
7
8
9
10
Part number for SAP system
Mechanical
Part numbering/T.C/Capacitance/ Tolerance/Diameter
Taping Format
Marking
Scope
Specification and test method
Packing specification
Notices
Drawing of Internal Structure and material list
Item
Page
4/20
5/20
6/20~7/20
8/20~9/20
10/20
11/20
12/20~15/20
16/20
17/20~19/20
20/20
POE-D11-00-E-07
CERAMIC DISC CAPACITOR SAFETY RECOGNIZED,
AC SERIES
1. Part number for SAP system
(Ex.)
YV
0AC
472
M
100
L
20
Ver : 7
Page: 4 / 20
C
7
B
Temperature characteristic (identified code)
CODE
Cap. Change
CH(NP0)
0±60PPM/℃
SL
-1000~+350PPM/℃
(+20
℃
~+85
℃)
YP (Y5P)
±10%
YV(Y5V)
-80% ~ +30%
YU (Y5U)
-55% to +20%
TYPE (identified by 3-figure code)：0AC = AC TYPE (X1/Y2)
Capacitance (identified by 3-figure code)：EX.221=220pF
Capacitance tolerance (identified by code)：
C:±0.25pF,D:±0.5pF,J:±5
%
,K:±10
%
,M:±20
%
Nominal body diameter dimension (identified by 3-figure code)
Lead Style
：Refer
to “
2. Mechanical”.
Packing mode and lead length (identified by 2-figure code)
Taping Code
AF
AM
Bulk Code
3E
04
4E
20
Description
Ammo box and product pitch：15.0 mm
Ammo box and product pitch：25.4 mm
Description
Lead length： 3.5mm
Lead length： 4.0mm
Lead length： 4.5mm
Lead length：20.0mm
Length tolerance
Code
A
B
C
D
Description
±0.5 mm
(only for kink lead type)
±1.0 mm
Min.
Taping special purpose
Pitch
Code
7
0
Description
7.5±1 mm
10±1 mm
Epoxy Resin Code
Code
B
H
Description
Pb free, Epoxy Resin
Halogen and Pb free , epoxy resin.
POE-D11-00-E-07
CERAMIC DISC CAPACITOR SAFETY RECOGNIZED,
AC SERIES
2. Mechanical
Encapsulation：Epoxy resin, flammability UL94 V-0
Ver : 7
Page: 5 / 20

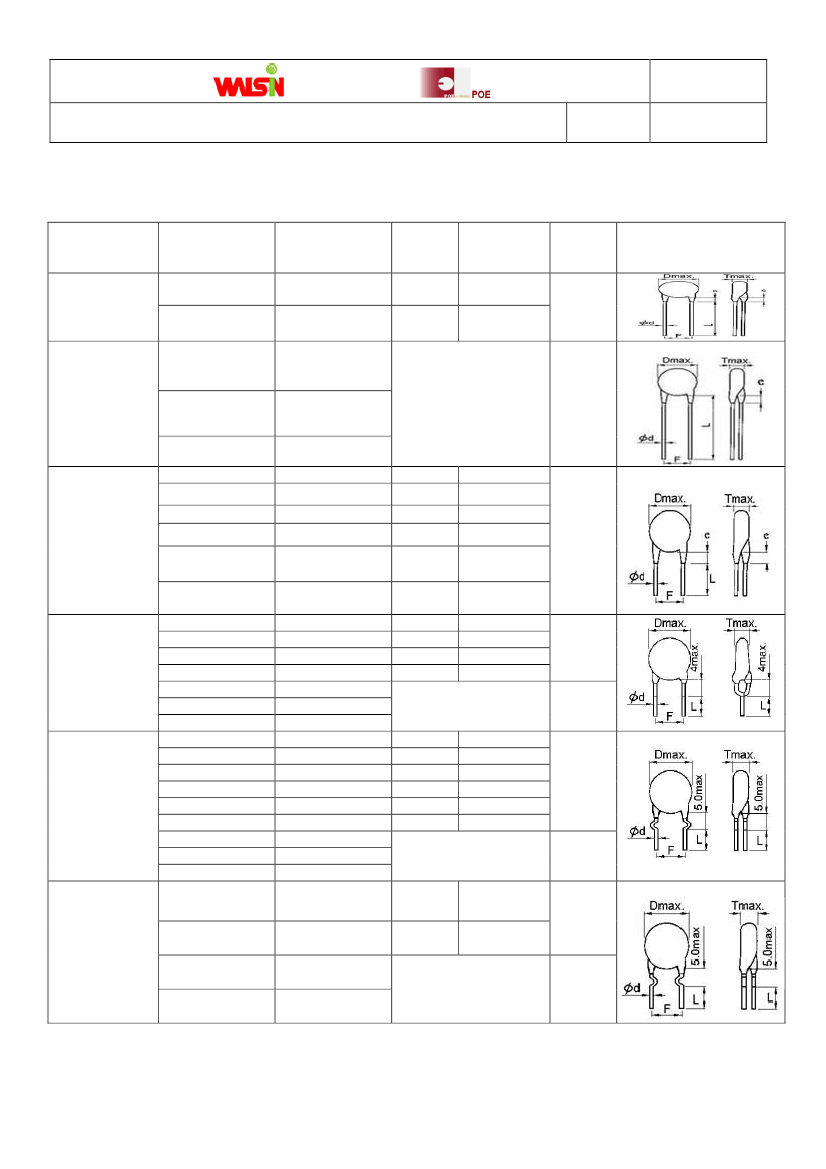

Available lead code(unit: mm)
Lead type
Lead style：L
Type L
Straight long lead
Lead style：B
Type B
Straight long lead
BAMD7
BAMD0
Lead style：L
Type L
Straight short lead
L03B7
L4EB7
L05B7
L03B0
L4EB0
L05B0
Lead style：D
Type D
Vertical kink lead
D3EA7
D04A7
D3EA0
D04A0
DAFD7
DAMD7
DAMD0
X3EA7
X04A7
X05B7
X3EA0
X04A0
X05B0
XAFD7
XAMD7
XAMD0
H3EA7
H3EA0
HAMD7
HAMD0
L7M
L0M
S7
S7
P16
S0
S0
A
D2
D7
D3
D0
D7F
D7M
D0M
Q2
X7
X2
Q3
X0
X3
X7F
X7M
X0M
H2A
H3A
H7M
H0M
7.5 ± 1.0
7.5 ± 1.0
7.5 ± 1.0
10 ± 1.0
10 ± 1.0
10 ± 1.0
7.5 ± 1.0
7.5 ± 1.0
10 ± 1.0
10 ± 1.0
3.0 ± 1.0
4.5 ± 1.0
5.0 ± 1.0
3.0 ± 1.0
4.5 ± 1.0
5.0± 1.0
3.5 ± 0.5
4.0 ± 0.5
3.5 ± 0.5
4.0 ± 0.5
L20C0
BAFD7
L0
L7F
Refer to “4. Taping
format”
Tap.
Ammo
10 ± 1.0
20 min.
SAP P/N
(13-17)digits
L20C7
Old P/N (Ref. to
Pitch (F)
“3.1 old P/N”)
L7
7.5 ±1.0
Lead
Packing
Length (L)
20 min.
Bulk
Lead Configuration
Bulk
Bulk
Refer to “4. Taping
format”
7.5 ± 1.0
7.5 ± 1.0
7.5 ± 1.0
10 ± 1.0
10 ± 1.0
10 ± 1.0
3.5 ± 0.5
4.0 ± 0.5
5.0 ± 1.0
3.5 ± 0.5
4.0 ± 0.5
5.0 ± 1.0
Tap.
Ammo
Lead style：X
Type X
Outside kink lead
Bulk
Refer to “4. Taping
format”
7.5±1.0
10.0±1.0
3.5±0.5 mm
3.5±0.5 mm
Tap.
Ammo
Lead style：H
Type H
Inside kink lead
Bulk
Refer to “4. Taping
format”
Tap.
Ammo
*
Lead diameter
Φd:
0.60 +0.1/-0.05
*
e
(Coating
extension
on leads): 3.0mmMax for straight lead lead style; Not exceed the kink for kink lead.
