Leaded Power Chokes DMI Series
DMI Series
DIM series is designed with low RDC and ultra large current. Its
molded magnetic shielded type is suitable for high-density mounting
and ultra low buzz noise. Soldering conditions can be easily confirmed
when mounting onto the board. This series also Provides customers
with embossed carrier type packaging for automatic mounting
machine.
Features
l
Shield construction
l
Ultra low buzz noise, due to un-assembly structure
l
100% Lead free
Applications
l
l
l
l
High density DC/DC converters
POL convertes
High current VRM/VRD for notebook / Server / desktop CPUs
High speed charger
Product Identification

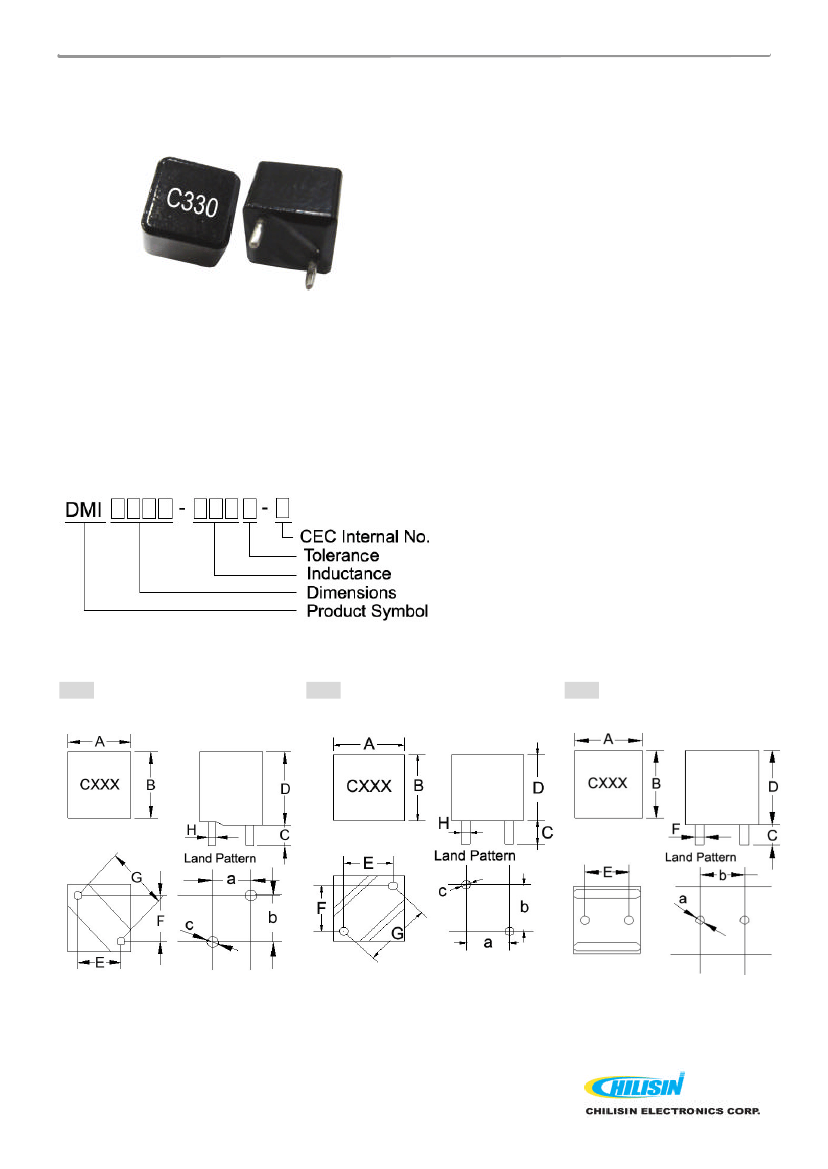

Shapes and Dimensions
FIG 1
FIG 2
FIG 3
Leaded Power Chokes DMI Series
Dimensions in mm
TYPE
DMI0807-1R0M -N
DMI0808-R30M -N
DMI0808-1R0M -N
DMI0809-R56M -N
DMI0809-1R0M -N
DMI0809-2R2M -N
DMI0909-R25M -N
DMI1009-R68M -N
DMI1009-1R2M -N
DMI1108-R30M -N
DMI1108-R36M -N
DMI1108-R60M -N
DMI1108-1R8M -N
DMI1109-R30M -N
DMI1109-R56M -N
DMI1109-R68M -N
DMI1109-1R2M -N
DMI1109-1R5M -N
DMI1110-R60M -N
DMI1110-1R1M -N
DMI1208-R22M -N
DMI1208-R36M -N
DMI1208-R47M -N
DMI1208-R56M -N
DMI1209-R33M -N
DMI1209-R47M -N
DMI1209-R68M -N
DMI1209-1R0M -N
DMI1209-2R5M -N
DMI1210-R30M -N
DMI1210-R47M -N
DMI1210-1R8M -N
DMI1210-4R7M -N
FIG
3
1
3
2
1
1
2
2
2
1
1
1
1
1
1
2
2
1
1
1
2
1
2
2
2
2
2
2
1
1
1
2
1
A
8.5±0.5
8.5Max
9.0Max
8.5Max
8.0Max
8.0Max
9.0Max
10.5Max
10.5Max
11.5Max
11.7Max
11.7Max
11.7Max
11.5±0.5
11.7Max
11.8Max
11.5Max
11.5±0.5
11.6Max
11.6Max
12Max
11.5±0.5
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
B
8.5±0.5
8.5Max
9.0Max
8.5Max
8.0Max
8.0Max
8.2Max
10.5Max
10.5Max
9.5Max
9.7Max
11.7Max
11.7Max
11.5±0.5
9.7Max
11.8Max
11.5Max
11.5±0.5
11.6Max
11.6Max
12Max
11.5±0.5
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
12Max
C
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.5±0.5
3.5±0.5
3.5±0.5
3.4±0.5
3.5±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.2±0.5
3.4±0.5
3.5±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
3.4±0.5
D
7.5Max
9.0Max
9.0Max
9.5Max
9.5Max
9.5Max
9.5Max
9.8Max
9.8Max
8.5Max
8.8Max
8.5Max
8.5Max
9.5±0.5
9.5Max
9.8Max
9.8Max
9.5±0.5
10Max
10Max
8.0Max
7.4±0.2
8.0Max
8.0Max
9.0Max
9.0Max
9.0Max
9.0Max
9.0Max
10Max
10Max
10.5Max
12Max
E
5.0±0.5
4.7±0.5
5.0±0.5
4.7±0.5
4.2±0.5
4.2±0.5
6.5±0.5
5.6±0.5
5.6±0.5
6.6±0.5
6.6±0.5
6.3±0.5
6.6±0.5
7.3±0.5
6.6±0.5
6.7±0.5
6.7±0.5
7.3±0.5
7.3±0.5
6.7±0.5
7.3±0.5
5.7±0.5
7.3±0.5
7.3±0.5
7.3±0.5
7.3±0.5
7.3±0.5
7.3±0.5
6.6±0.5
7.3±0.5
7.3±0.5
6.0±0.5
7.0±0.5
F
0.8ø±0.1
4.7±0.5
0.8ø±0.1
4.7±0.5
4.2±0.5
4.2±0.5
2.7±0.5
5.6±0.5
5.6±0.5
4.2±0.5
4.2±0.5-
5.7±0.5
6.6±0.5
6.0±0.5
4.2±0.5
6.0±0.5
6.0±0.5
7.3±0.5
6.0±0.5
6.0±0.5
6.0±0.5
6.3±0.5
6.0±0.5
6.0±0.5
6.0±0.5
6.0±0.5
6.0±0.5
6.0±0.5
6.6±0.5
6.0±0.5
6.0±0.5
6.0±0.5
7.0±0.5
G
-
6.6±0.5
-
6.6
+0.3
-0.5
H
-
1.1ø±0.1
-
1.2ø±0.1
1.1ø±0.1
0.9ø±0.1
1.2ø±0.1
1.4ø±0.1
1.3ø±0.1
1.5ø±0.1
1.4ø±0.1
1.5ø±0.1
1.2ø±0.1
1.4ø±0.1
1.3ø±0.1
1.5ø±0.1
1.5ø±0.1
1.4ø±0.1
1.4ø±0.1
1.4ø±0. 1
1.4ø±0.1
1.5ø±0.1
1.4ø±0.1
1.4ø±0.1
1.4ø±0.1
1.4ø±0.1
1.4ø±0.1
1.5ø±0.1
1.2ø±0.1
1.4ø±0.1
1.4ø±0.1
1.1ø±0.1
1.1ø±0.1
a
1.3
5.2
1.3
5.2
4.7
4.7
7.0
6.1
6.1
7.1
7.1
6.8
7.1
7.8
7.1
7.2
7.2
7.8
7.8
7.2
7.8
6.2
7.8
7.8
7.8
7.8
7.8
7.8
7.1
7.8
7.8
6.5
7.5
b
5.5
5.2
5.5
5.2
4.7
4.7
3.2
6.1
6.1
4.7
4.7
6.2
7.1
6.5
4.7
6.5
6.5
7.8
6.5
6.5
6.5
6.8
6.5
6.5
6.5
6.5
6.5
6.5
7.1
6.5
6.5
6.5
7.5
c
-
1.6
-
1.7
1.6
1.4
1.7
1.9
1.8
2.0
1.9
2.0
1.7
1.9
1.8
2.0
2.0
1.9
1.9
1.9
1.9
2.0
1.9
1.9
1.9
1.9
1.9
2.0
1.7
1.9
1.9
1.6
1.6
5.9±0.5
5.9±0.5
6.85±0.5
7.9±0.5
7.9±0.5
7.8±0.5
7.8±0.5
8.5±0.5
9.3±0.5
9.4±0.5
7.8±0.5
9
9
+0.3
-0.5
+0.3
-0.5
10.3±0.5
9.4±0.3
9.0±0.5
9.4±0.5
8.5±0.5
9.4±0.5
9.4±0.5
9.4±0.5
9.4±0.5
9.4±0.5
9.4±0.5
9.3±0.5
9.4±0.5
9.4±0.5
8.5±0.5
10±0.5
Leaded Power Chokes – DMI Series
Electrical Characteristics
Part Number
DMI0808-R30M- N
DMI0808-1R0M- N
DMI0809-R56M- N
DMI0809-1R0M- N
DMI0809-2R2M- N
DMI0909-R25M- N
DMI1108-R30M- N
DMI1108-R36M- N
DMI1108-1R8M- N
DMI1109-R56M- N
DMI1109-R68M- N
DMI1110-R60M- N
DMI1110-1R1M- N
DMI1208-R22M- N
DMI1208-R47M- N
DMI1208-R56M- N
DMI1209-R33M- N
DMI1209-R47M- N
DMI1209-R68M- N
DMI1209-1R0M- N
DMI1209-2R5M- N
DMI1210-R47M- N
DMI1210-1R8M- N
DMI1210-4R7M- N
Inductance
(µH)
0.30
1.00
0.56
1.00
2.20
0.25
0.30
0.36
1.80
0.56
0.68
0.60
1.10
0.22
0.47
0.56
0.33
0.47
0.68
1.00
2.50
0.47
1.80
4.70
Tolerance
(±%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Test Frequency
(KHz)
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
RDC
(mΩ) Max
1.0
4.0
1.3
1.8
3.5
0.8
1.0
0.7
3.0
1.08
1.2
1.2
1.5
0.6
0.9
0.9
0.9
0.9
1.2
1.5
2.6
1.0
3.3
6.0
Isat
(A) Typ
35
12
25
23
13
28
50
50
24
50
40
40
35
75
55
45
70
50
45
35
25
50
29
12
Irms
(A) Typ
32
16
25
35
17
35
38
43
24
37
35
42
28
38
38
38
35
38
35
35
27
30
22
17
l
Customized Specifications are welcome.
l
Isat for inductance drops 20% from its value without current
l
Irms for a 40℃ rise above 25℃ ambient.
l
Tested L: WK4237METER
RDC: HK502BC METER
Isat、Irms : WK3260B/ 3265B METER
Electrical Characteristics
Part Number
DMI0807-1R0M- N
DMI1009-R68M- N
DMI1009-1R2M- N
DMI1108-R60M- N
DMI1109-R30M- N
DMI1109-1R2M- N
DMI1109-1R5M- N
DMI1208-R36M- N
DMI1210-R30M- N
Inductance
(µH)
1.00
0.68
1.20
0.60
0.30
1.20
1.50
0.36
0.30
Tolerance
(±%)
20
20
20
20
20
20
20
20
20
Test Frequency
(KHz)
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
100/ 1V
RDC
(mΩ) Max
4.0
1.2
1.7
1.0
0.7
1.2
1.85
0.8
0.65
Isat
(A) Typ
28
49
33
40
46
40
42
60
45
Irms
(A) Typ
15
30
28
35
40
30
28
40
40
l
Customized Specifications are welcome.
l
Isat for inductance drops 30% from its value without current
l
Irms for a 40℃ rise above 25℃ ambient.
l
Tested L: WK4237METER
RDC: HK502BC METER
Isat、Irms : WK3260B/ 3265B METER
Leaded Power Chokes - DMI Series
Packaging

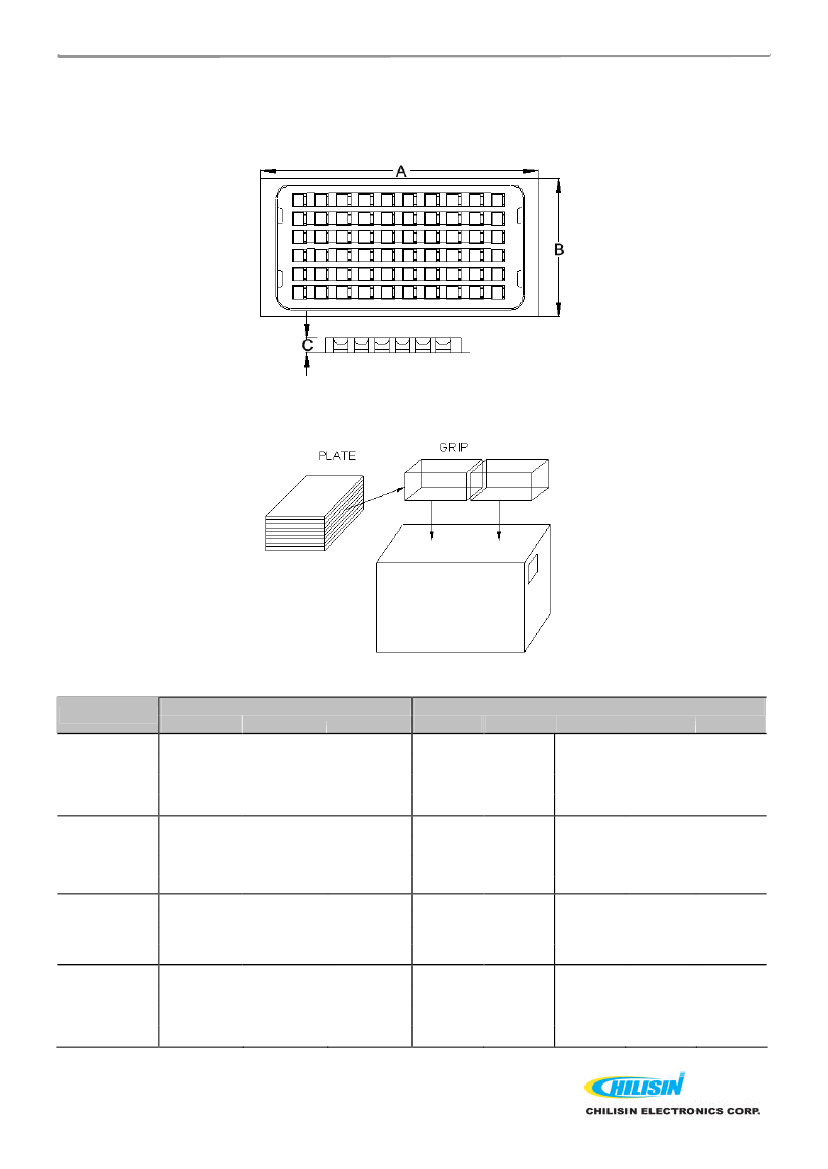

PLATE DIMENSIONS
PACKAGING QUANTITY
Dimensions in mm
TYPE
DMI0707
DMI0807
DMI0808
DMI0809
DMI0909
DMI1009
DMI1108
DMI1109
DMI1110
DMI1208
DMI1209
DMI1210
DMI1212
DMI1213
DMI1214
DMI1215
PLATE DIMENSIONS
A
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
B
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
C
10
10
10
10
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
12
12
12
BULK
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
ˇ
PLATE
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
QUANTITY
PLATE/GRIP
10
10
10
10
8
8
8
8
8
8
8
8
8
8
8
8
GRIP
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
BOX
2000
2000
2000
2000
1600
1600
1600
1600
1600
1600
1600
1600
1600
800
800
800
