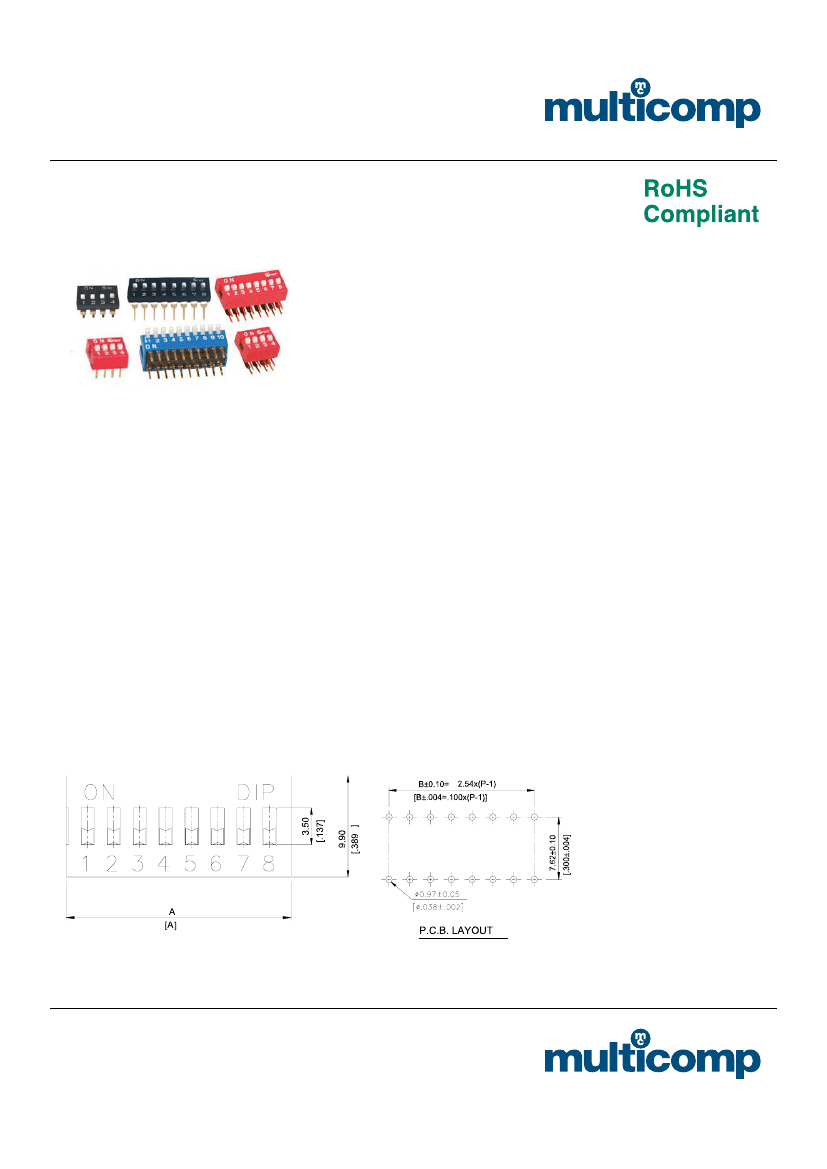

DS, DP, DA Series
Specifications:
Mechanical
Mechanical Life
Operation Force
Stroke
Operation Temperature
Storage Temperature
Electrical
Electrical Life
Non-Switching Rating
Switching Rating
Contact Resistance
Insulation Resistance
Dielectric Strength
Circuit
Materials
Base
Colour
Cover
Colour
Actuator
Colour
Contact
Top Seal
Potting Material
: Thermoplastic
: Black
: Thermoplastic
: Red, Black, Blue
: High Thermoplastic
: White
: Phosphor bronze with gold plating over nickel
: Polyester Film
: Epoxy
: 2,000 operations per switch 24V DC,25mA
: 100mA , 50V DC
: 25mA , 24VDC
: 50mΩ max. at initial
:{at 500 VDC} 100MΩ min.
: 500VAC / 1 minute
: SPST
: 2,000 operations per switch.
: 400gf max. (DP Series)
1,000gf max. (DS & DA Series)
: 2.0mm
: -20°C to +70°C
: -40°C to +85°C
Dimensions:
DS(R)
Dimensions : Millimetres (Inches)
www.element14.com
www.farnell.com
www.newark.com
Page <1>
12/02/13
V1.0

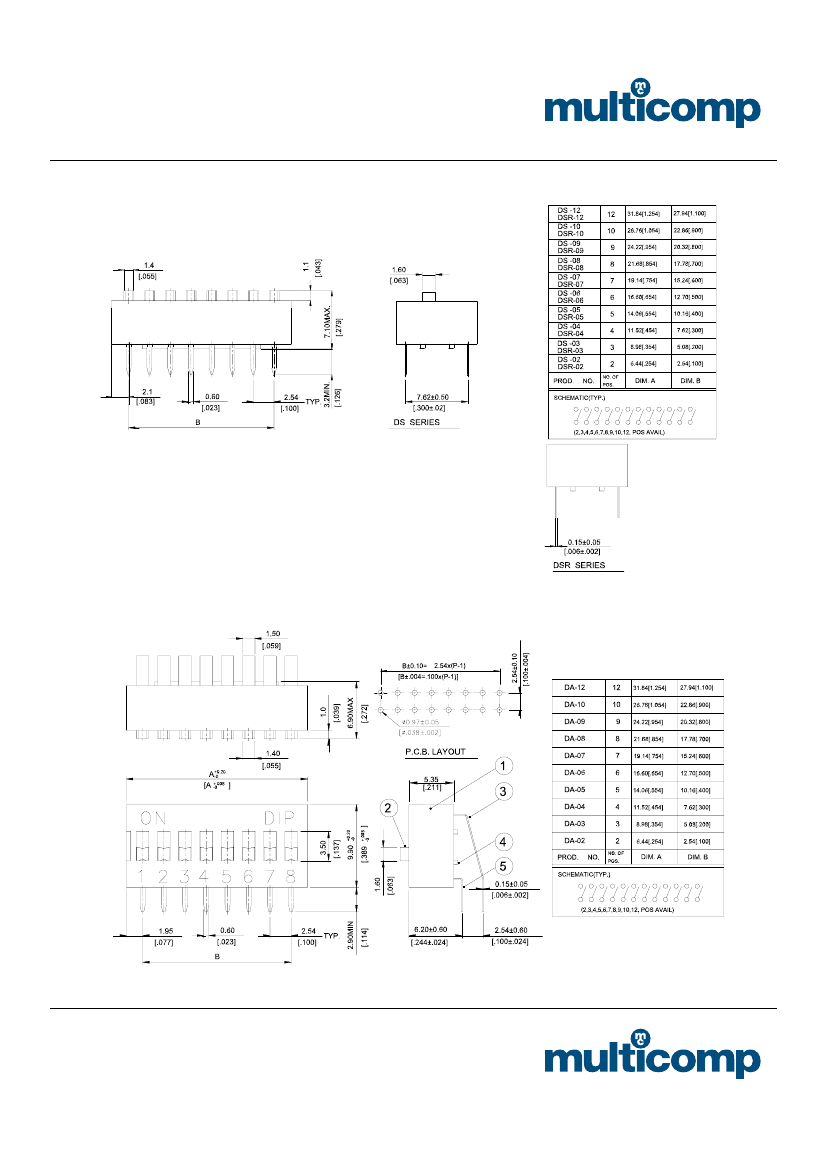

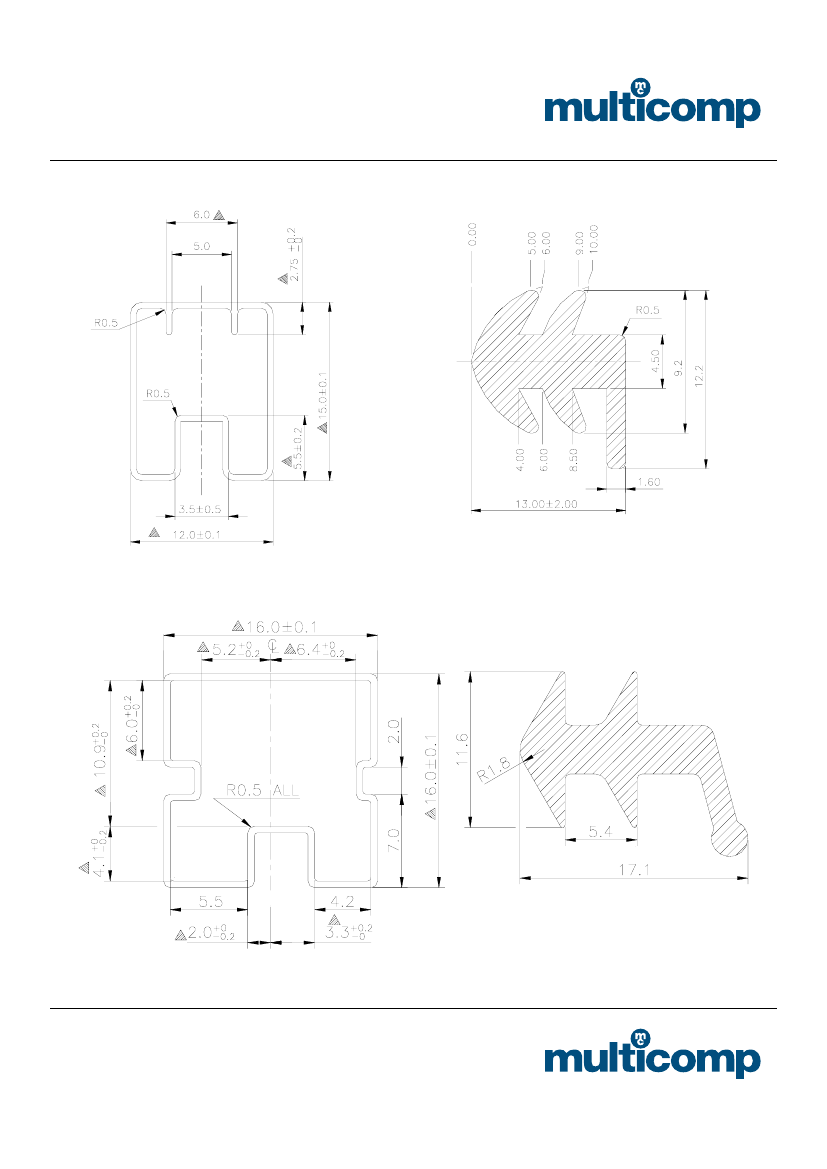

DS, DP, DA Series
DS(R)
Dimensions : Millimetres (Inches)
DA
Dimensions : Millimetres (Inches)
www.element14.com
www.farnell.com
www.newark.com
Page <2>
12/02/13
V1.0

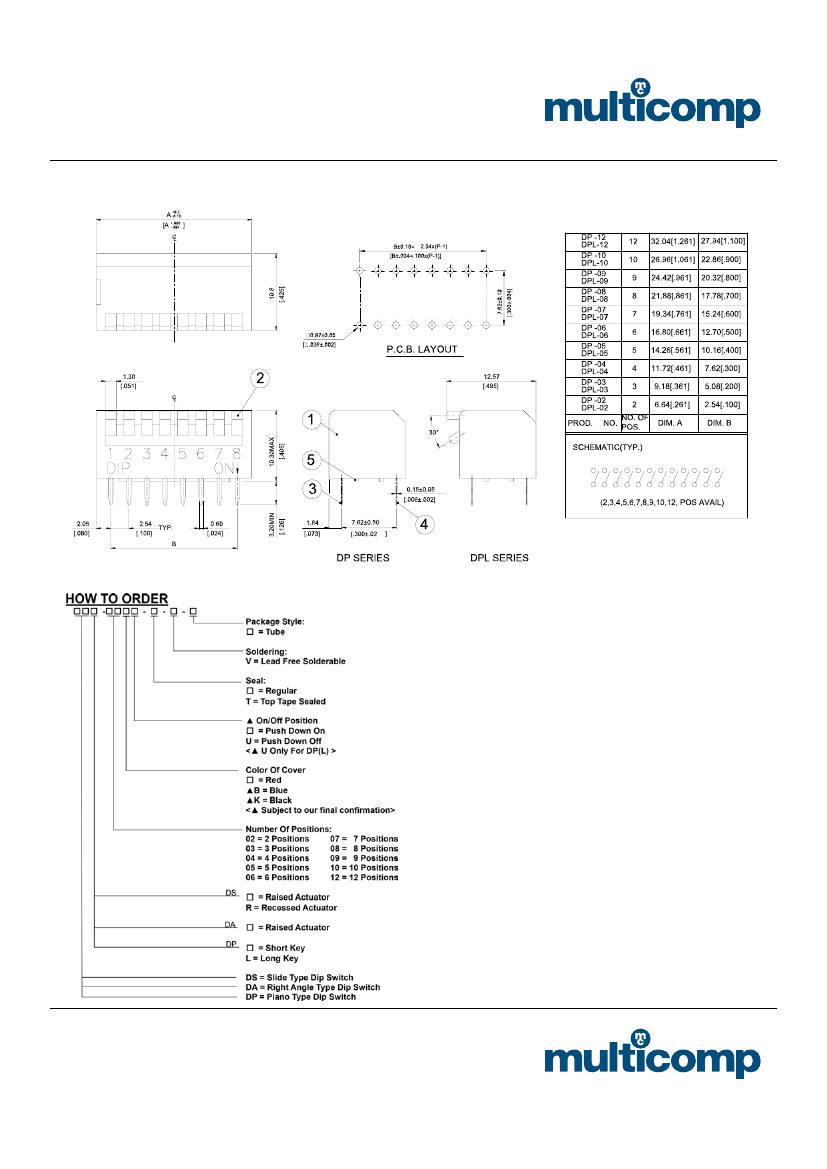

DS, DP, DA Series
DP(L)
Dimensions : Millimetres (Inches)
www.element14.com
www.farnell.com
www.newark.com
Page <3>
12/02/13
V1.0
DS, DP, DA Series
Soldering Process
Keep all switch contacts in their “OFF” position for all operations.
Wave Soldering : Recommended temperature at 500°F (260°C) max. 5 seconds for through hole type
Hand Soldering : Use a soldering iron of 30 watts, controlled at 350°C approximately max 5 seconds.
Make sure switch is in “OFF” position during soldering process, or it will decrease the operating force and meanwhile
increase the contact resistance.
Do not wash the switch body except top tape sealed type, which suitable for spray cleaning method from top of the s/w
Packing
Part Number
DS(R)-02
DS(R) -03
DS(R)-04
DS(R)-05
DS(R)-06
DS(R)-07
DS(R)-08
DS(R)-09
DS(R)-10
DS(R)-12
DP(L)-02
DP(L)-03
DP(L)-04
DP(L)-05
DP(L)-06
DP(L)-07
DP(L)-08
DP(L)-09
DP(L)-10
DP(L)-12
DA-02
DA-03
DA-04
DA-05
DA-06
DA-07
DA-08
DA-09
DA-10
DA-12
Number Per
Tube
72
51
40
32
27
24
21
19
17
14
70
50
39
32
27
24
21
19
17
14
73
52
40
33
28
24
21
19
17
14
Part Number
DS(R)-02-T
DS(R)-03-T
DS(R)-04-T
DS(R)-05-T
DS(R)-06-T
DS(R)-07-T
DS(R)-08-T
DS(R)-09-T
DS(R)-10-T
DS(R)-12-T
DP(L)-02/T
DP(L)-03-T
DP(L)-04-T
DP(L)-05-T
DP(L)-06-T
DP(L)-07-T
DP(L)-08-T
DP(L)-09-T
DP(L)-10-T
DP(L)-12-T
DA-02-T
DA-03-T
DA-04-T
DA-05-T
DA-06-T
DA-07-T
DA-08-T
DA-09-T
DA-10-T
DA-12-T
Number Per
Tube
70
50
39
32
28
24
21
19
17
14
65
49
39
32
27
24
21
19
17
14
70
50
39
32
28
24
21
19
17
14
www.element14.com
www.farnell.com
www.newark.com
Page <4>
12/02/13
V1.0
DS, DP, DA Series
DS(R)
Dimensions : Millimetres
DP(L)
Dimensions : Millimetres
www.element14.com
www.farnell.com
www.newark.com
Page <5>
12/02/13
V1.0
