C4710-52 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> C4710-52

C4710-52: DescriptionHIGH VOLTAGE POWER SUPPLY UNIT; CategoryPower/power management The power supply circuit; File Size135KB，2 Pages; ManufacturerHamamatsu; Websitehttp://www.hamamatsu.com

Download Datasheet Parametric Compare View All

C4710-52 Overview

HIGH VOLTAGE POWER SUPPLY UNIT

C4710-52 Parametric

Parameter Name	Attribute value
Maker	Hamamatsu
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC BOOSTER MODULE
Maximum input voltage	25 V
Minimum input voltage	23 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P5
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	40 °C
Minimum operating temperature	5 °C
Maximum output voltage	1500 V
Minimum output voltage	240 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

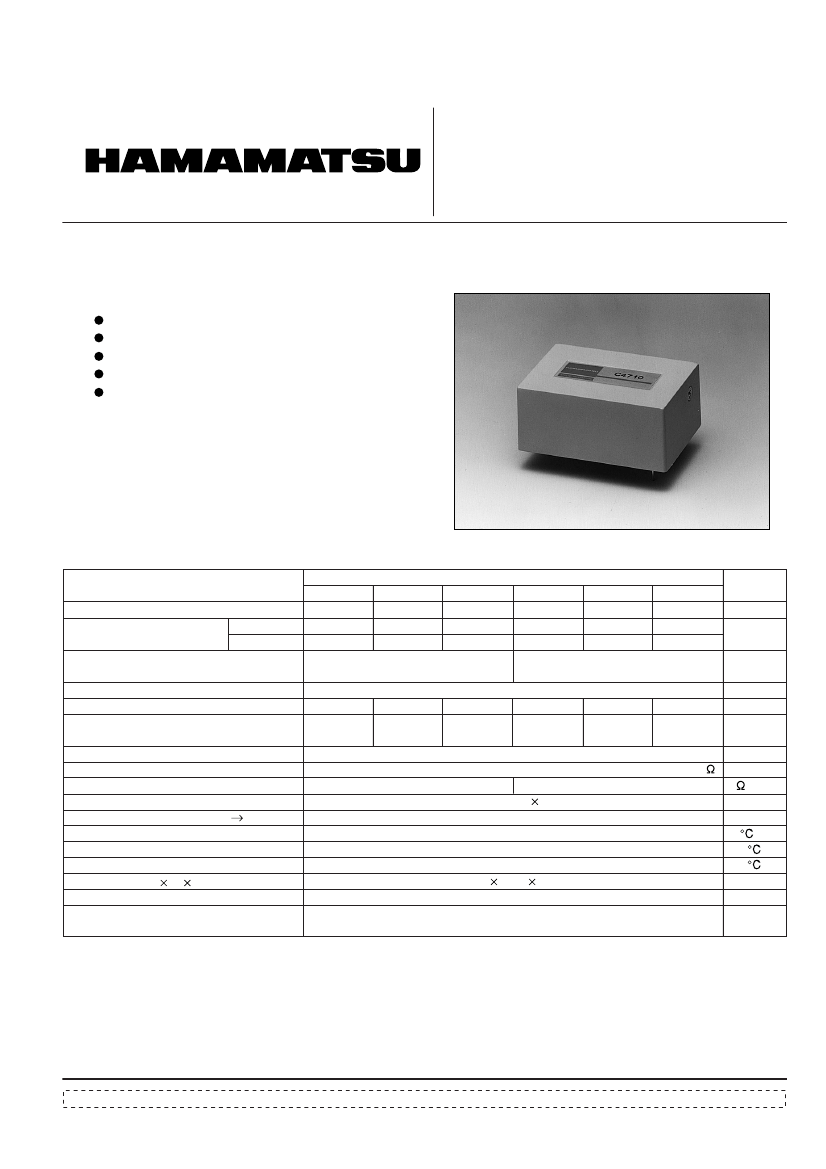

HIGH VOLTAGE

POWER SUPPLY UNIT

C4710 SERIES

The C4710 series are PC-board mountable high voltage supplies for photomultiplier tubes. The series has six standard versions.

FEATURES

Compact and Lightweight

High Stability

High Output Power

Complete Fail-safe Functions

Six-plane Metal Shielded

TACCF0113

SPECIFICATIONS

Parameter

C4710

+15

260

C4710-01

+12

120

340

C4710 Series

C4710-02 C4710-50

+24

+15

145

260

C4710-51

+12

120

340

Unit

C4710-52

Vdc

+24

mA (Typ.)

145

Vdc

mA (Max.)

% (Typ.)

–

k (Typ.)

ms (Typ.)

%/ (Typ.)

Input Voltage

Input Current at Maximum with no load

Output Voltage

with full load

Specification Guaranteed

-240 to -1500

+240 to +1500

Output Voltage Range

Output Current

Input Regulation against

1V Input Change

±0.015

±0.02

±0.015

±0.01

Load Regulation against 0 to 100%

±0.01

±0.015

±0.01

Load Change

0.005

Ripple / Noise (p-p)

By external controlling voltage (+0.8 to +5 V) or external potentiometer (10 k )

Output Voltage Controlling Modes

Controlling Voltage Input Impedance

±(Controlling

voltage 300)

0.5%

Output Voltage Setting

100

Output Voltage Rise Time (0 100%)

±0.01

Temperature Coefficient

+5 to +40

Operating Temperature Range

-10 to +60

Storage Temperature Range

65 27.5 45

Dimensions (W H D)

105

Weight

Units protected against reversed power input, reversed/excessive controlling

Protective Functions

voltage input, continuous overloading/short circuit in output

–

Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.

lnformation furnished by HAMAMATS U is believed to be reliabIe. However, no responsibility is assumed for possibIe inaccuracies or omissions. Specifications are

subject to change without notice. No patent rights are granted to any of the circuits described herein.

1995 Hamamatsu Photonics K.K.

C4710-52 Related Products

	C4710-52	C4710-01	C4710-02	C4710	C4710-51	C4710-50
Description	HIGH VOLTAGE POWER SUPPLY UNIT	HIGH VOLTAGE POWER SUPPLY UNIT	HIGH VOLTAGE POWER SUPPLY UNIT	HIGH VOLTAGE POWER SUPPLY UNIT	HIGH VOLTAGE POWER SUPPLY UNIT	HIGH VOLTAGE POWER SUPPLY UNIT
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC BOOSTER MODULE	DC-DC BOOSTER MODULE	DC-DC BOOSTER MODULE	DC-DC BOOSTER MODULE	DC-DC BOOSTER MODULE	DC-DC BOOSTER MODULE
Maximum input voltage	25 V	13 V	25 V	16 V	13 V	16 V
