EX76000 Series
Hardened Managed 16-port 10/100BASE PoE with 2-port
Gigabit combo Ethernet Switch
Overview

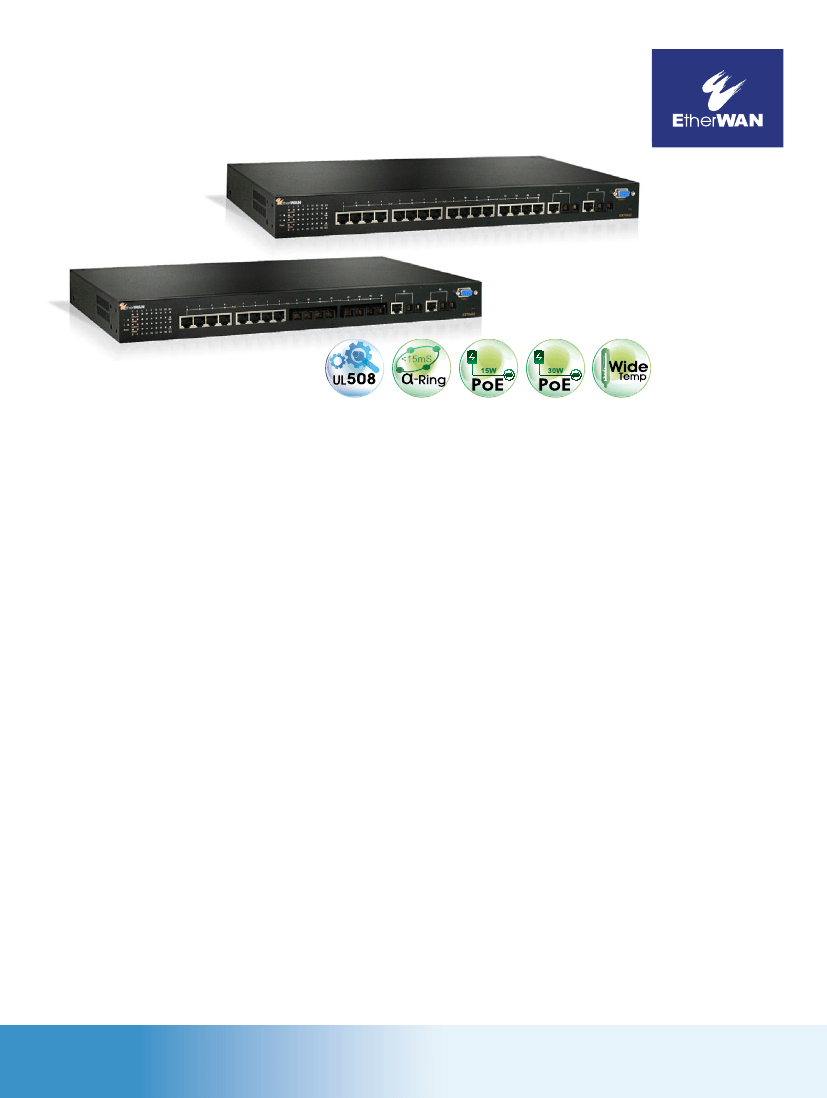

EtherWAN's EX76000 Series provides a hardened 18-port switching platform supporting IEEE802.3af/at Power over Ethernet, high
performance switching with robust management features required for mission-critical and harsh environments where sustained
connectivity is crucial.
The EX76000 Series is equipped with 16 10/100BASE-TX PoE ports, in combination with two Gigabit SX/LX/BX/WDM combo port
options. The IEEE802.3af/at PoE ports provide up to 15.4W/30W per port with a total power budget of 246W/480W, making the
switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements
such as; outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
1U rack mountable, the EX76000 Series is equipped with EtherWAN's Alpha-Ring self-healing ring technology providing less than
15ms fault recovery time. Users are able to access management features such as port security, IGMP snooping, port-based VLAN,
GARP protocols, link aggregation , via web browser, telnet, SSH, SNMP, RMON, TFTP, and RS-232 console interfaces. With the
hardened specifications, the EX76000 Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock,
and vibration may be present.
EtherWAN – "When Connectivity is Crucial."
Spotlight
• PoE Connectivity
◦
Sixteen 10/100BASE IEEE802.3af/at Power over Ethernet ports
◦
Two Gigabit-SX/LX/BX combo ports
• Hardened Grade
◦
◦
◦
◦
Wide operating temperature range from -40°C to 75°C (-40°F to 167°F) for extreme environments
Fanless and ruggedized housing
High shock and electric noise immunity
Complies with UL508 safety requirements for industrial control devices
EX76000 Series
80
www.EtherWAN.com
rev. A4
Software Features
Management
•
Interface
◦
CLI, Telnet and Web Browser
◦
SNMP v1/v2c/v3
•
Firmware and configuration upgrade and backup via TFTP
•
Supports DHCP Server/Client
•
RMON (Remote monitoring): group 1, 2, 3, 9
•
Port mirroring: TX/RX and both
•
NTP (Network Time Protocol) time synchronization
•
IEEE802.1ab LLDP (Link Layer Discovery Protocol)
Security
•
•
•
•
•
•
•
•
•
MAC address filtering
Enable/disable port
Storm control (broadcast and multicast types)
IEEE802.1x LAN access control
Remote authentication through RADIUS
SSH for CLI and Telnet security
SSL for web security
Multi-level user account/password against unauthorized configuration
System log (remote/local)
Quality of Service (QoS)
•
Priority Queues: 4 queues per port
•
Traffic classification based on IEEE802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
•
Rate Limiting (Ingress/Egress)
Layer 2 Features
•
Auto-negotiation for port speed and duplex mode
•
Flow Control
◦
IEEE802.3x full duplex mode
◦
Back-Pressure half duplex mode
•
Redundant Protocol
◦
IEEE802.1D Spanning Tree Protocol (STP)
◦
IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
◦
IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
◦
Supports EtherWAN's Alpha-Ring topology for less than 15ms fault recovery time
•
VLANs
◦
Port-based VLANs
◦
IEEE802.1Q Tag VLANs (128 groups, 4096 VID)
◦
GVRP (GARP VLAN Registration Protocol)
◦
GMRP (GARP Multicast Registration Protocol)
•
Link Aggregation
◦
Static Trunk (2 groups, support MAC base)
◦
IEEE802.3ad Link Aggregation Control Protocol
•
IGMP Snooping
◦
IGMP snooping v1/v2/v3
Performance
•
Switching Capability: 7.2Gbps
•
Packet Buffer Size: 2M bits
•
MAC Address Table: 8192
EX76000 Series
81
www.EtherWAN.com
rev. A4
Hardware Specifications
Technology
Standards
• IEEE802.3
10BASE-T
• IEEE802.3u
100BASE-TX/100BASE-FX
• IEEE802.3ab
1000BASE-T
• IEEE802.3z
1000BASE-SX/1000BASE-LX
• IEEE802.3x
Full duplex and flow control
• IEEE802.1p
QoS
• IEEE802.1Q
Tag VLANs
• IEEE802.1w
RSTP
• IEEE802.1x
Port-based Network Access Control
• IEEE802.3af/at
Power over Ethernet (PoE)
• 14,880pps
for 10Mbps
• 148,810pps
for 100Mbps
• 1,488,100pps
for 1000Mbps
• 2M
bits
Interface
Ethernet Port
• 10/100BASE-TX:
16, 12 or 8 ports
• 100BASE-FX:
0, 2 or 4 ports
• Gigabit:
0, 1 or 2 ports
• Port:
One DB9 RS-232 port
•
One relay output with current 1A @ 24VDC
• Per
Unit: Power 1, Power 2
• Per
PoE Port: PoE (Amber)
• Per
Port: Link/Activity (Green), Speed (Green)
Console Port
Alarm Contact
LED Indicators
Forward and Filtering Rate
Environment
Operating Temperature
Storage Temperature
• -40°C
to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
• -45°C
to 85°C (-49°F to 185°F)
• 5%
to 95% (non-condensing)
Packet Buffer Memory
Processing Type
• Store-and-Forward
• Auto
Negotiation
• Half-duplex
back-pressure and IEEE802.3x full-duplex flow
control
• Auto
MDI/MDIX
• 8192
MAC addresses
Ambient Relative Humidity
Address Table Size
Regulatory Approvals
ISO
• Manufactured
in an ISO9001 facility
Power
Input
• Redundant
power inputs:
Terminal Block: 47 - 55VDC (IEEE802.3af version)
Terminal Block: 52 - 57VDC (IEEE802.3at version)
• Max.
12W (without PoE)
• PoE
power budget (depends on power input):
246.4W (IEEE802.3af version)
480W Max. (IEEE802.3at version)
• IEEE802.3af:
up to 15.4W/port
• IEEE802.3at:
up to 30W/port
• Reverse
polarity protection
Power Consumption
PoE Power Output
Protection
Safety
UL508
EMI
FCC Part 15B, Class A
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3
EMS
EN61000-6-2
Mechanical
Casing
• Metal
Case
• IP30
• 442mm
(W) x 205mm (D) x 44mm (H)
17.40" (W) x 8.07" (D) x 1.73" (H)
•
3.5Kg (7.7lbs.)
• Rack
mounting
• EN61000-4-2
(ESD Standards)
• EN61000-4-3
(Radiated RFI Standards)
• EN61000-4-4
(Burst Standards)
• EN61000-4-5
(Surge Standards)
• EN61000-4-6
(Induced RFI Standards)
• EN61000-4-8
(Magnetic Field Standards)
Dimensions
Weight
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/package)
Installation
EX76000 Series
1
www.EtherWAN.com
rev. A4

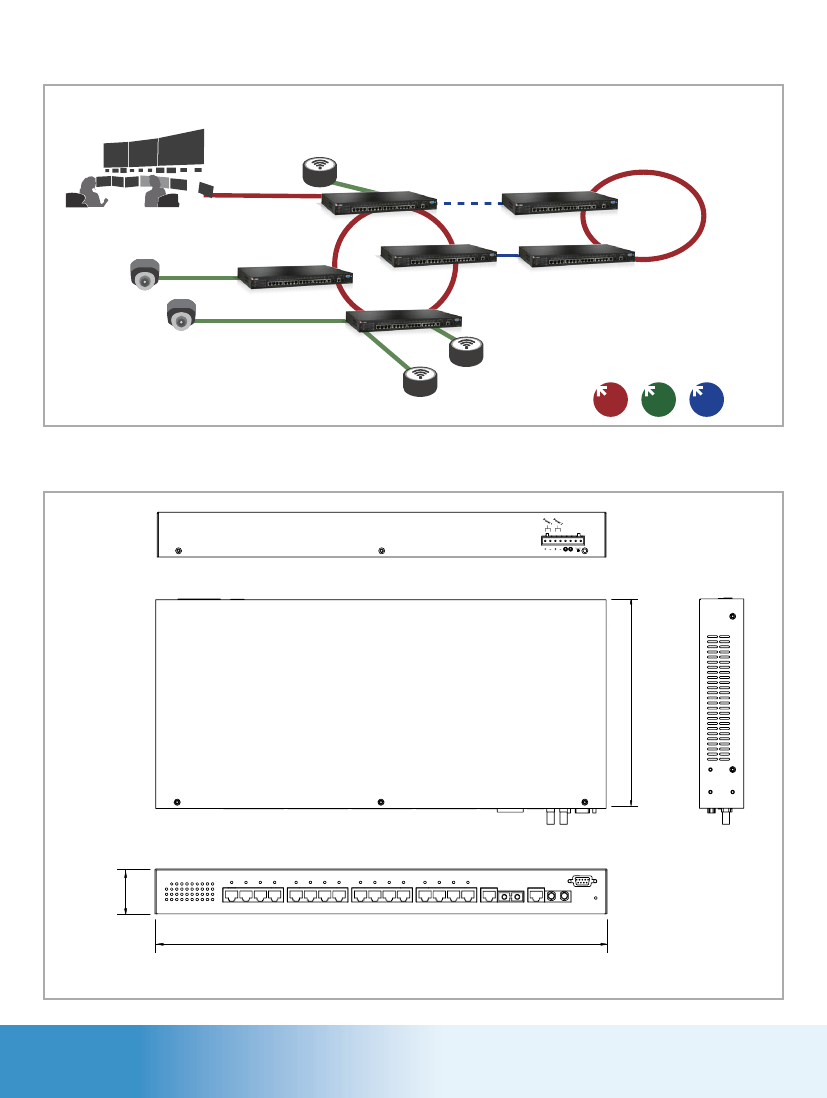

Application Diagram
The EX76000 Series can be installed in an indoor/outdoor rack to connect with
IEEE802.3af/at compliant PoE Powered Devices in mission-critical environments.
SwA2
Control Center
Alpha-Ring
Ring-Coupling
SwB2
Alpha-Ring
SwA1
EX76000 Series
SwB1
Fisheye PoE IP Cameras
PoE WAP
PoE WAP
Fiber-
optic
PoE
Ethernet
Cat.5
Ethernet
Dimensions
Back
205mm (8.07”)
Top
44mm
(1.73”)
Side
442mm (17.4”)
Front
EX76000 Series
2
www.EtherWAN.com
rev. A4
Ordering Information
Model
EX76400-00TP
EX76401-0YTP
EX76402-0YTP
EX76300-00TP
EX76301-0YTP
EX76302-0YTP
EX76320-X0TP
EX76321-XYTP
EX76322-XYTP
EX76200-00TP
EX76201-0YTP
EX76202-0YTP
EX76220-X0TP
EX76221-XYTP
EX76222-XYTP
EX76240-X0TP
EX76241-XYTP
EX76242-XYTP
16-port 10/100BASE-TX PoE Hardened Managed Ethernet Switch
16-port 10/100BASE-TX PoE + 1-port combo Gigabit Hardened Managed Ethernet Switch
16-port 10/100BASE-TX PoE + 2-port combo Gigabit Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE + 1-port combo Gigabit Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE + 2-port combo Gigabit Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE + 2-port 100BASE-FX Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE + 2-port 100BASE-FX + 1-port combo Gigabit Hardened Managed Ethernet Switch
12-port 10/100BASE-TX PoE + 2-port 100BASE-FX + 2-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 1-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 2-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 2-port 100BASE-FX Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 2-port 100BASE-FX + 1-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 2-port 100BASE-FX + 2-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 4-port 100BASE-FX Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 4-port 100BASE-FX + 1-port combo Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX PoE + 4-port 100BASE-FX + 2-port combo Gigabit Hardened Managed Ethernet Switch
* Rack mounting kit included
100FX Fiber Options (X)
1
2
6
7
8
9
A
B
H
P
Q
R
S
Multi Mode (SC) - 2Km
Multi Mode (ST) - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 2Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 5Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 5Km
Single Mode (SC) - 20Km
Single Mode (SC) - 40Km
Single Mode (ST) - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 20Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 40Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 40Km
*More 100FX Fiber options also available upon request.
EX76000 Series
3
www.EtherWAN.com
rev. A4
