Series FR01

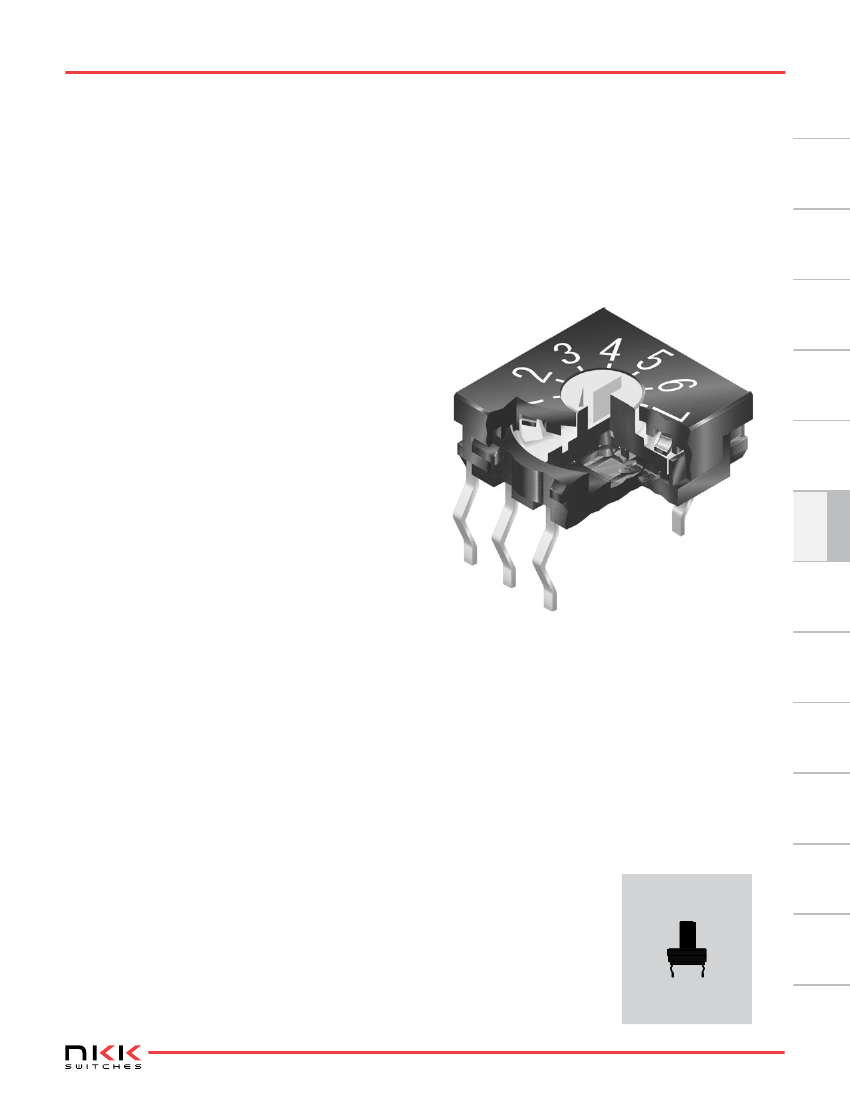

10mm DIP Rotaries

General

Specifications

Electrical Capacity (Resistive Load)

Switching Rating:

Nonswitching Rating:

100mA @ 5V DC

100mA @ 50V DC

Rockers

Toggles

Pushbuttons

Other Ratings

Programmable Illuminated PB

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Torque:

Contact Timing:

100 milliohms maximum; 30 milliohms maximum for contact point

1,000 megohms minimum @ 250V DC

250V AC minimum for 1 minute minimum

10,000 detent operations minimum

Notes: A detent operation is one actuator position operation or stepping.

A cycle is one 360° rotation. 10,000 detent operations equal 625

cycles for hexadecimal devices or 1,000 cycles for decimal devices.

Metal Shaft: 0.009Nm for decimal devices; 0.011Nm for hexadecimal devices

All other Actuator types: 0.008Nm for decimal devices; 0.01Nm for hexadecimal devices

Nonshorting

Keylocks

Materials & Finishes

Actuators:

Slides

Bushing :

Outer Case:

Housing & Base:

Movable Contacts:

Stationary Contacts:

Terminals:

Terminal Cover:

Bracket:

Screwdriver and Plastic Shaft - Glass fiber reinforced polyamide (UL94V-0);

Dial - Polyoxymethylene; Metal Shaft - Brass with nickel plating

Brass with nickel plating (for Metal Shaft model)

Glass fiber reinforced PBT (for Metal Shaft model)

Glass fiber reinforced polyamide (UL94V-0)

Copper alloy with gold plating

Phosphor bronze with gold plating

Polyamide (Right angle model only)

Phospher bronze with tin plating (for Metal Shaft model)

Rotaries

Environmental Data

Tactiles

Operating Temperature Range:

Humidity:

Vibration:

Shock:

–25°C through +85°C (–13°F through +185°F)

90 ~ 95% humidity for 240 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 5 minutes; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

Processing

Soldering:

Cleaning:

Accessories

Wave Soldering Recommended. See Profile A in Supplement section.

Note: During Wave Soldering process, set the switch to the following position:

FR01FR10P, FR01FR16P, FR01KR10P, FR01KR16P, FR01SR10P, FR01SR16P,

FR01AR10PB, FR01AR16PB, FR01AR10HB, FR01AR16HB: 0 position;

FR01FC10P, FR01KC10P, FR01FC10H, FR01KC10H,

FR01SC10P, FR01AC10PB, FR01AC10HB: 7 position;

FR01FC16P, FR01KC16P, FR01FC16H, FR01KC16H,

FR01SC16P, FR01AC16PB, FR01AC16HB: F position

Manual Soldering: See Profile A in Supplement section.

These devices are not process sealed. Hand clean locally using alcohol based solution.

Custom process sealed version available; contact factory.

Indicators

Touch

Standards & Certifications

Flammability Standards:

Supplement

UL94V-0 rated actuator, housing and base

The FR01 Series rotaries have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-voltage, low-current circuit.

When used as intended, the results do not produce hazardous energy.

www.nkk.com
