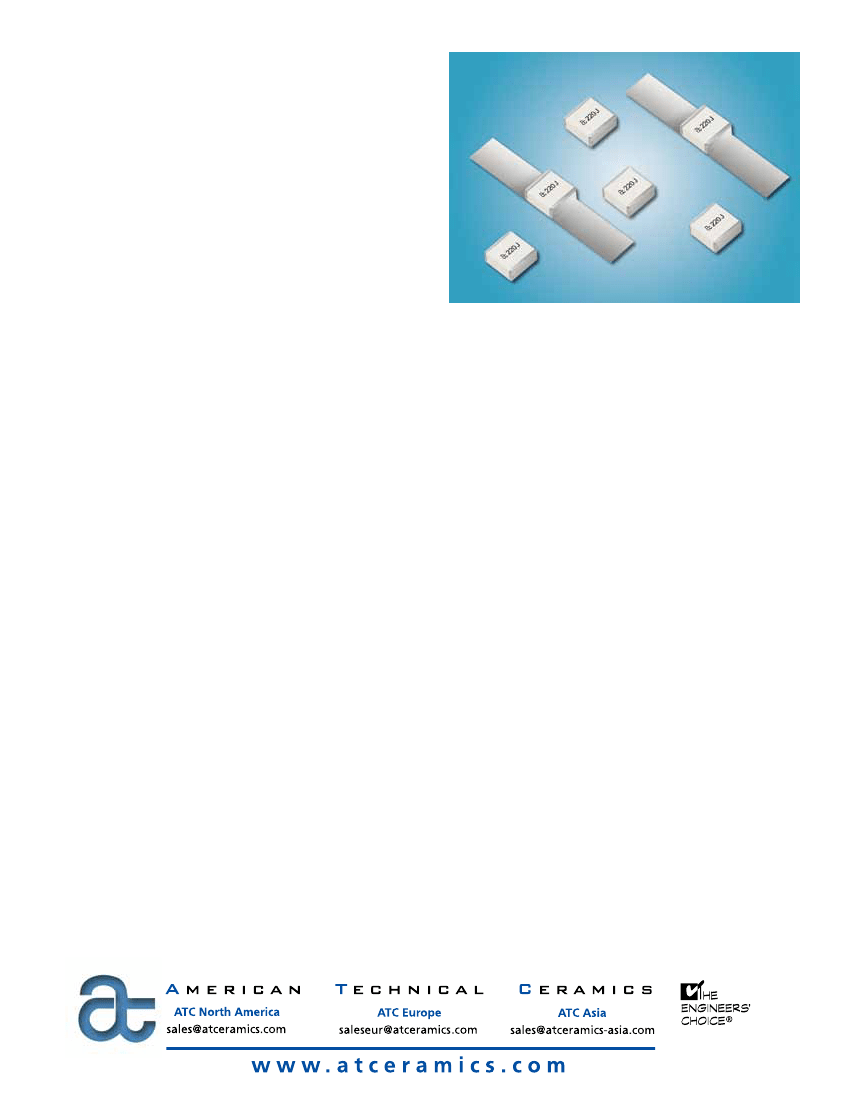

Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (3.3 pF to 1000 pF) @ 1 MHz.
Greater than 5,000 (1100 pF to 5100 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
120% of WVDC for 5 seconds..
ENVIRONMENTAL TESTS
ATC 800 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
LIFE TEST:
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEzOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLE:
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 10
lbs. min., 25 lbs. typical, for 5 seconds in direction perpendicular
to the termination surface of the capacitor. Test per MIL-STD-202,
method 211.
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC
ISO 9001
REGISTERED
COMPANY
ATC # 001-1077 Rev. N, 1/14
ATC 800 E Capacitance Values
CAP.
CODE
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
CAP.
(pF)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
TOL.
RATED WVDC
CAP.
CODE
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
CAP.
(pF)
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
TOL.
RATED WVDC
CAP.
CODE
391
431
471
511
561
621
681
751
821
911
102
112
122
132
152
162
182
202
222
242
272
302
332
392
472
512
CAP.
(pF)
390
430
470
510
560
620
680
750
820
910
1000
1100
1200
1300
1500
1600
1800
2000
2200
2400
2700
3000
3300
3900
4700
5100
TOL.
RATED WVDC
3600
B, C, D
7200
F, G, J, K
2500
7200
F, G, J, K
F, G, J, K
3600
G, J, K
2000
CAPACITANCE TOLERANCE
J
B
C
D
F
G
K
Code
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10%
Tol.
ATC PART NUMBER CODE
ATC800 E 22 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
Termination Code
Packaging
C - ATC Matrix Tray (Standard)
T - Tape and Reel, 250 pc. qty.
I - Special Packaging (Consult Factory)
Laser Marking
J TN 7200 X
C
WVDC
The above part number refers to a 800 E Series (case size E) 22 pF capacitor, J tolerance (±5%), 7200 WVDC,
with TN termination (Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations with or without the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
2
w w w.at c e r a mic s .c o m

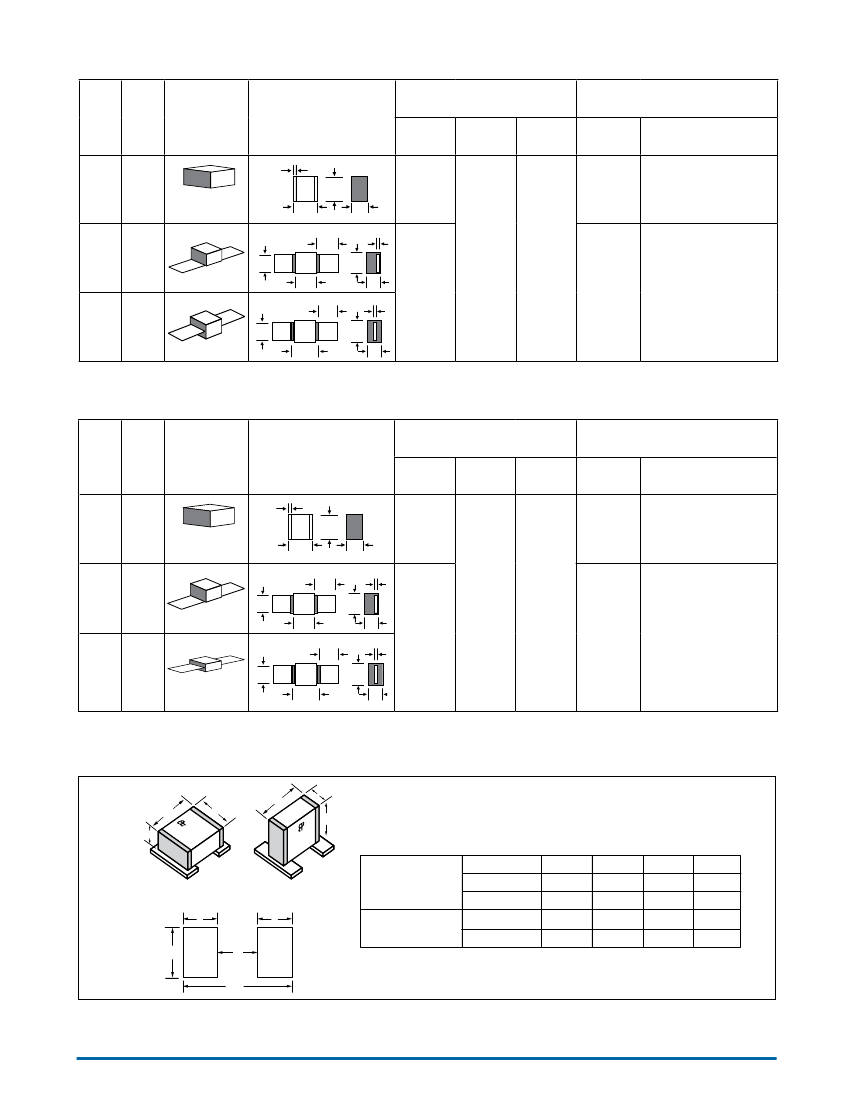

ATC 800 E Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIzE
ATC
CASE SIzE
TERM. & TYPECASE SIzE
CODE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38 -0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.040 (1.02)
max.
MATERIALS
WIDTH
(W)
THICKNESS
(T)
800 E
T
E
Solderable Nickel
Barrier
E
W
L
T
Tin Plated over
Nickel Barrier Termination
RoHS Compliant
LL
WL
W
L
800 E
MS
Microstrip
E
T
LL
WL
W
L
TL
800 E
AR
Axial Ribbon
.380
+.015 -.010 .190 (4.83)
(9.65
max.
.380
+.035 -.010 +0.38 -0.25)
(9.65
+0.89
-0.25)
N/A.
T
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder
High Purity
Silver Leads
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC 800 E Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIzE
ATC
TERM.
CODE
CASE SIzE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
WIDTH
(W)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.040 (1.02)
max.
MATERIALS
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
THICKNESS
(T)
800 E
TN
Non-Mag
Solderable Barrier
E
E
RoHS Compliant
Tin Plated over
Non-Magnetic
Barrier Termination
W
L
T
TL
LL
800 E
MN
Non-Mag
Microstrip
E
WL
L
W
T
LL
WL
W
L
TL
800 E
AN
Non-Mag
Axial Ribbon
.380
+.015 -.010 .190 (4.83)
(9.65
max.
.380
+.035 -.010 +0.38 -0.25)
(9.65
+0.89
-0.25)
N/A.
T
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
High Purity
Silver Leads
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC 800 E Capacitors: Suggested Mounting Pad Dimensions
L
L
2
T
W
W
2
J
0
T
220J
Case E
Pad Size
A Min.
.205
.185
.405
.385
B Min.
.050
.030
.050
.030
C Min.
.325
.325
.325
.325
D Min.
.425
.385
.425
.385
Normal
High Density
Normal
High Density
Horizontal
Electrode Orientation
B
Vertical
Electrode Orientation
B
Vertical Mount
Horizontal Mount
A
C
Dimensions are in inches.
D
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.at c e r a mic s .c o m
3
ATC 800 E Performance Data
800 E ESR vs. Frequency
100
10
pF
12
pF
22
pF
ESR (MilliOhms)
47
pF
220
pF
10
330
pF
560
pF
750
pF
ESR (MilliOhms)
5100
pF
1
1
10
100
1000
Frequency (MHz)
10000
800 E FSR vs. Capacitance
1000
Frequency (MHz)
100
(Typical)
10
1
10
100
1000
10000
Capacitance (pF)
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
4
w w w.at c e r a mic s .c o m
ATC 800 E Performance Data
100
800E Current Ratings vs. Capacitance
The current is based on a 65
o
C mounting surface and a
device thermal resistance of 12
o
C/W. A power dissipation
of 5 W will result in a case temperature of 125
o
C
10
RMS Current (Amps)
30 MHz
10 MHz
1
2 MHz
(Typical)
0
1
10
100
Dotted line = Power dissipation
limit
Solid line = Voltage limit
(Vrms/Xc
Solid line = Voltage limit
(Vrms/Xc)
)
1000
10000
Capacitance (pF)
1
0.8
0.6
0.4
TCC= 0 ±30 PPM/C
800E Capacitance Change vs. Temperature
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees C)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document
#001-992 Rev. B; 12/05). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.
com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of
rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
Translated from: https://blog.gypsyengineer.com/en/diy-electronics/micropython-on-esp32-sending-data-to-google-sheets.htmlOn a nice weekend in the summer, instead of going to the beach or somewhere el...
Yangcheng Evening News reporter: Xia Yangzhi Shaorong "I only have two yuan left on me, which I use for self-defense. If I run out of money, I can take the bus home." Tutu (pseudonym), a college stude...
Electric soldering irons are generally divided into internal heating type, external heating type and quick heating type, with power ranging from 20W, 25W to several hundred watts. When purchasing and ...
Some time ago, I attended the 4th Energy Chemistry Forum of the Chinese Chemical Society and learned about high-energy-density and high-safety batteries. I would like to summarize and share this wi...[Details]
The jammer is a signal blocker, mainly composed of a chip and a radio transmitter. When the car owner presses the remote control lock button, the jammer interferes with the electronic lock receivin...[Details]
Long ago, the lifespan of cars in my country was 15 years. Once a car reached 15 years old, it was forced to be scrapped. However, the policy was later changed. As long as the car does not exceed 6...[Details]
As time goes by, people are increasingly concerned about their own and their families' health. However, existing monitoring devices for individual vital signs have struggled to gain market share du...[Details]
In the summer of 2025, BlueOval SK, a joint venture between Ford and SK On, officially started production at its first battery factory in Kentucky.
According to the original plan, this w...[Details]
For autonomous vehicles to safely navigate the road, they must identify far more complex objects than just traffic lights, pedestrians, and other familiar objects. Among these obstacles is a crucia...[Details]
The practice of warming up a car originated with gasoline-powered vehicles. Warming up the engine allows it to enter a better working state and ensures good lubrication. This has become a habit for...[Details]
With the increasing popularity of automated equipment, linear modules, a common auxiliary device for automated equipment, have also seen a bright future. In particular, in recent years, many small ...[Details]
Inverter power supplies on the market can generally be divided into two categories: sine wave inverters and square wave inverters. Some engineers also like to categorize pure sine wave inverters as...[Details]
With the growth of the Internet of Things (IoT), wearable, and portable devices, consumers are growing weary of cluttered cables and the need for frequent battery recharges. The benefits of wireles...[Details]
Introduction: Traditionally, lead-acid batteries have primarily been used to provide backup power and power regulation based on location. In typical applications, the battery's actual use (discharg...[Details]
Blackfin® 16-/32-bit embedded processors offer high performance, low power consumption, flexible software features, and scalability, making them suitable for converged applications such as multi-fo...[Details]
The motor is a very important component for new energy vehicles. In terms of vehicle power, pure electric vehicles use electric motors instead of traditional diesel/gasoline engines. For electric v...[Details]
The drive shaft is a high-speed, low-support rotating body, so its dynamic balance is crucial. Generally, drive shafts undergo dynamic balancing tests and adjustments on a balancing machine before ...[Details]
As automotive technology develops at an ever-increasing pace, the performance requirements for automotive internal structures, components, and accessories are becoming increasingly demanding. The d...[Details]
/800e152gt2500xt_pdf/pg_0001.png)
MicroPython Open Source section
京公网安备 11010802033920号
EEWORLD/800e152gt2500xt_pdf/1.png)
/800e152gt2500xt_pdf/2.png)
/800e152gt2500xt_pdf/3.png)
/800e152gt2500xt_pdf/4.png)
/800e152gt2500xt_pdf/5.png)
/800e152gt2500xt_pdf/pg_0002.png)
/800e152gt2500xt_pdf/pg_0003.png)
/800e152gt2500xt_pdf/pg_0004.png)
/800e152gt2500xt_pdf/pg_0005.png)
