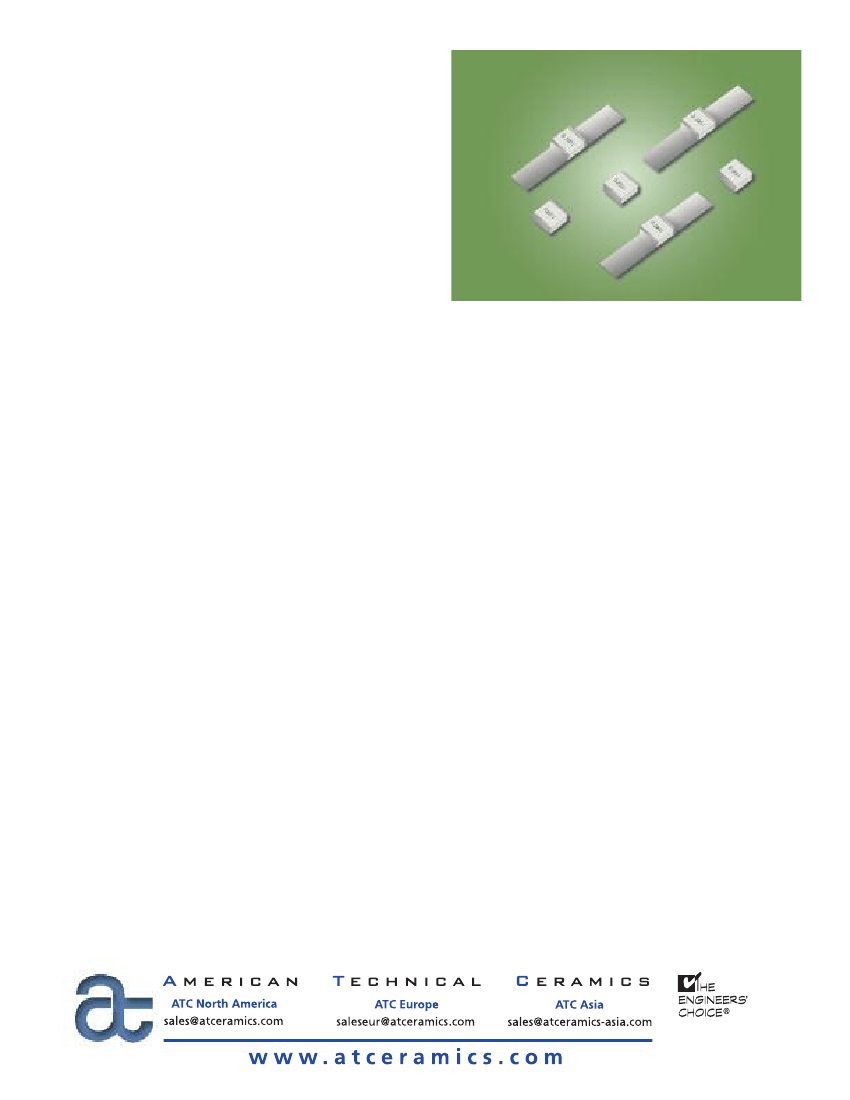

ATC 800 C Series
NPO Ceramic
High RF Power
Multilayer Capacitors
• Case C Size
• Capacitance Range:
(.250" x .250") 2.2 pF to 3000 pF
• High Q
• Low ESR/ESL
• 3600 WVDC
• Ultra-Stable Performance
• High RF Current/Voltage
• RoHS Compliant, Pb free
• High RF Power • High Reliability
ATC’s 800 C Series offers superb performance in demanding high
RF power applications requiring consistent and reliable operation.
The combination of highly conductive metal electrode systems,
optimized case geometries, and proprietary dielectrics, yields the
lowest ESR. ATC’s new NPO low loss rugged dielectrics are de-
signed to provide superior heat transfer in high RF power appli-
cations. Ultra-low ESR and superior thermal performance insure
that the 800 C Series products are your best choice for high RF
power applications from VHF through microwave frequencies.
Typical functional applications: Bypass, Coupling, Tuning, Impedance
Matching and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (2.2 pF to 1000 pF) @ 1 MHz.
Greater than 5,000 (1100 pF to 3000 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
2.2 pF to 3000 pF:
10
5
Megohms min. @ +25°C at rated WVDC.
10
4
Megohms min. @ +125°C at rated WVDC.
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, p 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 sec-
onds.
150% of WVDC for capacitors rated above 500 volts DC and ≤1250
volts DC for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
ENVIRONMENTAL TESTS
ATC 800 C Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC ap-
plied while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINATION STYLES:
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips withstand a
pull of 10 lbs. min., 20 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test
per MIL-STD-202, method 211.
ISO 9001
REGISTERED
COMPANY
ATC # 001-1076 Rev. M; 1/14
ATC 800 C Capacitance Values
CAP.
CODE
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
CAP.
(pF)
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
TOL.
RATED
WVDC
CAP.
CODE
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
CAP.
(pF)
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
TOL.
RATED
WVDC
CAP.
CODE
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
112
122
152
182
222
242
272
302
CAP.
(pF)
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1000
1100
1200
1500
1800
2200
2400
2700
3000
TOL.
RATED
WVDC
3600
B, C, D
1000
3600
F, G, J, K
F, G, J, K
2500
600
F, G, J, K
500
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10%
ATC PART NUMBER CODE
ATC800 C 22 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
J
TN 3600 X
C
Packaging
C - ATC Matrix Tray (Standard)
T - Tape and Reel, 500 pc. qty.
I - Special Packaging. Consult Factory
Laser Marking
WVDC
Termination Code
The above part number refers to a 800 C Series (case size C) 22 pF capacitor, J tolerance (±5%),
3600 WVDC, with TN termination (RoHS Compliant, Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to
parts referenced without the “ATC” prefix. Customers are free to use either
in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t c er a m ic s .co m
ATC 800 C Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.230
+.025 -.010
(5.84
+0.64
-0.25)
TL
W
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
800C
T
C
Solderable Barrier
C
L
W
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
T
800C
MS
Microstrip
WL
LL
High Purity Silver Leads
LL = .500 (12.7) min.
WL = .240 ±.005 (6.10 ±.127)
.040 (1.02) T = .004 ±.001 (.102 ±.025)
L
max.
Leads are Attached with
High Temperature Solder.
L
T
.250 ±.015 .175 (4.45)
max.
(6.35 ±0.38)
245 ±.025
(6.22 ±0.64)
C
800C
AR
Axial Ribbon
WL
LL
TL
W
Silver Leads
LL = .500 (12.7) min.
WL =
See below
L
T
**
TL = .004 ±.001 (.102 ±.025)
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
** WL = .110 (2.79) for capacitance values ≤ 680 pF; WL = .130 (3.30) for capacitance values > 680 pF
ATC 800 C Capacitors: Non-Magnetic Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
L
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.230
+.025 -.010
(5.84
+0.64
-0.25)
TL
W
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
800C
TN
C
Non-Mag
Solderable Barrier
C
W
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier
Termination
T
High Purity Silver Leads
245 ±.025
(6.22 ±0.64) .250 ±.015 .175 (4.45)
max.
(6.35 ±0.38)
LL = .500 (12.7) min.
WL = .240 ±.005 (6.10 ±.127)
.040 (1.02) T = .004 ±.001 (.102 ±.025)
L
max.
Leads are Attached with
High Temperature Solder.
800C
MN
Non-Mag
Microstrip
C
WL
LL
L
T
800C
AN
Non-Mag
Axial Ribbon
WL
LL
TL
W
Silver Leads
245 ±.025
(6.22 ±0.64)
LL = .500 (12.7) min.
WL =
See below
L
T
**
TL = .004 ±.001 (.102 ±.025)
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
** WL = .110 (2.79) for capacitance values ≤ 680 pF; WL = .130 (3.30) for capacitance values > 680 pF
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.a t c er a m ic s .co m
3

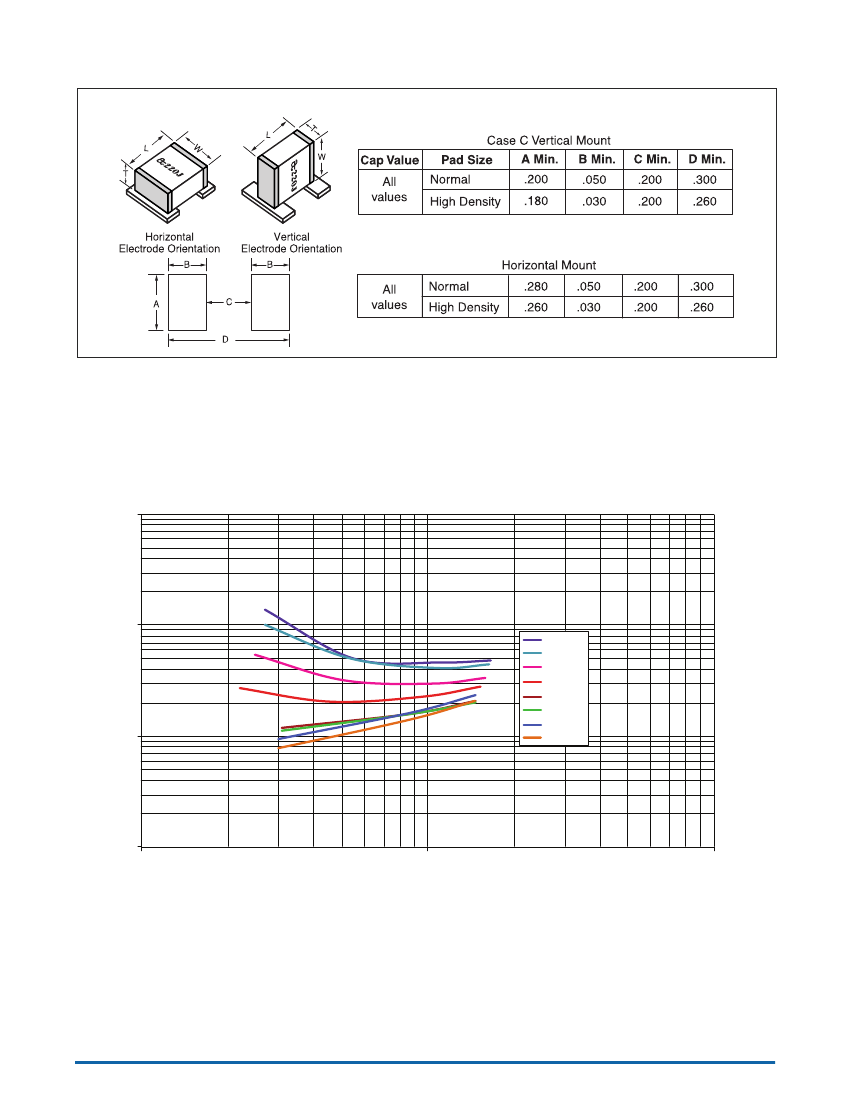

ATC 800 C Performance Data
800 C Current Rating vs. Capacitance
100
The current is based on a 65°C mounting surface
and a device thermal resistance of 15°C/W. A
power dissipation of 4 W will result in a case
temperature of 125°C.
RMS Current (amps)
10
150 MHz
30 MHz
1
10 MHz
(Typical)
Dotted line = Power dissipation limit
Solid line = Voltage limit (Vms/Xc)
0.1
1
10
100
1000
10000
Capacitance (pF)
800C Capacitance Change vs. Temperature
1
TCC= 0 ±30 PPM/°C
0.8
0.6
0.4
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees °C)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. B; 12/05). Copies of these
terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which
may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
© 2006 American Technical Ceramics Corp. All Rights Reserved.
ATC # 001-1076 Rev. M, 1/14
