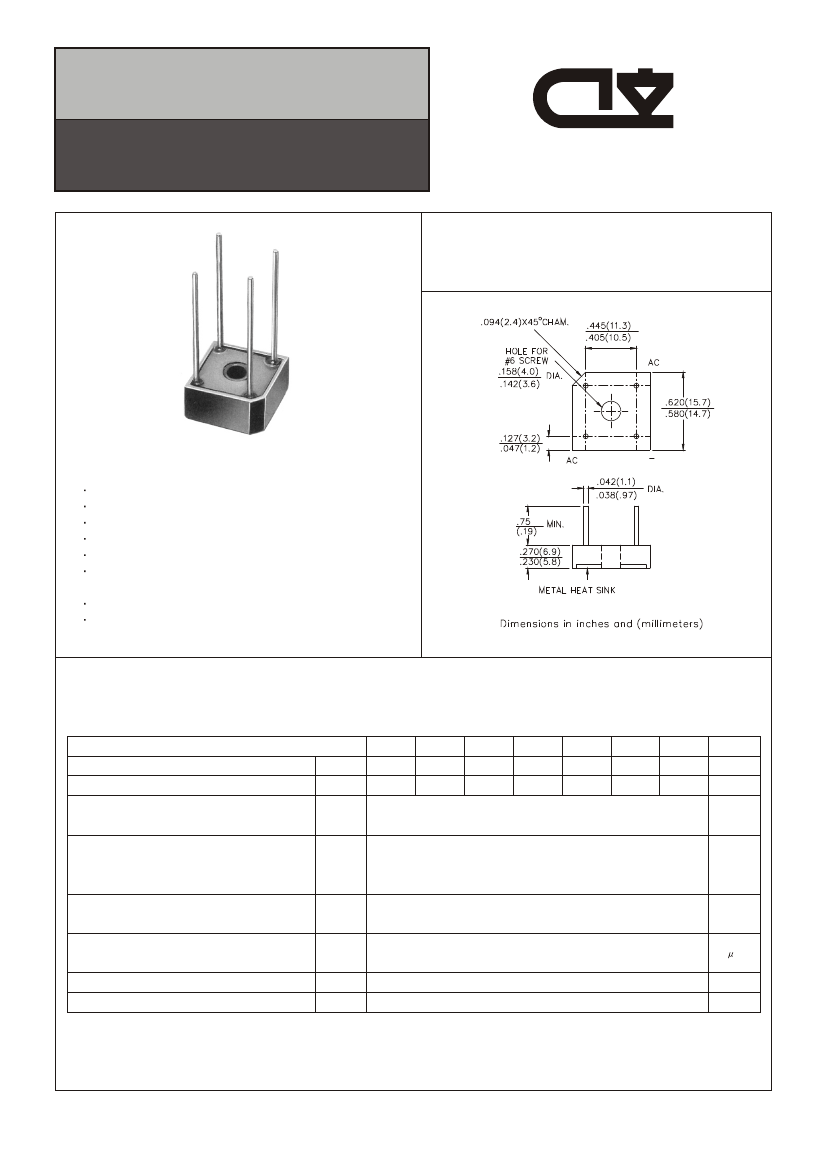

MP10M SERIES
10 AMPS EPOXY BRIDGE RECTIFIER
CHENG- YI
ELECTRONIC
VOLTAGE RANGE
50 TO 1000 VOLTS PRV
CURRENT
10 Amperes
FEATURES
10 Amps forward current at Tc+80
0
C
100 Amps peak one half cycle surge current
2000 Volts Minimum circuit-to-case insulation
Case:Moldedd plastic with heatsink interally
Mounted in the Bridge Encapsulation
Eletrically isolated metal case for maximum
heat dissipation
Mounting: thru hole for #6 screw
UL Recognized file # E149311
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
0
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MP1005 M
MP101 M
MP102 M
MP104 M
MP106M
MP108M
MP1010M
UNITS
V
V
A
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum Average Forward
Output Current @
TA=25 C
0
V
RRM
V
RMS
V
(AV)
50
35
100
70
200
140
400
280
10
600
420
800
560
1000
700
Peak Forward Surge Current
8.3 ms single half sine-wave
superimposed on rated load
Maximum DC Forward Voltage
drop per element at 5.0A DC
Maximum DC Reverse Current at rated
DC Blocking Voltage Per Element
Operating Temperature Range
Storage Temperature Range
*(Plastic case & Metal base)
@ TA=25
0
C
I
FSM
200
A
V
F
I
R
T
J
T
STG
1.1
V
10
-55 to +125
-55 to +150
0
A
C
C
0
MP10M SERIES
10 AMPS EPOXY BRIDGE RECTIFIER
CHENG- YI
ELECTRONIC
RATING AND CHARACTERISTICS CURVES
MP10M SERIES
Fig.1
-
MAXIMUM NUN-REPETITIVE
FORWARD SURGE CURRENT
250
10
Fig.2
-
TYPICAL FORWARD CURRENT
DERATING CURVE
PEAK FORWARD SURGE CURRENT.(A)
AVERAGE FORWARD CURRENT.(A)
200
8
150
6
100
4
50
2
0
0
1
10
100
50
100
150
NUMBER OF CYCLES AT 60 Hz
CASE TEMPERATURE, (
0
C)
Fig.3
-
TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
100
Fig.4
-
TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT, ( A)
10
INSTANTANEOUS FORWARD CURRENT. (A)
10
1.0
TJ=25
0
C
1.0
0.1
.1
TJ=25
0
C
Pulse Width-300 s
1% Dety Cycle
.01
0
20
40
60
80
100
120
140
.01
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
PERCENT OF RATED PEAK
REVERSE VOLTAGE, (%)
INSTANTANEOUS FORWARD VOLT
AGE, (V)
