20021323-10016T1: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

20021323-10016T1 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

20021323-10016T1 Parametric

Parameter Name	Attribute value
Objectid	308285795
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	0.134 inch
subject depth	0.087 inch
body length	0.418 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
maximum insertion force	2.1406 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

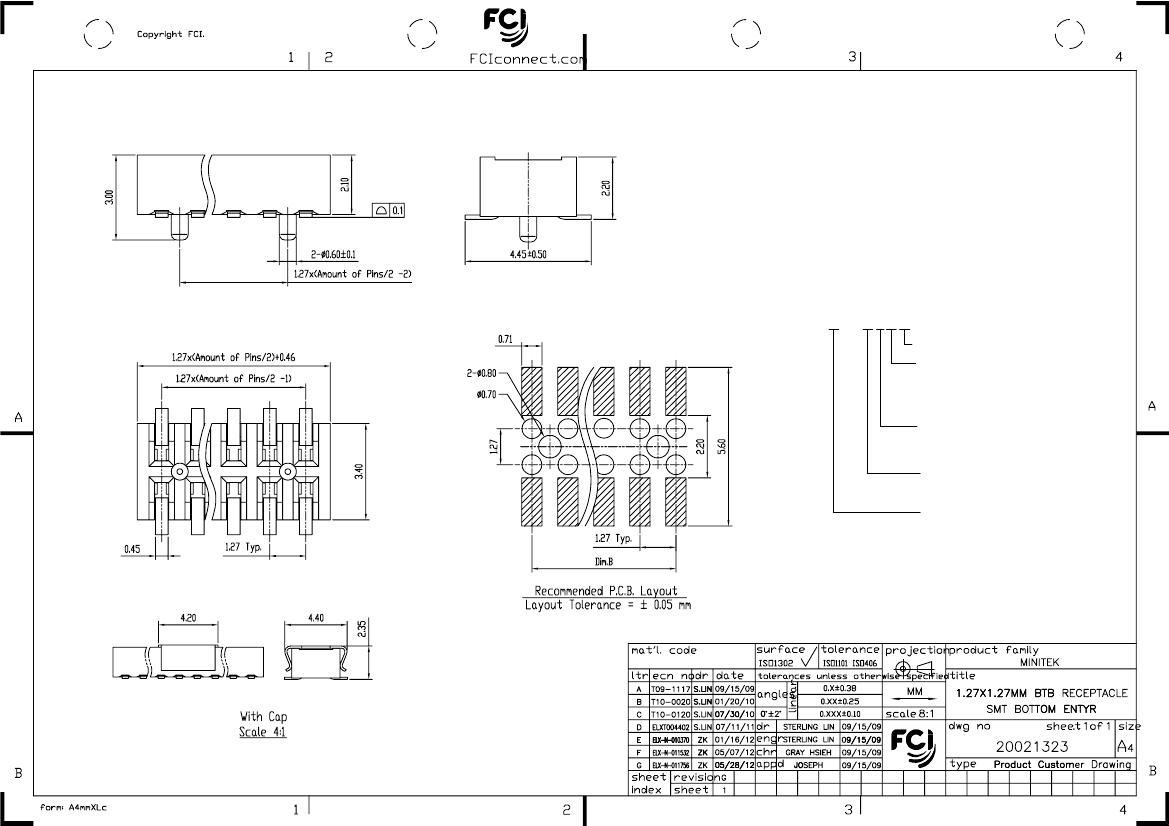

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , T=0.15MM

CAP: STAINLESS STEEL, T=0.1MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1.27um(50u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260°C

PEAK TEMP. FOR 10 SEC. IN A CONVECTION INFRA-RED

OR VAPOR PHASE REFLOW.

5. PRODUCT NUMBERING:

20021323 - X 0 0 XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

D: TUBE + CAP

T: TUBE

C: REEL + CAP (8,10,20,22,30,40,42,70P)

PIN COUNT

4,6,8,...,80

( EVERY EVEN PIN )

0: WITHOUT POST

1: WITH POST

PDS: Rev :G

STATUS:Released

Printed: May 29, 2012
