51952-204 datasheet, PDF - EEWORLD Datasheet

51952-204: DescriptionBoard Connector, 26 Contact(s), Male, Straight, Solder Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size178KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51952-204 Overview

Board Connector, 26 Contact(s), Male, Straight, Solder Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Objectid	1236753050
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.574 inch
subject depth	0.5 inch
body length	1.92 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P2
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51952
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	26
Evacuation force-minimum value	.1668 N

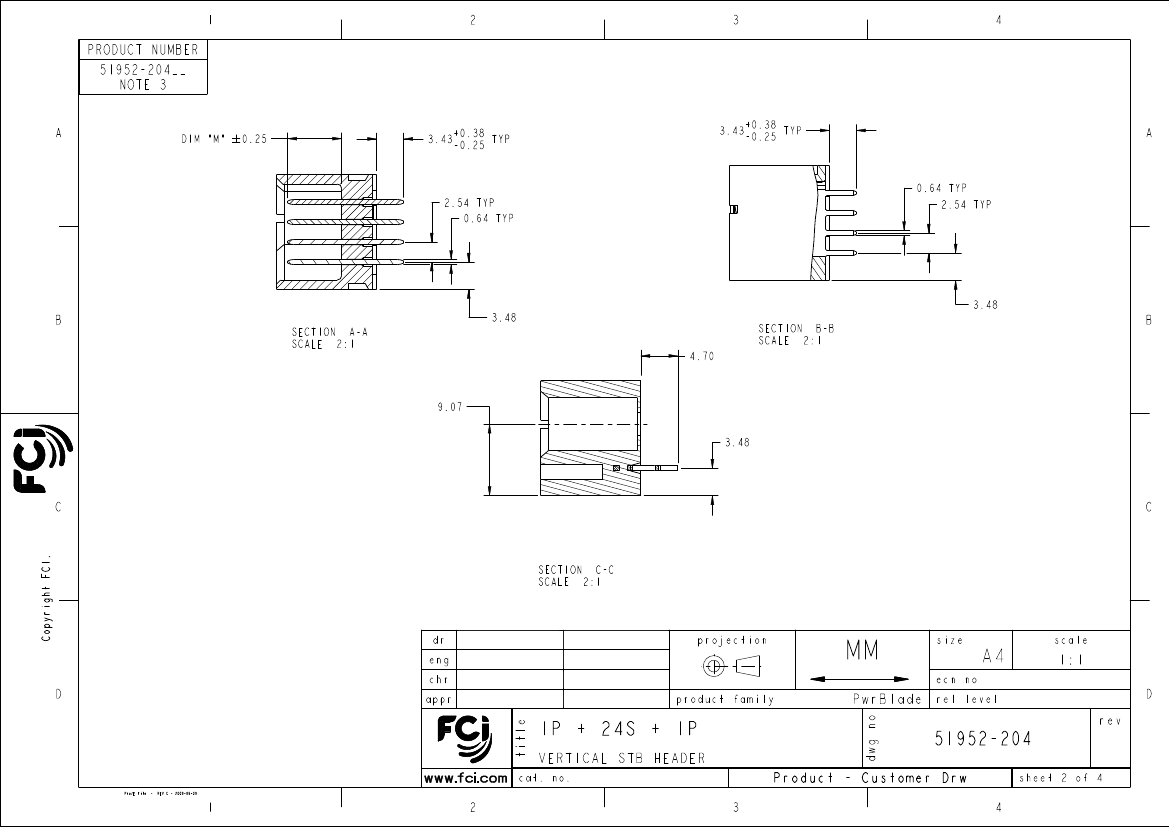

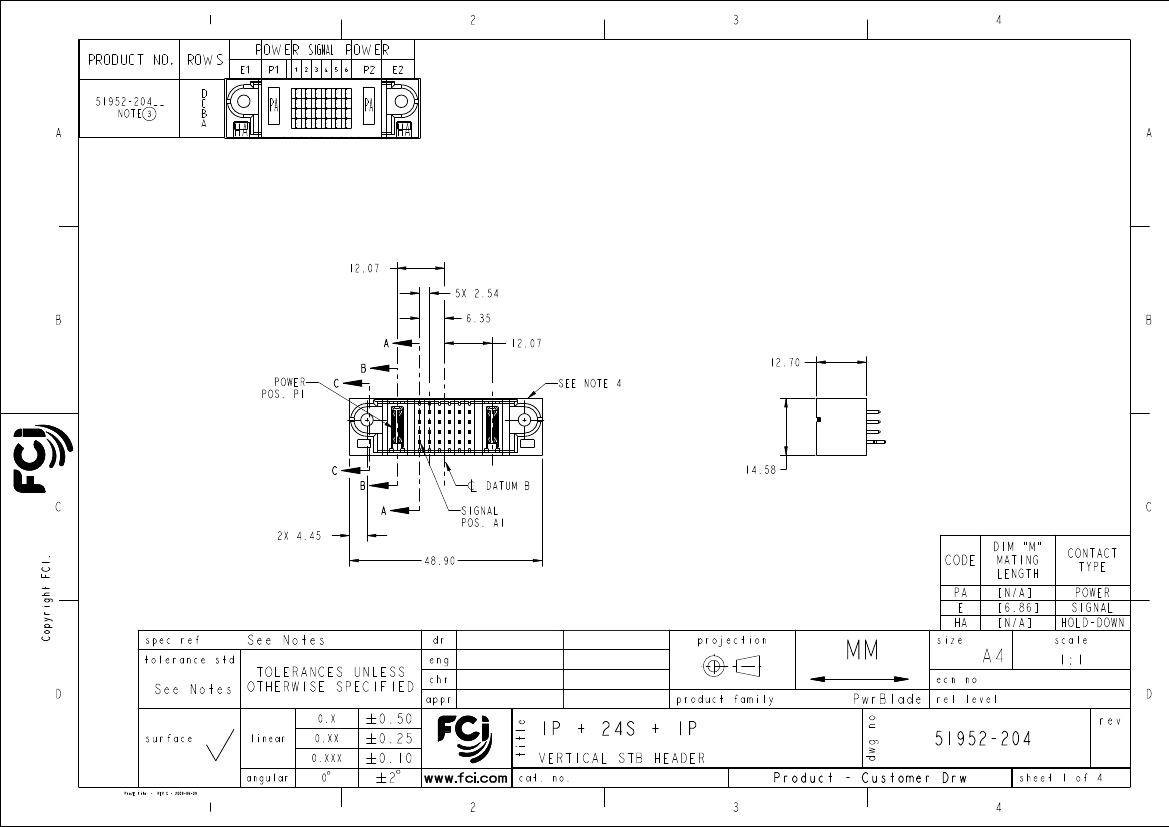

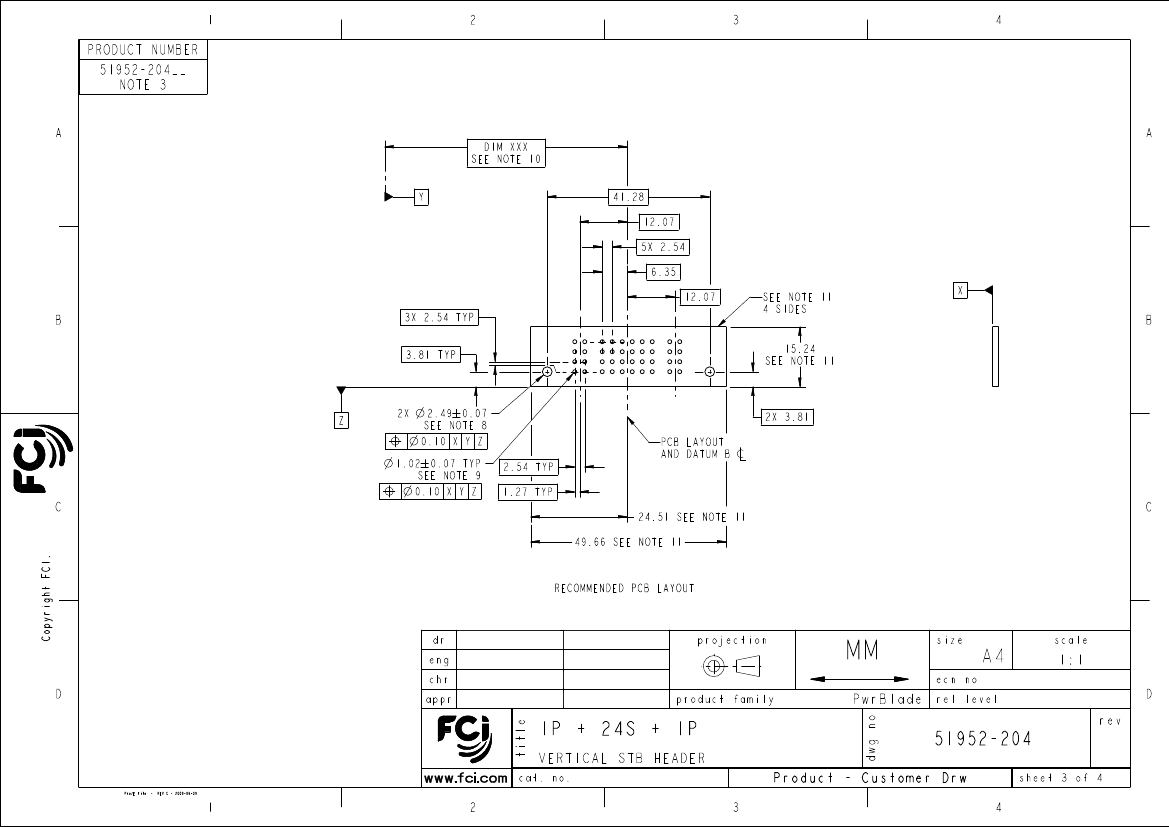

Guang, Shi

Luo Weller

-

Pei-Ming Zheng

2012/01/13

2012/07/17

-

2012/08/10

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Aug 10, 2012
