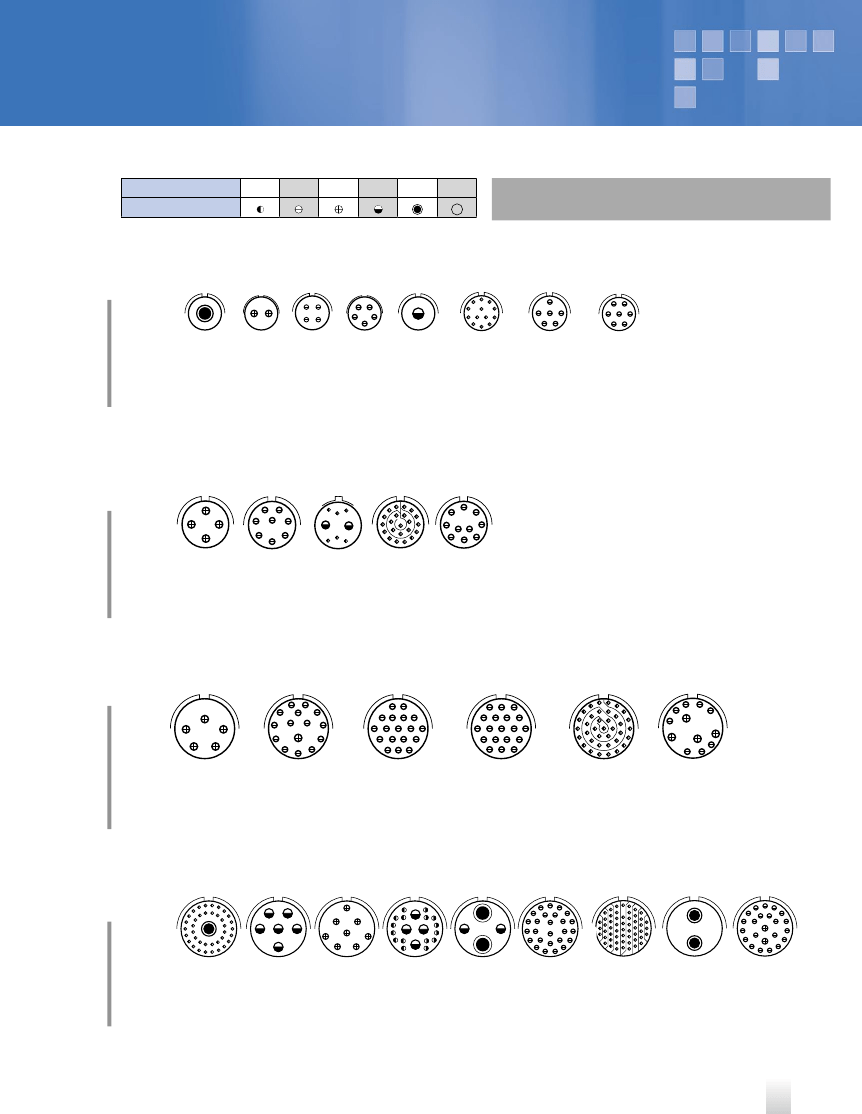

RNJ LOW PROFILE
Harsh Environment Rack & Panel Cylindrical Connectors
Amphenol
RNJ LOW PROFILE
<<<
INTRODUCTION
Realignment capability
Mechanical device ensures axial (+/-1mm), angular (+/-6°) and longitudinal (0.5
mm) realignments (See figure 1)
Many insert patterns
All available Amphenol Mil-DTL-38999 III inserts
Large contacts range
M39029 contacts compatible with Mil-DTL-38999 III
22D, 20, 16, 12, 8, 4 (contact cavities for signal, coaxial, twinax, power contacts)
EMI shielding
Grounding fingers ensure shielding before contact mating
Low profile and high density
Til 128 size 22D contacts in a 25 shell size
Shell sizes range
8 shell sizes from 11 to 25
Temperature range
- 65°C to 175°C for olive drab cadmium & 200°C for electroless nickel
High durability
500 cycles minimum
High corrosion resistance
Olive drab cadmium (500 hours salt spray) or electroless nickel (48 hours salt
spray)
Low tooling investment
Numerous tools common with Mil-DTL-38999 series III connector ones
Light weight
Aluminium alloy shells. For the plug : 20% weight saving versus standard RNJ
version
Environmental
Rear membrane protected by a cap on the plug, interfacial seal on male insert
Sealing
Reinforced membrane on the floating plug ensures high pressure resistance (plug
withstands 1000mBars on the rear face, 2000mBars on the front face)
Rear accessory possibility
Fully compatible with all M-85049 backshells for Mil-DTL-38999 series III
Contacts protection
100% scoop proof design
RNJ Low Profile rack and panel connectors
are designed to connect electrical devices
between a moving unit (rack) and a fixed
unit (panel).
The locking of the mating pair is ensured by
the mechanical device of the rack.
The RNJLP design allows a short distance
between the two panels. This is a big
benefit for the systems where space is an
issue.
The RNJLP realignment capability (as
shown in figure 1) allows to make up the
tolerances of the system.
RNJLP are primarily designed for
avionic/military and advanced industrial
application.
Applications :
<
Commercial & military avionic packaging
<
Ground / marine / defence applications
<
Advanced industrial applications

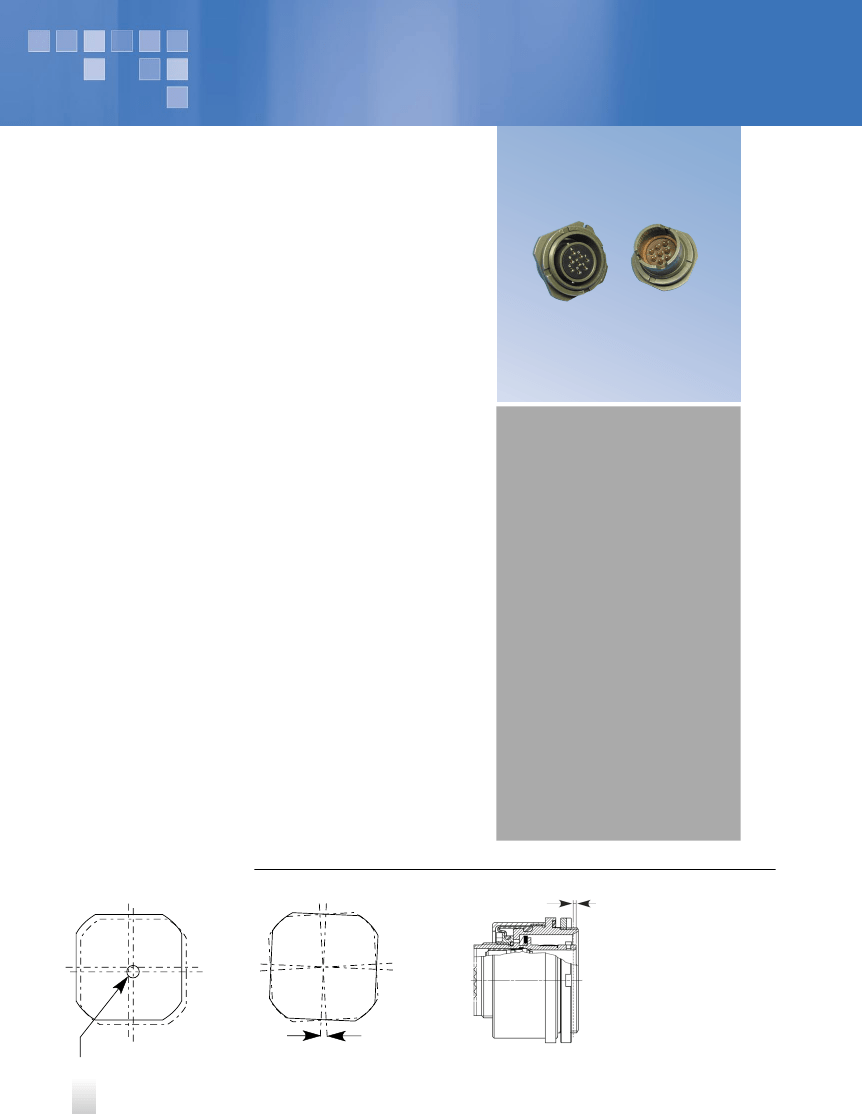

Figure 1 - Floating features
Axial alignment
Axial alignment
Angular alignment
Angular alignment
Longitudinal alignment
0,5 mm compression
+/– 1 mm
+
-
6ϒ
+/– 1 mm
0,5
2
RNJ LOW PROFILE
<
<<
ENVIRONMENTAL
CHARACTERISTICS
Fluid resistance:
<
MIL-L-7808 (lubricating oil)
<
MIL-L-23699 (lubricating oil)
<
MIL-H-5606 (hydraulic fluid)
<
Hydraulic fluid (Chevron M2V)
<
MIL A-8243 (defrosting fluid)
<
MIL- C- 87936 type I
<
MIL-T-5624 (JP5)
<
MIL-C-47220 or Coolanol 25 or equivalent
<
MIL-G-3056 type I (gasoline)
<
Isopropyl alcohol per TT-I-735 grade A or B
mixed with mineral spirit TT-T-291 type I or P-
D-680 type I
Temperature range:
<
- 65°C to +175°C (olive drab cadmium) / +200°C (Electroless Nickel)
Air leakage:
<
Receptacles RNJLP27/67: less than 16 cm3 / h max @ 2 bars pressure
<
Floating plugs RNJLP26 - 66:
- Front Face: less than 16 cm3 / h max @ 2 bars pressure
- Rear Face: less than 16 cm3 / h max @ 1 bar pressure
Corrosion resistance:
<
Olive drab cadmium 500 h salt spray
<
Electroless nickel 48 h salt spray

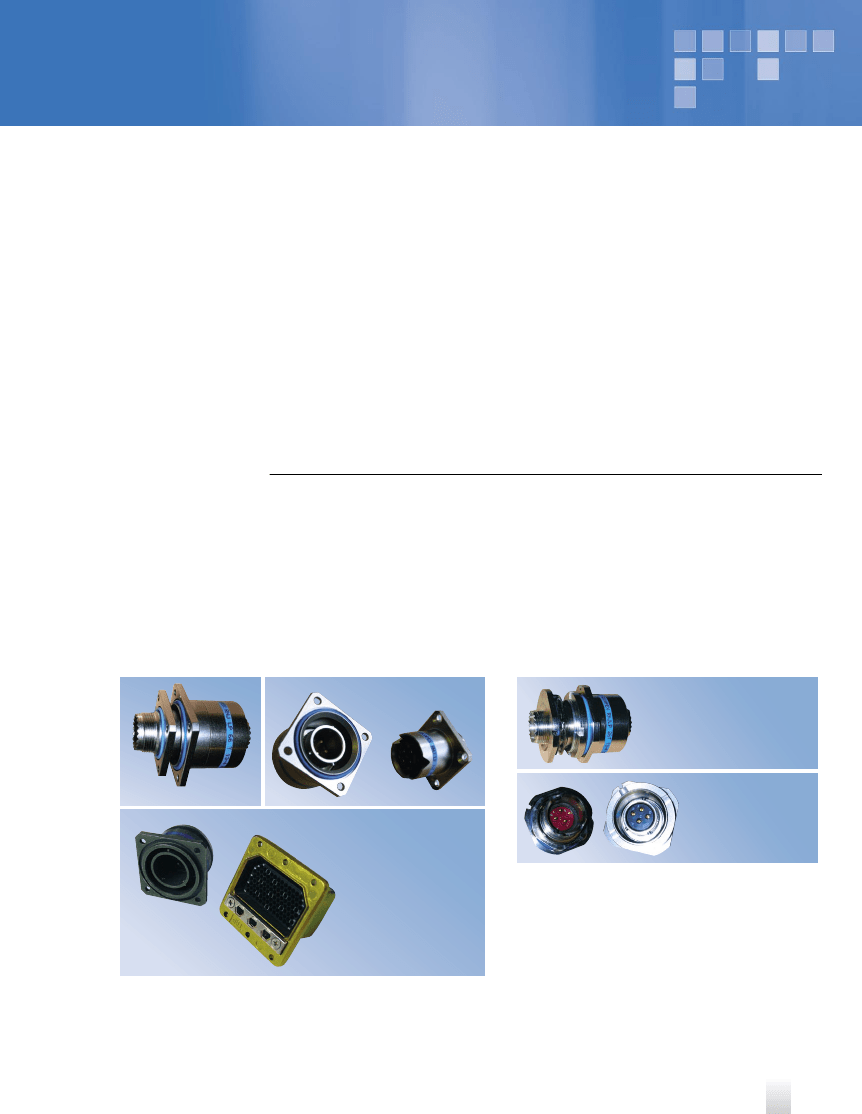

Two versions available
RNJ Low Profile Square Flange version: RNJLP 66 / 67
<
The distance between panels is the same as for the ARINC 404
connector (7,3mm). This allows the user the possibility of replacing
an ARINC 404 connectors by an RNJ Low Profile (please consult us
regarding dimension tolerances needed for the system).
<
More possibilities in shell sizes (8) than with the ARINC 404 (1, 2, 3 or
4 bays only).
<
This is front panel mounting for the receptacle and back panel mounting
for the floating plug.
<
Sealing is provided on the square flange (receptacle and floating plug)
by an O-ring gasket (delivered with the connector) located in a groove.
RNJ Low Profile Jam Nut version: RNJLP 26 / 27
<
The distance between panels is 16mm versus 36mm for the
standard RNJ
<
Both receptacle and floating plug are back panel mounting
<
Sealing is provided by the O-ring gaskets located in the
groove of the front face of the flange (receptacle and
floating plug)
<
The castle nut of the floating plug is available with 4 holes
for lock-wiring capability (optional)
<
Each RNJLP26/27 connector is supplied with a stainless
steel pin for insertion by force into the chassis
3
RNJ LOW PROFILE
<<<
MECHANICAL
Contact size
Maximum load (N)
CHARACTERISTICS
22D
45
20
67
16
110
12
110
8
150
4
150
Mating and unmating forces:
Shell size
11
13
15
17
19
21
23
25
Maximum mated force
daN
20
30
35
50
55
65
80
102
Maximum unmated force
daN
12
13
15
16
18
22
27
34
Lbs
45
67.4
78.7
112.4
123.6
146.1
179.8
229.3
Lbs
27
29.2
33.7
36
40.5
49.5
60.7
76.4
Durability: 500 cycles
<<<
ELECTRICAL
Contact size
Current (A)
CHARACTERISTICS
Contact resistance:
4*
100
20
7.5
16
13
12
23
8*
60
Contact rating - nominal current per contact:
22D
5
Contact size
Resistance (m
Ω
)
22D
8
20
4.7
16
2
12
1.1
8
0.6
4
0.26
* Please consult us for additional informations regarding power inserts
Service rating:
Service
(p. 4/5)
M
I
II
Insulation resistance: - at ambiant > 10
5
Mohms
- at maximum temperature > 10
3
Mohms
At sea level
mated
unmated
1300
1800
2300
1300
1800
2300
Dielectric withstanding voltage (Vrms)
15000 meters
21000 meters
mated
unmated
mated
unmated
800
1000
1000
550
600
800
800
1000
1000
350
400
500
34000 meters
mated
unmated
800
1000
1000
200
200
200
Working voltage
Vrms
Vdc
400
600
900
550
850
1250
Dimensions of acceptable contacts and cables:
Contact
size
22D
Contact
Diameter
mm (in)
0.76
(0.030)
Crimp barrel
Diameter
Depth
mm (in)
mm (in)
0.88±0.03
(0.035±0.001)
Acceptable cables
Gauge AWG
Section mm2 (sq in)
22
0.38
20
0.60
16
1.34
12
3.30
24
0.22
22
0.38
18
0.93
14
1.94
26
0.15
24
0.22
20
0.60
28
0.095
(0.004)
Outside diameter mm (in)
min
average
Max
0.76
(0.03)
(0.047)
(0.141)
3.58
1.20
(0.054)
1.37
(0.015)
(0.009)
(0.006)
20
(0.039)
1
(0.039±0.001)
1.19±0.03
(0.209)
5.30
1.02
(0.04)
(0.072)
1.83
(0.083)
2.11
(0.024)
(0.015)
(0.009)
(0.066)
16
(0.062)
1.57
(0.067±0.001)
1.70±0.03
(0.209)
5.30
1.68
(0.095)
2.41
(0.109)
2.77
(0.053)
(0.037)
(0.024)
(0.097)
12
(0.093)
2.36
(0.100±0.002)
2.54±0.06
(0.394)
10
2.46
(0.126)
3.20
(0.142)
3.61
(0.013)
(0.076)
8
(0.039)
3.60
(0.181+0.002)-0
4.6 +0.05
(0.394)
10
8
Min: 8.98 - Max: 10
(Min: 0.354 - Max: 0.394)
(0.177)
4.50
—
(0.228)
5.8
4
(0.226)
5.75
(0.291±0.002)
7.4±0.05
(0.4724)
12
21.10
(0.831)
(0.304)
7.73
(0.318)
8.08
(0.332)
8.43
4
RNJ LOW PROFILE
<
<<
