M3A24FAG33.0000MHZ datasheet, PDF

M3A24FAG33.0000MHZ: DescriptionOscillator, 30MHz Min, 133MHz Max, 30MHz Nom; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3A24FAG33.0000MHZ Overview

Oscillator, 30MHz Min, 133MHz Max, 30MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	102501512
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	133 MHz
Minimum operating frequency	30 MHz
Nominal operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Encapsulate equivalent code	GWDIP4/8,.6
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	50 mA
Nominal supply voltage	3.3 V
surface mount	YES

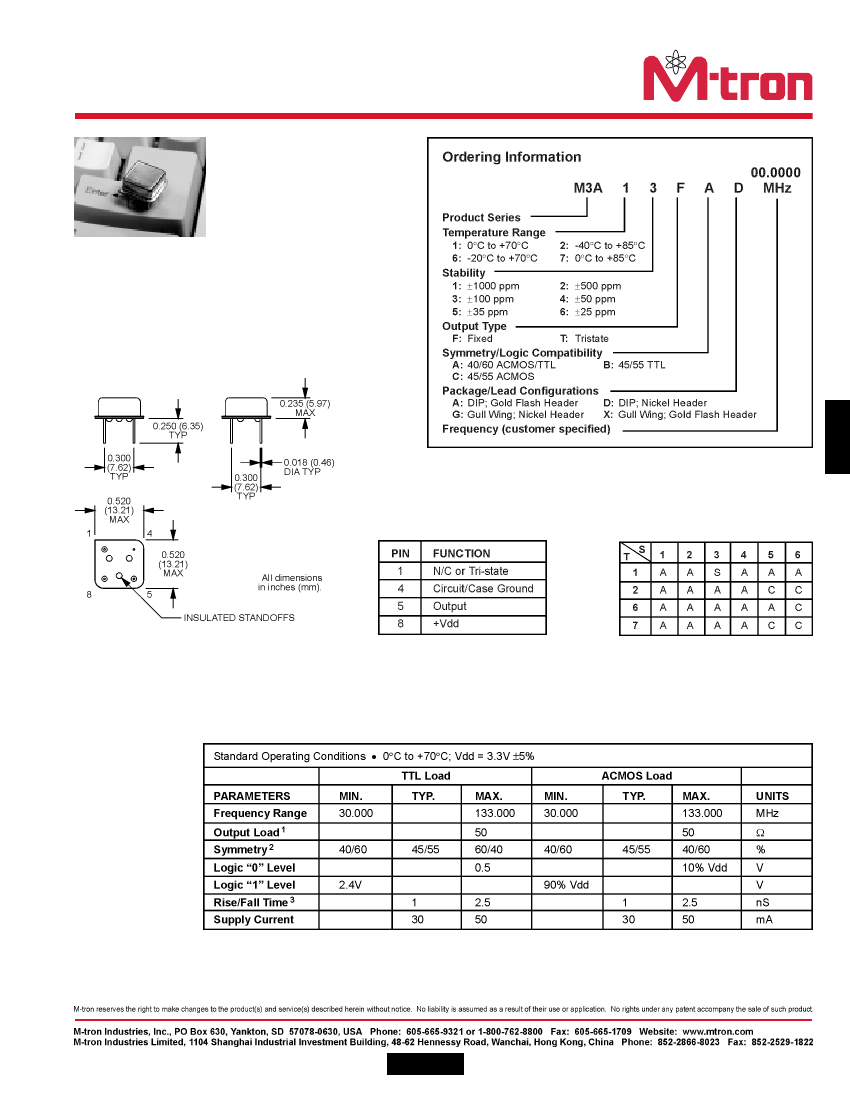

M3A Series Half-Size 3.3 Volt Advanced

CMOS/TTL Compatible Oscillators

Features:

High Frequency Capability

Tri-state Option

3.3V Power Supply

Pin Connections

Available Stabilities

vs. Temperature

See page 135 for gull wing configuration.

Tri-state Control Logic

Pin 1 high or floating: clock signal output

Pin 1 low: output disables to high impedance

A = Available

S = Standard

C = Consult Factory

Electrical Specifications

See load circuit diagram #6 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with ACMOS load.

3

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with ACMOS load.

See page 136 for suggested soldering conditions.

1

2
