Plastic Film Capacitors
Metallized Polyester
Film Capacitor
ECQE(T)
series
Non-inductive construction using metallized polyester
film with flame retardant epoxy resin coating
Features
Self-healing property
Excellent electrical characteristics
Flame retardant epoxy resin coating
Moisture resistance 85 °C, 85 % RH for 500 hours
RoHS compliant
●
●
●
●
●
Recommended applications
● General purpose usage
※Please contact us when applications are CDI , ignitor etc.
Explanation of part number
1
2
3
4
5
6
7
8
9
10
11
12
E
C
Q
E
Rated voltage
Capacitance
Cap. Tol.
T
Suffix 1
Suffix 2
Product code
Dielectric &
construction
Code
2
4
6
1A
2A
R.voltage
250 V [DC]
400 V [DC]
630 V [DC]
125 V [AC]
250 V [AC]
Code
J
K
Cap. Tol.
Code
Blank
B
Z
3
6
Lead form
Straight
Crimped lead
Cut lead
Crimped taping (Ammo)
Crimped taping (Ammo)
±5 ％
±10 ％
● Odd size taping
1
2
3
4
5
6
7
8
9
10
11
12
E
C
Q
E
Rated voltage
Capacitance
R
Odd taping
Cap. Tol.
T
Suffix
Product code
Dielectric &
construction
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
11-Oct-17
Plastic Film Capacitors
ECQE(T) series
Specifications
250V to 630V
[DC]
Category temp. range
(Including temperature-rise on unit surface)
125 V, 250 V
[AC]
Rated voltage
−40 ℃ to +105 ℃
−40 ℃ to +105 ℃
Capacitance range
Capacitance tolerance
Dissipation factor (tan δ)
Withstand voltage
Insulation resistance (IR)
250 V, 400 V, 630 V [DC]
(Derating of rated voltage by 1.25 %/°C at more than 85 °C)
125 V, 250 V [AC]
250 V [DC]
0.010 μF ~ 10.0 μF (E12)
400 V [DC]
0.010 μF ~ 2.2 μF (E12)
630 V [DC]
0.010 μF ~ 2.2 μF (E12)
125 V [AC]
0.010 μF ~ 0.47 μF (E12)
250 V [AC]
0.010 μF ~ 0.47 μF (E12)
±5 % (J), ±10 % (K)
tan δ ≦ 1.0 % (20 ℃, 1 kHz)
250V to 630V
Between terminals： R.voltage (V) × 150 %, 60 s
[DC]
125 V [AC] Between terminals：R.voltage (V) × 230 %, 60 s
250 V [AC] Between terminals to enclosure：1500 V [AC], 60 s
250V to 630V C ≦ 0.33 μF : IR ≧ 9000 MΩ (20 ℃, 100 V [DC], 60 s)
C > 0.33 μF : IR ≧ 3000 MΩ ∙ μF (20 ℃, 100 V [DC], 60 s)
[DC]
125 V [AC]
IR ≧ 2000 MΩ (20 ℃, 500 V [DC], 60 s)
250 V [AC]
＊ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
＊ Voltage to be applied to ECQE1A (F) & ECQE2A (F) is only sine wave (50 Hz or 60 Hz).
Dimensions
Straight
Crimped lead
(Suffix B)
Type B
L max.
H max.
T max.
L max.
Crimped lead
(Suffix B)
Type D
L max.
Cut lead
(Suffix Z)
H max.
G max.
Mrking
H max.
Marking
Mrking
Marking
4.5±0.5
11-Oct-17
20 min.
ød±0.05
Copper-clad
steel-wire
S±0.8
4.5±0.5
S±0.8
Packaging specifications for bulk package
■ Packing quantity : 100 pcs./bag
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
4.5±0.5
F±1.0
Plastic Film Capacitors
ECQE(F) series

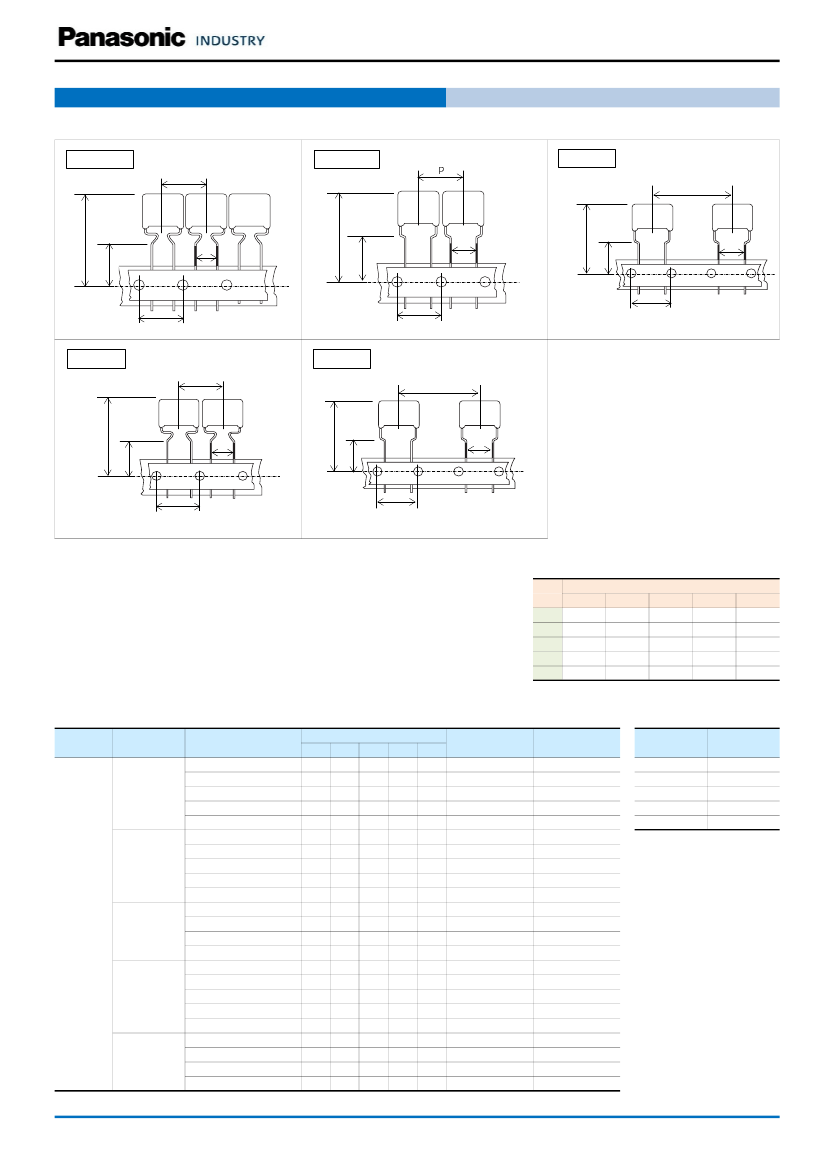

Taping specifications for automatic insertion
■ Taping style
Style AD
P
Style AB
Style C
P
H
1
H
1
H
0
H
0
H
0
F
F
H
1
F
P
0
P
0
P
0
Style D
P
Style E
P
H
1
H
1
H
0
H
0
F
F
P
0
P
0
*: H1 dimension is based on insertion machine “Panasert RH series” made by Panasonic.
Consult with Panasonic technical staff when using other insertion machines.
Size list
P
P
0
F
H
0
H
1
*
AD
12.7
12.7
5.0
16.0
34.0
AB
12.7
12.7
5.0
16.0
34.0
Style
C
25.4
12.7
5.0
16.0
39.0
Unit：mm
D
15.0
15.0
7.5
16.0
44.0
E
30.0
15.0
7.5
16.0
44.0
*:max.
■ Packaging specifications
Series
R.voltage
Capacitance range
0.010 to 0.15
0.18 to 0.33
0.39 to 1.5
0.010 to 0.33
0.39 to 1.5
0.010 to 0.033
0.039 to 0.10
0.12 to 0.47
0.010 to 0.10
0.12 to 0.47
0.010 to 0.047
0.056 to 0.22
0.010 to 0.047
0.056 to 0.22
0.27 to 0.47
0.010 to 0.10
0.12 to 0.22
0.010 to 0.22
0.27 to 0.47
0.056 to 0.22
0.010 to 0.047
0.010 to 0.047
0.056 to 0.22
(μF）
● Lead spacing
AD
〇
Taping style
AB
C
D
〇
〇
E
Packing
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Suffix
( ) T3
( ) T3
( ) T3
R( ) T
R( ) T
( ) T3
( ) T3
( ) T3
R( ) T
R( ) T
( ) T3
( ) T3
R( ) T
R( ) T
( ) T3
( ) T6
( ) T6
R( ) T
R( ) T
( ) T3
( ) T6
R( ) T
R( ) T
Style
AD
AB
C
D
E
Lead spacing
5.0
5.0
5.0
7.5
7.5
250 V [DC]
〇
〇
〇
Unit：mm
400 V [DC]
〇
〇
〇
〇
〇
〇
〇
〇
〇
〇
ECQE(T)
630 V [DC]
〇
〇
125 V [AC]
〇
〇
〇
〇
〇
250 V [AC]
〇
See the column “Rating ∙Dimensions ∙ Quantity” for packaging quantity
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
11-Oct-17
Plastic Film Capacitors
ECQE(T) series
Rating · Dimensions · Quantity
■ Rated voltage [DC]：250 V, Capacitance tolerance：±5 ％(J), ±10 ％(K)
Part No.
Cap.
(μF）
L
T
Crimped
Crimped
max. max. Straight
Straight
Straight
lead
lead
Dimensions（½½）
H max.
F
S
G
ød
Min. order Q'ty (PCS)
Taping
Bulk
Standard Odd size
5.0 mm 5.0 mm
Odd size
Crimped
Straight
7.5 mm
lead
ECQE2103□T( )
ECQE2123□T( )
ECQE2153□T( )
ECQE2183□T( )
ECQE2223□T( )
ECQE2273□T( )
ECQE2333□T( )
ECQE2393□T( )
ECQE2473□T( )
ECQE2563□T( )
ECQE2683□T( )
ECQE2823□T( )
ECQE2104□T( )
ECQE2124□T( )
ECQE2154□T( )
ECQE2184□T( )
ECQE2224□T( )
ECQE2274□T( )
ECQE2334□T( )
ECQE2394□T( )
ECQE2474□T( )
ECQE2564□T( )
ECQE2684□T( )
ECQE2824□T( )
ECQE2105□T( )
ECQE2125□T( )
ECQE2155□T( )
ECQE2185□T( )
ECQE2225□T( )
ECQE2275□T( )
ECQE2335□T( )
ECQE2395□T( )
ECQE2475□T( )
ECQE2565□T( )
ECQE2685□T( )
ECQE2825□T( )
ECQE2106□T( )
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
10.8 4.3
10.8 4.4
10.8 4.4
10.8 4.4
10.8 4.4
10.8 4.4
10.8 4.5
10.8 4.5
10.8 4.5
10.8 4.8
10.8 4.5
10.8 4.9
10.8 5.8
10.8 6.0
10.8 6.0
12.5 5.0
12.5 5.5
12.5 6.0
12.5 6.5
19.0 4.9
19.0 5.3
19.0 5.5
19.0 6.0
19.0 6.5
19.0 7.4
19.0 8.0
19.0 9.0
26.5 7.5
26.5 8.5
26.5 9.4
26.5 10.3
26.5 11.0
26.5 12.0
31.5 11.8
31.5 13.0
31.5 14.3
31.5 15.9
7.4
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.9
7.5
8.0
8.4
9.0
10.8
10.3
10.5
11.5
12.0
12.0
12.5
13.0
13.5
14.5
15.0
15.9
16.8
15.5
16.3
17.0
18.0
20.5
21.5
21.0
22.4
23.5
25.8
12.4
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.9
12.5
13.0
13.4
14.0
15.8
15.3
15.5
16.5
17.0
17.0
17.5
18.0
18.5
19.5
20.0
20.9
21.8
20.5
21.3
22.0
23.0
25.5
26.5
26.0
27.4
28.5
30.8
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
–
–
800
700
600
800
700
800
700
600
500
400
1000
1500
–
1800
1700
1600
1700
1500
1300
1200
1400
1300
1200
1100
700
600
500
400
500
500
–
400
300
400
* □：Capacitance tolerance code
()：Suffix for lead crimped or taped type
Type D : 0.010 μF to 0.33 μF
Type B : 0.39 μF to 10.0 μF
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
11-Oct-17
Plastic Film Capacitors
ECQE(T) series
Rating · Dimensions · Quantity
■ Rated voltage [DC]：400 V, Capacitance tolerance：±5 ％(J), ±10 ％(K)
Part No.
Cap.
(μF）
L
max.
G
T
Crimped
Crimped
max.
Straight
lead
Straight
lead
Straight
Dimensions（½½）
H max.
F
S
ød
Min. order Q'ty
(PCS)
Taping
Bulk
Standard Odd size
5.0 mm 5.0 mm
Odd size
7.5 mm
Straight・
Crimped
lead
ECQE4103□T(
ECQE4123□T(
ECQE4153□T(
ECQE4183□T(
ECQE4223□T(
ECQE4273□T(
ECQE4333□T(
ECQE4393□T(
ECQE4473□T(
ECQE4563□T(
ECQE4683□T(
ECQE4823□T(
ECQE4104□T(
ECQE4124□T(
ECQE4154□T(
ECQE4184□T(
ECQE4224□T(
ECQE4274□T(
ECQE4334□T(
ECQE4394□T(
ECQE4474□T(
ECQE4564□T(
ECQE4684□T(
ECQE4824□T(
ECQE4105□T(
ECQE4125□T(
ECQE4155□T(
ECQE4185□T(
ECQE4225□T(
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
10.8
10.8
10.8
10.8
10.8
10.8
10.8
12.5
12.5
12.5
12.5
12.5
12.5
19.0
19.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
31.5
31.5
31.5
4.3
4.4
4.4
4.4
4.8
5.5
6.0
4.9
5.0
5.0
5.4
5.8
6.3
5.0
5.0
5.4
5.9
6.5
7.0
7.5
7.8
6.5
7.0
7.9
8.5
9.5
9.5
11.0
11.0
7.4
7.5
7.5
7.5
7.9
8.0
9.0
8.0
8.3
10.0
10.5
11.0
12.0
10.0
12.4
12.5
13.0
14.3
14.9
15.4
17.0
16.0
16.5
17.3
18.0
18.9
19.0
20.5
22.0
12.4
12.5
12.5
12.5
12.9
13.0
14.0
13.0
13.3
15.0
15.5
16.0
17.0
15.0
17.4
17.5
18.0
19.3
19.9
20.4
22.0
21.0
21.5
22.3
23.0
23.9
24.0
25.5
27.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1800
1500
1000
900
800
700
800
700
–
600
500
–
1700
1600
1400
1200
1500
1400
1300
1200
700
600
500
400
500
–
–
* □：Capacitance tolerance code
()：Suffix for lead crimped or taped type
Type D : 0.010 μF to 0.10 μF
Type B : 0.12 μF to 2.2 μF
■ Rated voltage [DC]：630 V, Capacitance tolerance：±5 ％(J), ±10 ％(K)
Part No.
Cap.
(μF）
L
max.
G
T
Crimped
Crimped
max.
Straight
lead
Straight
lead
Straight
Dimensions（½½）
H max.
F
S
ød
Min. order Q'ty
(PCS)
Taping
Bulk
Standard Odd size
5.0 mm 5.0 mm
Odd size
7.5 mm
lead
Straight・
Crimped
ECQE6103□T(
ECQE6123□T(
ECQE6153□T(
ECQE6183□T(
ECQE6223□T(
ECQE6273□T(
ECQE6333□T(
ECQE6393□T(
ECQE6473□T(
ECQE6563□T(
ECQE6683□T(
ECQE6823□T(
ECQE6104□T(
ECQE6124□T(
ECQE6154□T(
ECQE6184□T(
ECQE6224□T(
ECQE6274□T(
ECQE6334□T(
ECQE6394□T(
ECQE6474□T(
ECQE6564□T(
ECQE6684□T(
ECQE6824□T(
ECQE6105□T(
ECQE6125□T(
ECQE6155□T(
ECQE6185□T(
ECQE6225□T(
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
19.0
19.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
26.5
31.5
31.5
31.5
31.5
31.5
31.5
4.5
4.5
5.0
4.9
5.3
5.5
6.0
6.0
6.5
5.4
5.8
6.5
6.3
6.3
7.5
8.0
9.0
7.0
7.8
8.5
9.3
10.0
11.5
11.3
12.5
13.5
15.3
16.8
19.5
7.5
7.8
8.2
10.0
10.5
10.9
11.9
13.4
13.5
10.5
11.0
12.0
14.0
14.5
15.4
16.0
16.5
16.5
17.0
17.9
18.5
20.0
21.0
20.5
21.9
23.0
24.7
27.0
29.0
12.5
12.8
13.2
15.0
15.5
15.9
16.9
18.4
18.5
15.5
16.0
17.0
19.0
19.5
20.4
21.0
21.5
21.5
22.0
22.9
23.5
25.0
26.0
25.5
26.9
28.0
29.7
32.0
34.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
900
800
700
600
800
700
600
500
400
1600
1400
1300
1200
1100
600
500
400
500
500
–
–
400
300
400
* □：Capacitance tolerance code
()：Suffix for lead crimped or taped type
Type D : 0.010 μF to 0.047 μF
Type B : 0.1056 μF to 2.2 μF
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
11-Oct-17
京公网安备 11010802033920号
EEWORLD
