REVISION U
DO NOT
SCALE FROM
THIS PRINT
C
01
06
ROW OPTION
-D: DOUBLE
-S: SINGLE (SEE SHT 3, FIG 4)
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
DOUBLE END OPTIONS
[MUST BE USED ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING]
-TUS: TRANSFER LATCH UP, STRAIGHT
(SEE FIG 2, SHEET 2)
-TDS: TRANSFER LATCH DOWN, STRAIGHT
(SEE FIG 3, SHEET 2)
-LDS: PLASTIC LATCH DOWN, STRAIGHT
(SEE FIG 9, SHEET 4)
-LUS: PLASTIC LATCH UP, STRAIGHT
(SEE FIG 10, SHEET 4)
*-TDX: TRANSFER LATCH DOWN, CROSSED
(SEE FIG 11, SHEET 5)
*-LDX: PLASTIC LATCH DOWN, CROSSED
(SEE FIG 12, SHEET 5)
FEP CABLE OPTION
-T: FEP
(NO OF POS X.100 [2.54])
(LEAVE BLANK FOR
+.070 [1.78] REF
STANDARD PVC INSULATION)
(SEE NOTE 11)
.300 7.62 REF
C
No OF POSITIONS
-02 THRU -25 (PER ROW)
WIRE GAUGE (AWG)
-20, -22, -24, -26, -28, -30
FEP: -20, -24, -28, -30
COLOR CODE
-C (SEE TABLE 2)
(LEAVE BLANK FOR
STANDARD BLACK CABLE)
(NOT AVAILABLE WITH PTFE OPTION)
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
07
12
'C'
"A"
IPM1-XX-D
POLARIZATION OPTION
-G: GUIDE POST (USE IPM1-XX-D-GP)
(LEAVE BLANK FOR NO POLARIZATION)
(SEE FIG 5 SHEET 3)
(ONLY AVAILABLE ON DOUBLE ROW)
END OPTION
-S: SINGLE END
-D: DOUBLE END(MUST CHOOSE A DOUBLE END OPTION.)
C
.690 17.53 REF
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWCX-XX-XX]
(SINGLE END: 03.00[76.2] INCH MINIMUM,
DOUBLE END: 03.25[82.6] INCH MINIMUM)
"A"
C
.020 0.51
REF
.035 0.89 REF
* = 10 POS MAXIMUM, -07.00 MINIMUM
'B'
.035 0.89 REF
DWCX-XX-XX
DETAIL 'C'
SCALE 6 : 1
.004 0.10 REF
(SEE NOTE 5)
NOTES:

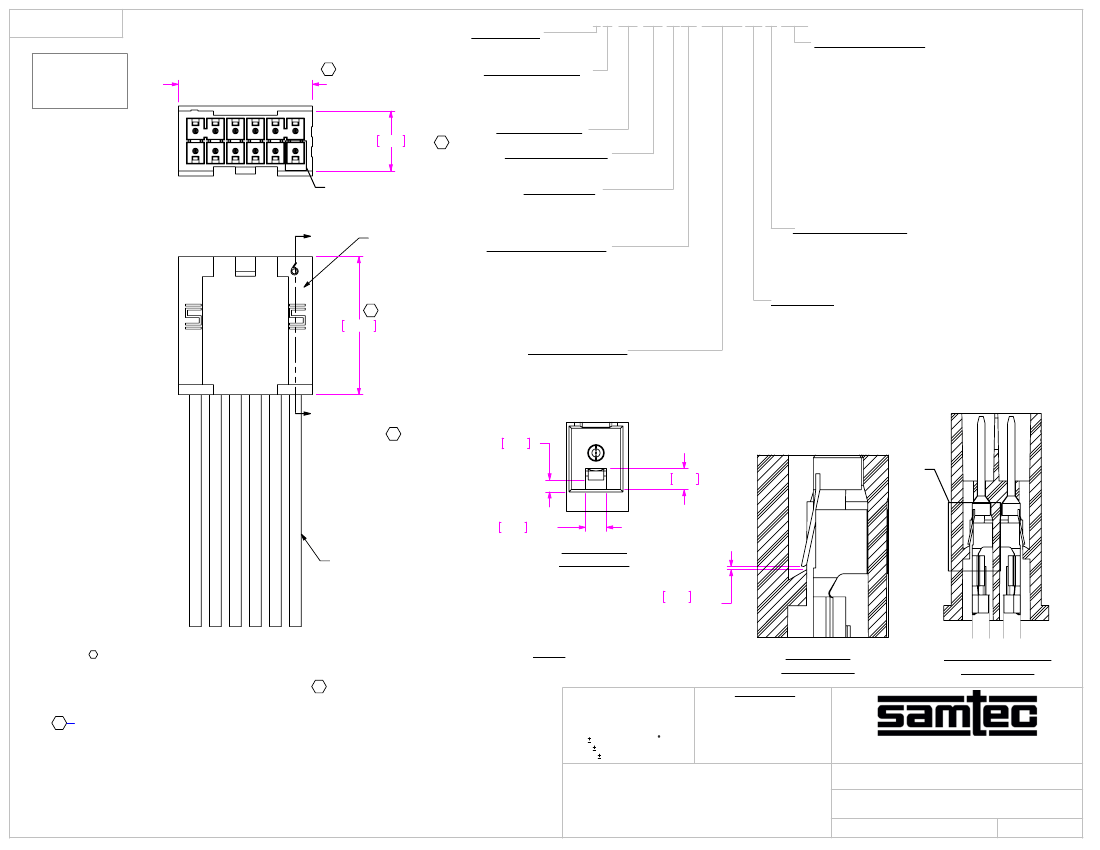

FIG 1
DETAIL 'B'
1.
C
REPRESENTS A CRITICAL DIMENSION.
SECTION "A"-"A"
MMTD-06-20-X-X-XX.XX-S SHOWN
2. NOTE DELETED
SCALE 8 : 1
SCALE 3 : 1
3. NOTE DELETED
4. MINIMUM PULLOUT FORCE: 0.5 lbs [2.22 N].
C
PROPRIETARY NOTE
*
*
UNLESS OTHERWISE SPECIFIED,
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
DIMENSIONS ARE IN INCHES.
PROPRIETARY INFORMATION AND ALL DESIGN,
INTO PLACE.
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
TOLERANCES ARE:
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
C
6. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING
DECIMALS
ANGLES
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
HI-POT TEST @ 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST, LABEL
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
.XX: .01 [.3]
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
.XXX: .005 [.13]
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
PHONE: 812-944-6733
FAX: 812-948-5047
7. TINNED COPPER WIRE IS ROHS COMPLIANT.
.XXXX: .0020 [.051]
WRITTEN CONSENT OF SAMTEC, INC.
e-Mail: info@SAMTEC.com
code: 55322
8. PARTS ARE TO BE LAYER PACKAGED.
SHEET SCALE: 2:1
MATERIAL:
DO NOT SCALE DRAWING
DESCRIPTION:
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
.100[2.54] TERMINAL DISCRETE CABLE ASSEMBLY
HOUSING: NYLON 6/6, COLOR: WHITE
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
CONTACT: PHOS BRONZE
DWG. NO.
10. FOR LENGTHS LESS THAN 12 IN[304.8], TOLERANCE SHALL BE ±.125[3.18].
CABLE: INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
FOR OTHER LENGTHS, TOLERANCES SHALL BE ± 2%.
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
11. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
BY:
D. SCHMELZ 12/04/2008
SHEET
1
OF
5
F:\DWG\MISC\MKTG\MMTXX-XX-XX-X-X-XX.XX-X-X-XXX-MKT.SLDDRW
12. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
REVISION U
N/2
N
C
XX.XX
(SEE NOTE 10)
IPD1-XX-X-K-M
N
N/2
N/2
N
01
N/2+1
01
N/2+1
.618 15.70
REF
N/2+1
01
01
N/2+1
N/2
N
END 1
END 2
END 1
END 2

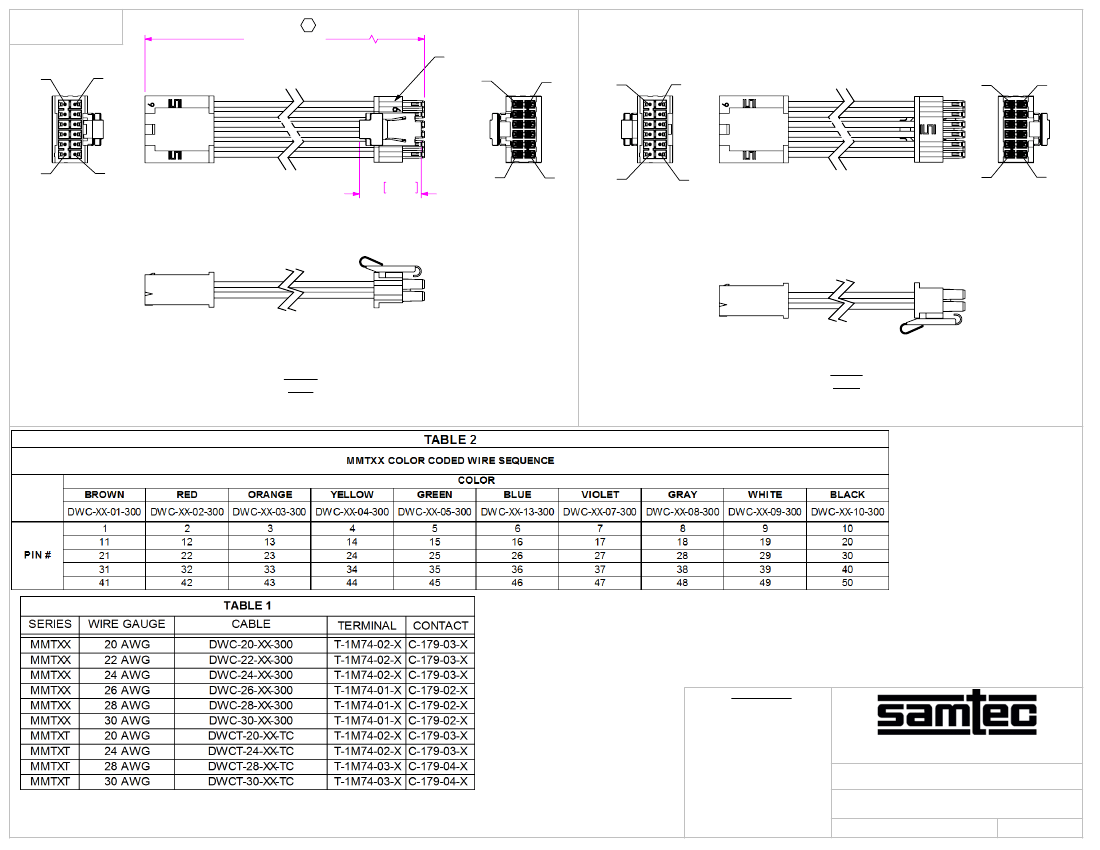

FIG 2
(TRANSFER,LATCH UP, STRAIGHT)
(SAME AS FIG1 UNLESS OTHERWISE STATED)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
-TUS
(TRANSFER,LATCH DOWN, STRAIGHT)
(SAME AS FIG 2, UNLESS OTHERWISE STATED)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
FIG 3
-TDS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100[2.54] TERMINAL DISCRETE CABLE ASSEMBLY
SHEET SCALE: 2:1
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
SHEET
2
OF
5
F:\DWG\MISC\MKTG\MMTXX-XX-XX-X-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
D. SCHMELZ 12/04/2008
REVISION U
01
01 02
.110 2.79 REF
07
12
.090 2.28 REF
IPM1-XX-S
06
IPM1-XX-D-GP
.200 5.08 REF

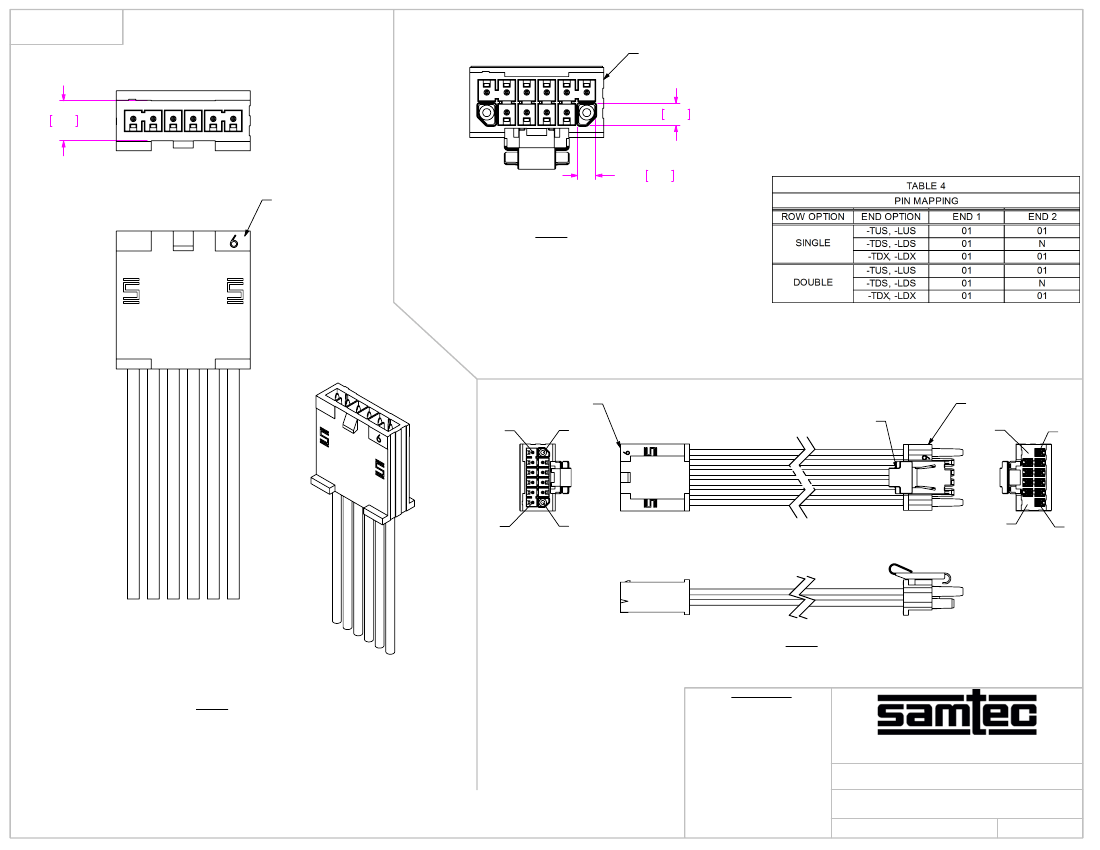

FIG 5
MMTD-06-20-X-X-XX.XX-G-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
IPM1-XX-D-GP
N/2
N
LTC-14-01-N
IPD1-XX-X-GP-R
N
N/2
01
N/2+1
N/2+1
01
FIG 6
MMTD-06-20-X-X-XX.XX-G-TUS SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(SEE TABLE 4 FOR PIN MAPPING)
PROPRIETARY NOTE
*
FIG 4
MMTS-06-20-X-XX.XX-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100[2.54] TERMINAL DISCRETE CABLE ASSEMBLY
SHEET SCALE: 2:1
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
12/04/2008
SHEET
3
OF
5
F:\DWG\MISC\MKTG\MMTXX-XX-XX-X-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
D. SCHMELZ
REVISION U
IPD1-XX-D-XX-X
N/2
N
.250 6.35 REF
01
.100 2.54 REF
N/2 + 1
C
(No OF POS x .100[2.54]
+ .055[1.40]) REF
C
01
N/2+1
.505 12.83 REF
.285 7.24 REF
N/2
N
.353 8.97 REF
C
END 1

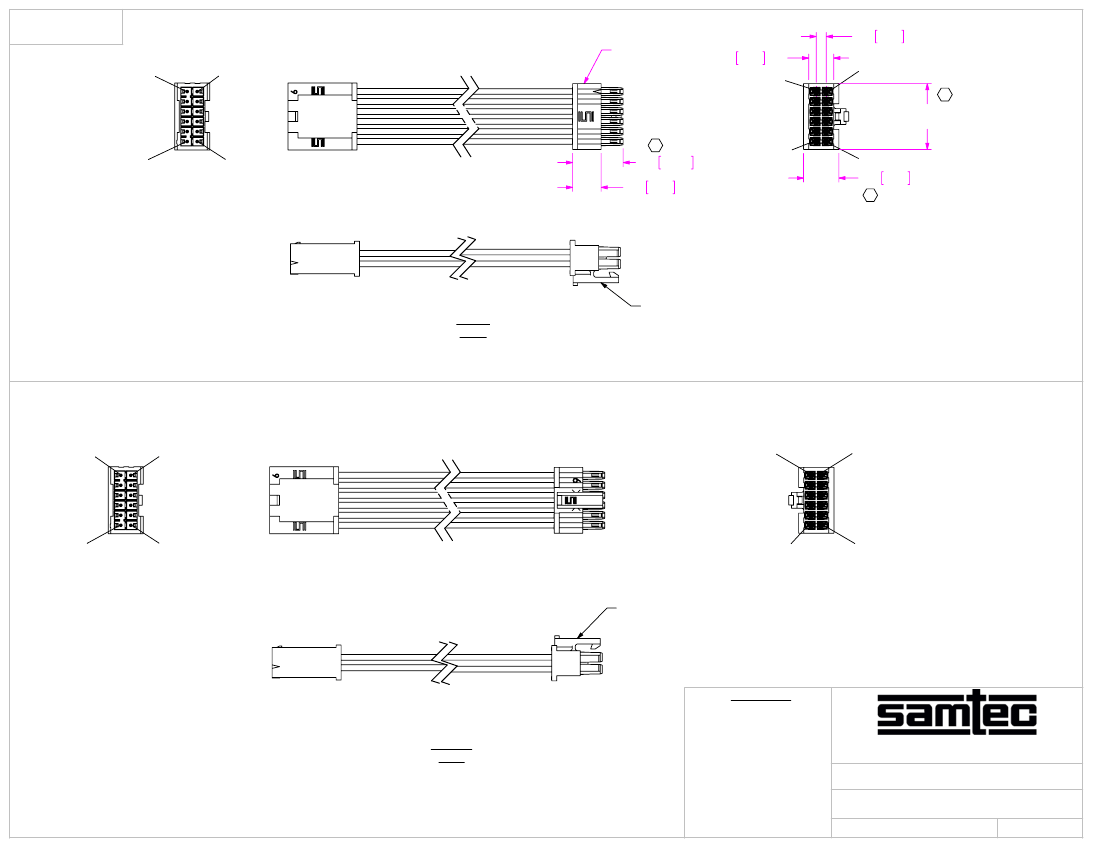

FIG 9
(TRANSFER,LATCH DOWN, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
-LDS
LATCH-
END 2
N/2
N
N
N/2
01
N/2+1
N/2 + 1
01
END 1
LATCH-
END 2
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
FIG 10
(TRANSFER,LATCH UP, STRAIGHT)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2 & 9)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
-LUS
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
.100[2.54] TERMINAL DISCRETE CABLE ASSEMBLY
SHEET SCALE: 2:1
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
D. SCHMELZ12/04/2008
SHEET
4
OF
5
F:\DWG\MISC\MKTG\MMTXX-XX-XX-X-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
REVISION U
N/2
N
01
N/2+1
N/2
N
01
N/2+1
01
N/2+1
N/2
N
01
N/2+1
N/2
N
END 1
END 2
END 1
END 2
LATCH DOWN
(TRANSFER,LATCH DOWN, CROSSED)
(SAME AS FIG 2, UNLESS OTHERWISE STATED)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
FIG 12
-TDX
LATCH DOWN
FIG 14
(TRANSFER,LATCH DOWN, CROSSED)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
-LDX

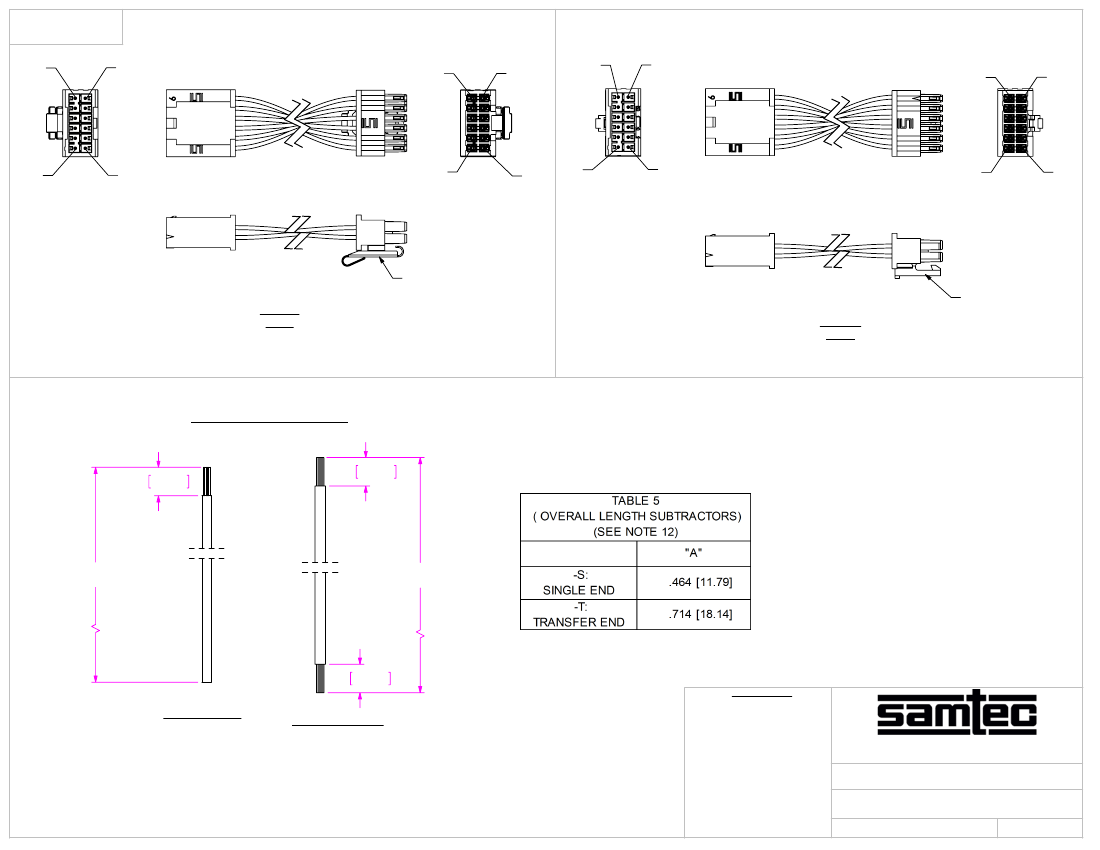

CABLE CUT IN-PROCESS
.128 3.2512
.128 3.2512
(ASSEMBLY LENGTH - "A")
(SEE TABLE 5)
(ASSEMBLY LENGTH - "A")
(SEE TABLE 5)
.128 3.2512
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
-S: SINGLE END
PROPRIETARY INFORMATION AND ALL DESIGN,
-T: TRANSFER END
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
DESCRIPTION:
.100[2.54] TERMINAL DISCRETE CABLE ASSEMBLY
DWG. NO.
SHEET SCALE: 2:1
MMTXX-XX-XX-X-X-XX.XX-X-X-XXX
12/04/2008
SHEET
5
OF
5
F:\DWG\MISC\MKTG\MMTXX-XX-XX-X-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
D. SCHMELZ
