MRG3216P-2702-D-T5 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MRG3216P-2702-D-T5

MRG3216P-2702-D-T5: DescriptionFixed Resistor, Thin Film, 0.125W, 27000ohm, 200V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size230KB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

MRG3216P-2702-D-T5 Overview

Fixed Resistor, Thin Film, 0.125W, 27000ohm, 200V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP

MRG3216P-2702-D-T5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	286457595
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Japan
ECCN code	EAR99
YTEOL	7.45
Other features	ANTI-SULFUR, PRECISION
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	27000 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	MATTE TIN
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

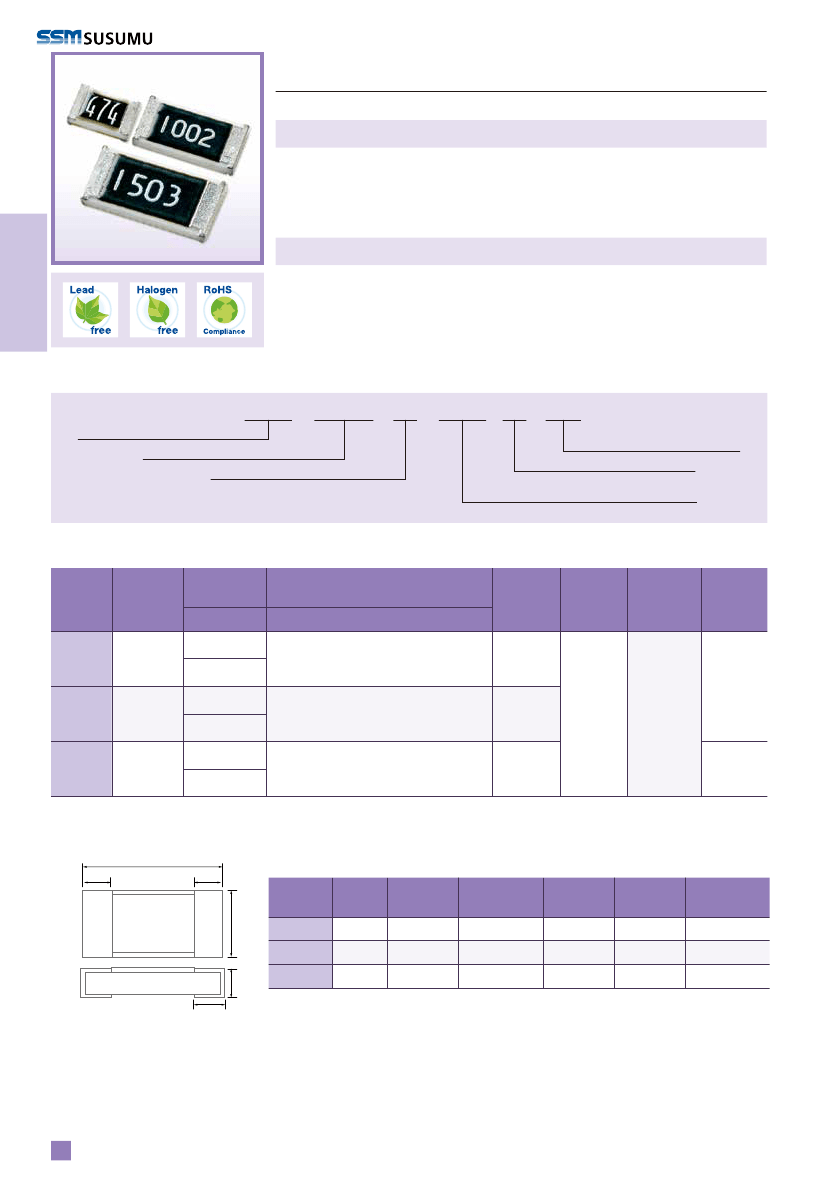

Anti-surge thin film chip resistors

■MRG

series

Features

・

Significant improvement of anti-surge capability comparing to existing thin film resistors

・

Precision resistance tolerance: ±0.1%, very small TCR: ±10ppm/°C

・

Thin film structure enabling low noise and anti-sulfur

Thin film surface mount resistors

AEC-Q200 Compliant

Applications

・

Power source related devices

・

Automotive electronics

・

Robotics, Industrial control system

MRG series

◆Part

numbering system

MRG 2012

Series code

Size:

MRG2012, MRG3216, MRG5025

Temperature coefficient of resistance

N - 104 - D - T5

Packaging quantity: T5(5,000pcs)

Resistance tolerance

Nominal resistance value

(E-24, E-96, MRG3216, MRG5025: all 4 digit)

(MRG2012, MRG3216)

T4(4,000pcs) (MRG5025)

◆Electrical

Specification

Type

Power

ratings

Temperature

coefficient

of resistance

Resistance range(Ω)

Resistance tolerance

±0.5% (D)

Maximum

voltage

Resistance

value series

Operating

temperature

Packaging

quantity

(ppm/°C)

±10

（N）

MRG2012

1/10W

±25

（P）

100≦R≦1M

150V

±10

（N）

MRG3216

1/8W

±25

（P）

±10

（N）

100≦R≦2M

200V

E-24, E-96

-55℃ ~ 155℃

MRG5025

1/2W

±25

（P）

100≦R≦2M

300V

◆Dimensions

Type

MRG2012

MRG3216

MRG5025

(inch)

0805

1206

2010

Size

2.00±0.20

3.20±0.20

5.00±0.20

1.25＋0.25/−0.20

1.60±0.25

2.50±0.25

0.40±0.20

0.50±0.25

0.60±0.25

0.40±0.20

0.50±0.25

0.60±0.25

0.40＋0.15/−0.10

0.45＋0.15/−0.10

（unit：mm）
