3284.42.2010.105

Description
RF SMA Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack
CategoryThe connector    The connector
File Size117KB,1 Pages
ManufacturerIMS Connector Systems Gmbh
Download Datasheet Parametric Compare View All

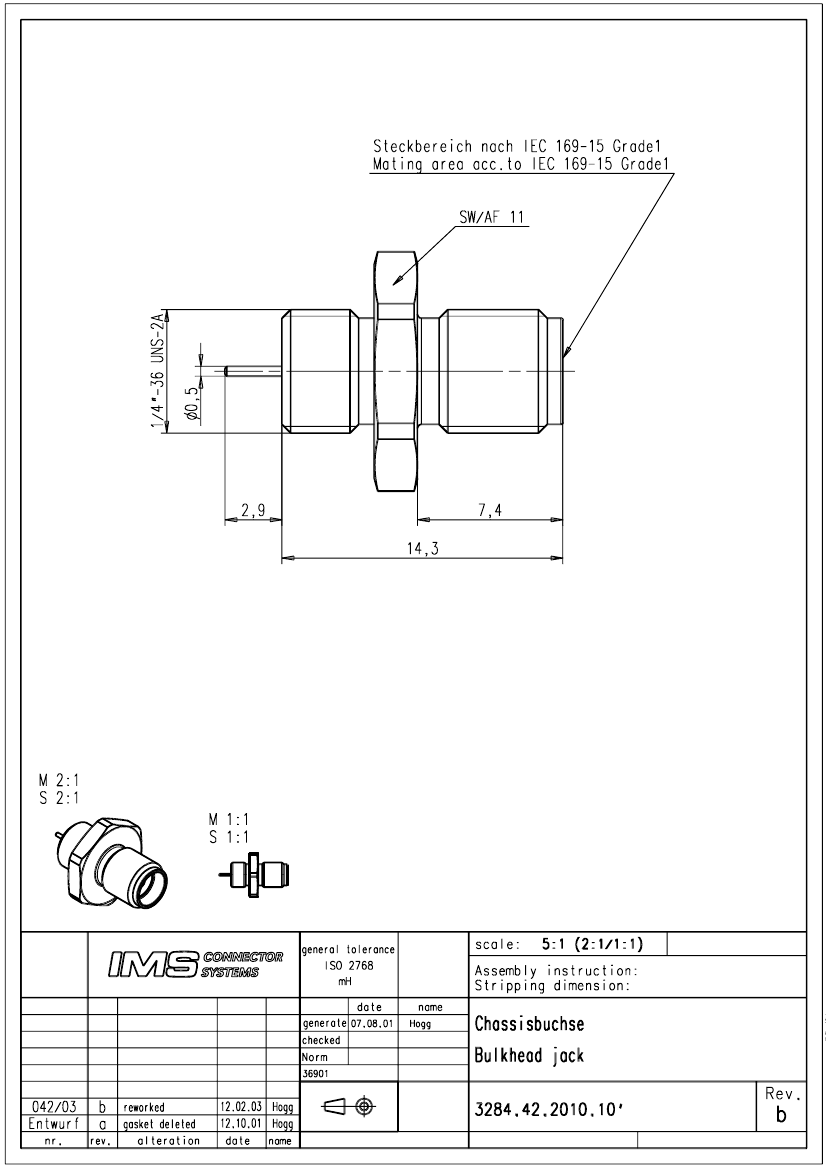

3284.42.2010.105 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack

3284.42.2010.105 Parametric

Parameter NameAttribute value
MakerIMS Connector Systems Gmbh
Reach Compliance Codecompli
Other featuresROHS COMPLIANT
subject depth0.563 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact point genderFEMALE
Contact resistance3 mΩ
Contact styleCOAX
Coupling typeTHREADED
Durability500 Cycles
Insulation resistance10000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
MIL complianceYES
Manufacturer's serial number3284
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Panel mountingYES
Rated current (signal)2 A
reliabilityMIL-C-39012
Termination typeSOLDER LUG
Total number of contacts1
Base Number Matches1
