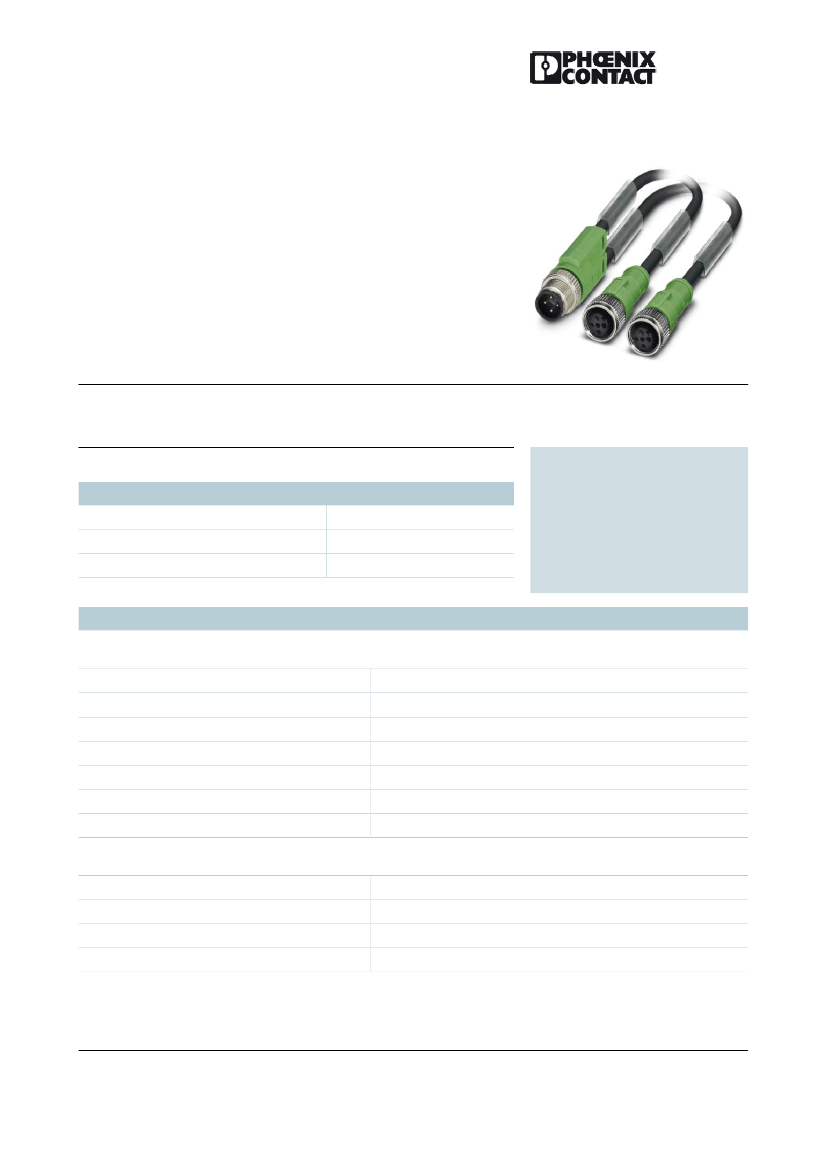

SAC-3P-M12Y-2XM12FS/.../...
Order No.: 1699766
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1699766
Sensor/actuator cable, 3-pos., variable cable, straight M12 Y-plug, on
2x straight M12 socket, cable length: 0.2 m ... 40 m
Commercial data
Pack
Customs tariff
Catalog page information
1 pcs.
85444290
Page 100 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
A - standard
HB
II
3
4A
250 V
3
≤ 5 mΩ
≥ 100 MΩ
Free input (0.2 ... 40.0 m)
-25 °C ... 90 °C (plug/socket)
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 6, 2009
SAC-3P-M12Y-2XM12FS/.../...
Order No.: 1699766
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1699766
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
Test voltage
Line characteristics
Note
IP65/IP68/IP69K
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
NBR
No
2500 V
This order comprises a cable with a freely selectable cable type.
As a result, technical data about the cable types available for
selection is not displayed here.This information is available on
request.

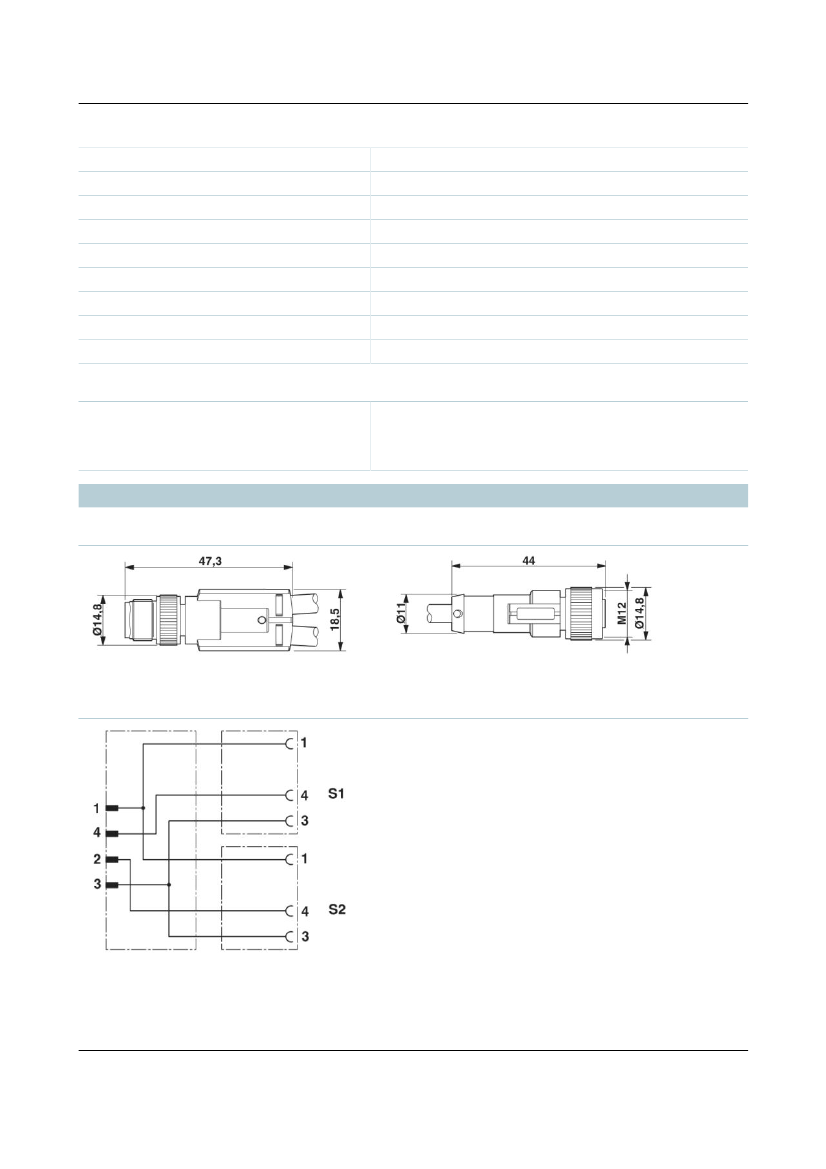

Drawings
Dimensioned drawing
Plug M12 x 1, Y distributor
Circuit diagram
M12 x 1 female connector, straight
Contact assignment of the M12 plug and the M12 socket
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 4
Jul 6, 2009
SAC-3P-M12Y-2XM12FS/.../...
Order No.: 1699766
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1699766

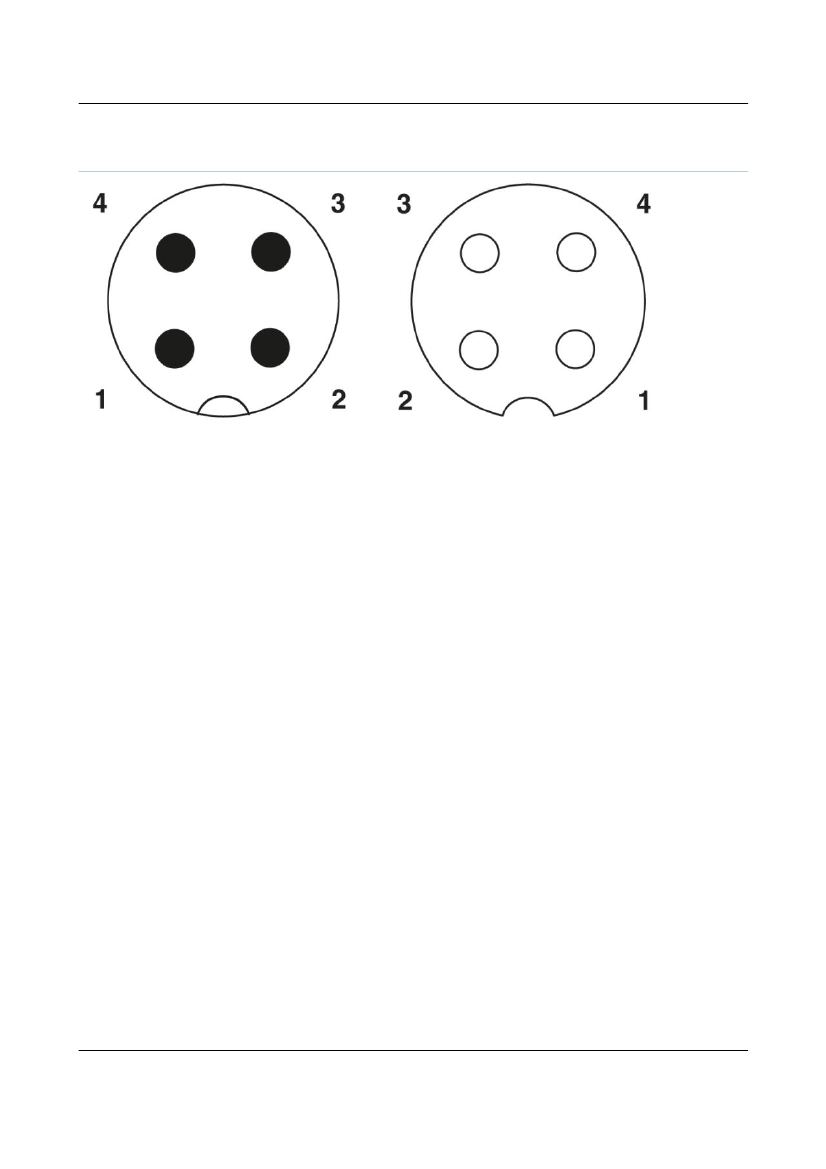

Schematic diagram
Pin assignment M12 Y plug, 4-pos., A-coded,
view plug side
Pin assignment M12 socket, 4-pos., A-coded,
view female side
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 4
Jul 6, 2009
SAC-3P-M12Y-2XM12FS/.../...
Order No.: 1699766
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1699766
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 4
Jul 6, 2009
