245087040200861 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 245087040200861

245087040200861: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

245087040200861 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle

245087040200861 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknow
Other features	TAPE & REEL
body width	0.157 inch
subject depth	0.098 inch
body length	0.48 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VDC V
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	5087
Plug contact pitch	0.02 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	15u inch
Rated current (signal)	0.4 A
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Total number of contacts	40
Base Number Matches	1

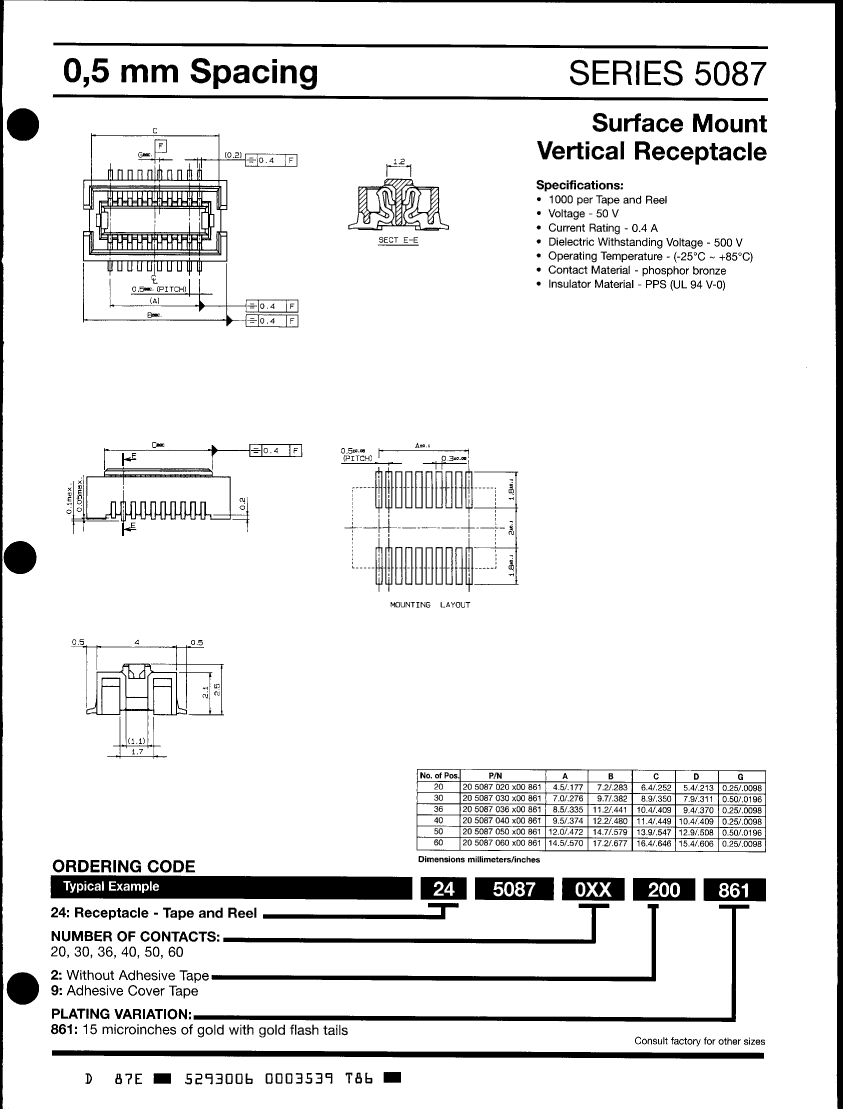

Preview

Download Datasheet

View All

245087040200861 Related Products

	245087040200861	245087036200861	245087030200861	245087036900861	245087050200861	245087020900861	245087020200861	245087060200861	245087040900861	245087060900861
Description	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Receptacle,	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Receptacle,	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Receptacle,	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Receptacle
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown
Other features	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
body length	0.48 inch	0.441 inch	0.382 inch	0.441 inch	0.579 inch	0.283 inch	0.283 inch	0.677 inch	0.48 inch	0.677 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	MALE	FEMALE	MALE	MALE	MALE	MALE	FEMALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Plating thickness	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch
Rated current (signal)	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Total number of contacts	40	36	30	36	50	20	20	60	40	60
Manufacturer's serial number	5087	-	5087	-	5087	5087	5087	5087	-	5087
Base Number Matches	1	1	1	1	1	1	1	1	1	-
