245078050515861 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 245078050515861

245078050515861: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size621KB，19 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

245078050515861 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle

245078050515861 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compli
Other features	1000 PCS/TAPE AND REEL PACKAGE
body width	0.197 inch
subject depth	0.256 inch
body length	1.28 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	5078
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

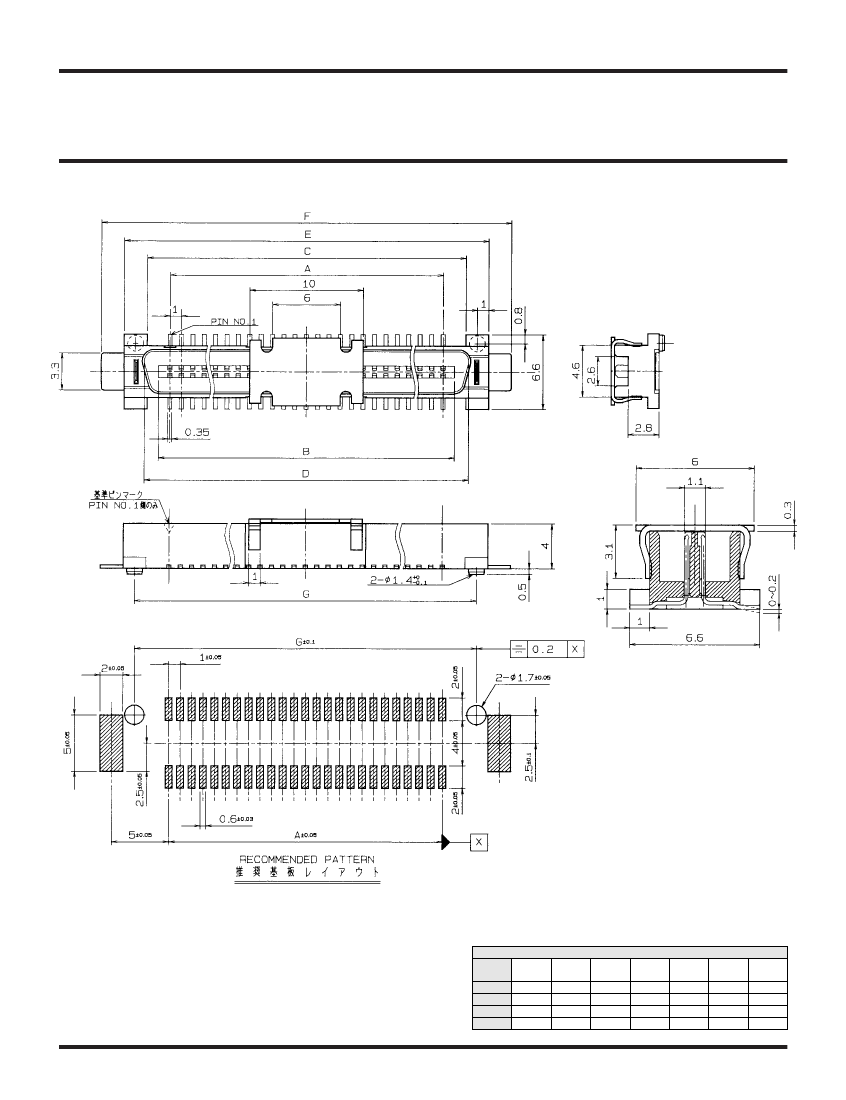

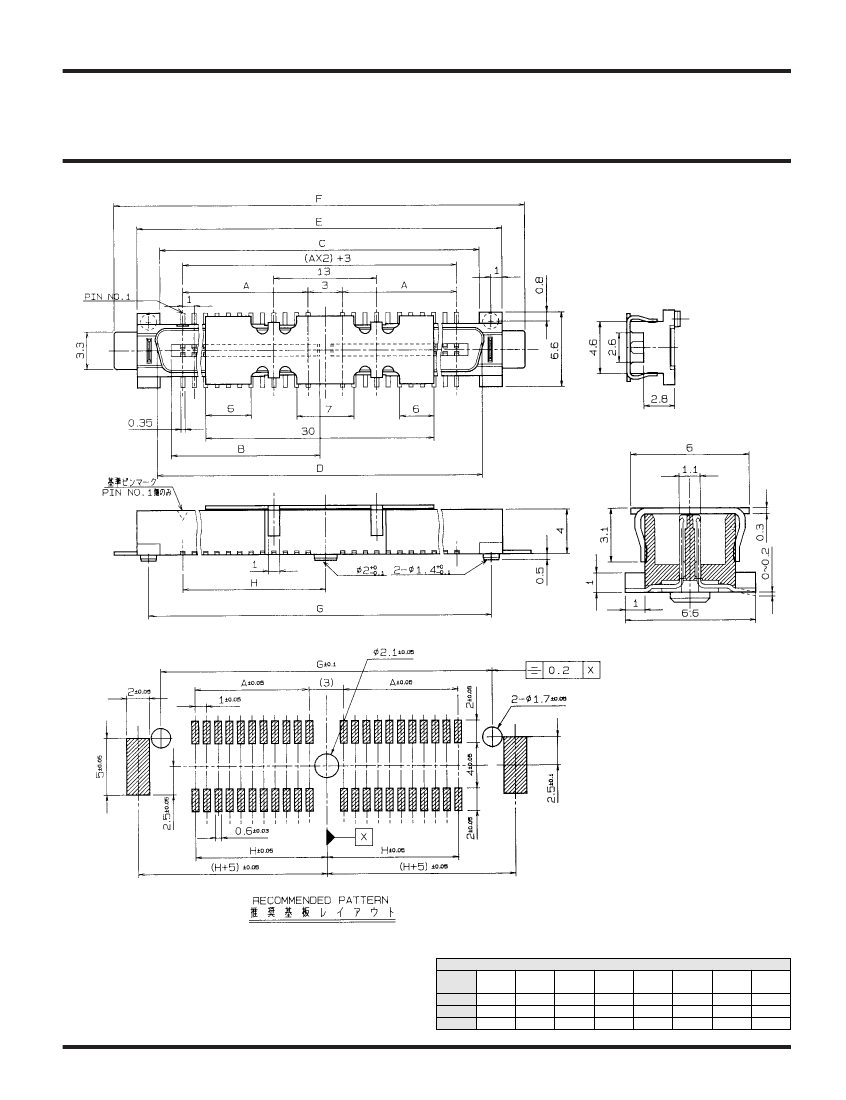

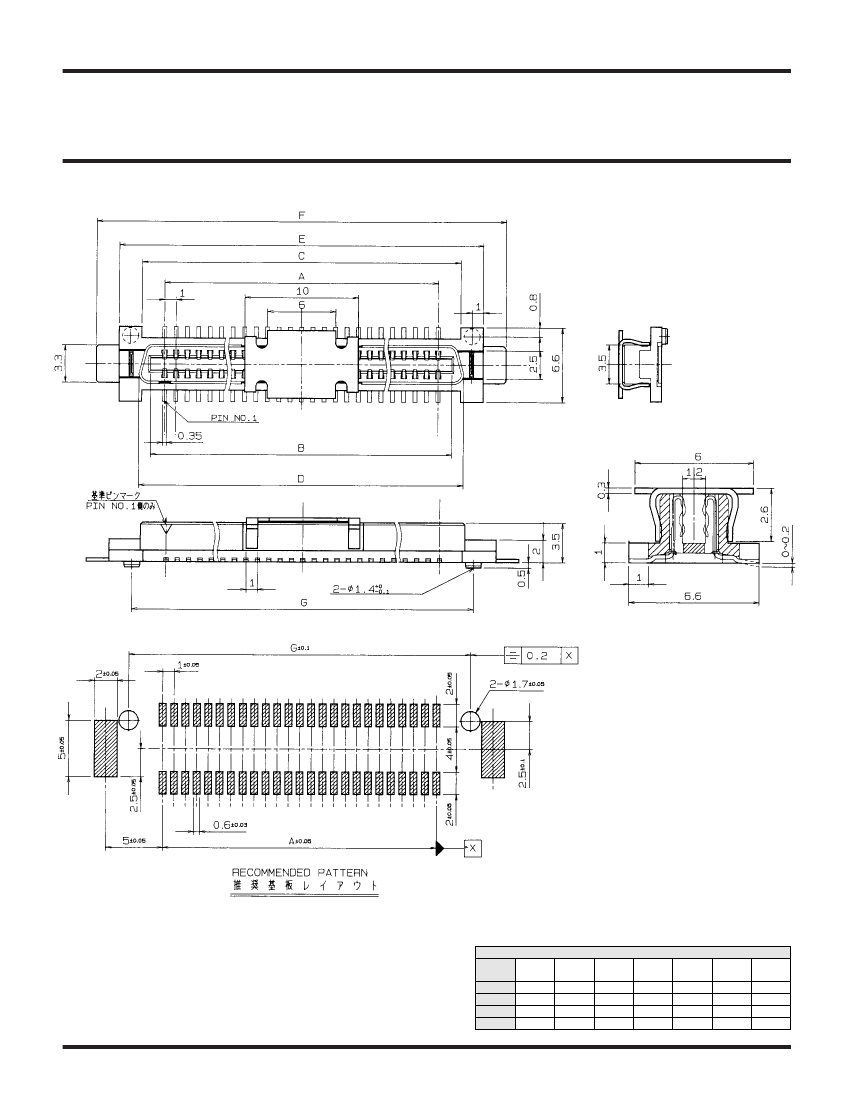

Preview

Download Datasheet

View All

注文コー

ド

ORDERING CODE

5078

XXX

Typical Example

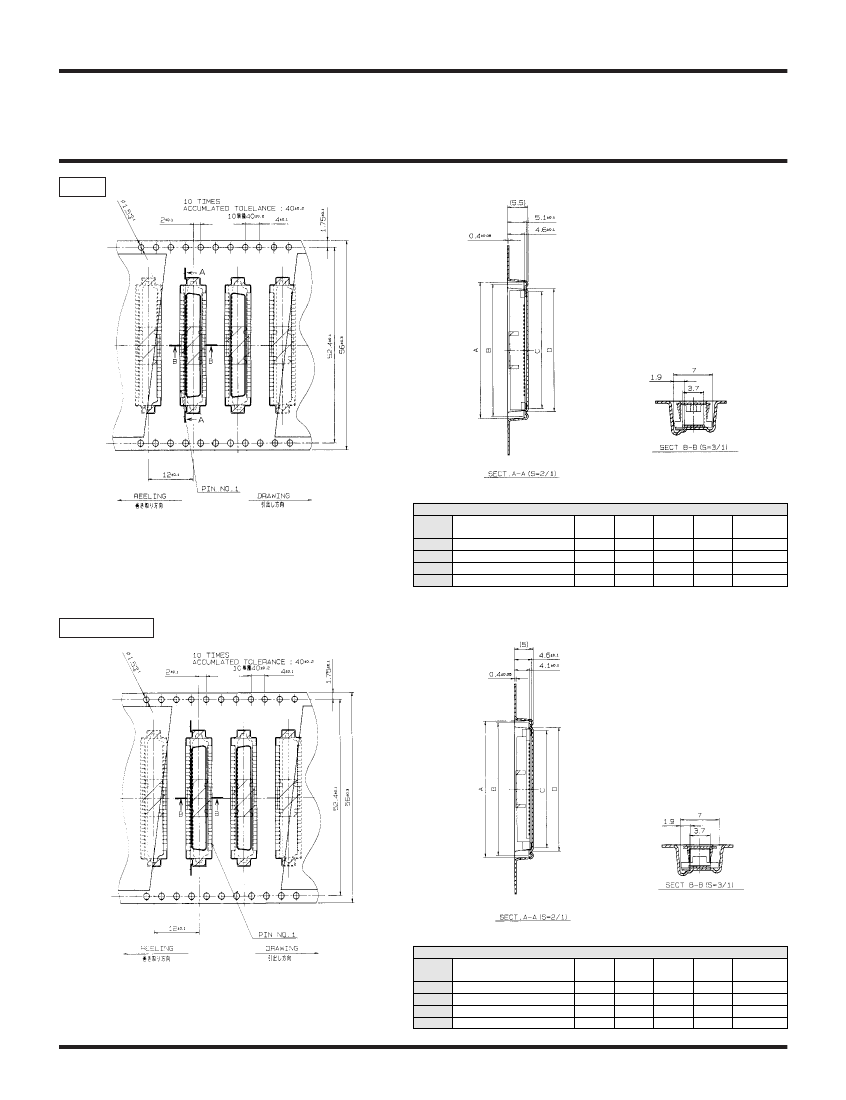

ASSEMBLY (Tape And Reel Package)

CODE

Plug

Receptacle

SERIES

NUMBER OF CONTACTS

CODE

030

040

050

060

No. of Pos.

VARIATION

CODE

100

510

511

515

VARIATION

Straight, with Vacuum Pick Up Clip (PPS)

Right Angle Standard SMT Type

Right Angle Reflow Pin Type

Right Angle Reflow Pin Wide Type

FINISH

CODE

861

GOLD-MATING AREA

Ni Under Coated 1.2-4.0μm, Over Au Plating 0.25μmMin

Typical Example

5078

XXX

ASSEMBLY (Tray)

CODE

Plug

Receptacle

SERIES

NUMBER OF CONTACTS

CODE

080

100

120

No. of Pos.

100

120

VARIATION

CODE

000

500

501

VARIATION

Straight, with Vacuum Pick Up Clip (SUS)

Right Angle Standard SMT Type

Right Angle Reflow Pin Type

FINISH

CODE

861

GOLD-MATING AREA

Ni Under Coated 1.2-4.0μm, Over Au Plating 0.25μmMin

245078050515861 Related Products

	245078050515861	145078030510861	145078050100861	195078080000861	145078030511861	145078030515861	245078050511861
Description	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug,	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug,	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug,	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug,	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug,	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle,
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
Other features	1000 PCS/TAPE AND REEL PACKAGE	1000 PCS/TAPE AND REEL PACKAGE	WITH VACCUM PICKUP CLIP	WITH VACCUM PICKUP CLIP	1000 PCS/TAPE AND REEL PACKAGE	1000 PCS/TAPE AND REEL PACKAGE	1000 PCS/TAPE AND REEL PACKAGE
body width	0.197 inch	0.197 inch	0.26 inch	0.26 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.256 inch	0.276 inch	0.157 inch	0.157 inch	0.276 inch	0.276 inch	0.256 inch
body length	1.28 inch	1.024 inch	1.417 inch	2.087 inch	0.886 inch	0.886 inch	1.28 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	AU ON NI	AU ON NI	AU ON NI	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	MALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	2	2	1	1	1
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	1 mm	1 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	30	50	80	30	30	50
Base Number Matches	1	1	1	1	1	1	1
Contact completed and terminated	GOLD (10) OVER NICKEL	-	-	-	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
JESD-609 code	e4	-	-	-	e4	e4	e4
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
