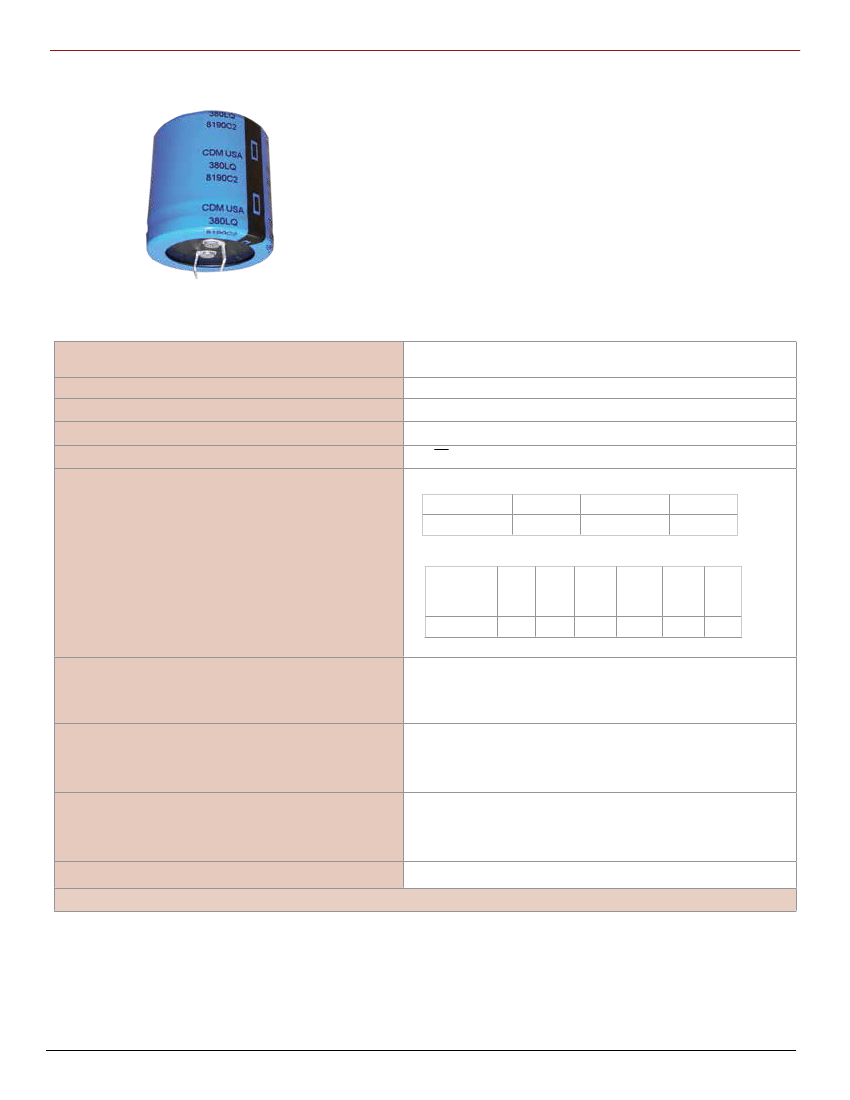

Type 380LQ 85 °C Compact, High Capacitance, Snap-In Aluminum
Higher Capacitance per Case Size
Type 380LQ is on average 27% smaller and more than 10 mm shorter
than Type 380LX. This is achieved with a new can-closure method that
permits installing capacitor elements into smaller cans. Approaching
the capability of the 380LX, the new 380LQ enables you to shrink
equipment size and retain the original performance.
Highlights
- New, more capacitance per case
- Compare to Type 380LX
- New, lower voltages down to 16 V
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
–40 °C to + 85 °C ≤ 315 Vdc
–25 °C to + 85 °C ≥ 350 Vdc
16 Vdc to 450 Vdc
82 µF to 100,000 µF
±20%
≤ 3 √CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 ºC
1.50
Frequency
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
0.93
0.95
1.00
1.05
1.08
1.15
60 ºC
1.40
70 ºC
1.30
85 ºC
1.00
Voltage
16–100 WV
Low Temperature Characteristics
I
mpedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc
)
Endurance Life Test
2000 h at full load at 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1000 h at 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h each plane
RoHS Compliant
Shelf Life Test
Vibration
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
Higher Capacitance per Case Size
Part Numbering System
380LQ
272
M
200
A05
Case
Type
380LQ
Cap
561
= 560 µF
272
= 2700 µF
392
= 3900 µF
Tolerance
M =
±20%
Voltage
016
= 16 Vdc
200
= 200 Vdc
450
= 450 Vdc
Code
Insulation
2
= PVC
Pin Styles
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
2
A
+D
Blank =
no end disk if <250 V
D =
end disk, any voltage

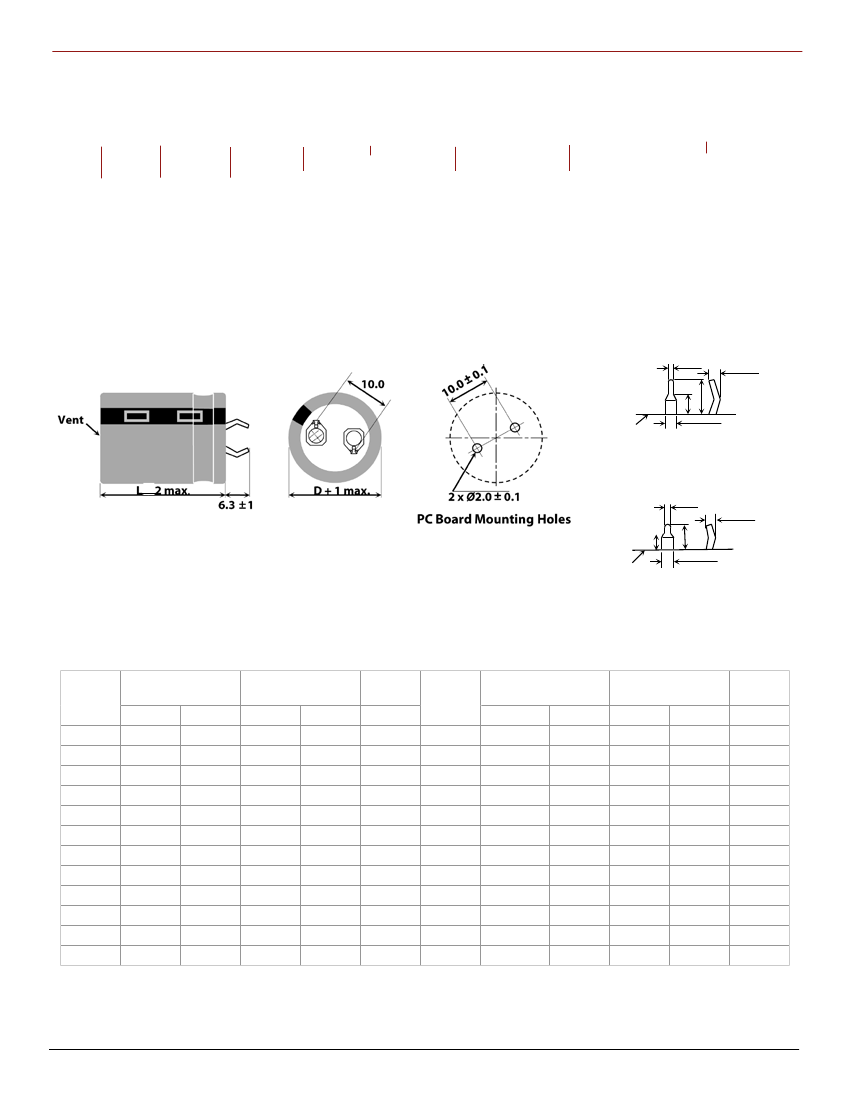

Outline Drawing
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
Top of
Capacitor
Body
1.5 0.2
6.3 mm
pin length
6.3
pin length
±
+0.2
0.8 -0.1
2.0max.
3.5
4.0
1.5 0.2
Dimensions shown are in mm
Top of
Capacitor
Body
4.0 pin length
4.0 mm pin length
option (add “A” to end
of part#)
Note that for 200 volts and under the insulating end disc is optional - If one is needed add a (+D) to the end of the part numbering system.
Insulated Case Dimensions
Case
Code
H01
H02
H03
H04
H45
H05
J01
J02
J03
J04
J45
J05
DIAMETER
D
mm
22
22
22
22
22
22
25
25
25
25
25
25
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
16
19
22
24
28
31
20
24
27
31
35
38
Case
Code
K01
K02
K03
K04
K45
K05
A01
A02
A03
A04
A45
A05
DIAMETER
D
mm
30
30
30
30
30
30
35
35
35
35
35
35
inches
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
1.38
1.38
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
30
35
40
44
49
53
42
48
54
60
67
74
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Higher Capacitance per Case Size
Ratings
ESR Max
@ 25º C
Cap.
(µF)
12000
15000
18000
18000
22000
22000
27000
27000
27000
33000
33000
33000
33000
39000
39000
47000
47000
47000
56000
56000
68000
68000
82000
100000
8200
12000
12000
15000
15000
18000
18000
18000
22000
22000
22000
22000
27000
27000
33000
33000
33000
Catalog
Part Number
380LQ123M016H012
380LQ153M016H022
380LQ183M016H032
380LQ183M016J012
380LQ223M016H042
380LQ223M016J022
380LQ273M016H452
380LQ273M016J032
380LQ273M016K012
380LQ333M016H052
380LQ333M016J042
380LQ333M016K022
380LQ333M016A012
380LQ393M016J452
380LQ393M016K032
380LQ473M016J052
380LQ473M016K042
380LQ473M016A022
380LQ563M016K452
380LQ563M016A032
380LQ683M016K052
380LQ683M016A042
380LQ823M016A452
380LQ104M016A052
380LQ822M025H012
380LQ123M025H022
380LQ123M025J012
380LQ153M025H032
380LQ153M025J022
380LQ183M025H042
380LQ183M025J032
380LQ183M025K012
380LQ223M025H452
380LQ223M025J042
380LQ223M025K022
380LQ223M025A012
380LQ273M025J452
380LQ273M025K032
380LQ333M025J052
380LQ333M025K042
380LQ333M025A022
(Ω)
0.069
0.055
0.046
0.046
0.038
0.038
0.031
0.031
0.031
0.025
0.025
0.025
0.025
0.024
0.024
0.023
0.023
0.023
0.022
0.022
0.021
0.021
0.020
0.019
0.081
0.055
0.055
0.044
0.044
0.037
0.037
0.037
0.030
0.030
0.030
0.030
0.025
0.025
0.020
0.020
0.020
(Ω)
0.059
0.047
0.039
0.039
0.032
0.032
0.026
0.026
0.026
0.021
0.021
0.021
0.021
0.020
0.020
0.019
0.019
0.019
0.019
0.018
0.018
0.018
0.018
0.018
0.065
0.044
0.044
0.035
0.035
0.029
0.029
0.029
0.024
0.024
0.024
0.024
0.020
0.020
0.016
0.016
0.016
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
Ripple Amps Nominal
@ 85 ºC
(A)
4.52
5.26
5.57
5.57
6.10
6.10
6.31
6.31
6.31
6.84
6.84
6.84
6.84
6.94
6.94
7.47
7.47
7.47
8.73
8.73
9.05
9.05
9.49
10.18
3.57
4.10
4.10
4.63
4.63
5.47
5.47
5.47
6.10
6.10
6.10
6.10
6.21
6.21
6.84
6.84
6.84
(A)
5.20
6.05
6.41
6.41
7.02
7.02
7.26
7.26
7.26
7.87
7.87
7.87
7.87
7.98
7.98
8.59
8.59
8.59
10.04
10.04
10.41
10.41
10.91
11.71
4.11
4.72
4.72
5.32
5.32
6.29
6.29
6.29
7.02
7.02
7.02
7.02
7.14
7.14
7.87
7.87
7.87
Size
D x L
(mm)
22 x 25
22 x 30
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 25
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
3300
4700
4700
5600
6800
6800
6800
8200
8200
10000
5600
8200
8200
10000
12000
Cap.
(µF)
Catalog
Part Number
ESR Max
@ 25º C
(Ω)
0.020
0.020
0.019
0.019
0.019
0.018
0.104
0.071
0.071
0.058
0.058
0.048
0.048
0.048
0.039
0.039
0.032
0.032
0.032
0.026
0.026
0.026
0.021
0.021
0.018
0.018
0.017
0.017
0.151
0.106
0.106
0.089
0.073
0.073
0.073
0.061
0.061
0.050
0.050
0.050
(Ω)
0.016
0.016
0.016
0.015
0.016
0.016
0.078
0.053
0.053
0.044
0.044
0.036
0.036
0.036
0.029
0.029
0.024
0.024
0.024
0.020
0.020
0.020
0.016
0.016
0.013
0.014
0.014
0.014
0.113
0.079
0.079
0.067
0.055
0.055
0.055
0.045
0.045
0.037
0.037
0.037
Ripple Amps Nominal
@ 85 ºC
(A)
7.36
7.36
8.00
8.00
8.91
9.79
3.36
4.00
4.00
4.42
4.42
5.05
5.05
5.05
5.57
5.57
5.68
5.68
5.68
6.10
6.10
6.10
6.84
6.84
7.15
7.15
7.91
8.56
2.73
3.03
3.03
3.42
3.85
3.85
3.85
4.41
4.41
4.97
4.97
4.97
(A)
8.46
8.46
9.20
9.20
10.25
11.26
3.86
4.60
4.60
5.08
5.08
5.81
5.81
5.81
6.41
6.41
6.53
6.53
6.53
7.02
7.02
7.02
7.87
7.87
8.22
8.22
9.10
9.84
3.14
3.48
3.48
3.93
4.43
4.43
4.43
5.07
5.07
5.72
5.72
5.72
Size
D x L
(mm)
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
22 x 50
25 x 40
30 x 30
120 Hz 20 kHz 120 Hz 20 kHz
16 Vdc (20 Vdc Surge)
120 Hz 20 kHz 120 Hz 20 kHz
25 Vdc (44 Vdc Surge)
39000 380LQ393M025K452
39000 380LQ393M025A032
47000 380LQ473M025K052
47000 380LQ473M025A042
56000 380LQ563M025A452
68000 380LQ683M025A052
380LQ562M035H012
380LQ822M035H022
380LQ822M035J012
380LQ103M035J022
380LQ123M035J032
35 Vdc (32 Vdc Surge)
10000 380LQ103M035H032
12000 380LQ123M035H042
12000 380LQ123M035K012
15000 380LQ153M035H452
15000
18000
380LQ153M035J042
380LQ183M035J452
18000 380LQ183M035K022
18000 380LQ183M035A012
22000
380LQ223M035J052
22000 380LQ223M035K032
22000 380LQ223M035A022
27000 380LQ273M035K452
27000 380LQ273M035A032
33000 380LQ333M035K052
33000 380LQ333M035A042
39000 380LQ393M035A452
47000 380LQ473M035A052
380LQ332M050H012
380LQ472M050H022
380LQ472M050J012
380LQ562M050H032
380LQ682M050H042
380LQ682M050J022
380LQ682M050K012
380LQ822M050H452
380LQ822M050J032
380LQ103M050J042
25 Vdc (32 Vdc Surge)
50 Vdc (63 Vdc Surge)
10000 380LQ103M050H052
10000 380LQ103M050K022
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
Higher Capacitance per Case Size
ESR Max
@ 25º C
Cap.
(µF)
10000
12000
12000
12000
15000
15000
18000
18000
22000
27000
2200
3300
3300
3900
3900
4700
5600
5600
6800
6800
6800
8200
8200
8200
10000
10000
12000
12000
15000
18000
18000
1500
1800
2200
2200
2700
2700
3300
3300
3300
Catalog
Part Number
380LQ103M050A012
380LQ123M050J452
380LQ123M050K032
380LQ123M050A022
380LQ153M050K042
380LQ153M050A032
380LQ183M050K452
380LQ183M050A042
380LQ223M050A452
380LQ273M050A052
380LQ222M063H012
380LQ332M063H022
380LQ332M063J012
380LQ392M063H032
380LQ392M063J022
380LQ472M063H042
380LQ562M063H452
380LQ562M063J042
380LQ682M063J452
380LQ682M063K022
380LQ682M063A012
380LQ822M063J052
380LQ822M063K032
380LQ822M063A022
380LQ103M063K042
380LQ103M063A032
380LQ123M063K452
380LQ123M063A042
380LQ153M063A452
380LQ183M063A052
380LQ183M063A052
380LQ152M080H012
380LQ182M080H022
380LQ222M080H032
380LQ222M080J012
380LQ272M080H042
380LQ272M080J022
380LQ332M080H452
380LQ332M080J032
380LQ332M080K012
(Ω)
0.05
0.041
0.041
0.041
0.033
0.033
0.028
0.028
0.023
0.018
0.188
0.126
0.126
0.106
0.106
0.088
0.074
0.074
0.061
0.061
0.061
0.051
0.051
0.051
0.041
0.041
0.035
0.035
0.028
0.023
0.023
0.221
0.184
0.151
0.151
0.123
0.123
0.100
0.100
0.1
(Ω)
0.037
0.031
0.031
0.031
0.025
0.025
0.021
0.021
0.018
0.015
0.141
0.094
0.094
0.080
0.080
0.066
0.056
0.056
0.046
0.046
0.046
0.038
0.038
0.038
0.031
0.031
0.026
0.026
0.021
0.018
0.018
0.166
0.138
0.113
0.113
0.092
0.092
0.075
0.075
0.075
Ripple Amps Nominal
@ 85 ºC
(A)
4.97
5.58
5.58
5.58
6.44
6.44
6.94
6.94
7.57
8.96
2.52
4.10
4.10
4.44
4.44
4.86
5.36
5.36
5.84
5.84
5.84
6.00
6.00
6.00
6.52
6.52
7.15
7.15
7.91
8.55
8.55
2.26
2.52
2.73
2.73
2.78
2.78
3.21
3.21
3.21
(A)
5.72
6.42
6.42
6.42
7.41
7.41
7.98
7.98
8.71
10.30
2.90
4.72
4.72
5.11
5.11
5.59
6.16
6.16
6.72
6.72
6.72
6.90
6.90
6.90
7.50
7.50
8.22
8.22
9.10
9.83
9.83
2.60
2.90
3.14
3.14
3.20
3.20
3.69
3.69
3.69
Size
DxL
(mm)
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
22 x 45
25 x 40
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
35 x 50
22 x 25
22 x 30
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
560
680
820
1000
1200
1500
1800
1800
2200
2200
2200
2700
2700
2700
2700
3300
3300
3900
3900
3900
4700
4700
5600
5600
6800
8200
Cap.
(µF)
3900
3900
3900
4700
4700
5600
5600
5600
6800
6800
8200
8200
10000
12000
Catalog
Part Number
380LQ392M080H052
380LQ392M080J042
380LQ392M080A012
380LQ472M080H452
380LQ472M080K022
380LQ562M080J052
380LQ562M080K032
380LQ682M080K452
380LQ682M080A032
380LQ822M080K052
380LQ822M080A042
380LQ103M080A452
380LQ122M080A052
380LQ102M100H012
380LQ122M100J012
380LQ152M100H022
380LQ182M100H032
380LQ182M100J022
380LQ222M100H452
380LQ222M100J032
380LQ222M100K012
380LQ272M100H052
380LQ272M100J042
380LQ272M100K022
380LQ272M100A012
380LQ332M100J452
380LQ332M100K032
380LQ392M100J052
380LQ392M100K042
380LQ392M100A022
380LQ472M100K452
380LQ472M100A032
380LQ562M100K052
380LQ562M100A042
380LQ682M100A452
380LQ822M100A052
380LQ561M160H012
380LQ681M160H022
380LQ821M160H032
ESR Max
@ 25º C
(Ω)
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.049
0.049
0.04
0.04
0.033
0.028
0.332
0.276
0.221
0.184
0.184
0.151
0.151
0.151
0.123
0.123
0.123
0.123
0.100
0.100
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.049
0.040
0.355
0.293
0.243
(Ω)
0.064
0.064
0.064
0.053
0.053
0.044
0.044
0.044
0.037
0.037
0.03
0.03
0.025
0.021
0.216
0.18
0.144
0.120
0.120
0.098
0.098
0.098
0.08
0.08
0.08
0.08
0.065
0.065
0.055
0.055
0.055
0.046
0.046
0.041
0.038
0.034
0.030
0.16
0.132
0.109
Ripple Amps Nominal
@ 85 ºC
(A)
3.59
3.59
3.59
4.09
4.09
4.55
4.55
4.55
5.16
5.16
5.83
5.83
6.51
7.28
1.96
2.31
2.57
2.84
2.84
3.14
3.14
3.14
3.71
3.71
3.71
3.71
4.06
4.06
4.54
4.54
4.54
5.13
5.13
5.75
5.75
6.60
7.29
2.25
2.50
2.75
(A)
4.13
4.13
4.13
4.70
4.70
5.23
5.23
5.23
5.93
5.93
6.70
6.70
7.49
8.37
2.25
2.66
2.96
3.27
3.27
3.61
3.61
3.61
4.27
4.27
4.27
4.27
4.67
4.67
5.22
5.22
5.22
5.90
5.90
6.61
6.61
7.59
8.38
3.15
3.50
3.85
Size
DxL
(mm)
22 x 50
25 x 40
35 x 25
25 x 45
30 x 30
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
25 x 25
22 x 30
22 x 35
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 35
120 Hz 20 kHz 120 Hz 20 kHz
50 Vdc (63 Vdc Surge)
120 Hz 20 kHz 120 Hz 20 kHz
80 Vdc (100 Vdc Surge)
380LQ562M080A022 0.059
63 Vdc (79 Vdc Surge)
100 Vdc (125 Vdc Surge)
80 Vdc (100 Vdc Surge)
160 Vdc (200 Vdc Surge)
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
Higher Capacitance per Case Size
ESR Max
@ 25º C
Cap.
(µF)
Catalog
Part Number
(Ω)
0.199
0.199
0.166
0.166
0.166
0.133
0.133
0.133
0.133
0.111
0.12
0.111
0.090
0.098
0.074
0.080
0.070
0.055
0.423
0.355
0.293
0.293
0.243
0.243
0.199
0.199
0.199
0.166
0.166
0.166
0.166
0.133
0.133
0.133
0.120
0.12
0.12
0.098
0.098
0.086
0.086
0.080
(Ω)
0.09
0.09
0.075
0.075
0.075
0.060
0.060
0.060
0.06
0.05
0.054
0.05
0.041
0.049
0.033
0.040
0.035
0.028
0.19
0.16
0.132
0.132
0.109
0.109
0.090
0.090
0.09
0.075
0.075
0.075
0.075
0.060
0.060
0.060
0.054
0.054
0.054
0.049
0.049
0.043
0.043
0.040
Ripple Amps Nominal
@ 85 ºC
(A)
3.00
3.00
3.25
3.25
3.25
3.73
3.73
3.73
3.73
4.20
4.20
4.20
4.78
4.78
5.45
5.45
5.75
6.00
2.08
2.25
2.50
2.50
2.75
2.75
3.00
3.00
3.00
3.31
3.31
3.31
3.31
3.83
3.83
3.83
4.32
4.32
4.32
4.92
4.92
5.52
5.52
5.75
(A)
4.20
4.20
4.55
4.55
4.55
5.22
5.22
5.22
5.22
5.88
5.88
5.88
6.69
6.69
7.63
7.63
8.05
8.40
2.91
3.15
3.50
3.50
3.85
3.85
4.20
4.20
4.20
4.63
4.63
4.63
4.63
5.36
5.36
5.36
6.05
6.05
6.05
6.89
6.89
7.73
7.73
8.05
Size
DxL
(mm)
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 40
30 x 50
35 x 45
35 x 50
270
330
390
390
470
470
560
560
560
680
680
680
680
820
820
820
820
1000
Cap.
(µF)
390
470
560
560
680
680
820
820
820
1000
1000
Catalog
Part Number
380LQ391M200H012
380LQ471M200H022
380LQ561M200H022
380LQ561M200J012
380LQ681M200H032
380LQ681M200J022
380LQ821M200H042
380LQ821M200J022
380LQ821M200K012
380LQ102M200J032
380LQ102M200K022
ESR Max
@ 25º C
( Ω)
0.51
0.423
0.355
0.355
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.199
0.232
0.166
0.166
0.166
0.133
0.144
0.144
0.16
0.12
0.098
0.105
0.086
0.737
0.603
0.51
0.510
0.423
0.423
0.355
0.355
0.355
0.293
0.293
0.293
0.293
0.243
0.243
0.243
0.243
0.199
(Ω)
0.23
0.19
0.16
0.160
0.132
0.132
0.109
0.109
0.109
0.09
0.09
0.09
0.116
0.075
0.075
0.075
0.060
0.065
0.065
0.08
0.06
0.049
0.053
0.043
0.332
0.271
0.23
0.230
0.190
0.190
0.160
0.160
0.16
0.132
0.132
0.132
0.132
0.109
0.109
0.109
0.121
0.09
Ripple Amps Nominal
@ 85 ºC
(A)
1.68
1.85
2.43
2.43
2.68
2.68
2.93
2.93
2.93
3.25
3.25
3.25
3.25
3.50
3.50
3.50
3.87
3.87
3.87
4.32
4.32
4.92
4.92
5.45
1.31
1.75
1.91
1.91
2.11
2.11
2.25
2.25
2.25
2.50
2.50
2.30
2.50
2.77
2.77
2.77
2.77
3.32
(A)
2.35
2.59
3.40
3.40
3.75
3.75
4.10
4.10
4.10
4.55
4.55
4.55
4.55
4.90
4.90
4.90
5.42
5.42
5.42
6.05
6.05
6.89
6.89
7.63
1.83
2.45
2.67
2.67
2.95
2.95
3.15
3.15
3.15
3.50
3.50
3.20
3.50
3.88
3.88
3.88
3.88
4.65
Size
DxL
(mm)
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
35 x 25
22 x 50
25 x 40
30 x 30
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 25
30 x 30
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
120 Hz 20 kHz 120 Hz 20 kHz
160 Vdc (200 Vdc Surge)
120 Hz 20 kHz 120 Hz 20 kHz
200 Vdc (250 Vdc Surge)
1000 380LQ102M160H042
1000
1200
1200
1500
1500
1800
1800
2200
2700
380LQ102M160J022
380LQ122M160J032
380LQ122M160K012
380LQ152M160J042
380LQ152M160K022
380LQ182M160J452
380LQ182M160K032
380LQ222M160K042
380LQ272M160K452
1200 380LQ122M160H452
1500 380LQ152M160H052
1500 380LQ152M160A012
1000 380LQ102M200H452
1800 380LQ182M160A022
2200 380LQ222M160A032
2700 380LQ272M160A042
3300 380LQ332M160A452
3900 380LQ392M160A052
470
560
680
680
820
820
1000
1000
1200
1200
1500
1500
1800
1800
2200
2700
380LQ471M180H012
380LQ561M180H022
380LQ681M180H022
380LQ681M180J012
380LQ821M180H032
380LQ821M180J022
380LQ102M180J032
380LQ102M180K012
380LQ122M180J042
380LQ122M180K022
380LQ152M180J452
380LQ152M180K032
380LQ182M180J052
380LQ182M180K042
380LQ222M180K452
380LQ272M180K052
1000 380LQ102M200A012
1200 380LQ122M200H052
1200
1200
1500
1500
1800
2200
380LQ122M200J042
380LQ122M200K022
380LQ152M200J052
380LQ152M200K032
380LQ182M200K452
380LQ222M200K052
180 Vdc (225 Vdc Surge)
1500 380LQ152M200A022
1800 380LQ182M200A032
2200 380LQ222M200A042
2700 380LQ272M200A052
380LQ271M250H012
380LQ331M250H022
380LQ391M250H022
380LQ391M250J012
380LQ471M250H032
380LQ471M250J022
380LQ561M250H042
380LQ561M250J022
380LQ561M250K012
380LQ681M250H452
380LQ681M250J032
380LQ681M250K012
380LQ681M250K022
380LQ821M250H052
380LQ821M250J042
380LQ821M250K022
380LQ821M250A012
380LQ102M250J452
250 Vdc (300 Vdc Surge)
1000 380LQ102M180H452
1200 380LQ122M180H052
1200 380LQ122M180A012
1500 380LQ152M180A022
1800 380LQ182M180A022
2200 380LQ222M180A042
2700 380LQ272M180A452
3300 380LQ332M180A052
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
京公网安备 11010802033920号
EEWORLD
