LCMC0402J8N2GTAR

Description
General Purpose Inductor, 0.0082uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402
CategoryPassive components    inductor
File Size178KB,13 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

LCMC0402J8N2GTAR Overview

General Purpose Inductor, 0.0082uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402

LCMC0402J8N2GTAR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1320230420
package instruction0402
Reach Compliance Codecompliant
ECCN codeEAR99

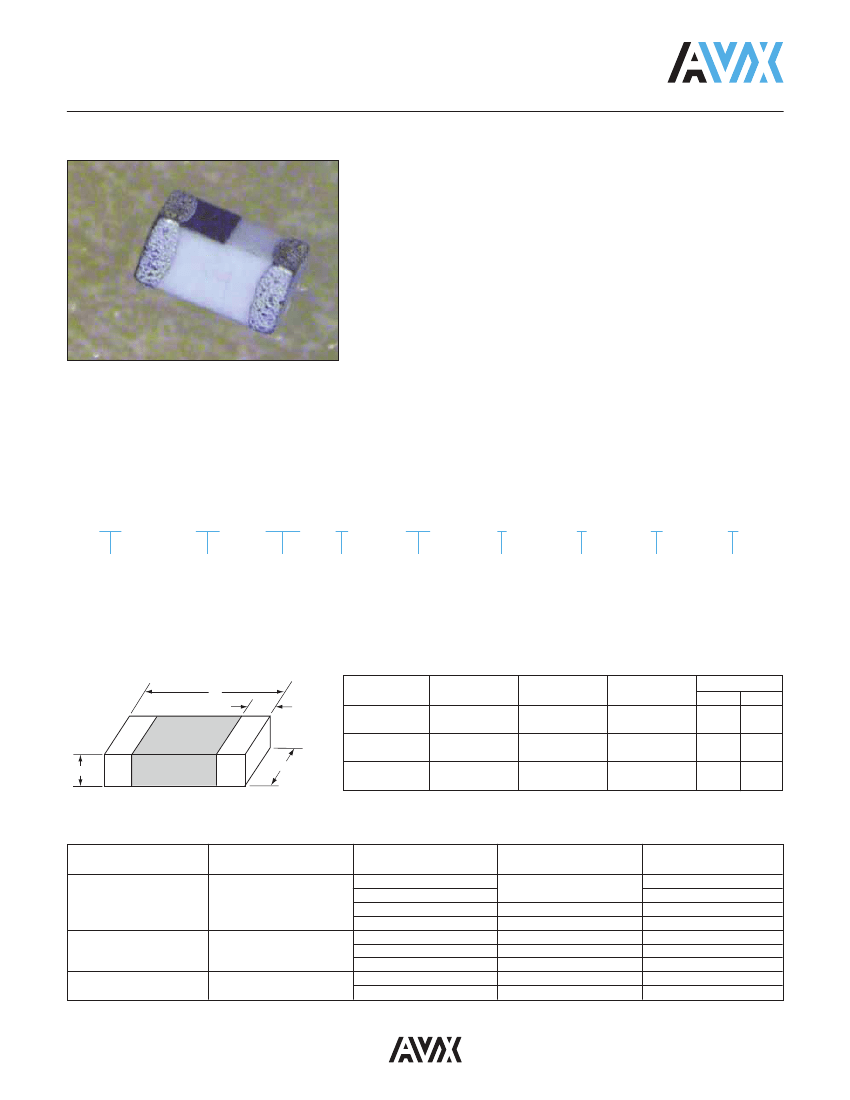

Multi-Layer Ceramic Chip Inductors
LCMC Series
APPLICATIONS
• High Frequency Applications:
– Mobile Communications
– WLAN
– PHS
– EMI Counter measure in High Frequency Circuits
– Computer Communication
FEATURES
• For high frequency applications
• Standard EIA sizes 0201 (0603), 0402 (1005), 0603 (1608)
• Lead-free RoHS compliant parts
• Tight tolerance in physical dimensions
• Surface mounting applicability (Supports reflow soldering condition)
• Tight Inductance Tolerance, Excellent Q and Guaranteed SRF range
• High product quality and outstanding reliability. (Ceramic integrated structure)
• Operating temperature -55ºC to +125ºC
HOW TO ORDER
LC
Family
LC = Chip Inductor
MC
Series
MC = Multi-Layer
0402
Size
0201
0402
0603
K
Tolerance
G = 2%
H = 3%
J = 5%
K = 10%
B = 0.1nH
C = 0.2nH
S = 0.3nH
101
Inductance
3N9 = 3.9nH
39N = 39nH
R39 = 390nH
G
Style
G = Standard
T
Termination
T = Sn Plating
A
Special
A = Standard
R
Packaging
R = 7" Reel
DIMENSIONS
L
A
mm (inches)
Size
0201
0402
L
0.60 ± 0.03
(0.024 ± 0.001)
1.00 ± 0.10
(0.040 ± 0.004)
1.60 ± 0.15
(0.063 ± 0.006)
W
0.30 ± 0.03
(0.012 ± 0.001)
0.50 ± 0.10
(0.020 ± 0.004)
0.80 ± 0.15
(0.031 ± 0.006)
T
W
0603
Min
0.30 ± 0.03
0.10
(0.012 ± 0.001) (0.004)
0.50 ± 0.10
0.10
(0.020 ± 0.004) (0.004)
0.80 ± 0.15
0.20
(0.031 ± 0.006) (0.008)
T
A
Max
0.20
(0.008)
0.30
(0.012)
0.60
(0.024)
AVAILABLE INDUCTANCE VALUE AND TOLERANCE
Size Code
Available
Inductance
0.3nH - 100nH
Inductance
Ranges
0.3nH - 4.2nH
4.3nH - 6.2nH
6.8nH - 27nH
33nH - 100nH
0.6 nH - 6.2 nH
6.8 nH - 82 nH
100 nH - 270 nH
1.0 nH - 5.6 nH
6.8 nH - 470 nH
Standard
Tolerance
S=±0.3nH
J=±5%
J=±5%
S= ±0.3 nH
J= ±5%
J= ±5%
S= ±0.3 nH
J= ±5%
Tolerance available
upon request
B=±0.1nH, C=±0.2nH
B=±0.1nH, H=±3%
H=±3%
B= ±0.1 nH , C= ±0.2 nH
G= ±2%, H=±3%
B= ±0.1 nH, C= ±0.2 nH
G= ±2%
LCMC0201
LCMC0402
LCMC0603
0.6nH - 270nH
1.0 nH - 470 nH
8
