MBR10xx, MBRF10xx, MBRB10xx
www.vishay.com
Vishay General Semiconductor
Schottky Barrier Rectifier

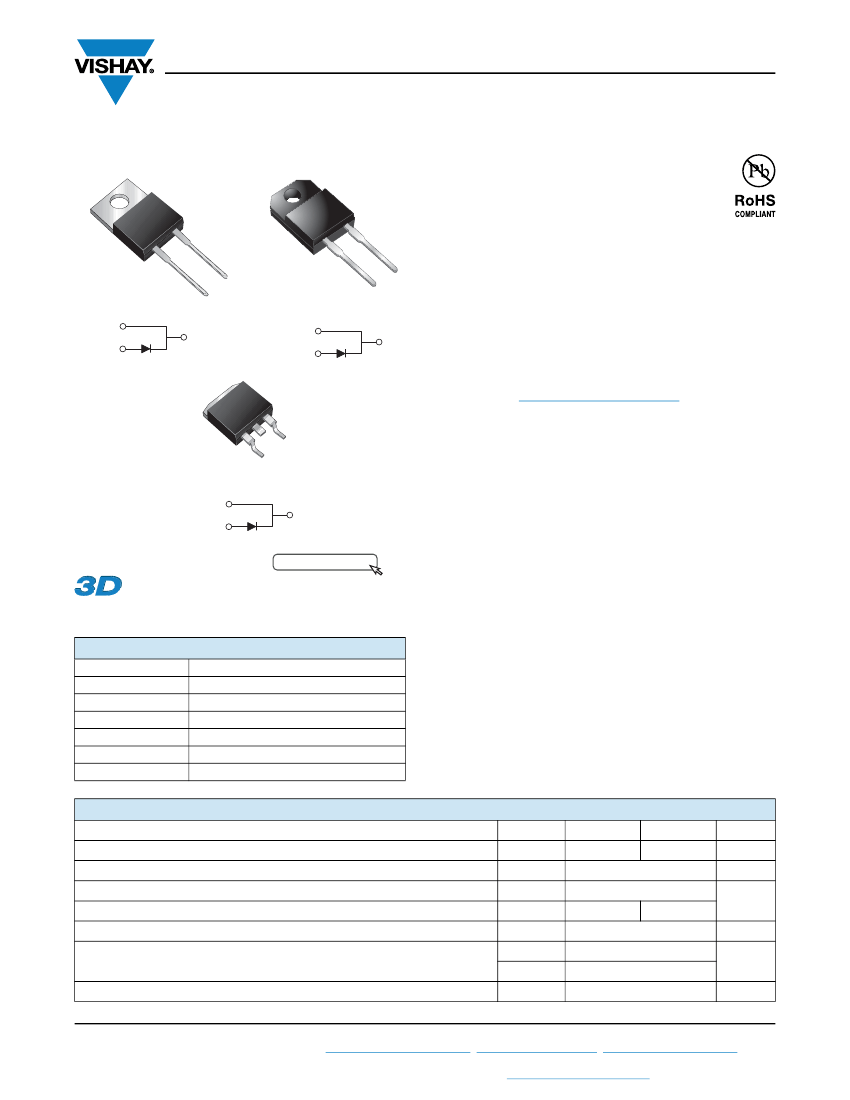

TO-220AC
ITO-220AC
FEATURES
• Power pack
• Low power loss, high efficiency
• Low forward voltage drop
• High forward surge capability
• High frequency operation
2
2
MBR1045
MBR1060
PIN 1
PIN 2
1
MBRF1045
MBRF1060
PIN 1
1
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 245 °C (for TO-263AB package)
• Solder bath temperature 275 °C maximum, 10 s, per
JESD 22-B106 (for TO-220AC and ITO-220AC package)
• AEC-Q101 qualified available
(for ITO-220AC and D
2
PAK (TO-263AB) package)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
CASE
PIN 2
D
2
PAK (TO-263AB)
K
TYPICAL APPLICATIONS
2
1
MBRB1045
MBRB1060
PIN 1
PIN 2
K
HEATSINK
For use in low voltage, high frequency rectifier of switching
mode power supplies, freewheeling diodes, DC/DC
converters, and polarity protection application.
MECHANICAL DATA
Case:
TO-220AC, ITO-220AC, D
2
PAK (TO-263AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Base P/NHE3_X - RoHS-compliant, AEC-Q101 qualified
(“_X” denotes revision code, e.g. A, B, ...)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
as marked
Mounting Torque:
10 in-lbs maximum
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Circuit configuration
10 A
45 V, 60 V
150 A
0.57 V, 0.70 V
150 °C
TO-220AC, ITO-220AC,
D
2
PAK (TO-263AB)
Single
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load
Peak repetitive reverse current at t
p
= 2.0 µs, 1 kHz
Voltage rate of change (rated V
R
)
Operating junction and storage temperature range
Isolation voltage (ITO-220AC only) from terminal to heatsink t = 1 min
SYMBOL
V
RRM
I
F(AV)
I
FSM
I
RRM
dV/dt
T
J
T
STG
V
AC
1.0
10 000
-65 to +150
-65 to +175
1500
MBR1045
45
10
150
0.5
MBR1060
60
UNIT
V
A
A
V/μs
°C
V
Revision: 11-Jun-2018
Document Number: 88669
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR10xx, MBRF10xx, MBRB10xx
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 10 A
Maximum instantaneous forward voltage
V
F
(1)
MBR1045
-
0.57
0.84
0.72
0.10
15
MBR1060
0.80
0.70
0.95
0.85
UNIT
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 10 A
I
F
= 20 A
I
F
= 20 A
V
Maximum instantaneous reverse current
at DC blocking voltage
I
R
(2)
Rated V
R
mA
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: pulse width
40 ms
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance from junction to case
SYMBOL
R
JC
MBR
2.0
MBRF
4.0
MBRB
2.0
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AC
ITO-220AC
TO-263AB
TO-263AB
ITO-220AC
TO-263AB
TO-263AB
PREFERRED P/N
MBR1045-E3/45
MBRF1045-E3/45
MBRB1045-E3/45
MBRB1045-E3/81
MBRF1045HE3/45
(1)
MBRB1045HE3_A/P
(1)
MBRB1045HE3_A/I
(1)
UNIT WEIGHT (g)
1.80
1.94
1.33
1.33
1.94
1.33
1.33
PACKAGE CODE
45
45
45
81
45
P
I
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tape and reel
Note
(1)
AEC-Q101 qualified, available in ITO-220AC and D
2
PAK (TO-263AB) package
Revision: 11-Jun-2018
Document Number: 88669
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR10xx, MBRF10xx, MBRB10xx
www.vishay.com
Vishay General Semiconductor

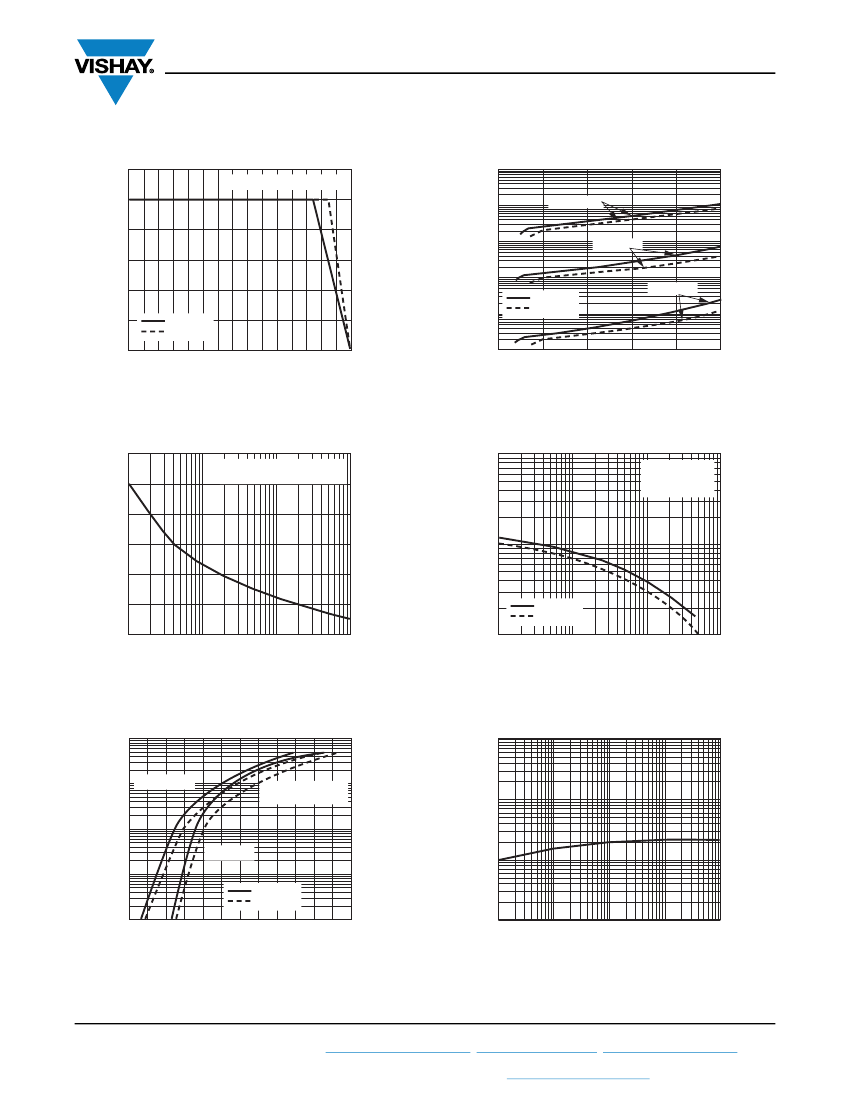

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
12
100
Average Forward Current (A)
10
Instantenous Reverse Current (mA)
Resistive or Inductive Load
10
T
J
= 125 °C
8
1
T
J
= 75 °C
6
0.1
MBR1045
MBR1060
T
J
= 25 °C
4
2
MBR1045
MBR1060
0
50
100
150
0.01
0
0.001
0
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics
175
10 000
T
J
= T
J
max.
8.3
ms Single half sine-wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Peak Forward Surge Current (A)
125
100
Junction Capacitance (pF)
150
1000
75
50
MBR1045
MBR1060
100
0.1
1
10
100
0.1
1
10
100
25
Number
of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
100
100
10
T
J
= 150 °C
Pulse Width = 300
µs
1 % Duty Cycle
Transient Thermal Impedance (°C/W)
1.2
Instantaneous Forward Current (A)
10
1
T
J
= 25 °C
0.1
MBR1045
MBR1060
0.01
0
0.2
0.4
0.6
0.8
1.0
1
0.1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 -
Typical Transient Thermal Impedance
Revision: 11-Jun-2018
Document Number: 88669
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR10xx, MBRF10xx, MBRB10xx
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeter
TO-220AC
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91) DIA.
0.148 (3.74) DIA.
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
PIN 1
PIN 2
CASE
Vishay General Semiconductor
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.603 (15.32)
0.573 (14.55)
PIN
2
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.037 (0.94)
0.027 (0.68)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
ITO-220AC
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
45° REF.
0.600 (15.24)
0.580 (14.73)
1
0.671 (17.04)
0.651 (16.54)
2
0.191 (4.85)
0.171 (4.35)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
7° REF.
0.350 (8.89)
0.330 (8.38)
7° REF.
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.135 (3.43) DIA.
0.122 (3.08) DIA.
PIN
0.110 (2.79)
0.100 (2.54)
0.025 (0.64)
0.015 (0.38)
0.028 (0.71)
0.020 (0.51)
D
2
PAK (TO-263AB)
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) min.
0.33 (8.38) min.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) min.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 11-Jun-2018
Document Number: 88669
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
