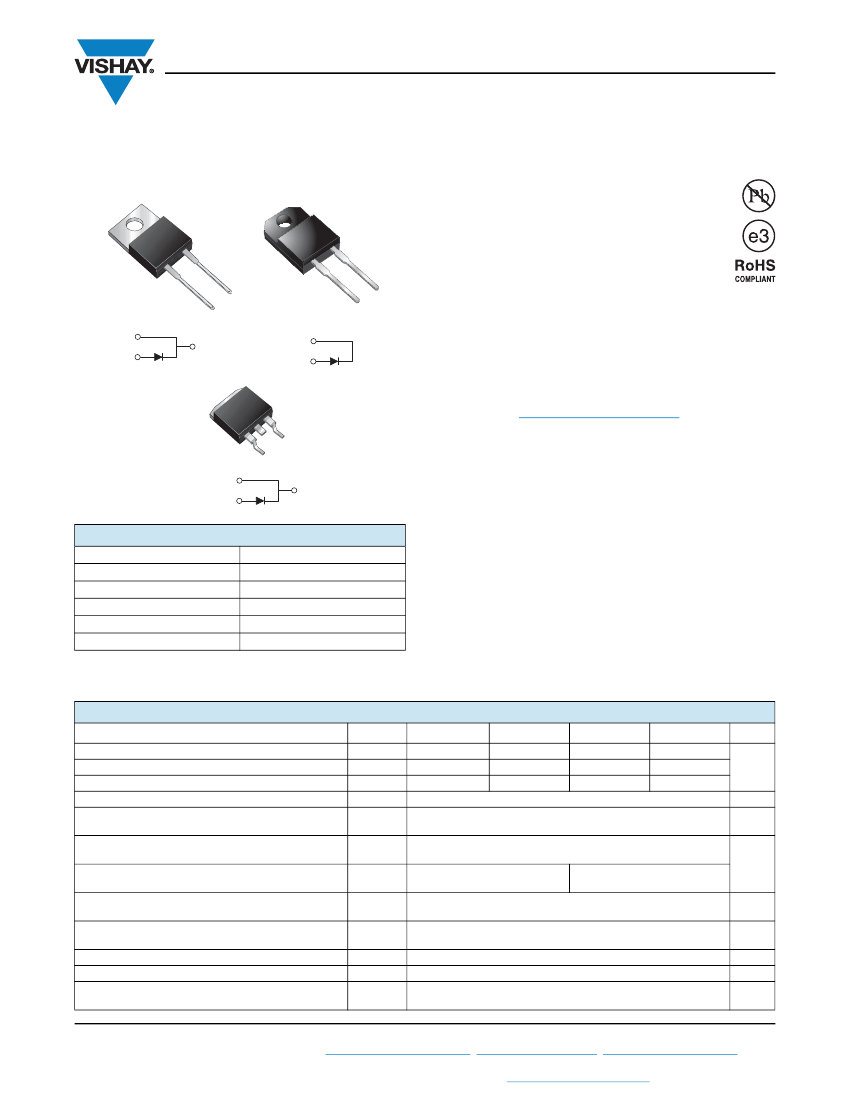

MBR(F,B)16H35 thru MBR(F,B)16H60
www.vishay.com
Vishay General Semiconductor
Schottky Barrier Rectifier
High Barrier Technology for Improved High Temperature Performance
TO-220AC
ITO-220AC
FEATURES
Guardring for overvoltage protection
Low power loss, high efficiency
Low forward voltage drop
Low leakage current
High forward surge capability
High frequency operation
Meets MSL level 1, per J-STD-020, LF maximum peak of
245 °C (for TO-263AB package)
• Solder bath temperature 275 °C maximum, 10 s, per
JESD 22-B106 (for TO-220AC and ITO-220AC package)
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
•
•
•
•
•
•
•
2
MBR16Hxx
PIN 1
PIN 2
2
1
MBRF16Hxx
PIN 1
1
CASE
PIN 2
TO-263AB
K
2
1
MBRB16Hxx
PIN 1
PIN 2
K
HEATSINK
TYPICAL APPLICATIONS
For use in low voltage, high frequency rectifier of switching
mode power supplies, freewheeling diodes, DC/DC
converters and polarity protection application.
MECHANICAL DATA
Case:
TO-220AC, ITO-220AC, TO-263AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
I
R
T
J
max.
16 A
35 V to 60 V
150 A
0.56 V, 0.62 V
100 μA
175 °C
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current (Fig.1)
Non-repetitive avalanche energy
at 25 °C, I
AS
= 4 A, L = 10 mH
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current
at t
p
= 2.0 µs, 1 kHz
Peak non-repetitive reverse energy
(8/20 μs waveform)
Electrostatic discharge capacitor voltage
Human body model: C = 100 pF, R = 1.5 k
Voltage rate of change (rated V
R
)
Operating junction and storage temperature range
Isolation voltage (ITO-220AC only)
from terminal to heatsink t = 1 min
Revision: 14-Jun-12
SYMBOL
V
RRM
V
RWM
V
DC
I
F(AV)
E
AS
I
FSM
I
RRM
E
RSM
V
C
dV/dt
T
J
, T
STG
V
AC
1.0
20
25
10 000
- 65 to + 175
1500
MBR16H35
35
35
35
MBR16H45
45
45
45
16
80
150
A
0.5
mJ
kV
V/μs
°C
V
MBR16H50
50
50
50
MBR16H60
60
60
60
UNIT
V
A
mJ
Document Number: 88784
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR(F,B)16H35 thru MBR(F,B)16H60
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 16 A
I
F
= 16 A
Rated V
R
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
-
0.52
-
6.0
MBR16H35
MBR16H45
TYP.
Maximum instantaneous forward
voltage
(1)
Maximum reverse current
V
F (1)
I
R (2)
MAX.
0.66
0.56
100
20
-
0.58
-
4.0
MBR16H50
MBR16H60
TYP.
MAX.
0.73
0.62
100
20
V
μA
mA
UNIT
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to case
SYMBOL
R
JC
MBR
1.5
MBRF
3.0
MBRB
1.5
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AC
ITO-220AC
TO-263AB
TO-263AB
TO-220AC
ITO-220AC
TO-263AB
TO-263AB
Note
(1)
AEC-Q101 qualified
PREFERRED P/N
MBR16H45-E3/45
MBRF16H45-E3/45
MBRB16H45-E3/45
MBRB16H45-E3/81
MBR16H45HE3/45
(1)
MBRF16H45HE3/45
1)
MBRB16H45HE3/45
(1)
MBRB16H45HE3/81
(1)
UNIT WEIGHT (g)
1.80
1.94
1.33
1.33
1.80
1.94
1.33
1.33
PACKAGE CODE
45
45
45
81
45
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tube
Tape and reel
Revision: 14-Jun-12
Document Number: 88784
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR(F,B)16H35 thru MBR(F,B)16H60
www.vishay.com

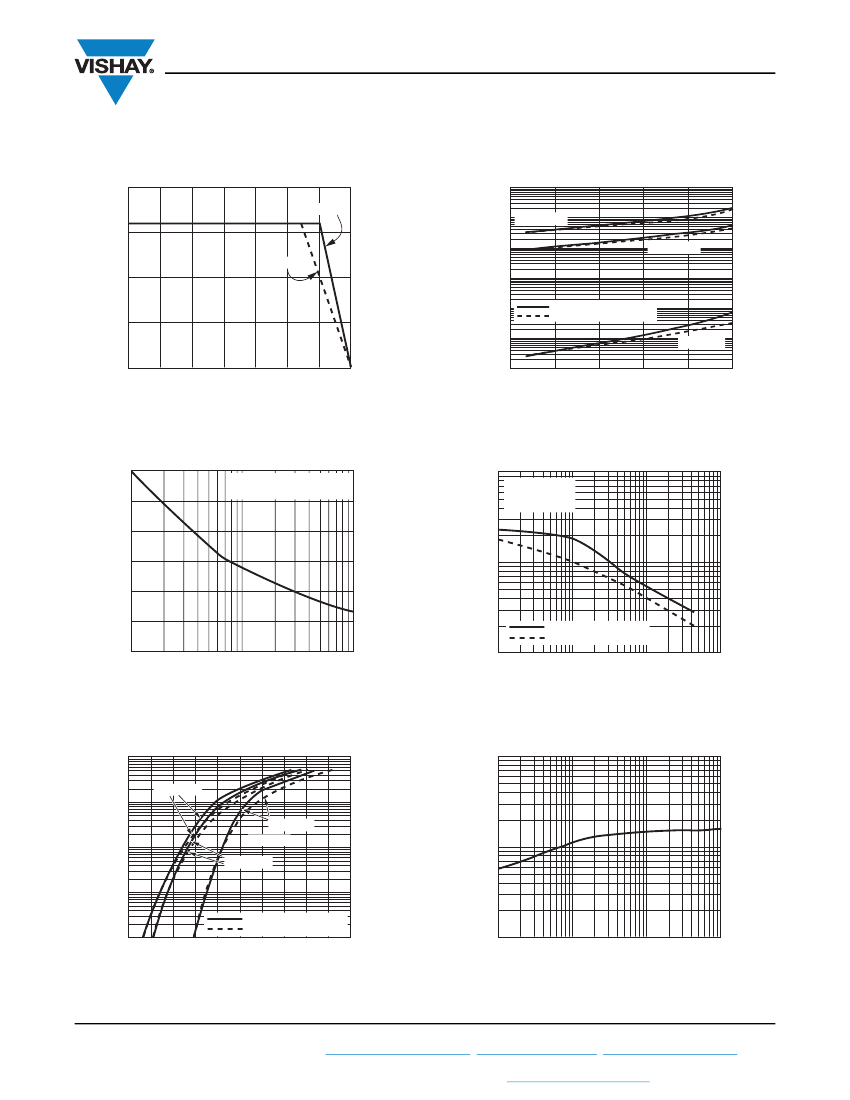

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
Vishay General Semiconductor
20
100
Instantaneous Reverse Leakage
Current (mA)
MBR, MBRB
Average Forward Current (A)
10
T
J
= 150 °C
T
J
= 125 °C
15
1
MBRF
10
0.1
MBR16H35 - MBR16H45
MBR16H50 - MBR16H60
T
J
= 25 °C
0.01
5
0.001
0
0
25
50
75
100
125
150
175
0.0001
0
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics
150
10 000
T
J
= T
J
Max.
8.3
ms Single Half Sine-Wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
Peak Forward Surge Current (A)
100
75
50
25
0
1
10
100
Junction Capacitance (pF)
125
1000
MBR16H35 - MBR16H45
MBR16H50 - MBR16H60
100
0.1
1
10
100
Number
of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
100
10
T
J
= 150 °C
10
T
J
= 25 °C
1
T
J
= 125 °C
0.1
MBR16H35 - MBR16H45
MBR16H50 - MBR16H60
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
1
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.1
0.01
0.1
1
10
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 -
Typical Transient Thermal Impedance
Revision: 14-Jun-12
Document Number: 88784
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR(F,B)16H35 thru MBR(F,B)16H60
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AC
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91) DIA.
0.148 (3.74) DIA.
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
PIN 1
PIN 2
CASE
Vishay General Semiconductor
ITO-220AC
0.404 (10.26)
0.384 (9.75)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.671 (17.04)
0.651 (16.54)
PIN
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.135 (3.43) DIA.
0.122 (3.08) DIA.
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.603 (15.32)
0.573 (14.55)
0.600 (15.24)
0.580 (14.73)
7° REF.
0.350 (8.89)
0.330 (8.38)
PIN
1
2
0.191 (4.85)
0.171 (4.35)
7° REF.
2
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.110 (2.79)
0.100 (2.54)
0.037 (0.94)
0.027 (0.68)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.025 (0.64)
0.015 (0.38)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.670 (17.02)
0.591 (15.00)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.33 (8.38) MIN.
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.624 (15.85)
0.591 (15.00)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 14-Jun-12
Document Number: 88784
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
