385MXC470M30X50 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 385MXC470M30X50

385MXC470M30X50: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 385V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size64KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

385MXC470M30X50 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 385V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED

385MXC470M30X50 Parametric

Parameter Name	Attribute value
Objectid	2017557254
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.276147 mA
Manufacturer's serial number	MXC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	385 V
ripple current	1720 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	TIN
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

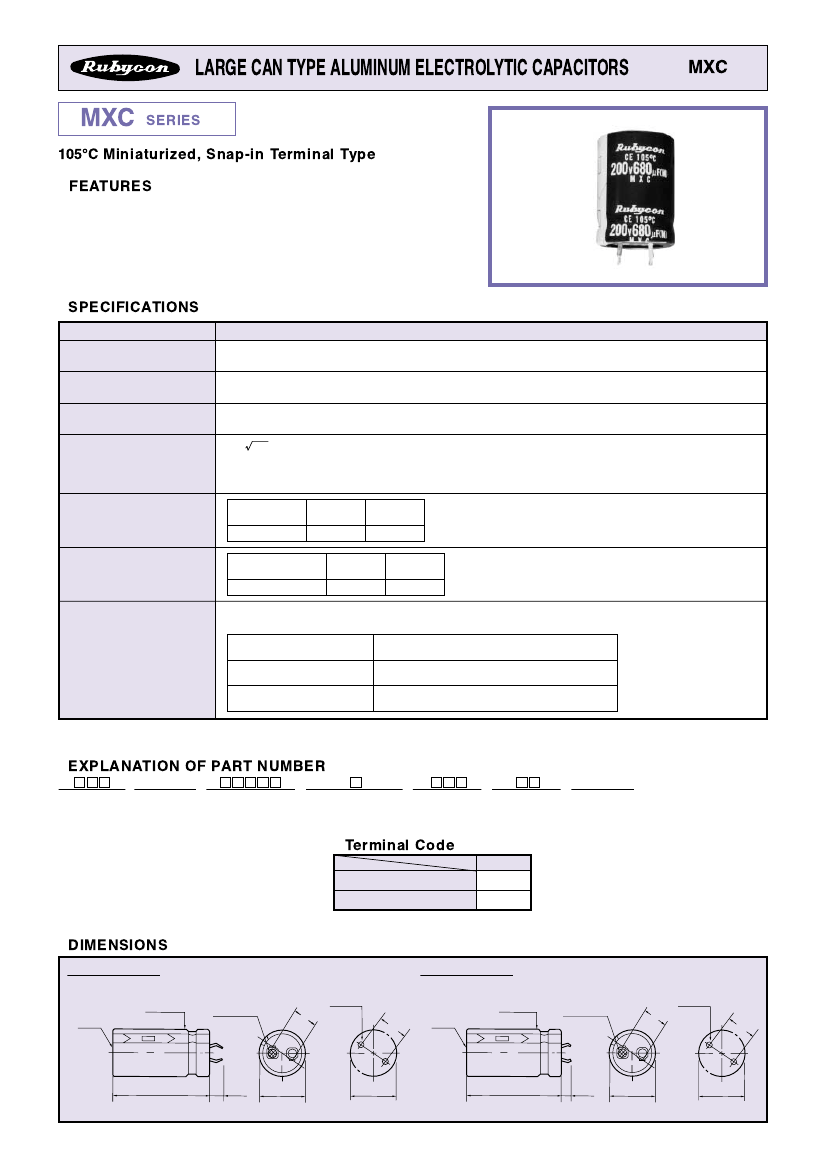

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

MXC

SERIES

105¡C Miniaturized, Snap-in Terminal Type

♦

FEATURES

•

Load Life : 105°C 3000 hours.

•

Smaller size with higher ripple current endurance than MXR series.

♦

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Ι=3

Leakage Current(MAX)

Characteristics

-25~+105°C

160~450V.DC

±20%(20°C,

120Hz)

(After 5 minutes application of rated voltage)

Ι=

Leakage Current

(µA)

Rated Voltage

(V)

tan

160~400

0.15

160~250

Rated Voltage

(V)

420~450

0.20

315~450

Rated Capacitance

(µF)

(20°C, 120Hz)

Dissipation Factor(MAX)

Impedance Ratio(MAX)

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

(120Hz)

After applying rated voltage with rated ripple current for 3000hrs at 105°C, the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Within

±20%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

♦

EXPLANATION

MXC

Rated Voltage

Series

OF PART NUMBER

DxL

Rated Capacitance

Capacitance Tolerance

Option

Terminal Code

Case Size

♦

Terminal

Code

Standard Terminal

Short Terminal

Blank

♦

DIMENSIONS

•

Standard terminal type

•

Short terminal type

(mm)

SLEEVE

VENT

2-ø2

NEGATIVE

±0.1

VENT

SLEEVE

2-ø2

NEGATIVE

±0.1

L±2

6±1

øD±1

MOUNTING HOLES

L±2

∗

4±0.5

∗For

ø35, 3.5±0.5

øD±1

MOUNTING HOLES
