TXO1E100-100M000000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TXO1E100-100M000000

TXO1E100-100M000000: DescriptionTCXO, Clock, 30MHz Min, 100MHz Max, 100MHz Nom; CategoryPassive components oscillator; File Size33KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

TXO1E100-100M000000 Overview

TCXO, Clock, 30MHz Min, 100MHz Max, 100MHz Nom

TXO1E100-100M000000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compli
Installation features	THROUGH HOLE MOUNT
Number of terminals	6
Maximum operating frequency	100 MHz
Minimum operating frequency	30 MHz
Nominal operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP6,.6,300
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	30 mA
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

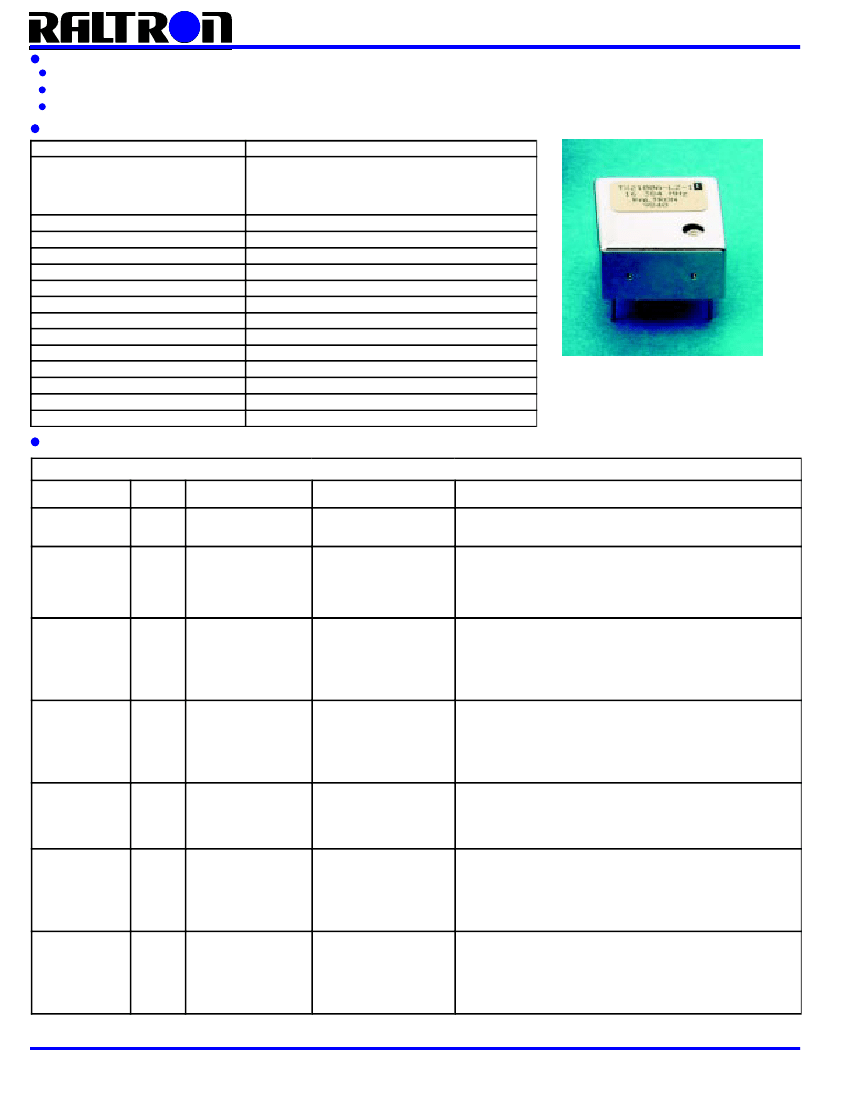

TEMPERATURE COMPENSATED CRYSTAL OSCILLATORS

FEATURES

SERIES

WIDE FREQUENCY RANGE TO 800.00 MHz

ENABLE/DISABLE AND VOLTAGE CONTROL OPTIONS

TTL, HCMOS, ACMOS, SINEWAVE, CLIPPED SINEWAVE, ECL, AND PECL

SPECIFICATIONS

FREQUENCY RANGE

1.00 MHz TO 800.00 MHz (SEE TABLE 1)

A: ±0.5 PPM OVER 0° C TO 50° C

B: ±1.0 PPM OVER 0° C TO 70° C

C: ±1.0 PPM OVER -20° C TO 70° C

D: ±1.5 PPM OVER -30° C TO 75° C

E: ±2.0 PPM OVER -40° C TO 85° C

±1.0 PPM MAXIMUM

±1.0 PPM MAXIMUM PER YEAR

-50° C TO 90° C

SEE TABLE 1 FOR OUTPUT TYPES

SEE TABLE 1 FOR LOAD CHARACTERISTICS

±0.1 PPM MAXIMUM FOR ±10% VARIATION FROM STANDARD LOAD

+5.0 VDC ±5%

±0.2 PPM MAXIMUM FOR ±5% VARIATION FROM NOMINAL SUPPLY

SEE TABLE 1 FOR CURRENT CHARACTERISTICS

±5.0 PPM MINIMUM BY INTERNAL TRIMMER

SEE TABLES 2 AND 3 FOR PIN FUNCTION AND VOLTAGE

SEE TABLE 4 FOR CHARACTERISTICS

SEE TABLE 5

TX 100 AND TV100

FREQUENCY STABILITY OVER OPERATING

TEMPERATURE

FREQUENCY STABILITY VS. CALIBRATION

FREQUENCY STABILITY VS. AGING

STORAGE TEMPERATURE RANGE

OUTPUT WAVEFORM

LOAD

FREQUENCY STABILITY VS. LOAD VARIATION

SUPPLY VOLTAGE

FREQUENCY STABILITY VS. SUPPLY VARIATION

SUPPLY CURRENT

MECHANICAL FREQUENCY ADJUSTMENT

ENABLE/DISABLE FUNCTION (TE OPTION)

VOLTAGE CONTROL FUNCTION (TV OPTION)

ENVIRONMENTAL CONDITIONS

OUTPUT WAVEFORM AND LOAD CHARACTERISTICS

TABLE 1 - OUTPUT WAVEFORM AND CHARACTERISTICS, FREQUENCY RANGE, AND MODE OF OSCILLATION

OUTPUT

WAVEFORM

CLIPPED SINEWAVE

OUTPUT

CODE

FREQUENCY RANGE

MODE OF

OSCILLATION CODE

F: FUNDAMENTAL

OUTPUT CHARACTERISTICS

LOAD: 10 K OHM // 10pF

OUTPUT LEVEL: 0.7 V P-P MINIMUM

SYMMETRY: 60/40 % TO 40/60 % TYPICAL

8.00 MHz TO 40.00 MHz

TTL

1.00 MHz TO 36.00 MHz

30.00 MHz TO 100.00 MHz

32.00 MHz TO 160.00 MHz

LOAD: HCMOS TO DRIVE 2 LS TTL NOMINAL OR 10 LS TTL MAXIMUM GATES

"1" LEVEL: +2.4 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.1 VCC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 1.2 V

P: PHASE LOCKED LOOP (PLL)

RISE AND FALL TIME: 10 ns MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 2 LS TTL/HCMOS NOMINAL OR 10 LS TTL/HCMOS MAXIMUM GATES

"1" LEVEL: +4.5 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.5 VDC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 50% VCC LEVEL

P: PHASE LOCKED LOOP (PLL) RISE AND FALL TIME: 10 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 2 LS TTL/ACMOS NOMINAL OR 10 LS TTL/ACMOS MAXIMUM GATES

"1" LEVEL: +4.5 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.5 VDC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 50% VCC LEVEL

P: PHASE LOCKED LOOP (PLL) RISE AND FALL TIME: 10 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 50 OHMS NOMINAL

OUTPUT LEVEL: 0 dBm MINIMUM

HARMONICS: -25 dBc MAXIMUM

SPURIOUS: -60 dBc MAXIMUM

CURRENT: 20 mA MAXIMUM

HCMOS

1.00 MHz TO 36.00 MHz

36.00 MHz TO 100.00 MHz

32.00 MHz TO 160.00 MHz

ACMOS

1.00 MHz TO 36.00 MHz

36.00 MHz TO 100.00 MHz

32.00 MHz TO 160.00 MHz

SINEWAVE

8.00 MHz TO 40.00 MHz

F: FUNDAMENTAL

ECL

100.00 MHz TO 800.00 MHz

LOAD: 50 OHMS CONNECTED TO +3.0 VDC

"1" LEVEL: +3.975 VDC MINIMUM

"0" LEVEL: +3.38 VDC MAXIMUM

P: PHASE LOCKED LOOP (PLL) SYMMETRY: 40/60 TO 60/40% AT +3.65 VDC LEVEL

RISE AND FALL TIME: 5 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 130 mA MAXIMUM

LOAD: 50 OHMS CONNECTED TO +3.0 VDC

"1" LEVEL: +3.975 VDC MINIMUM

"0" LEVEL: +3.38 VDC MAXIMUM

P: PHASE LOCKED LOOP (PLL) SYMMETRY: 40/60 TO 60/40% AT +3.65 VDC LEVEL

RISE AND FALL TIME: 5 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 130 mA MAXIMUM

PECL

100.00 MHz TO 800.00 MHz

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
