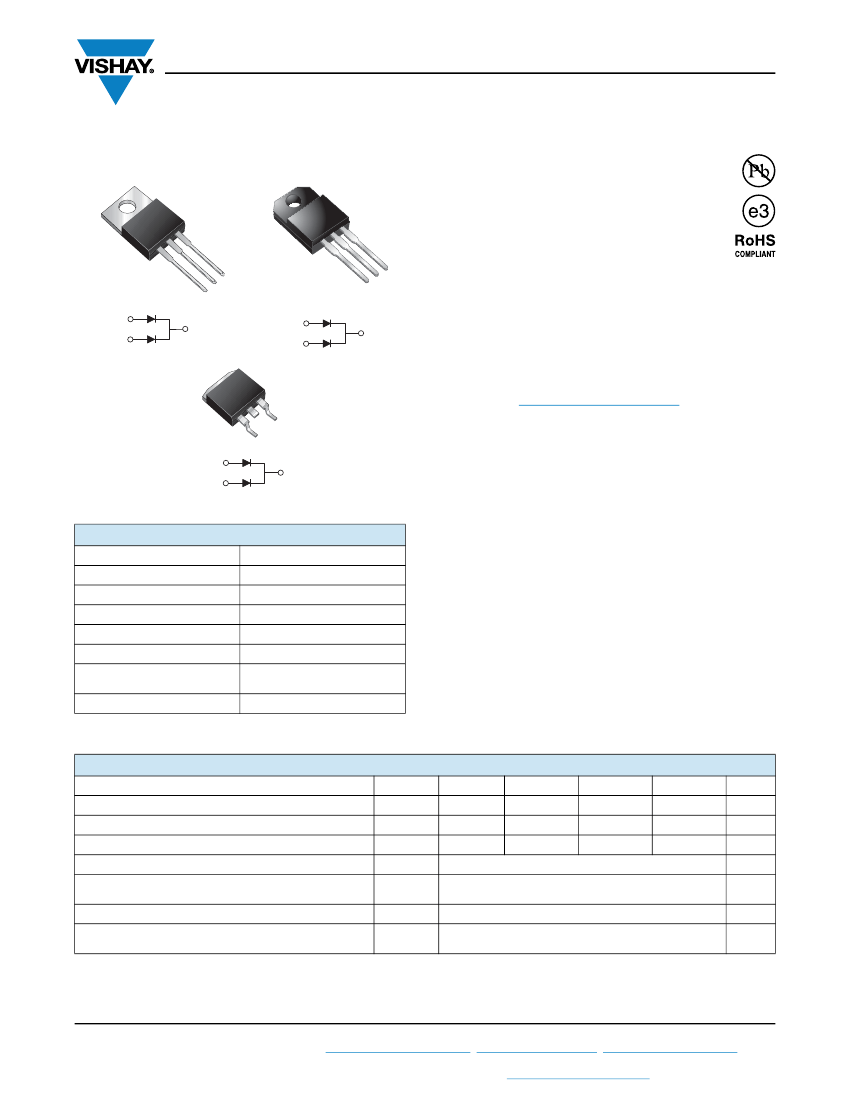

BYV32-xxx, BYVF32-xxx, BYVB32-xxx
www.vishay.com
Vishay General Semiconductor
Dual Common-Cathode Ultrafast Rectifier
FEATURES
TO-220AB
ITO-220AB
• Power pack
• Glass passivated pellet chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low forward voltage drop
2
BYV32 Series
PIN 1
PIN 3
PIN 2
CASE
3
1
BYVF32 Series
PIN 1
PIN 3
PIN 2
2
3
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
245 °C (for TO-263AB package)
• Solder dip 275 °C max. 10 s, per JESD 22-B106
(for TO-220AB and ITO-220AB package)
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
1
TO-263AB
K
2
1
BYVB32 Series
PIN 1
PIN 2
K
HEATSINK
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes, DC/DC
converters, and other power switching application.
MECHANICAL DATA
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Diode variations
18 A
50 V to 200 V
150 A
25 ns
0.85 V
150 °C
TO-220AB, ITO-220AB,
TO-263AB
Common cathode
Case:
TO-220AB, ITO-220AB, TO-263AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs max.
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
= 125 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load per diode
Operating storage and temperature range
Isolation voltage (ITO-220AB only)
from terminal to heatsink t = 1 min
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
BYV32-50
50
35
50
BYV32-100
100
70
100
18
150
-65 to +150
1500
BYV32-150
150
105
150
BYV32-200
200
140
200
UNIT
V
V
V
A
A
°C
V
Revision: 23-Feb-16
Document Number: 88558
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV32-xxx, BYVF32-xxx, BYVB32-xxx
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage per diode
Maximum DC reverse current
per diode
at rated DC blocking voltage
Maximum reverse recovery time
per diode
Typical junction capacitance
per diode
TEST CONDITIONS
I
F
= 20 A
F
SYMBOL BYV32-50 BYV32-100 BYV32-150 BYV32-200 UNIT
V
F (1)
1.15
0.85
10
I
R
t
rr
C
J
600
25
45
μA
ns
pF
V
T
J
= 25 °C
T
J
= 100 °C
T
J
= 25 °C
T
J
= 100 °C
= 5.0 A
I
F
= 1 A, V
R
= 30 V
dI/dt = 100 A/μs, I
rr
= 10 % I
RM
4.0 V, 1 MHz
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance from junction to case per diode
SYMBOL
R
JC
BYV
1.6
BYVF
5.0
BYVB
1.6
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
Note
(1)
AEC-Q101 qualified
PREFERRED P/N
BYV32-200-E3/45
BYVF32-200-E3/45
BYVB32-200-E3/45
BYVB32-200-E3/81
BYV32-200HE3/45
(1)
BYVF32-200HE3/45
(1)
BYVB32-200HE3/45
(1)
BYVB32-200HE3/81
(1)
UNIT WEIGHT (g)
1.85
1.97
1.35
1.35
1.85
1.97
1.35
1.35
PACKAGE CODE
45
45
45
81
45
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tube
Tape and reel
Revision: 23-Feb-16
Document Number: 88558
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV32-xxx, BYVF32-xxx, BYVB32-xxx
www.vishay.com
Vishay General Semiconductor
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
20
1000
Average Forward Rectified Current (A)
16
Instantaneous Reverse Leakage
Current (μA)
18
100
T
C
= 100 °C
12
10
8
1
T
C
= 25 °C
0.1
4
Resistive or Inductive Load
0
0
25
50
75
100
125
150
0
20
40
60
80
100
Case Ambient Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics Per Diode
150
60
T
J
= 150 °C
10 ms
Single
Half
Sine-Wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Peak Forward
Surge
Current (A)
100
Junction Capacitance (pF)
125
50
40
75
30
50
20
25
10
0
1
10
100
0
1
10
100
Number of Cycles at 50 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Per Diode
Fig. 5 - Typical Junction Capacitance Per Diode
100
Instantaneous Forward Current (A)
10
T
J
= 125 °C
T
J
= 25 °C
1
0.1
Pulse Width = 300 μs
1 % Duty Cycle
0.01
0.1
0.3
0.5
0.7
0.9
1.1
1.3
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics Per Diode
Revision: 23-Feb-16
Document Number: 88558
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV32-xxx, BYVF32-xxx, BYVB32-xxx
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
Vishay General Semiconductor
0.404 (10.26)
0.384 (9.75)
ITO-220AB
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.135 (3.43) DIA.
0.122 (3.08) DIA.
45° REF.
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.33 (8.38) MIN.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 23-Feb-16
Document Number: 88558
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
