SMA-000032-3DY30

Description
XO, Clock, 0.032768MHz Nom
CategoryPassive components    oscillator
File Size48KB，1 Pages
ManufacturerAker Technology Company Ltd
Websitehttp://www.aker-usa.com
Environmental Compliance
Download Datasheet Parametric View All

SMA-000032-3DY30 Overview

XO, Clock, 0.032768MHz Nom

SMA-000032-3DY30 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1148394408
Reach Compliance Codecompliant
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency0.032768 MHz
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
Package body materialCERAMIC
Encapsulate equivalent codeDILCC4,.1,83
power supply1.8 V
Certification statusNot Qualified
Maximum slew rate1.5 mA
Nominal supply voltage1.8 V
surface mountYES
Terminal surfaceMatte Tin (Sn)

Preview

Download Datasheet

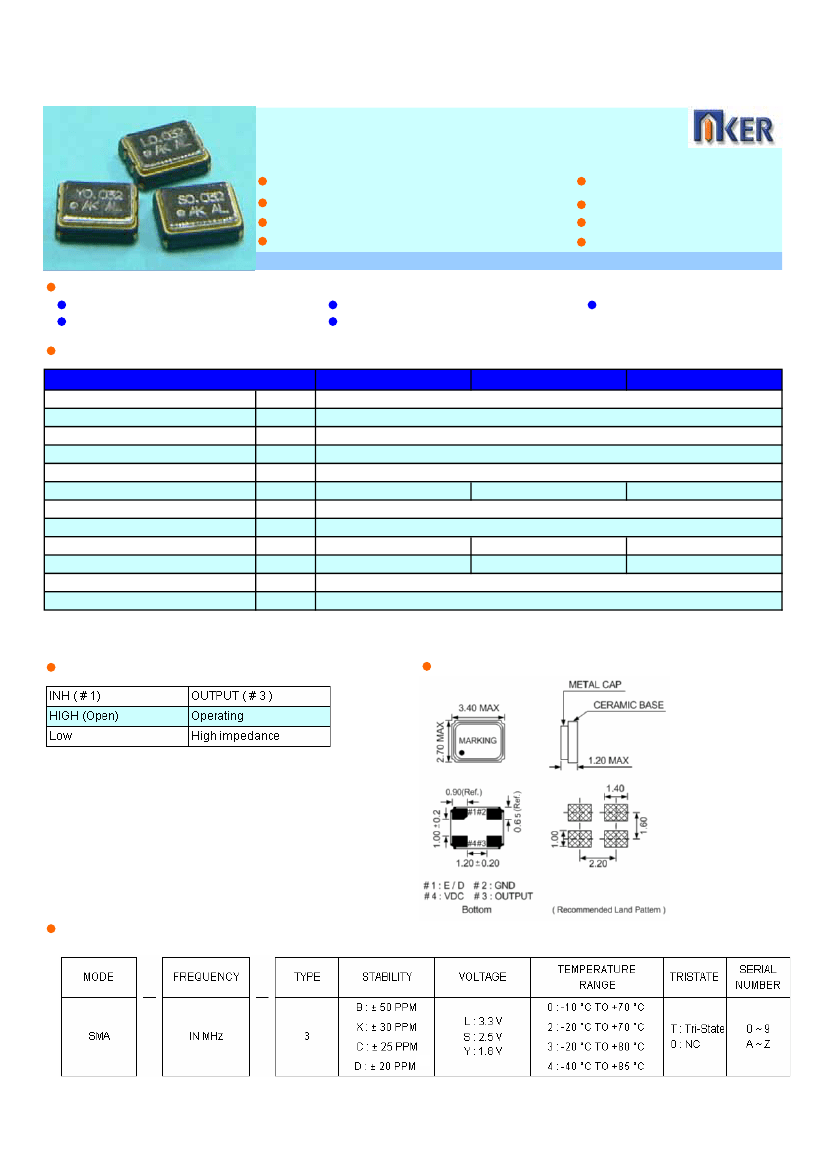

CRYSTAL OSCILLATORS
SMA-321 SERIES ( Ceramic Package )
Applications：
PCMCIA Card
Notebook PC
Portable PC
HDD
DOA Terminal
CCD
Digital Camera
Wireless LAN
Features
Seam welding type
Excellent solderability
Tri-State
RoHS Compliant
Low Power Consumption
Specification
MODE
FREQ. RANGE
FREQ. STABILITY*
TEMP. RANGE
OPERATING TEMP.
STORAGE TEMP.
POWER SUPPLY VOLTAGE
OUTPUT LEVEL
OUTPUT SYMMETRY
INPUT CURRENT
RISE / FALL TIME
OUTPUT LOAD
AGING
MHz
ppm
°C
°C
V DC
%**
mA(Max.)
nS(Max.)
ppm/Year
SMA-321Y
SMA-321S
SMA-321L
32.768 KHz
A: ± 100 B: ± 50 X: ± 30 C: ± 25 D: ± 20
0 ~ + 70，- 40 ~ + 85
- 55 ~ + 125
+2.5±5%
CMOS
40~60 ( at 50% VDD )
2.5
50
15 pF
±3
+1.8±5%
+3.3±10%
1.5
50
3.5
50
*Inclusive of 25°C±3°C & Operating Temperature Range
。
**Symmetry of 45~55% is available。
Enable / Disable Function
Dimension (mm)
Parts Numbering Guide
Example: SMA-000032-3BL0T0
