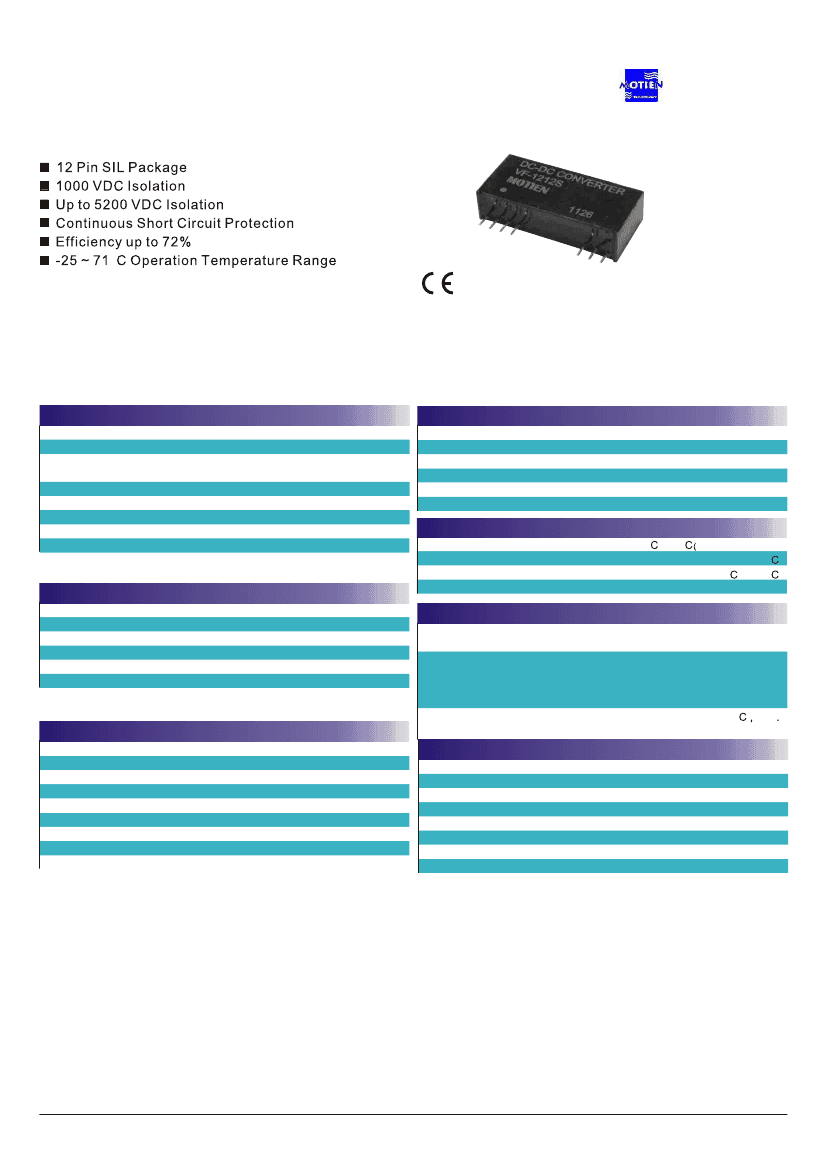

he VF series is a family of cost effective 2W single output DC-DC converters. These converters combine miniature package in a 12-pin
SIL compatible case with high performance features such as 1000 VDC~5200 VDC input/output isolation voltage, continuous short
circuit protection with automatic restart and hight line / load regulation. Devices are encapsulated using flame retardant resin. Input
voltages of 5, 12, 24 with output voltage of 3.3, 5, 7.2, 9, 12, 15, 18, 24 Vdc. High performance features include high efficiency operation
up to 72% and output voltage accuracy of
±2%
maximum. Standard features include an input range of
±10%
tolerance and low output noise
and ripple.
All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple & noise
(20 MHz bandwidth)(1)
Short Circuit Protection
Temperature coefficient
Capacitor load
(2)
±2%
±0.5%
(From 0% to 100% Load)
±0.5%
(Output 3.3V Model)
±1.5%
75mV pk-pk
Indefinite(Automatic Recovery)
±0.02%/°C
See table
PHYSICAL SPECIFICATIONS
Case Material
Non-conductive Black Plastic(UL94V-0 rated)
Pin Material
0.5mm
Alloy42 Solder-coated
Epoxy (UL94V-0 rated)
Potting Material
7.2g
Weight
1.26”x0.32”x0.57”
Dimensions
T
INPUT SPECIFICATIONS
Voltage Range
Max. Input Current
No-Load Input Current
Input Filter
Input Reflected Ripple Current
(3)
ENVIRONMENT SPECIFICATIONS
Operating Temperature
-25° ~71°
See Derating Curve)
Maximum Case Temperature
100°
Storage Temperature
-40° ~125°
Cooling
Nature Convection
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input Surge Voltage
(100mS)
5 Models
7 Vdc ,max.
12 Models
15 Vdc ,max.
24 Models
28 Vdc ,max.
Soldering Temperature
260° max
(1.5mm from case 10 sec. max.)
±10%
See table
See table
Capacitor
20mA pk-pk
GENERAL SPECIFICATIONS
Efficiency
I/O Isolation Voltage
(3 sec)
Input/Output
I/O Isolation Capacitance
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217 F)
Safety Standard :
(designed to meet)
See table
1000~5200Vdc
60 pF Typ.
1000M Ohm
50kHz typ
95% rel H
>1.12 Mhrs
IEC 60950-1
EMC SPECIFICATIONS
Radiated Emissions
Conducted Emissions
(6)
ESD
RS
EFT
(7)
Surge
(7)
CS
PFMF
EN55022
EN55022
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
Perf.
Perf.
Perf.
Perf.
Perf.
Perf.
CLASS B
CLASS B
Criteria A
Criteria A
Criteria A
Criteria A
Criteria A
Criteria A
The information and specifications contained in this data sheet are believed to be correct at time of publication. However,
MOTIEN Technologies
accepts no responsibility for
consequences arising from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s)
or information contained herein.
1
VF - 2W Regulated Single output
PART NUMBER STRUCTURE
Derating Curve
V F - 24 0 5 S 2 H
100%
OUTPUT POWER
Series Name
Input Voltage
05
- 5V
12
- 12V
24
- 24V
2Watt
SIP Case
Output Voltage
3R3
- 3.3V
05
- 5V
7R2
- 7.2V
09
- 9V
12
- 12V
15
- 15V
18
- 18V
24
- 24V
High Isolation
Optional, if no suffix
“H”
mean 1 KVDC Isolation
H
- 3KVdc Isolation
H4
- 4KVdc Isolation
H5
- 5.2KVdc Isolation
75%
50%
S.O.A.
S.O.A.
-15
0
20
40
60
71
80
100
120
AMBIENT TEMPERATURE(°
25%
-25
MODEL SELECTION GUIDE
MODEL NUMBER
VF-05 3R3S2
VF-05 05S2
VF-05 7R2S2
VF-05 09S2
VF-05 12S2
VF-05 15S2
VF-05 18S2
VF-05 24S2
VF-12 3R3S2
VF-12 05S2
VF-12 7R2S2
VF-12 09S2
VF-12 12S2
VF-12 15S2
VF-12 18S2
VF-12 24S2
VF-24 3R3S2
VF-24 05S2
VF-24 7R2S2
VF-24 09S2
VF-24 12S2
VF-24 15S2
VF-24 18S2
VF-24 24S2
INPUT
Voltag e Range
(Vdc)
5
5
5
5
5
5
5
5
12
12
12
12
12
12
12
12
24
24
24
24
24
24
24
24
INPUT Curr ent
No- Load
Full L oad
(mA )
(mA)
68
45
90
75
80
95
95
76
30
20
30
45
45
45
50
35
25
25
22
20
20
25
20
20
559
588
625
563
597
571
580
597
250
249
253
253
249
245
256
231
127
132
123
117
119
124
117
116
OUTPUT
Vol tage
(Vdc)
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
OUTPUT Current
Full load
(mA)
500
400
277.7
222.2
166.6
133.3
111.1
83.3
500
400
277.7
222.2
166.6
133.3
111.1
83.3
500
400
277.7
222.2
166.6
133.3
111.1
83.3
EFFICIE NCY
@FL(% )
59
68
64
71
67
70
69
67
55
67
66
66
67
68
65
72
54
63
68
71
70
67
71
72
Capac itor
Load (uF)
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
Suffix
“H”
means 3 KVdc isolation
Suffix
“H4”
means 4 KVdc isolation
Suffix
“H5”
means 5.2 KVdc isolation
The models listed above is just for standard type. If you need the special specification product, please contact our service member by telephone presented in shortform cover or e-mail
to : sales@motien.com.tw
2
VF - 2W Regulated Single output
TEST CONFIGURATIONS
Input Reflected Ripple Current Test Step
Input reflected ripple current is measured through
a source inductor Lin(12uH) and a source capacitor
Cin(47uF, ESR<1.0Ù
at 100KHz) at nominal input and
full load.
+Vout
Lin
Current
Probe
Cin
+Vin
DC/DC
Converter
-Vin
-Vout
Load
+Vout
Output Ripple & Noise Measurement Test
The Scope measurement bandwidth is 20MHz .
DC/DC
Converter
-Vout
Scope
Load
EMI Filter
Input filter components (C1, L ) are used to help
meet conducted emissions requirement for the module.
These components should be mounted as close as
possible to the module; and all leads should be minimized
to decrease radiated noise.
C1
+Vout
L
+Vin
DC/DC
Converter
-Vin
-Vout
Load
C1
VF-05XXXXXX
VF-12XXXXXX
VF-24XXXXXX
220uF/100V
220uF/100V
220uF/100V
L
12uH
12uH
12uH
NOTE
1.Ripple/Noise measured with 20MHz bandwidth.
2.Tested by minimal Vin and constant resistive load.
3.Measured Input reflected ripple current with a simulated source inductance of 12uH.
4.Exceeding the absolute ratings of the unit could cause damage. It is not allowed for continuous operating.
5.Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications.
6 . Input filter components are be required to help meet conducted emission class B, which application refer to the EMI Filter of design &
feature configuration.
7. An external filter capacitor is required if the module has to meet IEC61000-4-4 and IEC61000-4-5.
The filter capacitor Motien suggest: Nippon - chemi - con KY series, 470uF/100V.
The models listed above is just for standard type. If you need the special specification product, please contact our service member by telephone presented in shortform cover or e-mail
to : sales@motien.com.tw
3
VF - 2W Regulated Single output

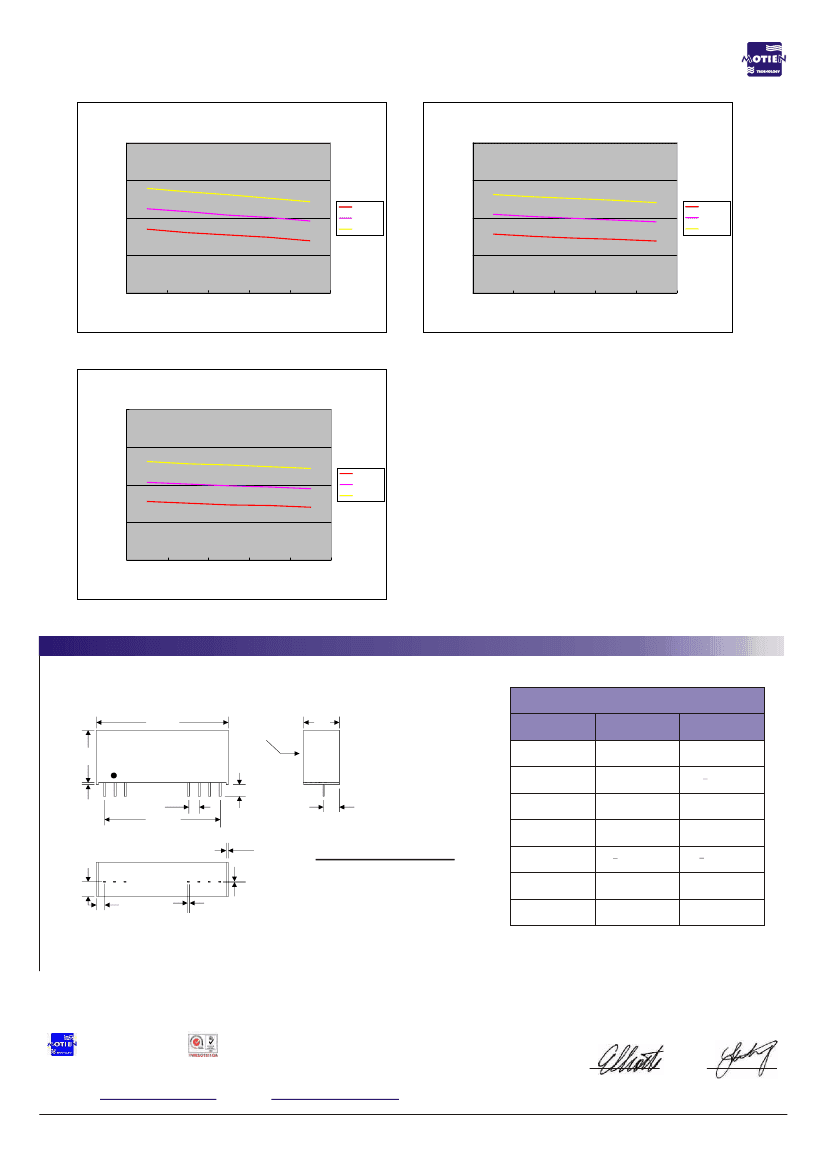

LOADING VS OUTPUT VOLTAGE
7.000
7.000
LOADING VS OUTPUT VOLTAGE
6.000
6.000
Output Voltage
Output Voltage
Lo Line/Iin
Lo Line/Iin
5.000
Nominal/In
i
Hi Line/Iin
5.000
Nominal/In
i
Hi Line/Iin
4.000
4.000
3.000
20%
40%
60%
80%
100%
3.000
20%
40%
60%
80%
100%
Load
Load
05 Models
LOADING VS OUTPUT VOLTAGE
7.000
12 Models
6.000
Output Voltage
Lo Line/Iin
5.000
Nominal/In
i
Hi Line/Iin
4.000
3.000
20%
40%
60%
80%
100%
Load
24 Models
MECHANICAL SPECIFICATIONS
PIN CONNECTIONS
32.00
(1.26)
8.00
(0.32)
14.00
(0.55)
DC-DC-CONVERTER
VF-XXXXS2
MOTIEN
XXXX
1
2
3
2.54
(0.10)
27.94
(1.10)
9
10 11 12
Printed Face
PIN NUMBER
1
2
SINGLE
+V Input
N.C.
N.C.
N.C.
V Output
SINGLE-H
+
V Input
V Input
N.C.
N.C.
V Output
3.00
(0.12)
3.00
(0.12)
0.50
(0.02)
3
9
0.68
(0.03)
12 Pin SIL Package
Notes : All dimensions are typical in millimeters ( inches ).
1. Pin diameter: 0.5±0.05 ( 0.02±0.002 )
2. Pin pitch and length tolerance:
±0.35
(
±0.014
)
3. Case Tolerance:
±0.5
(
±0.02
)
10
11
12
1
3.00
(0.12)
2
3
9
10
11 12
0.25
(0.01)
+
V Output
-
V Input
+
V Output
N.C.
2.03
(0.08)
0.50
(0.02)
MOTIEN
ISO 9001 . ISO 14001 . IECQ QC-080000
DRAWING:
APPROVED:
No. 9, Keji 2nd Rd., Tainan Technology Industrial Park, Tainan City 70955, Taiwan
