Part Number

Search

50531-0490N-001

Description
Card Edge Connector, 49 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
CategoryThe connector    The connector

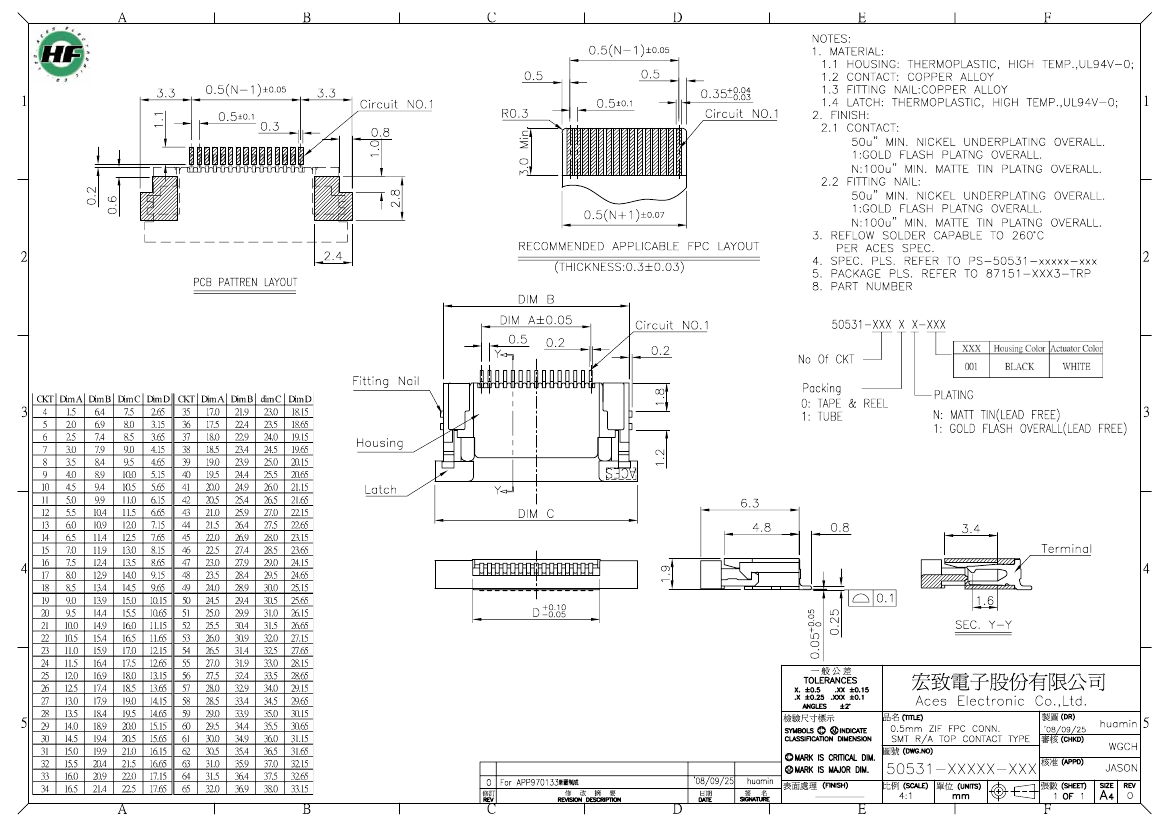

File Size157KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

50531-0490N-001 Overview

Card Edge Connector, 49 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

50531-0490N-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid305618952
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsFITTING NAIL
body width0.075 inch
subject depth0.22 inch
body length1.138 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance55 mΩ
Dielectric withstand voltage250VAC V
Durability30 Cycles
maximum insertion forceZIF N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee3
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation option 2LATCH
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
Plating thickness100u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts49
