EM53S33-19.20-2.0/-10+60 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EM53S33-19.20-2.0/-10+60

EM53S33-19.20-2.0/-10+60: DescriptionClipped Sine Output Oscillator,; CategoryPassive components oscillator; File Size164KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

EM53S33-19.20-2.0/-10+60 Overview

Clipped Sine Output Oscillator,

EM53S33-19.20-2.0/-10+60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8034976731
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Installation features	SURFACE MOUNT
Nominal operating frequency	19.2 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5.0mm x 3.2mm x 1.2mm
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

EURO

QUARTZ

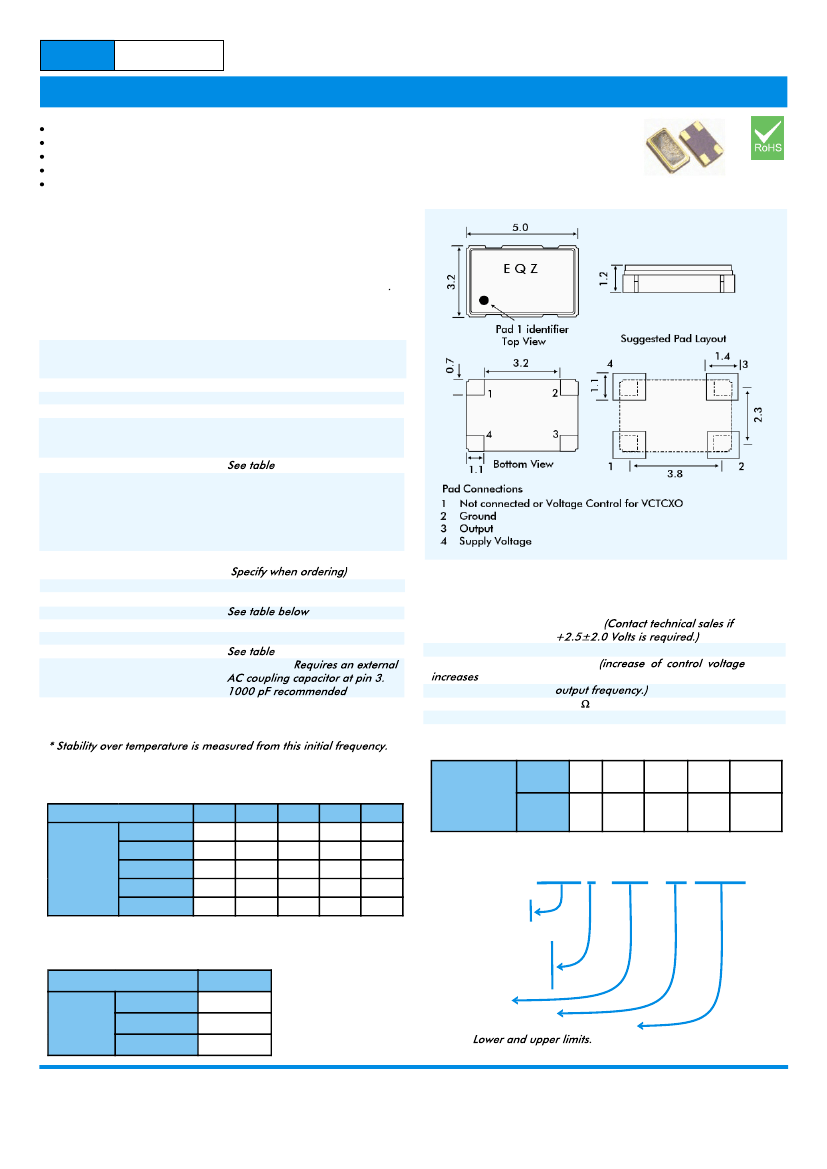

5 x 3.2 x 1.2mm SMD Clipped Sinewave

Micro-miniature SMD package 5 x 3.2mm

Stability from ±1ppm over -30° to +75°C

Supply Voltage from 2.3 Volts to 5.5 Volts

Produced as TCXO or VCTCXO with EFC

Readily customized

EM53S TCXO

6.4MHz to 40MHz

EM53S - OUTLINES AND DIMENSIONS

DESCRIPTION

EM53 series TCXOs are ceramic SMD TCXOs packaged in an industry-

standard, micro-miniature 5 x 3.2mm package. This TCXO can be run

from a supply voltage of 2.3 to 5.5 Volts. Close tolerances from

±1ppm over -30° to +75°C are available. The part can be produced

as either a standard TCXO or a voltage-controlled TCXO (VCTCXO)

SPECIFICATION

Product Series Code

TCXO:

VCTCXO:

Frequency Range:

Output Waveform:

Initial Calibration Tolerance*:

Standard Frequencies:

EM53S

VEM53S

6.4MHz to 40.0MHz

Clipped Sinewave

<±1ppm at 25°C

10.0, 12.80, 13.0, 14.40,

15.36, 16.384, 19.2, 19.440,

and 19.68MHz (Partial list)

Operating Temperature Range:

Frequency Stability

vs. Ageing:

vs. Voltage Change:

vs. Load Change:

vs. Reflow:

Supply Voltage:

Output Voltage Level:

Start-up Time:

Current Consumption:

Output Load:

Harmonic Distortion:

SSB Phase Noise:

Output Format:

±1.0 ppm max. first year

±0.3 ppm max. ±5% change

±0.3 ppm max. ±10% change

±1ppm max. for one reflow

(Measured after 24 hours)

+2.8, +3.0, 3.3 or +5.0Volts

(

0.8V p-p minimum

2ms typical, 5ms max.

10kΩ//10pF ±10%

-10dB typical, -7dB max.

DC coupled.

VEM53S VOLTAGE CONTROL SPECIFICATION

Control Voltage:

Standard = +1.5±1.0Volts for all input

voltages.

±6.0 ppm min.

Positive

Frequency Deviation:

Slope Polarity:

Storage Temperature:

-50° to +100°C

Input Impedance:

1.0M min.

Modulation Bandwidth: 3.0kHz min. measured at -3dB

PHASE NOISE

Offset

(Hz)

-80

100

-115

-135

10k

-148

100k

-148

FREQUENCY STABILITY

Frequency Stability (ppm)

0 ~ +50

-10 ~ +60

Temperature

Range (°C)

-20 ~ +70

-30 ~ +75

-40 ~ +85

±0.5

ASK

±1.0

±1.5

±2.0

±2.5

SSB Phase Noise

at 25°C

EM53S

13MHz

(dBc/Hz)

PART NUMBERING PROCEDURE

Example:

EM53S 3 - 19.44 - 2.5/-30+75

= available, x = not available, ASK = call Technical Sales

CURRENT CONSUMPTION

Supply Voltage

10.0 to 15MHz

Frequency

Range

15.01 to 26MHz

26.01 to 40MHz

Max Current

1.5mA

2.0mA

2.5mA

Series Description

TCXO = EM53S

VCTCXO = VEM53S

Supply Voltage

28 = 2.8 VDC

3 = 3.0 VDC

33 = 3.3 VDC

5 = 5.0 VDC

Frequency (MHz)

Stability over OTR (±ppm)

Operating Temperature Range (OTR) (°C)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
