SL11SMD04029Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SL11SMD04029Z

Preview

SL11SMD04029Z: DescriptionBoard Connector, 29 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

SL11SMD04029Z Overview

Board Connector, 29 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

SL11SMD04029Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1833778612
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SL
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	29

Preview

Download Datasheet

View All

A

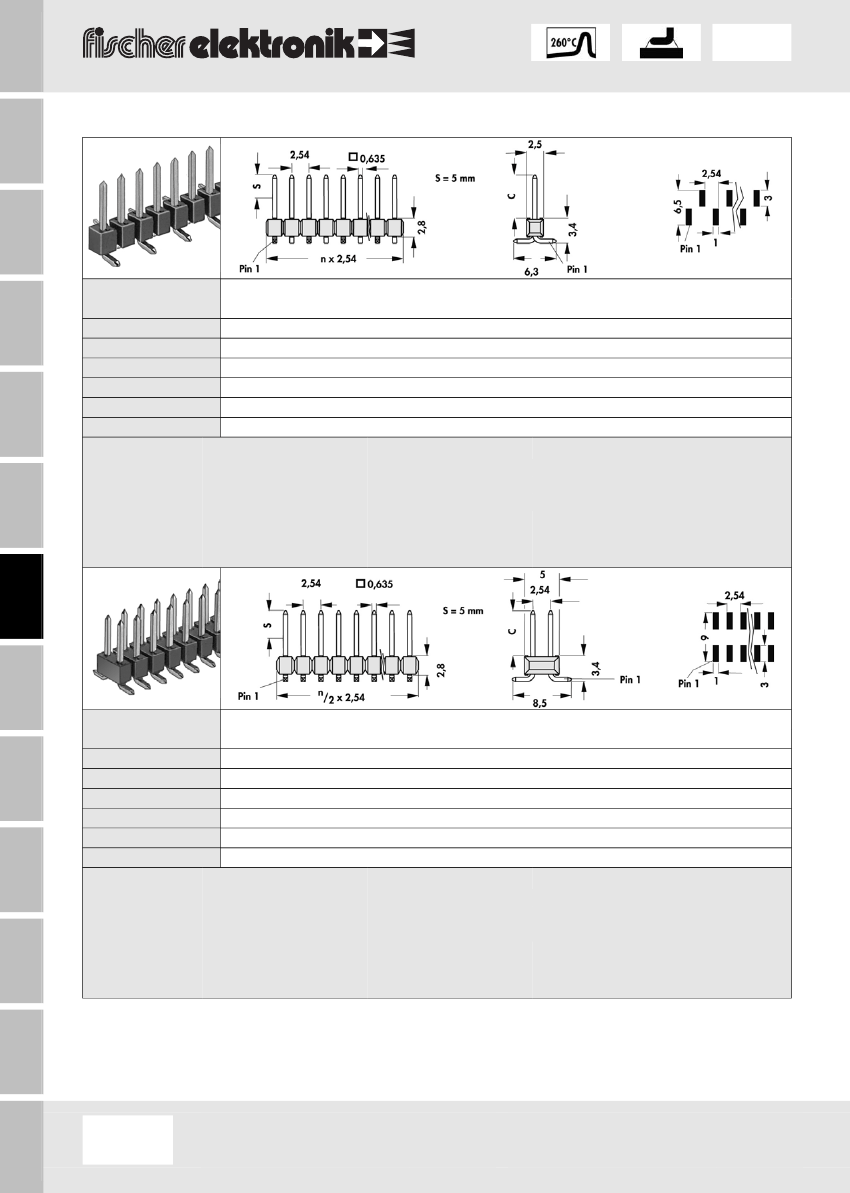

Male headers in SMD mounting

0.635 mm

2.54

B

C

art. no.

dim. [mm]

C

4.00

5.50

6.70

8.20

10.80

13.40

... surface

S =sel. gold-plated

G=gold-plated

Z =tin-plated

... packing (option)

SM

=bar magazine

B SM =pick and place pad and bar

magazine

B TR =pick and place pad and

tape and reel (250

pcs/reel)

D

E

SL

10

SMD

040

052

062

078

104

130

...

... no. of contacts

one row 4-20

please indicate:

F

G

H

art. no.

SL

11

SMD

040

052

062

078

104

130

...

... no. of contacts

two rows 4-40

I

K

dim. [mm]

C

4.00

5.50

6.70

8.20

10.80

13.40

... surface

S =sel. gold-plated

G=gold-plated

Z =tin-plated

... packing (option)

SM

=bar magazine

B SM =pick and place pad and bar

magazine

B TR =pick and place pad and

tape and reel (250

pcs/reel)

please indicate:

L

... packing (option) - additions:

SL 10 SMD 052-104 ...: ... SM; ... B SM, 4-20 contacts

SL 10 SMD 052-078 ...: ... B TR, 4-12 contacts

SL 11 SMD 052-104 ...: ... SM; ... B SM, 6-40 contacts

Male headers 2.54 solder

Male headers 2.00 SMD

Single contacts metal strip

Technical data

M

N

G 37

➔

G

8

61 - 62

26

75 - 80

High-prec. fem. headers 2.54 sold.

Female headers 2.00 SMD

Female headers 2.54 press-fit

Jumpers

➔

G

31 - 34

64

53

77 - 78
